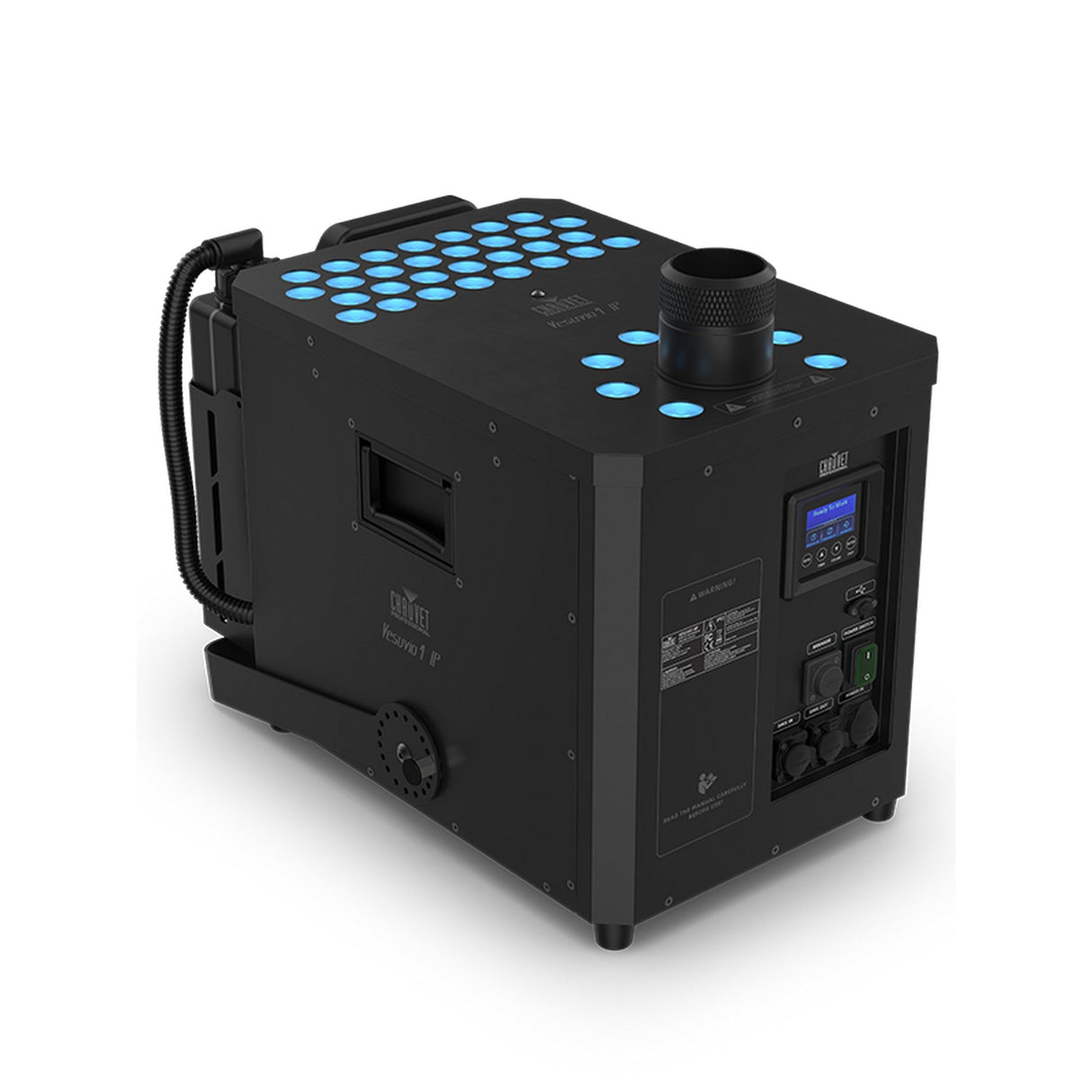

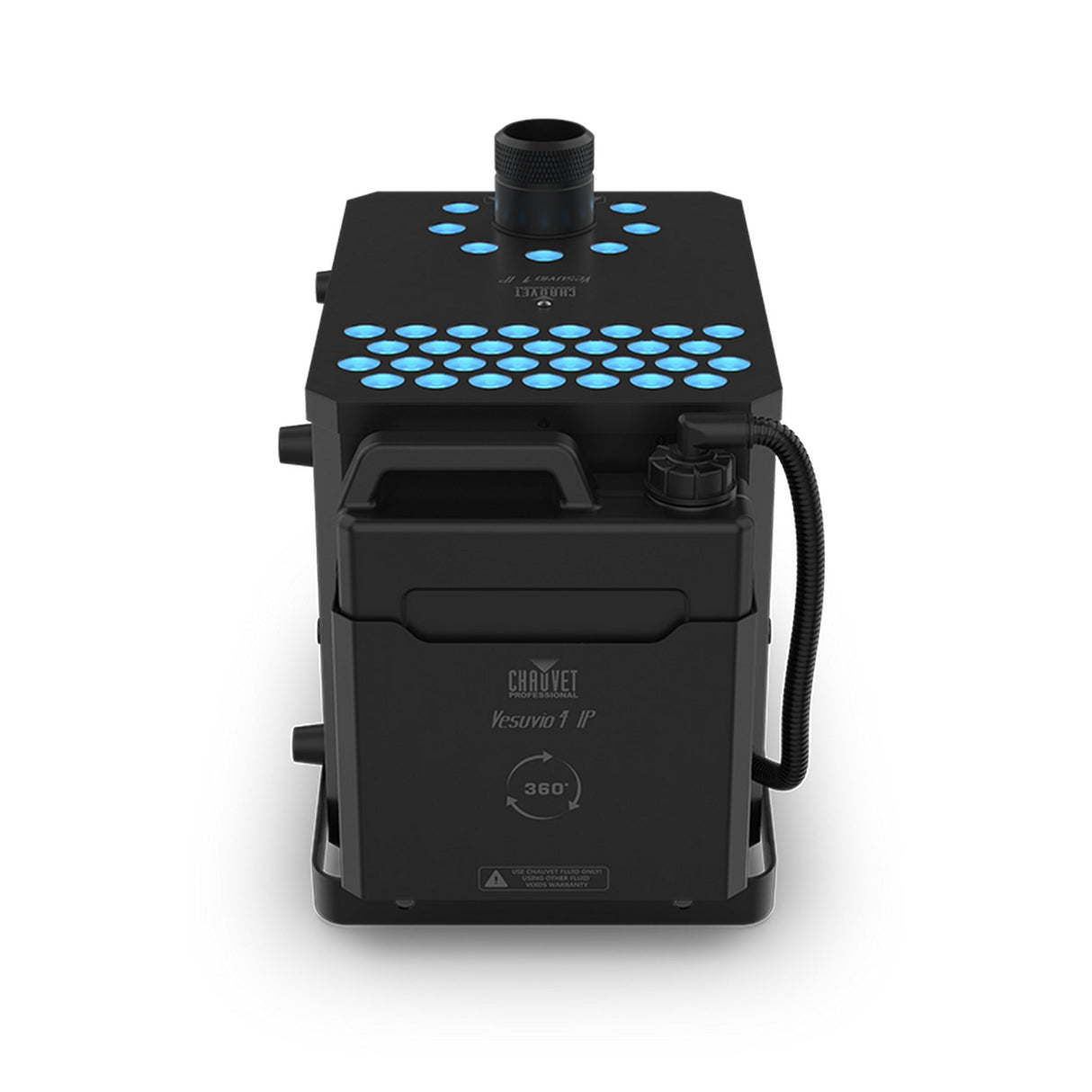

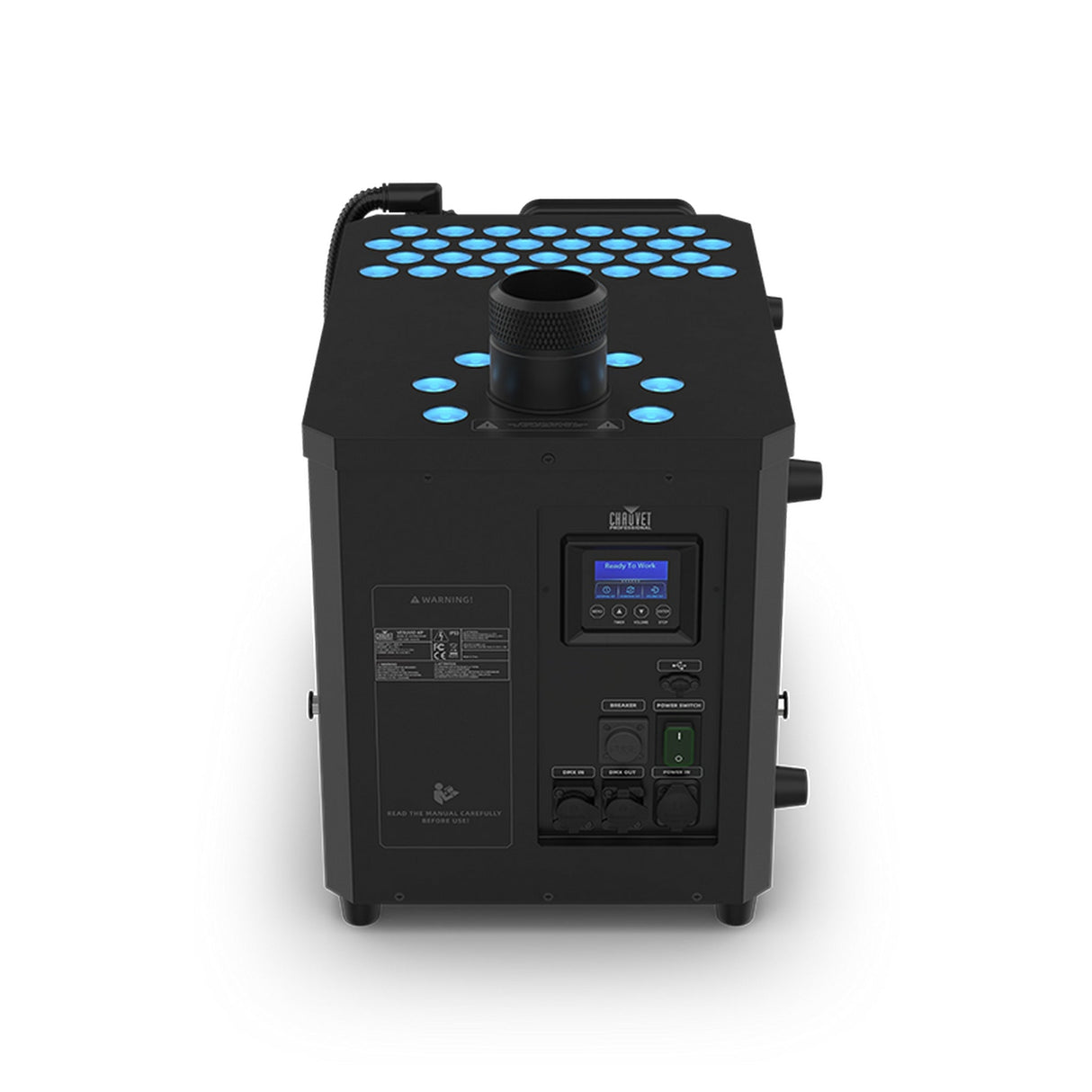

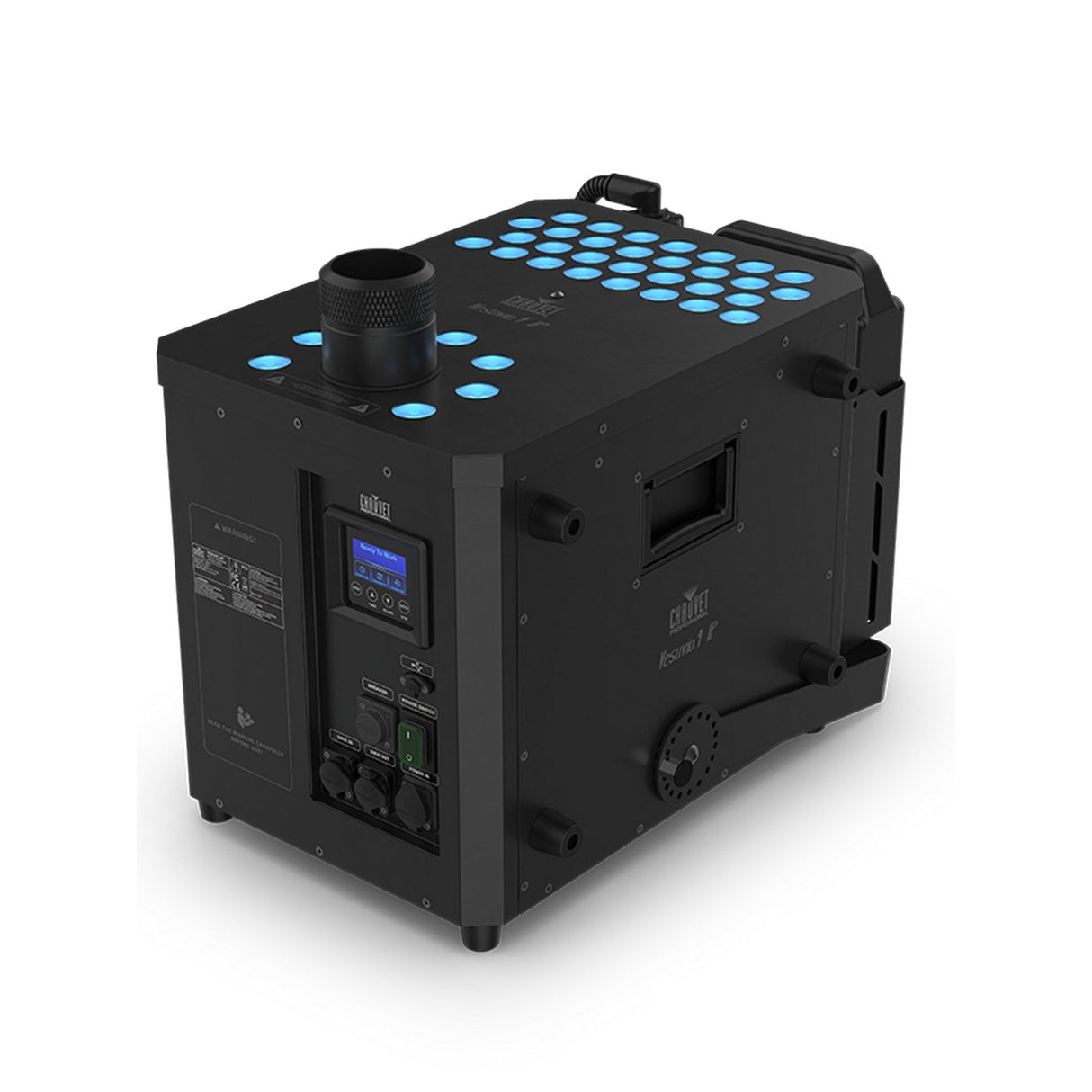

Chauvet Professional Vesuvio 4 IP Vertical Fogger
Chauvet Professional Vesuvio 4 IP is a vertical fogger designed for large scale indoor and outdoor production environments. It enables high impact illuminated fog bursts for lighting designers and show operators, supporting dramatic atmospheric effects without the use of pressurized gas systems. This makes it ideal for festivals, concerts, and touring productions where powerful visual accents are required.
The unit combines a high output fog system with integrated RGBA LED illumination for colorized fog effects. Dual zone LED control allows dynamic color treatment within each burst. Multiple control options support standalone operation, wireless triggering, and DMX based integration.
This fogger is built for touring and rental use with an IP rated housing and integrated road case. Flexible mounting options allow operation in vertical, horizontal, or overhead configurations. An internal drainage system simplifies cleanup after use.
Key Features
- Vertical Fog Burst System: Produces high impact CO2 style fog effects without gas tanks.
- Dual Zone RGBA Lighting: Integrated LEDs enable dynamic color effects within fog bursts.
- Outdoor Rated Construction: IP53 design supports temporary outdoor and wet use.
- Flexible Operation Modes: Can be used vertically, horizontally, or overhead.
- Multiple Control Options: Supports onboard control, wireless RF remote, DMX, and RDM.
- Tour Ready Design: Ships in a custom road case for transport and rental use.
Technical Specifications
OpticalLight Source: 37 LEDs (RGBA)
Dynamic Effects
Dimmer: Electronic
Shutter Strobe: Electronic
Low Fluid Shutdown: No
Standalone Color Mixing: No
Built in Automated Programs: Yes No
Construction / Physical
Dimensions: 20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)
Weight: 72.2 lb (32.75 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, stainless steel
Tank Capacity: 1.4 gal (5.3 l)
Fluid Consumption: 22 ml min
IP Rating: IP53
Heat up Time: 13 min
Maximum Runtime: 45 second bursts
Connections
Power Input: Seetronic Powerkon IP65
Data Connectors: 5 pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Firmware upgrades: USB type C
Control
Control Protocol: DMX, RDM, RF Remote
DMX Channels: 14
Modes Personalities: 1 personalities (14)
On Board Control: Yes
Included Remote: Yes
Electrical
Input Voltage: 208 VAC, 60 Hz
Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz
Breaker Size: 16 A, 250 V
What’s in the Box
(1) Vesuvio 4 IP(1) Seetronic Powerkon Cable
(2) Omega Brackets
(1) RF Remote
