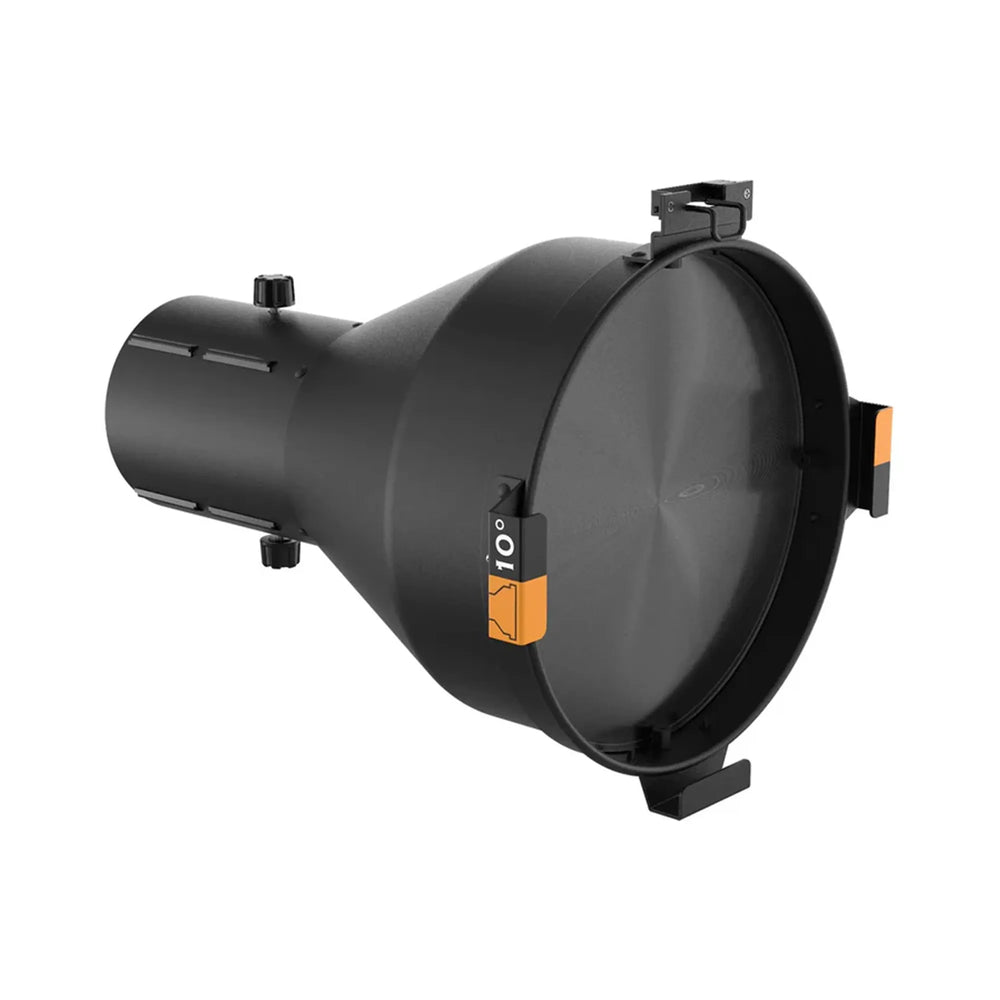

Chauvet Professional OHDLENS10 Ovation Ellipsoidal HD Lens Tube, 10-Degree

Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.

Key Features

• Fixed focal length lens tube for the Ovation ellipsoidal fixtures
• Dual aspheric lenses provide precise focus for crisp gobo projection
• Integrated gel frame holder and gel frame included

Technical Specifications

OPTICAL
Installed Optics (5°)
5°
Installed Optics (10°)
10°
Installed Optics (14°)
14°
Installed Optics (19°)
19°
Installed Optics (26°)
26°
Installed Optics (36°)
36°
Installed Optics (50°)
50°
CONSTRUCTION / PHYSICAL
Dimensions (5° lens)
24.5 x 14.17 x 14.48 in (622.4 x 360 x 368 mm)
Dimensions (10° lens)
15.78 x 12.16 x 12.48 in (400.9 x 309 x 317 mm)
Dimensions (14° lens)
12.7 x 7.8 x 8 in (323 x 198 x 204 mm)
Dimensions (19°, 26°, 36°, and 50° lens)
9.64 x 6.85 x 6.85 in (245 x 174 x 174 mm)
Weight (5°)
5.8 lb (2.7 kg)
Weight (10°)
3.8 lb (1.8 kg)
Weight (14°)
5.4 lb (2.4 kg)
Weight (19°)
4.2 lb (1.9 kg)
Weight (26°)
4.0 lb (1.8 kg)
Weight (36°)
3.8 lb (1.7 kg)
Weight (50°)
4.0 lb (1.8 kg)
Accessory Holder/ Gel Frame Size (5° lens)
14 in (356 mm)
Accessory Holder/ Gel Frame Size (10° lens)
12 in (304 mm)
Accessory Holder/ Gel Frame Size (14° lens)
7.50 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens)
6.25 in (159 mm)
CERTIFICATIONS / QUALIFICATIONS
IP Rating
IP65, outdoor/wet
WHAT'S INCLUDED
OHDLENS5
OHDLENS10
OHDLENS14
OHDLENS19
OHDLENS26
OHDLENS36
OHDLENS50
