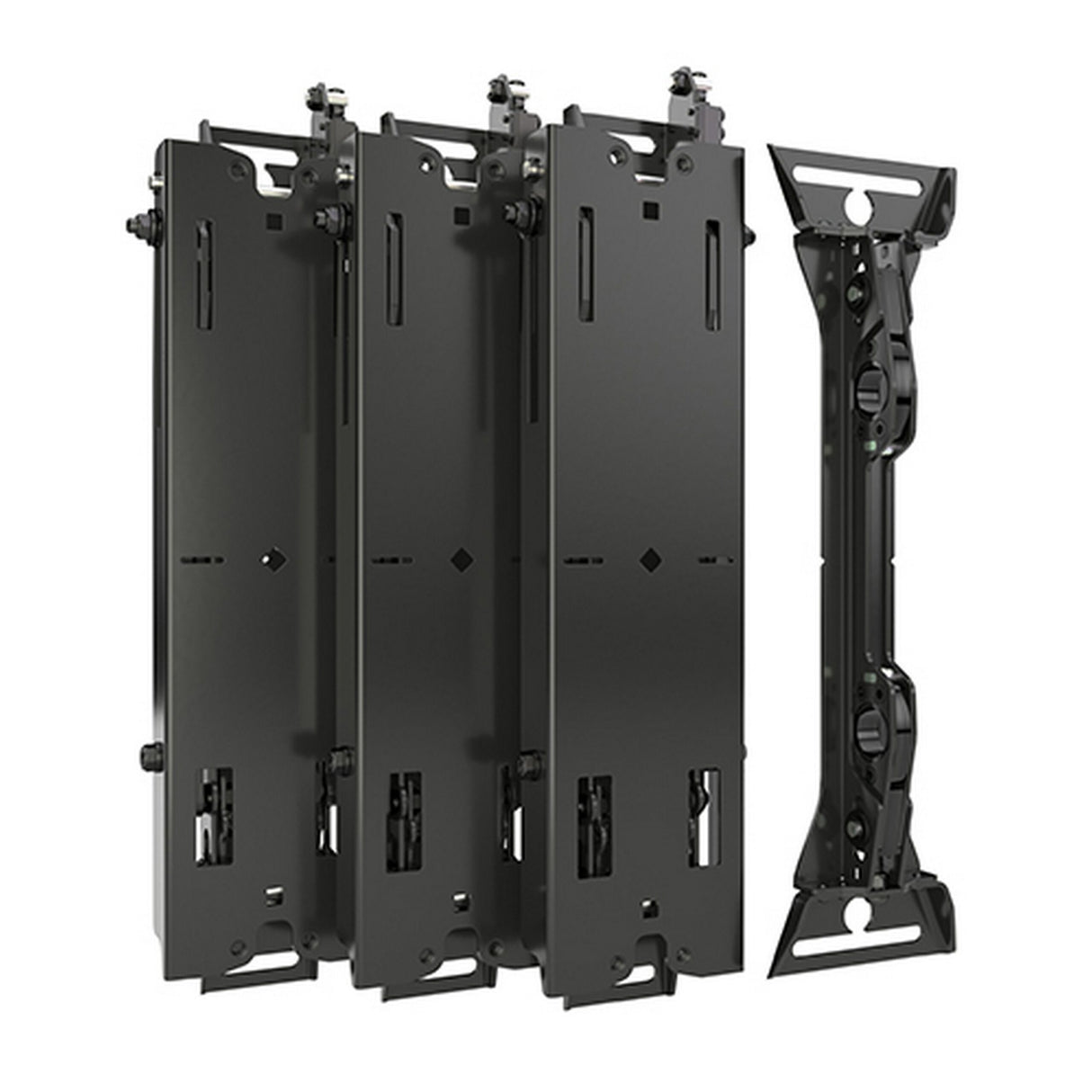

Chief FCAXV1U Fusion Extra-Large Pull Out Accessory
Chief FCAXV1U Fusion Extra-Large Pull Out Accessory
Free Shipping
Chief FCAXV1U Fusion Extra-Large Pull Out Accessory
The Fusion Extra-Large Pull Out accessory can be used with Fusion Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall. Compatible display mount models are XSM1U and XTM1U. Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Key Features
- Up to 11.54ā (293 mm) extension when combined with Fusion mount - great for recessed applications
- Scissor assembly extends out up to 9.5"
- Plumb adjust to keep display in line with the wall
- Latch to secure mount in home position
- Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80ā+ displays (up to 250 lb / 113 kg)
Technical Specifications
Certifications
UL Listed
Color
Black
Extension
11.54" (293 mm)
Minimum Depth
Retracted depth without mount: 1.56" (39 mm)
Plumb Adjustment
+0.5 / -2
Solution Type
Universal
Typical Screen Sizes
55 - 100"
Wall Stud Compatibility In
16" (406 mm)
Weight Capacity
250 lbs (113 kg), please see Installation Manual for details
