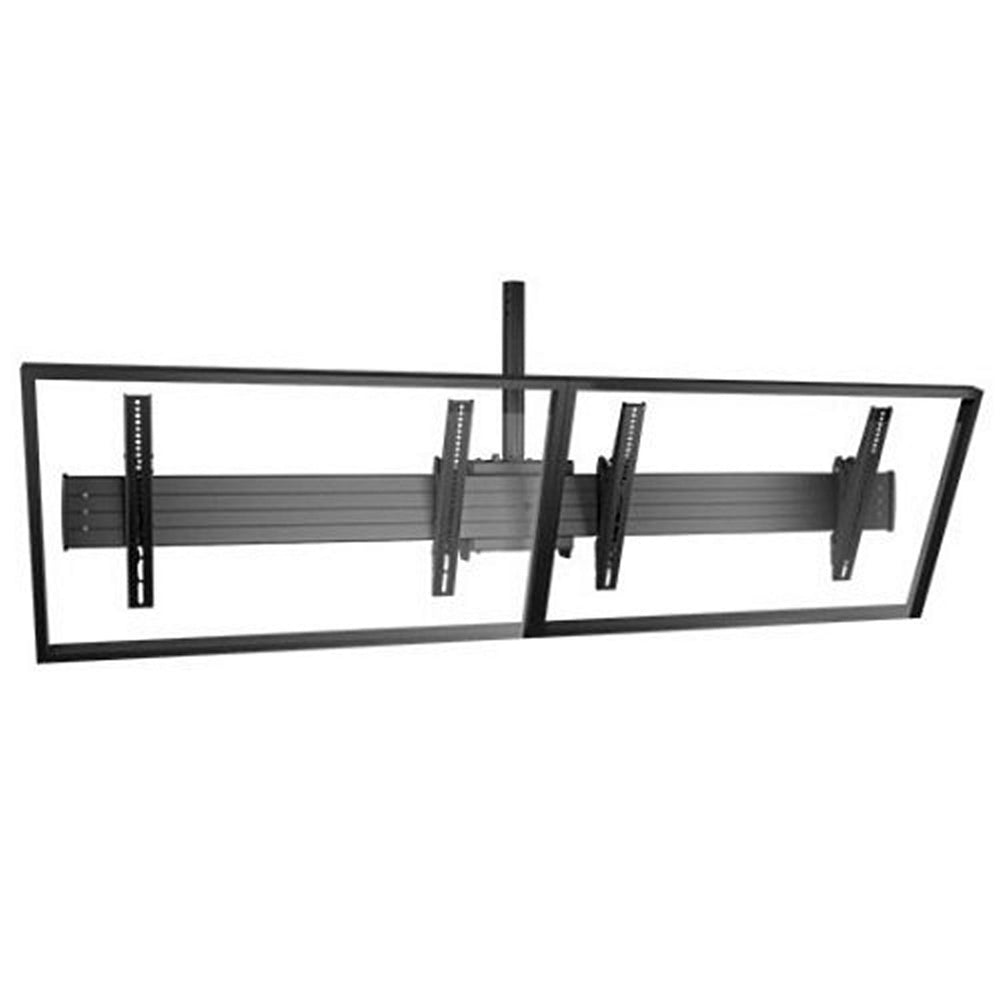

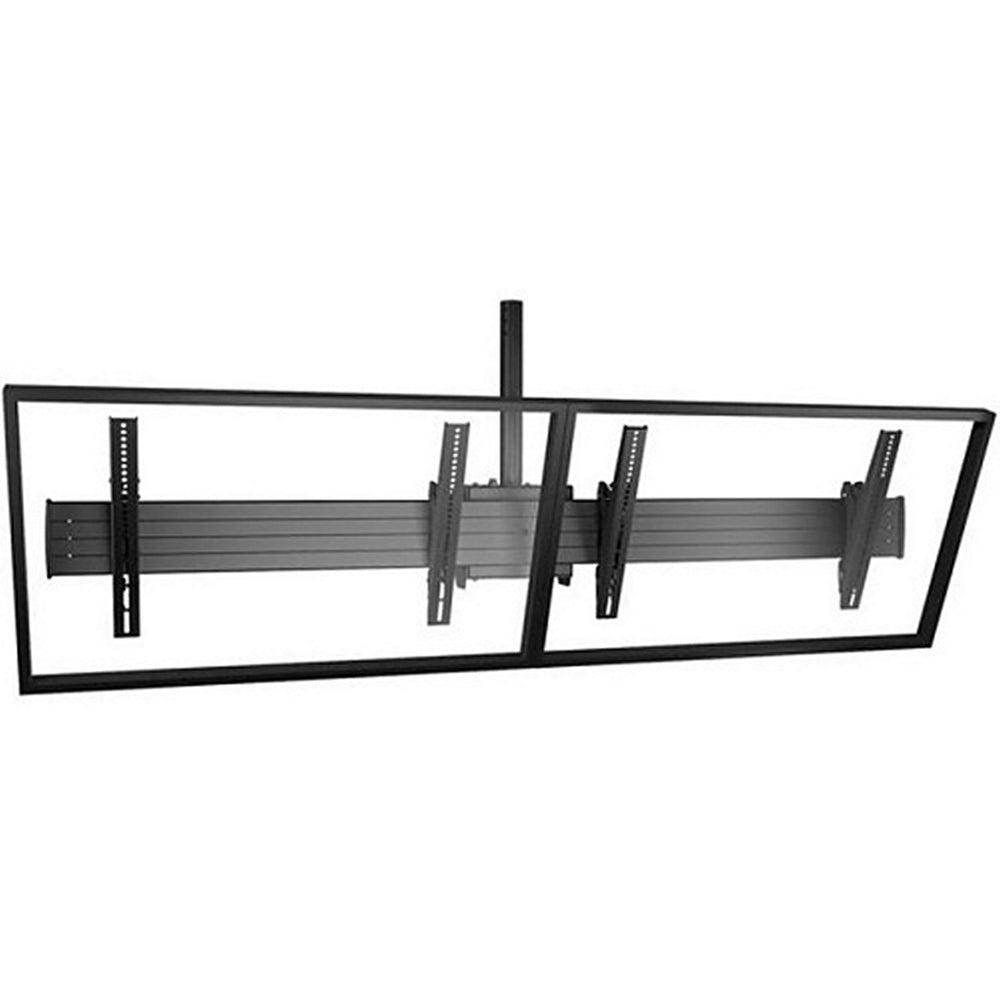

Chief LCM2X1U Fusion Large Ceiling Mounted 2 x 1 Menu Board
Chief's FUSION ceiling mounted solutions make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations.
Key Features
- Single drop for fast installation
- Micro adjustable roll for perfect leveling +/- 3 degrees
- 360 degree swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Tilting interfaces with Centris technology makes for easy adjustment for +5 / -20 degrees
- Tool-free screen engagement
- Secure displays with optional pad-lock security
- Fits screens 40 - 55" diagonals, add FCAX extension brackets for larger screens up to 65
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
Technical Specifications
Certifications
UL Listed
Color
Black
Mounting Pattern Compatibility (Universal Versions)
Any width x 100 - 400 mm
Post-Installation Leveling (Roll)
+ / - 3Ā°
Screen Array Configuration
2 x 1
Shipping Weight
47.00 lbs
Solution Type
Universal
Tilt
+ 5Ā° , - 20Ā°
Typical Screen Sizes
40 - 55" (up to 65" with FCAX extension brackets)
Weight Capacity
125 lbs. (56.7 kg) per display
