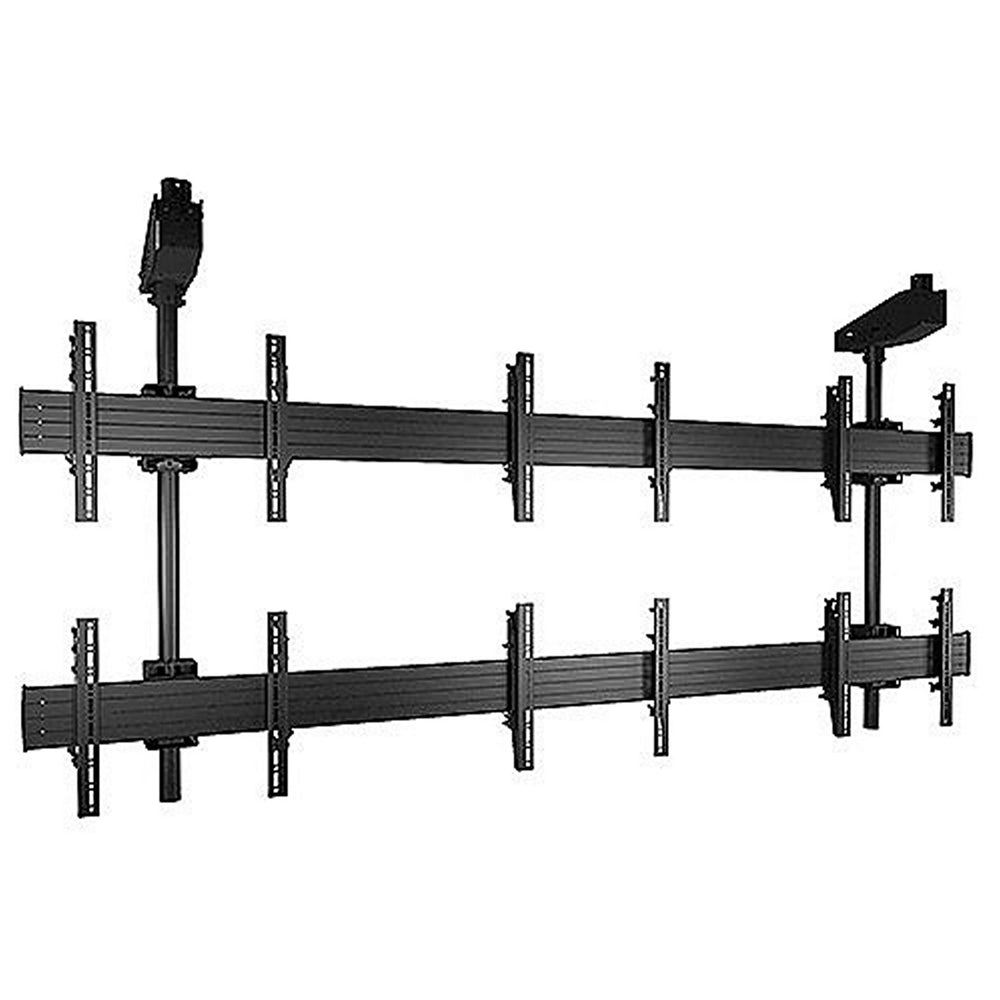

Chief LCM3X2U Fusion Large Ceiling Mounted 3 x 2 Video Wall Solutions

Chief's FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for digital signage installations.

Key Features

• Easily align displays with independent knobs for height and plumb adjustments, no tools required
• Micro-height and leveling adjustment at all column intersection points
• Infinite vertical and lateral adjustments provide tight display rows and columns
• Solid construction supports displays up to 55" and 125 lbs. (56.7 kg) per screen
• Add configurations side by side to create any video wall arrangements up to 3 screens tall
• Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

Technical Specifications

Adjustments
Micro-Adjustments of 2" at structural intersection points
Certifications
UL Listed
Color
Black
Manual Height Adjustment
1" (25 mm) increments at structural intersections
Mounting Pattern Compatibility (Universal Versions)
any width x 100 mm - 400 mm
Notes
TAA Compliant
Orientation
Landscape
Plumb Adjustment
Micro-adjustment up to 0.75" (19 mm)
Screen Array Configuration
3 x 2
Shipping Weight
188.00 lbs
Typical Screen Sizes
42" - 50" (107 - 127 cm)
Weight Capacity
125 lbs (56.7 kg) per screen
