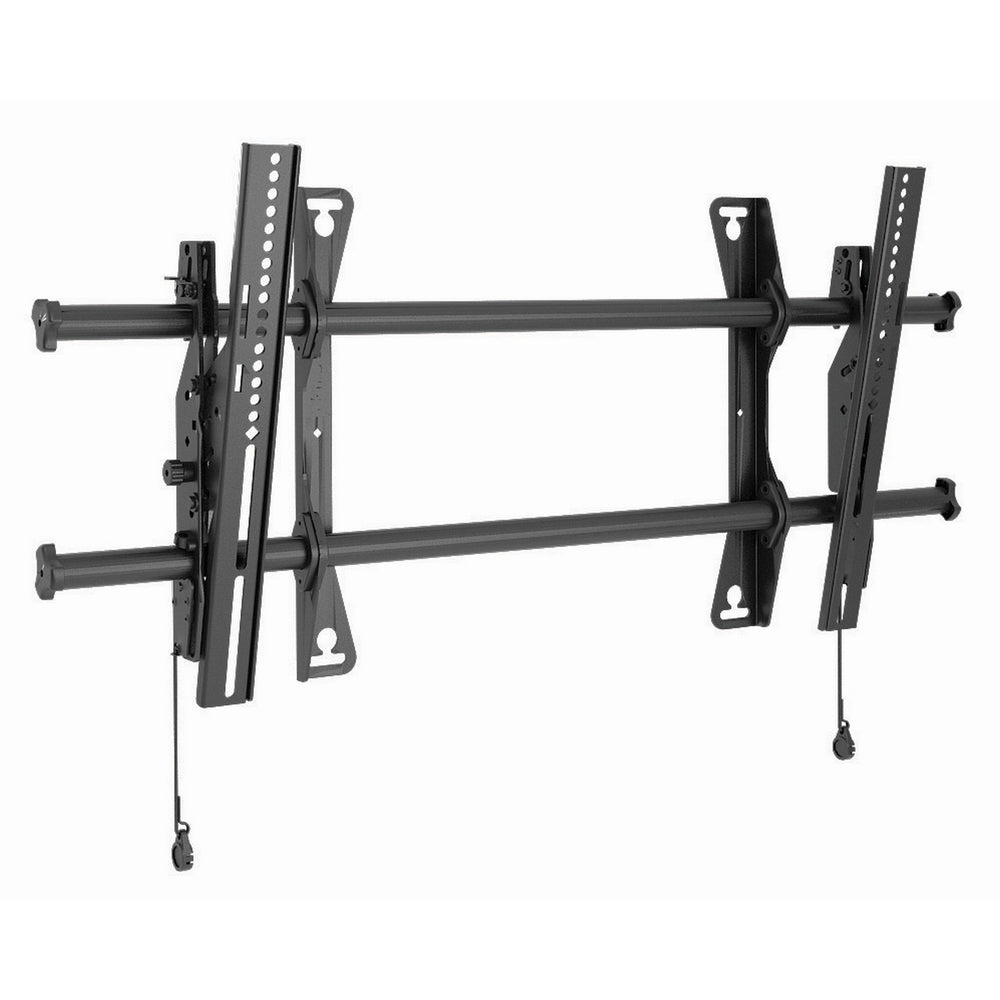

Chief LTA1U Large Fusion Tilt Wall Mount for 86-Inch Displays
Chief LTA1U Large Fusion Tilt Wall Mount for 86-Inch Displays
Free Shipping
Chief LTA1U Large Fusion Tilt Wall Mount for 86-Inch Displays
Chief's Fusion tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion features include Centerless shift, Centris tilt and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Technical Specifications
Dimensions & Measurements
Depth
2 in (5.1 cm)
Height
16.5 in (41.9 cm)
Manual Height Adjustment
1 in (25.4 mm)
Minimum Depth
2 in (5.1 cm)
Overall Dimensions
16.5ā x 34.75ā x 2ā (419 x 883 x 51mm)
Shipping Weight
18.3 lbs (8.3 kg)
Typical Screen Size
42ā- 86ā (1067mm - 2184mm)
Wall Stud Compatibility In
16ā - 32ā (406mm - 813mm)
Weight Capacity
200 lbs (90.7 kg)
Width
34.8 in (88.3 cm)
Characteristics & Features
Adjustability
Lateral Shift
Tilt
Application
Wall
Color
Black
Number of Displays
1
Orientation
Landscape
Solution Type
Universal
Tilt
+2Ā° / -12Ā°
VESA Mounting Pattern
100 x 100 - 878 x 500 mm
Certifications
OSHPD
TUV
UL Listed
