Chief RLT3 Large Fit Tilt Display Wall Mount, 43-86-Inch
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

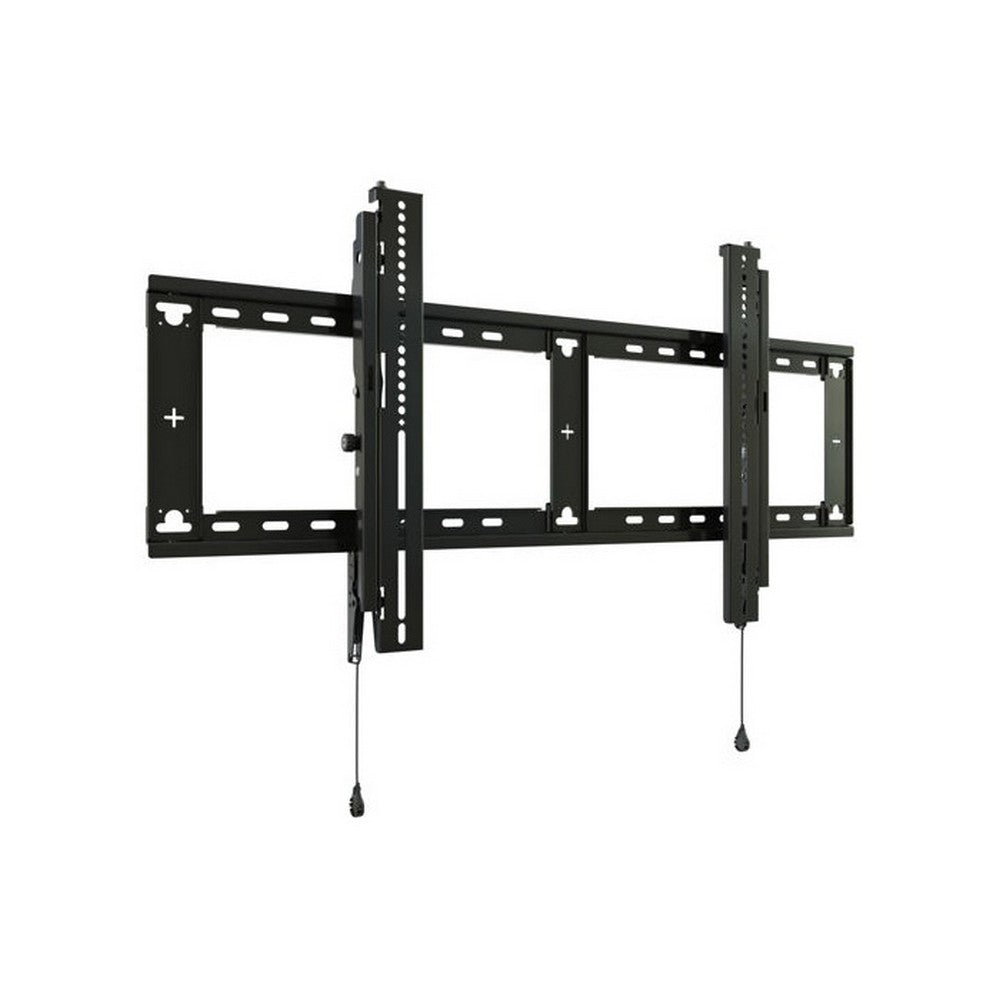

Chief RLT3 Large Fit Tilt Display Wall Mount, 43-86-Inch
Introducing the Fit Series RLT3: A Comprehensive Wall-Mount Solution
The Fit Series RLT3 is an exceptional wall mount solution designed to support 43” to 86” typical display sizes, and mounting patterns up to 915 x 450 mm. Featuring an innovative post-installation leveling system (0.75” or 19 mm), a durable wall plate capable of supporting up to 200 lbs (90.7 kg), an ultra-slim profile of 2” (51 mm), and a tilt range of up to 12°, this next-generation design is both practical and versatile. Additionally, the wall mount is UL and TUV safety standard compliant, ensuring the highest level of safety and reliability.
Key Features
- ADA compliance for typical AV design requirements is facilitated by the low-profile 2" (51 mm) depth.
- Post-installation leveling screw measuring 0.75" (19 mm) is easily accessible, along with a 10" (254 mm) ball end hex-key included.
- The display can be tilted up to 12°, allowing for the adjustment of the optimal viewing angle.
- Flexible positioning around power and data wall boxes is made possible by the open wall plate.
- Display mounting patterns up to 915 x 450 mm are supported.
- The rigid wall plate can support up to 200 lbs (90.7 kg) and has additional mounting slots for an improved installation experience.
- Toolless GlideLock enables lateral shift, securing the display to the wall plate and allowing for perfect positioning of the screen.
- Easy access magnetic quick-store release pullcords are provided.
- A kickstand is included for easy access to power and signal connections.
- Theft deterrent security options are available (not included).
- The product is approved by UL and TUV safety standards.
Technical Specifications
Dimensions & Measurements
Depth
2 in (5.1 cm)
Height
19.2 in (48.7 cm)
Manual Height Adjustment
0.8 in (19.1 mm)
Minimum Depth
2 in (5.1 cm)
Overall Dimensions
19.18” x 38” x 2” (487 x 965 x 51mm)
Shipping Weight
18 lbs (8.2 kg)
Typical Screen Size
43”- 86” (1092mm - 2184mm)
Wall Stud Compatibility In
Dual Stud
Weight Capacity
200 lbs (90.7 kg)
Width
38 in (96.5 cm)
Characteristics & Features
Adjustability
Tilt
Application
Wall
Color
Black
Orientation
Landscape
Solution Type
Universal
Tilt
-12°
VESA Mounting Pattern
up to 915 x 450 mm
Certifications & Warranties
Certifications
TUV
UL Listed
