Condition: New

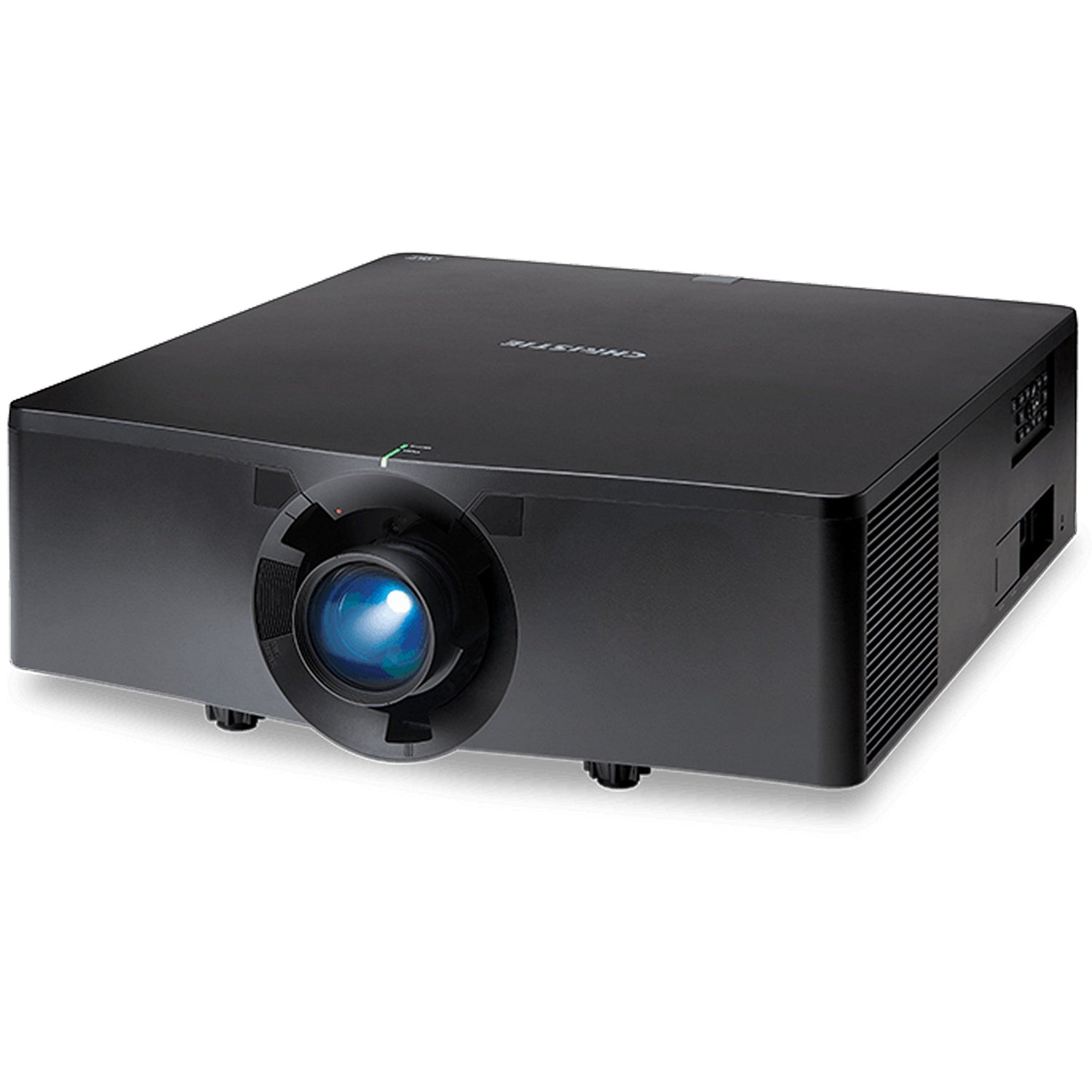

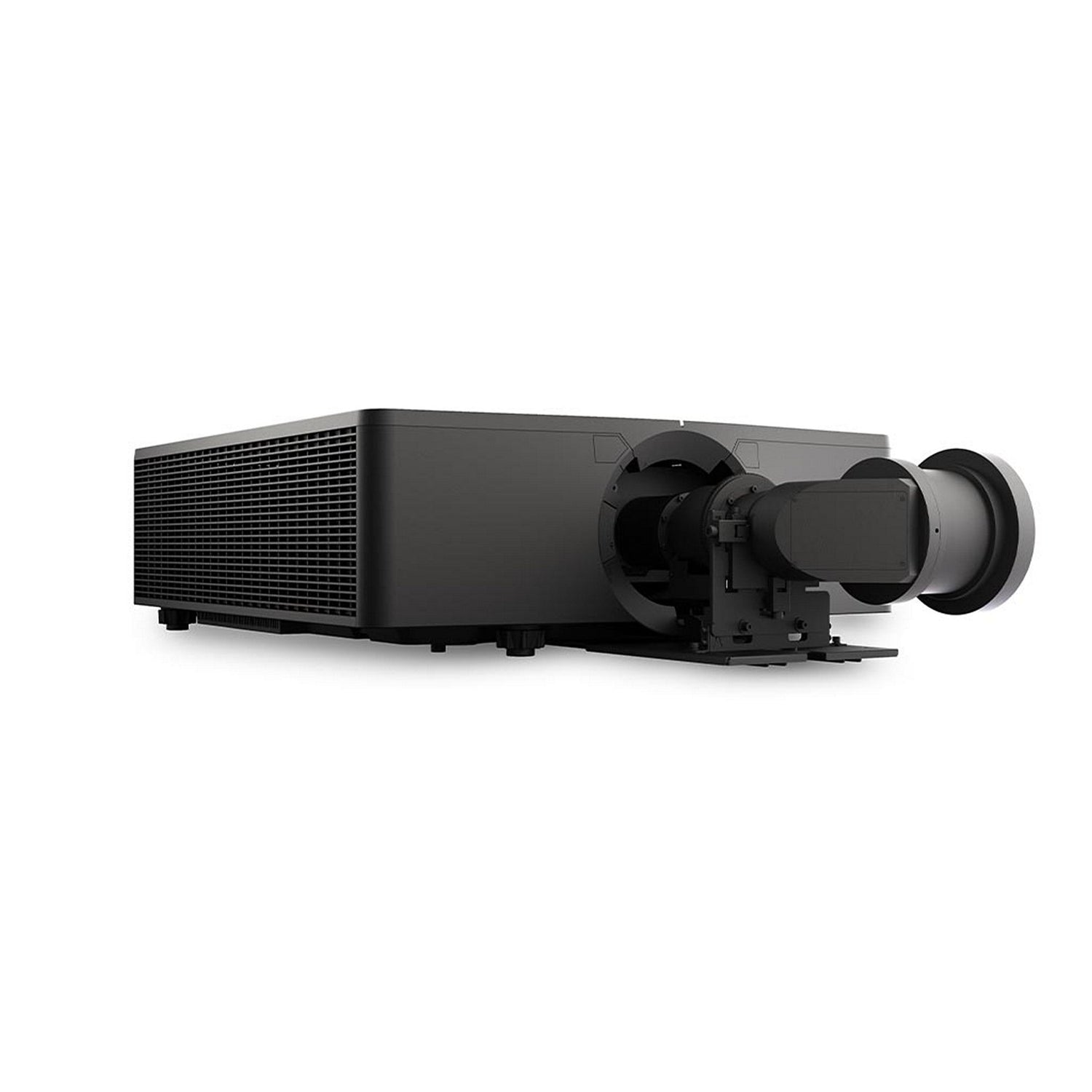

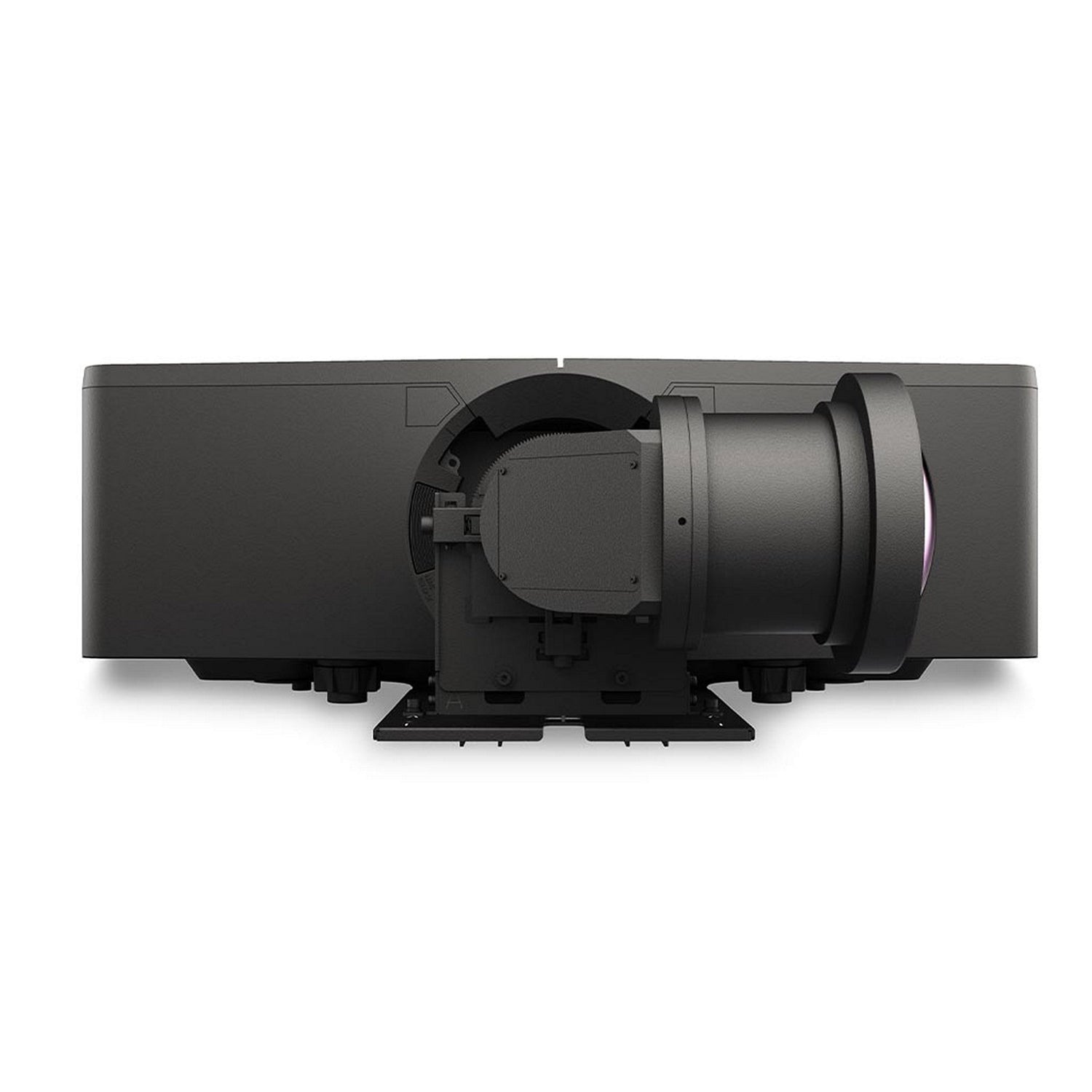

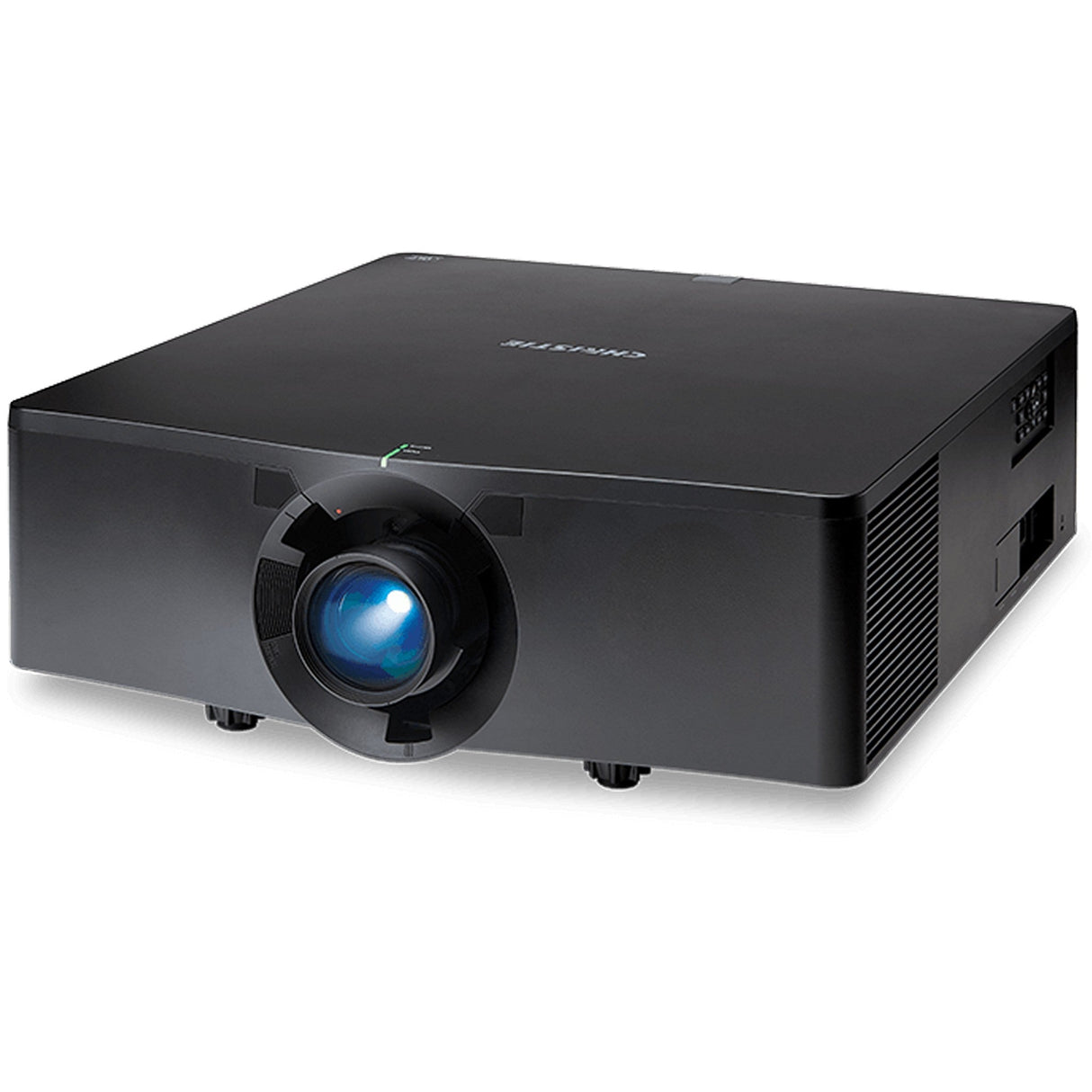

Christie D16WU-HS 17000 ISO Lumens WUXGA 1DLP Laser Projector
Enjoy the freedom of unrestricted power. Hitting 17,000 lumens, the Christie D16WU-HS is the lightest and brightest 1DLP laser projector to operate at full-brightness on a single 15A, 110V circuit. There’s no need for high-power runs. Simply plug into a standard outlet and start the show!
Visuals are stunning thanks to the enhanced color accuracy of Christie’s patented BoldColor Technology and WUXGA resolution. The long-lasting and reliable laser light source and affordability of 1DLP technology means the D16WU-HS is a cost-effective option for high-use applications. Featuring the built-in Christie Twist warping and blending engine and compatible with Christie Mystique automated camera-based alignment solutions, the D16WU-HS offers users the tools needed to quickly and easily set up, align and maintain irregular screens and multi-projector displays.
Key features
- Christie BoldColor Technology - Enhanced color performance and saturation over standard laser phosphor projection
- Long-life laser light source - Up to 20,000 hours of virtually maintenance-free operation
- Warp and blend - Built-in Christie Twist for quick and easy setup of multi-projector displays
- Compatible with Christie Mystique - Automated camera-based alignment solutions that eliminate the challenges, time and expertise required to align, stack, warp and blend complex multi-projector arrays and projection mapping experiences
- Fully omnidirectional - Unrestricted design and installation flexibility
- Lens compatibility - Designed to work with all Christie HS Series lenses for added cost savings and versatility
- Comprehensive connectivity - Full connectivity for popular formats including 3GSDI for added redundancies
- Christie Virtual Remote 1DLP - Gives you wireless control from any smartphone or tablet
- Advanced electronics - Firmware updates take only minutes
Technical Specifications
Brightness
17,400 ISO lumens
15,500 ANSI lumens
Color wheel
4 segment (RGBY) - 2X or 3X speed
Contrast (nominal)
Full on/off (Christie RealBlack enabled): 2,000,000:1
Dynamic contrast: 5000:1
Full on/off (Christie RealBlack disabled): 1200:1
ANSI 250:1
Display
1 x 0.96” DMD
Native resolution
1920 x 1200 (2,304,000 pixels) 16:10
Illumination system
Laser phosphor with Christie BoldColor Technology
Typical lifetime
20,000 hours to 50%
Signal inputs
HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
3GSDI x 1 (BNC)
DVI-D x 1 (digital only)
HD15 x 1
USB x 1 (type A) - image viewer or WiFi dongle (optional)
HDBaseT (RJ45 x 1)
3D
HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
Up to 120Hz output
3D Sync In (BNC) - for genlocking projectors
3D Sync Out (BNC) - for genlocking projectors or controlling emitters
Signals
HDTV formats VGA through to WUXGA (1920 x 1200)
Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
162 MHz
Scan rates
Horizontal: 15 kHz to 91 kHz
Vertical: 24 Hz to 85 Hz
Monitor out (loop through)
3GSDI x 1 (BNC)
HDMI x 1 (HDMI out)
Control and networking
RS232 In
Control via HDBaseT
Ethernet (10/100) RJ45
Built-in backlit keypad
Wired remote control (3.5mm stereo) - loop out available for daisy chaining
12VDC trigger at 200mA (ID:2.5mm)
Accessories
IR remote w/ wired remote jack (wire not included)
AC line cords for projector head
User manual
Optional
Christie One Rigging Frame
Lens adapter for E Series lenses
1DWUSB-BGN (wireless dongle for video and control)
HS fog filter covers + filters (order once per projector then only filters refills)
HS fog filter refills (1 set)
Christie One Mount Plus
One Mount Extender Rod
One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
Replacement remote control
Warping and blending
Christie Twist
Optional
Christie Twist Premium and Twist Pro
Christie Mystique automated camera-based alignment
Lens mount
Boresight adjustable
Motorized horizontal and vertical lens offset (memory available)
Motorized zoom and focus adjustment (memory available for full ILS lenses)
Lens options
0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
1.2-1.5:1 zoom lens (full ILS)
1.5-2.0:1 zoom lens (full ILS)
2.0-4.0:1 zoom lens (full ILS)
4.0-7.0:1 zoom lens (full ILS)
Operating voltage
Normal: 100-240VAC @ 60/50 Hz
Power consumption
Normal mode: 1250W +/-15% (220V), 1300W +/-15% (110V)
ECO1 mode: 1020W +/-15% (220V), 1050W +/-15%(110V)
ECO2 mode: 700W +/-15% (220V), 700W +/-15%(110V)
Operating current
Normal mode: 6.0A +/-15% (220 VAC), 11.9A +/-15% (110 VAC)
ECO1 mode: 4.7A +/-15% (220 VAC), 9.6A +/-15% (110 VAC)
ECO2 mode: 6.5A +/-15% (220 VAC), 3.2A +/-15% (110 VAC)
Dissipation
Normal mode: 4450 BTU/hr
ECO1 mode: 3600 BTU/hr
ECO2 mode: 2450 BTU/hr
Audible noise
Typical: 45dB(A)
Eco mode: 39dB(A)
Dimensions
(L x W x H) 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet
Weight (without lens)
93.7 lb (42.5 kg)
Shipping dimensions
(L x W x H) 36.34 x 33.19 x 20.20" (923 x 843 x 513mm)
Shipping weight
119 lb (54 kg)
Operating environment
Temp: 0 to 40° C (32 to 104° F)
Humidity: 0 - 85% non-condensing
Regulatory
UL/CSA/IEC 60950-1
FCC Class A
CE
FDA
CCC
KC
PSE
CU
SABS
BIS
VCCI
RCM
Ukr
TER
SASO
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS
REACH
WEEE
Limited warranty
Three years parts and labor on the projector
Three years or 15,000 hours parts and labor on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
