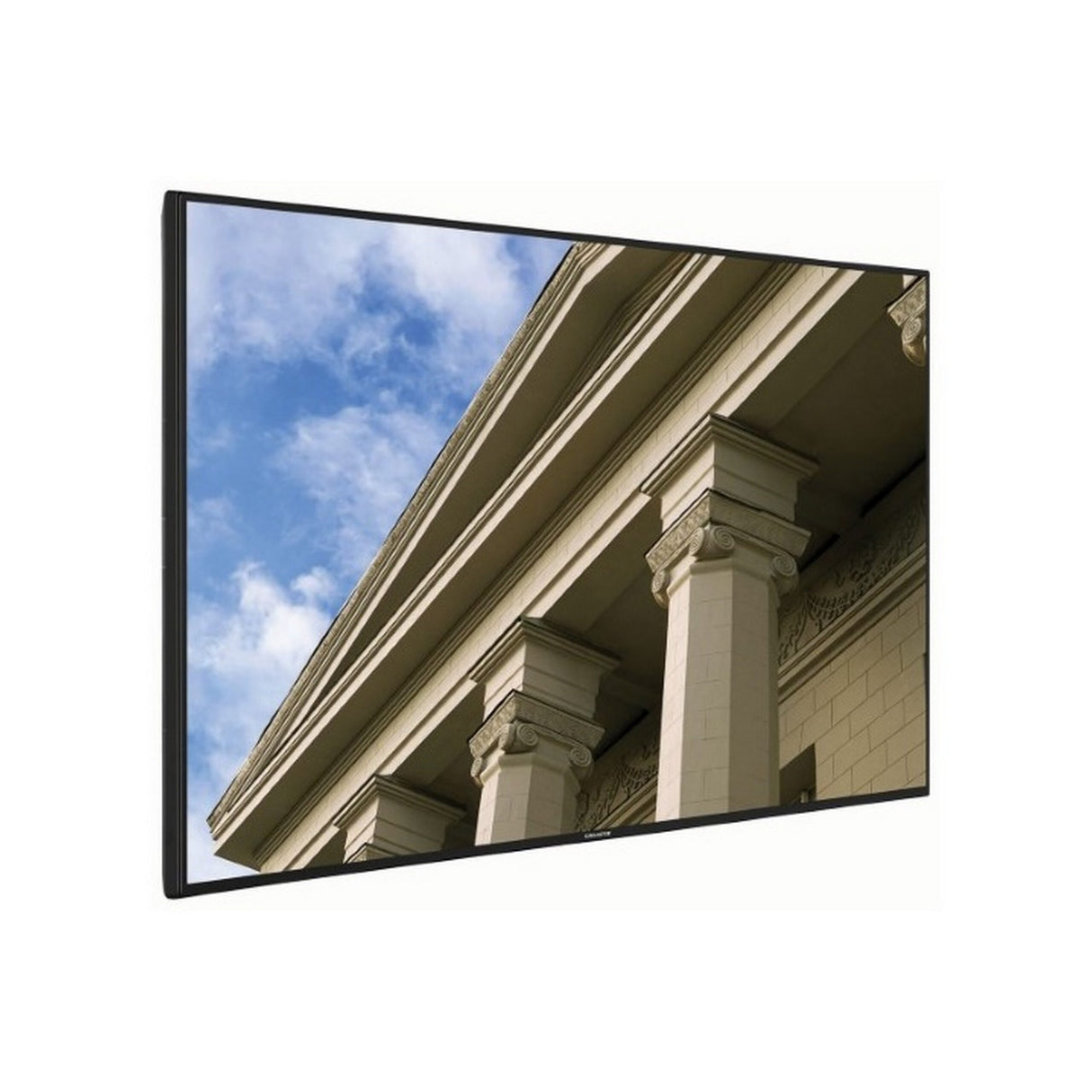

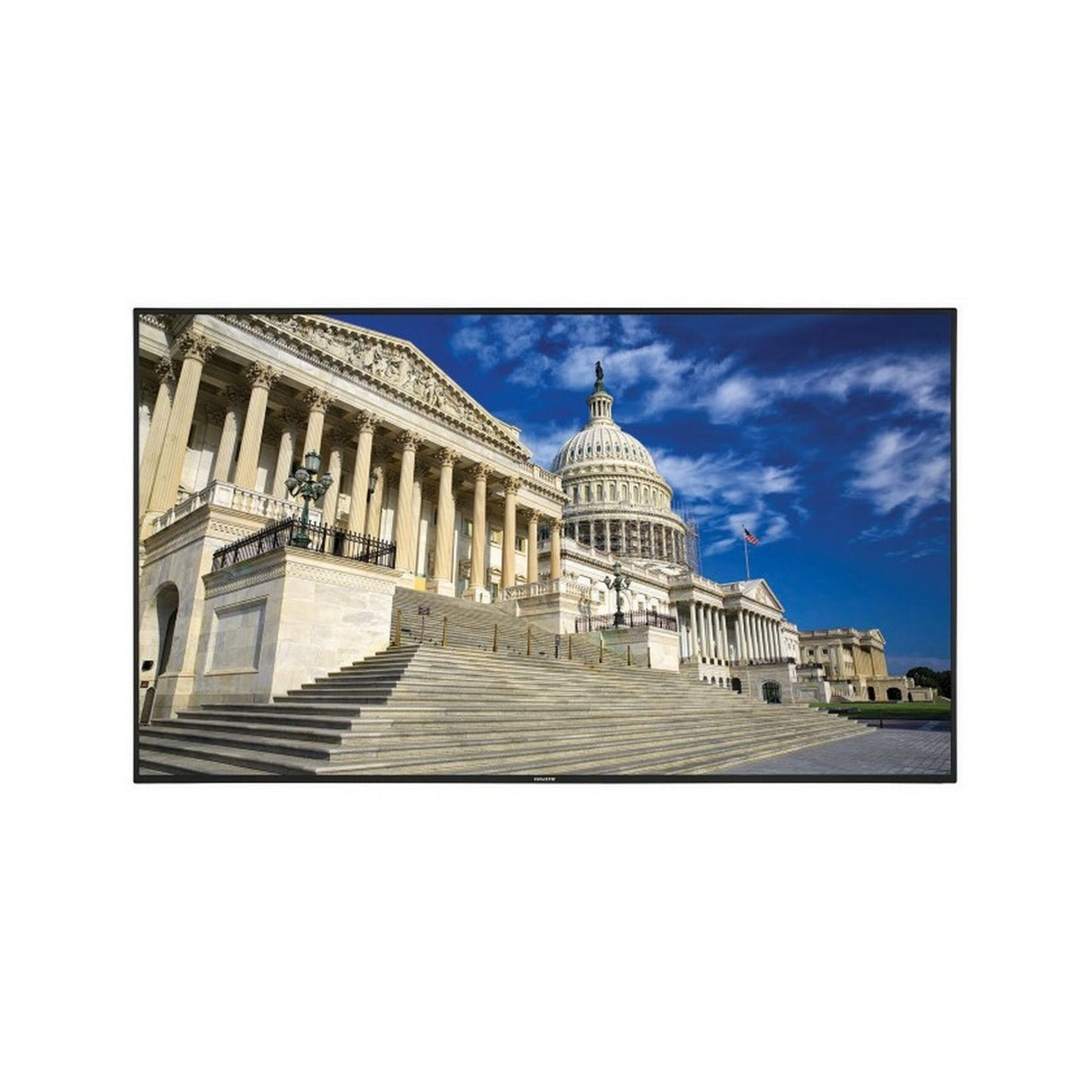

Christie SUHD651-L 65 Inch Secure Series LCD Panel
Christie SUHD651-L 65 Inch Secure Series LCD Panel
Christie SUHD651-L 65 Inch Secure Series LCD Panel
The Christie SUHD651-L LCD panel is a TAA-compliant, non-RF display designed specifically for secure-facility applications typically found in government, corporate and military environments. Ideal for meeting rooms, control rooms and digital signage applications, the SUHD651-L includes professional features such as OPS slot, UHD resolution, and USB playback in a secure, reliable and affordable package.
Key Features
- Non-RF for increased security
- TAA compliant
- 4K UHD resolution for impeccable image quality
- Crestron Connected for seamless integration onto a Crestron network
- Feature-rich at an affordable price point
- Available touch capability for an engaging interactive experience
- OPS slot for increased flexibility and integration ease
- ?Backed-by Christie support, service and warranties
Technical Specifications
Screen size (diagonal)
65" (165.1cm)
Native resolution
UHD 3840 x 2160 (16:9)
Backlight
Direct-lit LED
LED lifespan
50,000 hours (50% brightness)
Display orientation
Landscape
Pixel pitch
0.372 x 0.372mm
Bezel size
21mm/15mm/15mm
Brightness
400 nits (cd/m2) typical
Contrast ratio (full field)
4000:1 typical
Viewing angle (CR 10:1)
178 h/v
Refresh rate
60Hz
Response time
8ms typical
Color space (CIE 1931)
75% typical
Display colors
10 bit?
1.07 billion
Video inputs
2 x HDMI (Ver 2.0 HDCP 2.2)
DisplayPort (Ver 1.2a HDCP 1.3)*
VGA
YPbPr
USB 3.0
2 x USB 2.0
*Supports a UHD signal at 30Hz only
Video outputs
DisplayPort 1.2a
HDMI 2.0
Audio inputs
RCA (L/R) line in
Audio outputs
RCA (L/R) line out
3.5mm headphone jack
SPDIF coax
Control inputs
RS-232 via D-Sub9
LAN via RJ45
IR wire extender
Power input rating
100-240 VAC @ 50/60Hz
Power consumption
73W typical without OPS
140W maximum without OPS
0.5W standby without OPS
Operating temperature
32-104F (0-40C)
Storage temperature
-4-140F (-20-60C)
Operating humidity
20-90% RH non-condensing
?Physical size (panel only)
(WxHxD): 57.4 x 33.1 x 3.8" (1459 x 841 x 96mm)
Weight
54.5lbs (24.7 kg)
Mounting
VESA (WxH) 400 x 400mm
M6
Runtime
Designed for 16/7 operation featuring a reliable pow?er supply
