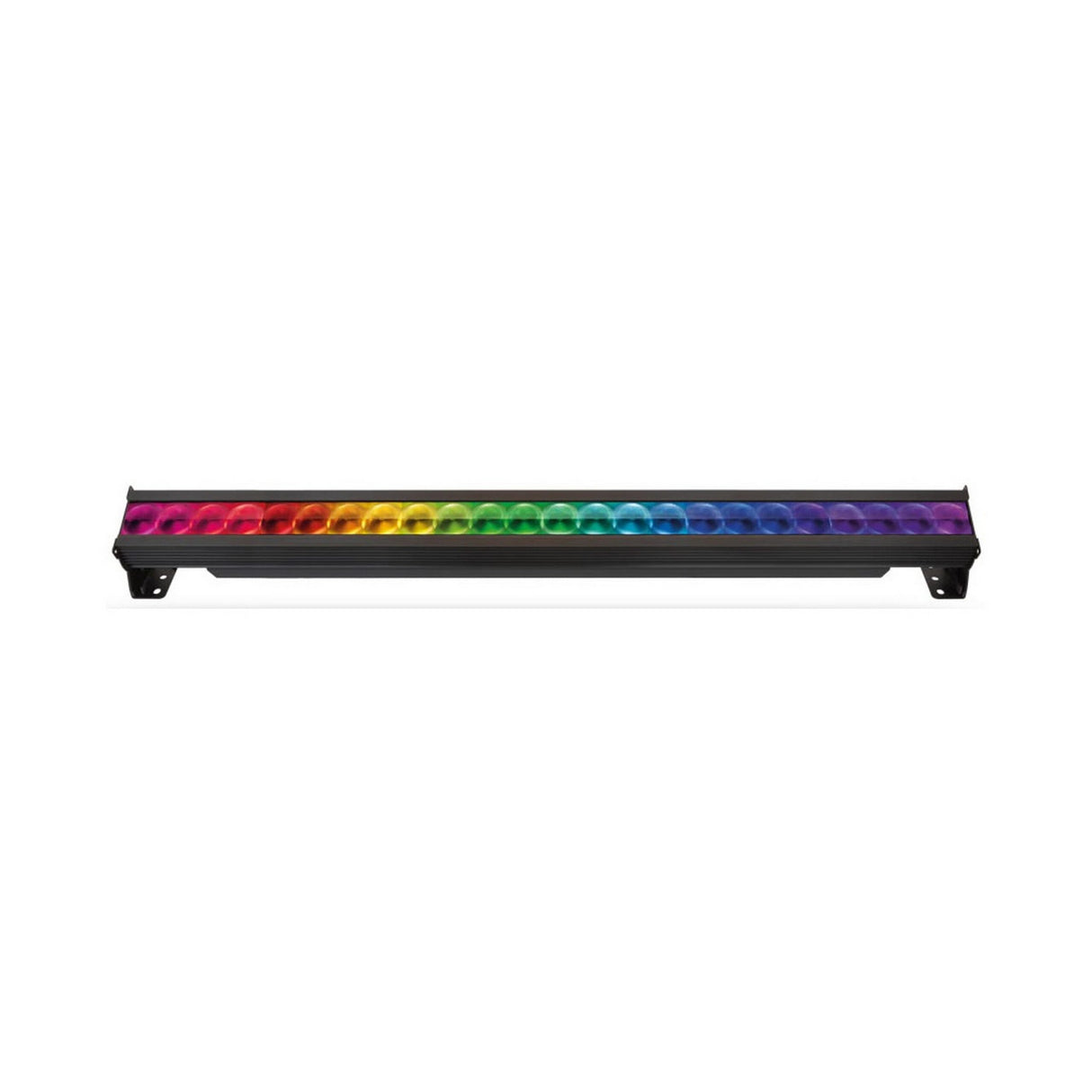

Chroma-Q CHCF272RGBA Color Force II 72 LED Batten Light Fixture with Trunnion
From the makers of one of the most popular professional cyc lights, Chroma-Q does it again: the multi award-winning Color Force II, a batten that delivers formidable output and superior colour blending, all with smooth even coverage. With four powerful homogenised cells per foot/305mm, these units can be grouped and controlled to release your creativity. Unsightly colour shadowing is eliminated with this innovative optical system that gives power enough to light nearly 12m of cyclorama. Perfect for a wide range of cyclorama, flood and wall washing applications where a powerful throw is needed. Available in 1.8m / 6 ft, 1.2m / 4 ft, 0.3m / 1 ft versions, these fixtures are specifically designed to fit in flight cases used with the original Color Force.
Key Features
- Featuring Chroma-Q's proven award winning technology
- Over 18,000 hot lumens will easily wash a 39 ft.(12m) cyc
- Extremely smooth, uniform output
- Homogenised RGBA color mixing
- Pixel control to 3" (76mm) increments
- High CRI of 92
- Theatrical grade dimming
- Rugged extruded aluminium body
- Built-in power supply
- Chroma-Q calibration means: superiorfixture-to-fixture consistency
- Works great in any theatre, TV, concert touring,exhibitions or corporate event
- Optional internal Lumen Radio
- Touchscreen user interface
Technical Specifications
Dimensions
69.25ā x 6.5ā x 7.5ā (1,759 x 165 x 191mm)
Net Weight
53 lb (24 kg)
Shipping Deimensions
73" x 12" x 12.5" (1,855 x 305 x 320mm)
Shipping Weight
59 lbs (27 kg)
Power Supply
Built-in
Power Input Rating
100-240V AC 50-60Hz 800VA
Power Factor
0.96 @ 120V, 0.99 @ 240V
Power Consumption
660W @ 120V AC, 646W @ 240V AC
Idle Power Consumption
29W @ 120V AC, 31W @ 230V AC
Power Connectors In/Out
Neutrik powerCON TRUE1
Control Protocol
ANSI E1.11 USITT DMX 512-A
Cooling System
Forced
Operating Temperature
0C to 40C
Construction
Anodised aluminium extrusion
Color
Black
Built-in Hardware
Quick release lever for tilt adjustment
IP Rating
IP20
Approvals
CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750
