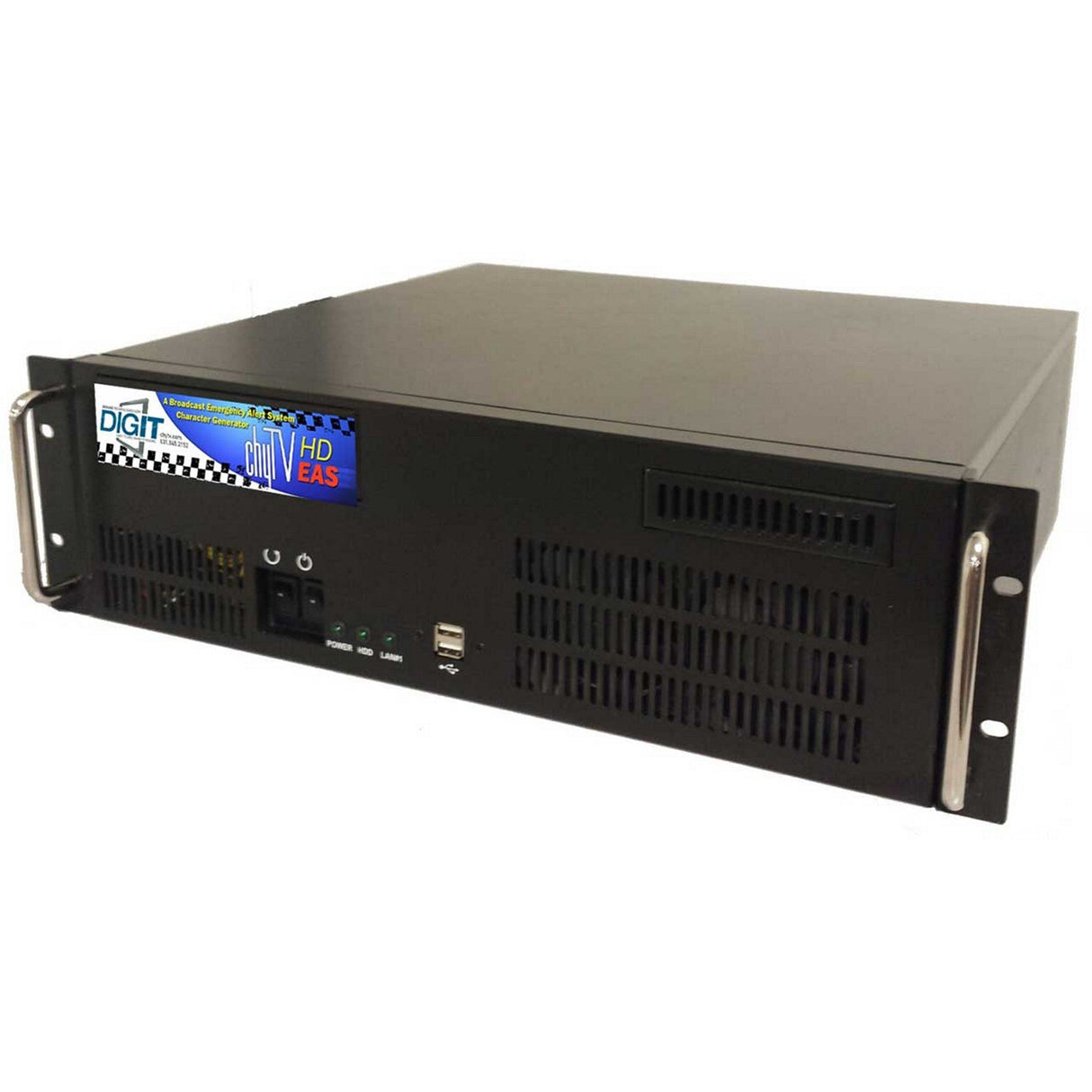

ChyTV HD-EAS SD/HD Emergency Alert System with EAS Decoder Integration
ChyTV HD-EAS SD/HD Emergency Alert System with EAS Decoder Integration
System’s DASDEC II, providing a better, lower-cost solution for generating highquality crawls for EAS alerts in SD and HD. Ideal for PEG Channel (Public, Education, Government) and other broadcast television emergency notification, the ChyTV HD EAS is a powerful and affordable high-definition broadcast quality graphics system designed to enable deployment of simple and efficient custom emergency alert information. ChyTV HD EAS supports a variety of SD, HD and HD-SDI formats and lets you pass through your normal programming while displaying an upper third crawl overlay with the relevant alert message. Full screen graphics or any other customized graphic can be used as well.
Key Features
- Interface with EAS Decoders via GPI contact closure or IP protocol.
- Automatic Audio switchover replaces live HD-SDI embedded audio with EAS
- Decoder audio in the HD-SDI output.
- Upper third crawl templates are included and can easily be customized to change the color, font and anything else.
- Live full-screen HD Input with text, graphic and crawl overlay.
- Various HD video formats including HD-SDI.
- Layered page elements include live video, clips, text, graphics and backgrounds
- Dynamic real-time 3D Text and Graphics
- Squeeze and position clip player windows, including dynamic transitions
- Dynamic broadcast quality effects such as text pushes, fades and crawls
- Animated Text, Graphics and Logos using GIF, TGA, MPEG and more
- Multiple text and graphic zones may be independently sized and positioned
- Page scheduling, including looping durations or specific day, date and time control
- External data interfaces for realtime data updates such as news, sports, stock and weather
Technical Specifications
Digital
HD HDMI
HD/SD SDI (BNC)
Internal / External SDI Key Channel
Analog
HD/SD Composite, Component via Breakout Cable
Video Inputs
Digital
HD HDMI, HD/SD SDI (BNC)
Analog
HD/SD Composite, Component via Breakout Cable
Video Formats
525, 625, 720p, 1080i
Audio Outputs
1 HDMI In
1 Line-out
1 Embedded SDI
2 Channel Balanced Analog and AES / EBU via Breakout Cable
Number of Inputs
1 HDMI In
1 Line-in
1 Embedded SDI
2 Channel Balanced Analog and AES / EBU via Breakout Cable
Interfaces
USB
USB 2.0, 3.0
Ethernet
10/100/1000 BaseT (RJ-45)
Tower Chassis
Weight
15.5 lbs
Dimensions (HxWxD)
15.25" x 6.9" x 14.0"
Power Supply
ATX12V 585W
Rack Chassis
Weight
43 lbs
Dimensions (HxWxD)
5" x 16" x 16.5"
Power Supply
80 PLUS EPS-12V 550W Mini
