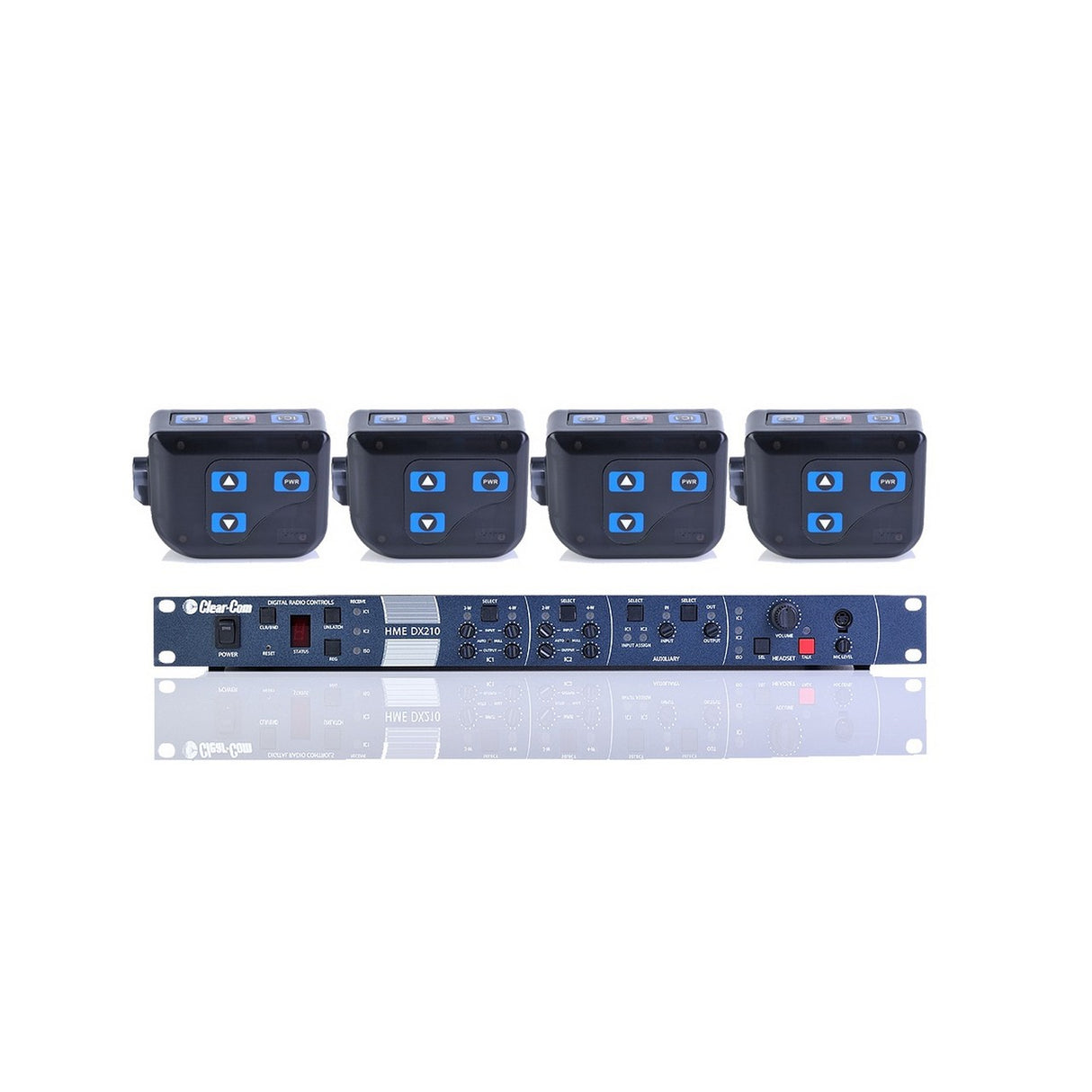

Clear-Com CZ11515 4 Up DX210 System without Headsets

Clear-Com CZ11515 4 Up DX210 System without Headsets

4-Up DX210 system without Headsets.

Key Features

• Expandable system
  enables up to four synchronized co-located base stations to be used together for a total of 44 COMMUNICATORs with up to 16 in hands-free, full-duplex mode.
• Wired Intercom Input/Output interfaces
  make DX210 compatible with existing 2-wire partyline or 4-wire matrix systems provided by Clear-Com or RTS.
• Wireless ISO Talk-around
  allows all wireless users on the same base station to talk with each other, isolated from either two- or four-wire intercom channel. ISO function can be restricted to specific users.
• Digital Auto “Nulling” (Front Panel Access)
  provides the deepest hybrid balancing in the industry and is flat across the entire speech bandwidth. The DX210 is equipped with an auto “nulling circuit” to easily null 2-wire connections and eliminate echo automatically.
• Two separate 2-wire/4-wire channels,
  assignable AUX IN for program input plus AUX OUT that can be used to direct wireless ISO to Stage Announce (SA).
• Triple diversity (space, time and frequency)
  operation for extreme multi-path situation provides redundant communication that offers the most dependable system available. The strongest signal is selected from two different antennas, transmitted and received at two different times, on two different frequencies. The vertical and horizontal diversity antenna system is specially designed to prevent dropouts and provides the strongest audio signal possible.
• Digital 64 bits of encryption
  for secure communications and Frequency Hopping Spread Spectrum (FHSS) technology prevents unauthorized personnel from hearing or interrupting your communication.
• Relay (GPIO) actuation with ISO function
  from either base station or any one of the appropriately configured COMMUNICATORs.
• Selective headset connector
  allows the base station operator direct access to the IC channel, AUX IN /OUT, as well as COMMUNICATORs.
• Backward compatible
  with previous HME DX200 COMMUNICATORs, (BP200) beltpacks are automatically assigned to channel 1 audio and work seamlessly with the DX210.
• 2-Wire loop-through connectors
  allows for connection to multiple external audio devices.
• Feedback protection for un-terminated 2-wire channels
  automatically eliminates feedback when connecting DX210 base station to 2-wire systems.

Technical Specifications

BS210
TX & RX Antenna
1/2-Wave, Dual Diversity Dipole
4-Wire I/O
RJ-45, 600Ω Balanced,
Level Adjustable, Simultaneous Operation with 2-Wire (x2)
2-Wire I/O
XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
Auxiliary Input
XLR-3F/ 1/4” Phone Combo Jack, 600Ω Balanced, Level Adjustable
Auxiliary Output
XLR-3M, 600Ω Balanced, Level Adjustable
Headset I/O
N/A
Headset Connector
4-Pin Mini-DIN
Headset Output
250 mW into 32Ω
Size
19” x 1.72” x 13.50” (1-RU)
(48.26 cm x 4.37 cm x 34.29 cm)
Weight
9.0 lb (4.1kg)
Power Requirements
100-240 VAC, 50-60 Hz or 12-14 VDC

BP210
Battery Requirements
One Lithium-Ion Rechargeable
Battery Life
Latched (Hands-Free): Up to 14 Hours
PTT: Up to 20 Hours
Size
3.4" x 2.6" x 1.5"
(8.64cm x 6.60cm x 3.81cm)
Weight
7.4 oz (0.21 kg) with Battery & Pouch
Headset Connector
Mini-DIN
Mic Input
Electret
Headset Output
160 mW @ into 32Ω
Capable of Driving 16-32Ω
Controls
Volume On/Off
Volume Up/Down
Talk Intercom
Talk ISO
Indicators
Power/Transmit/Low Battery LED & Voice Prompts
Carrying Pouch
Santoprene Rubber

Included
BS210 license-free base station w/2 antennas; 115-230 VAC power supply; 115 VAC power cord, 4 BP210 Beltpacks with; 8 BAT41 batteries and 4 pouches; AC40A Battery Charger; 115-230 VAC power supply, power cord, manual.
