Clear-Com CZ-DX410-4UP 4-Up DX410 Beltpack System with CC-15 Headsets
4-Up DX410 belt pack system w/ CC-15 headsets.
Technical Specifications
BS410
Audio
Channels: 2 audio channels
Capacity: Up to 15 BP410 and/or WH410 per base station
Full-Duplex: Yes. Single-channel = 4 in simultaneous full-duplex. Dual-channel = 3 in simultaneous full-duplex.
Radio Frequency Range: 2400 - 2483.5 MHz
Audio Frequency: 200 Hz - 7kHz
4-wire I/O: RJ45, 600 Ohms balanced, level adjustable, simultaneous operation with 2-wire
2-wire I/O: XLR-3M, XLR-3F, externally-switchable RTS or Clear-Com, 200 Ohms, level adjustable, null adjustable to 50dB attenuation, typical
Aux Input: XLR-3F with ” (6.35mm) combo jack, 600 Ohms balanced, level adjustable
Aux Output: XLR-3M, 600 Ohms balanced, level adjustable
Headset Connector: 4-pin mini-DIN, Electret microphone
Headset Output: 200mW into 32 Ohms
Antenna Type: External -wave dipole (R-TNC connector), RX/TX horizontal/vertical diversity
System Distortion: <2%
Communication Security: dual-slot diversity
Transmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW burst
Modulation Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI specifications over temperature
Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
Power Requirements:
100 - 240 VAC, 50 - 60 Hz or 12 - 14 VDC
Environmental:
Temperature: +32F - +122F (0C - +50C)
Dimensions
1.75 x 19.0 x 17.13 in
(44 x 483 x 435 mm) (HxWxD)
Weight
9 lbs (4.1 kg)
BP410
Audio
Channels: 2 audio channels
Frequency Range: 2400 MHz - 2483.5 MHz
Frequency Response: 200 Hz - 7 kHz
Antenna: Internal, horizontal/vertical diversity
Headset Connector: 4-pin, mini-DIN
Microphone: Electret
Headset Output: 160mW into 32 Ohms
System Distortion: <2%
Controls: Power, Volume-Up, Volume-Down, A, B, ISO
Indicators: Dual-color LED (red/green)
Battery Requirements: 3.6V lithium-ion
Battery Life: Up to 12 hours
Antenna
Internal, Horizontal/Vertical diversity
Transmitter
Type: Frequency Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mW burst
Modes: Momentary or Latch
Type: Gaussian filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI specifications
Receiver
Type: Frequency Hopping, Spread Spectrum (FHSS)
RF Sensitivity: <-90dBm w 10-3 BER
Frequency Stability: 13 ppm
Distortion: <2%
Environmental
32F to +122F
(0C to +50C)
Dimensions
2.25 x 4.5 x 1 in (57.2 x 114.3 x 25.4 mm) (HxWxD)
Weight
7.4 oz (0.21 kg) including battery and pouch
Included

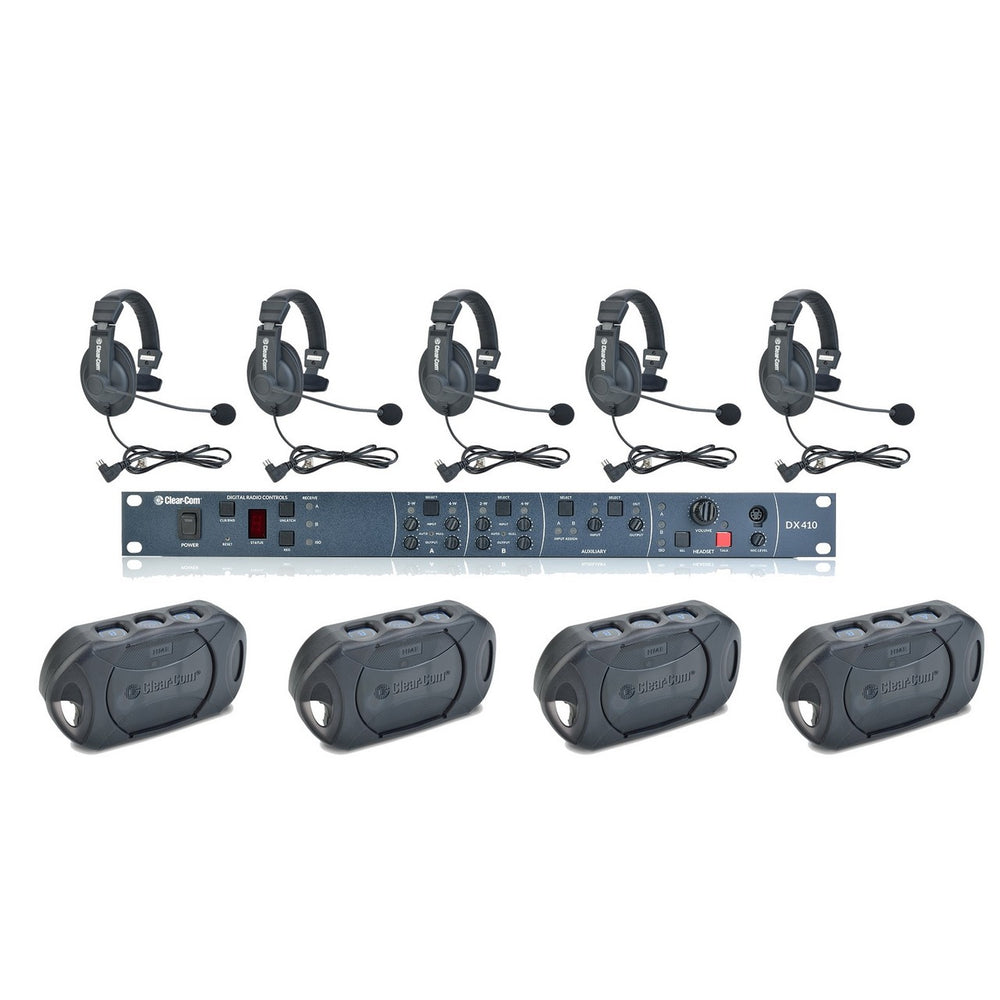

DX410 wideband 7KHz, two channel base station w/2 antennas. 115-230 VAC power supply, includes power cord. 4 BP410 belt packs with 8 BAT50 batteries; 5 CC-15-MD4 single ear noise canceling headsets, AC50 battery charger; 110-240VAC power supply, with US adapter plug. For US and Canada sales.
