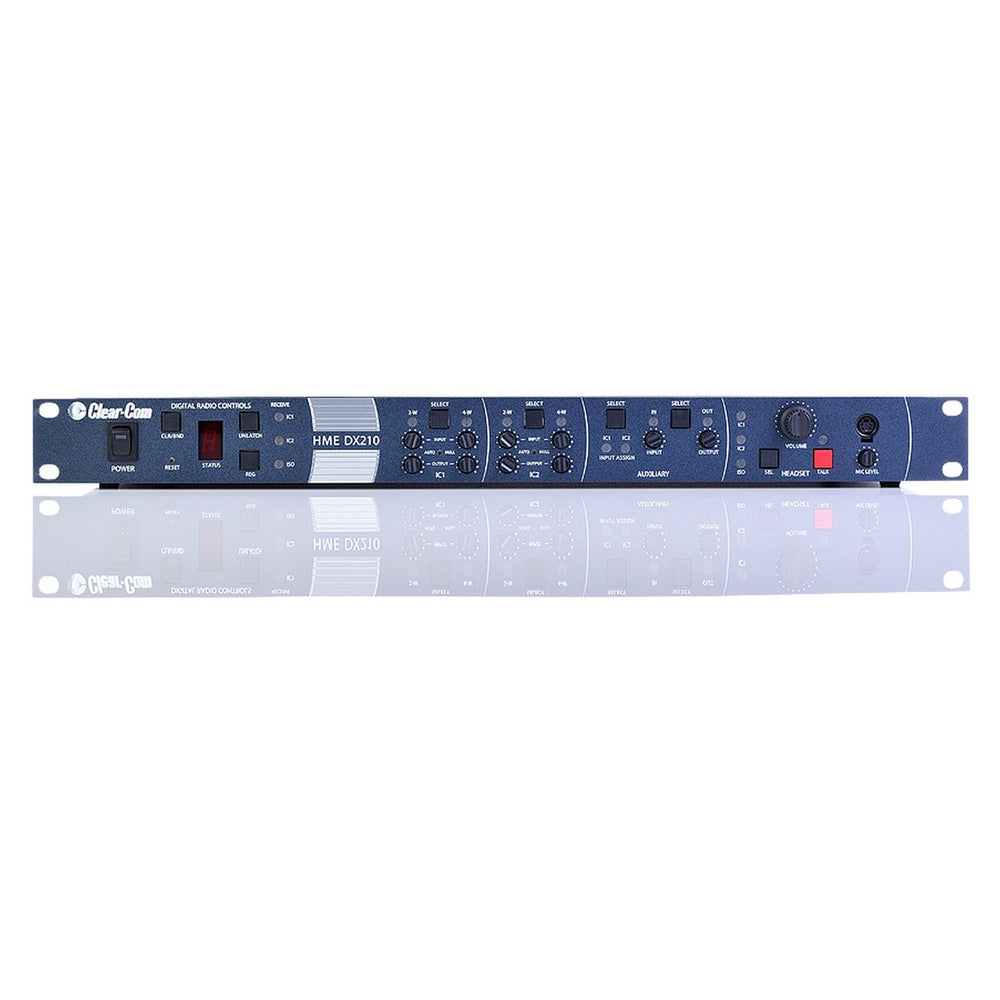

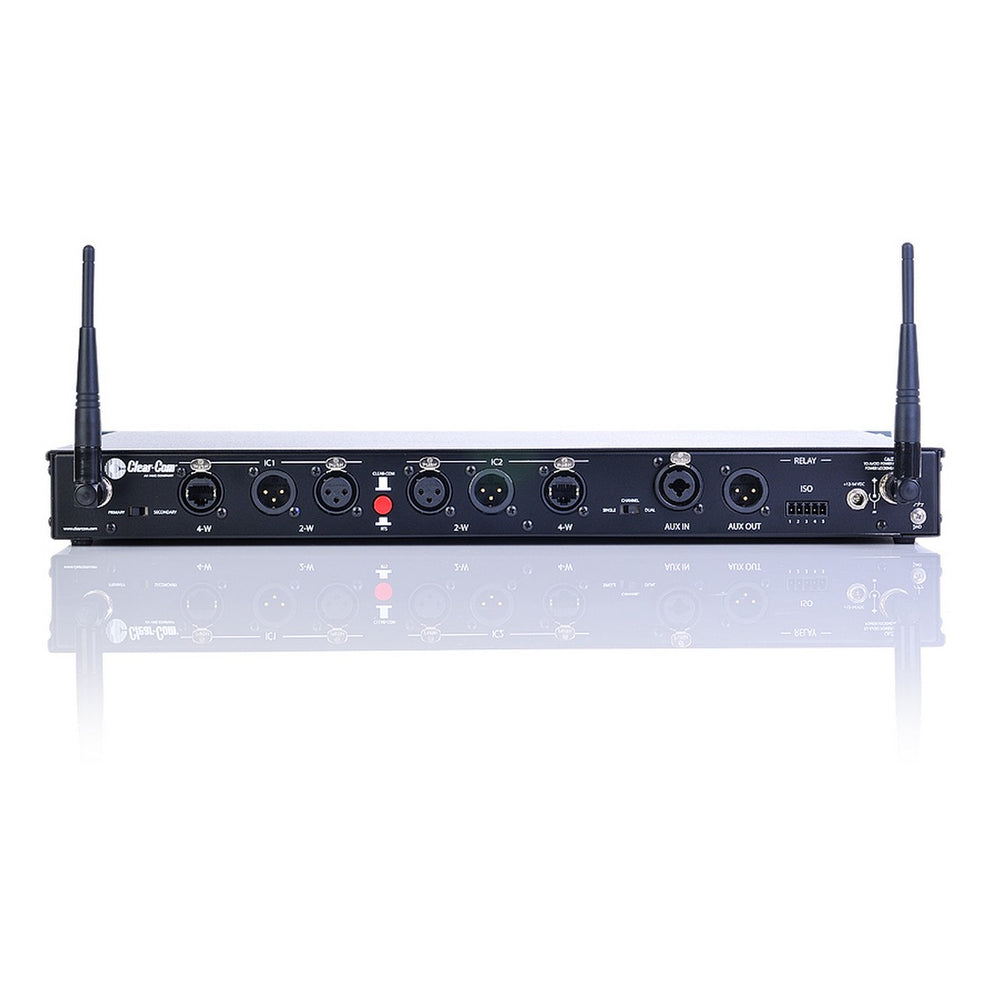

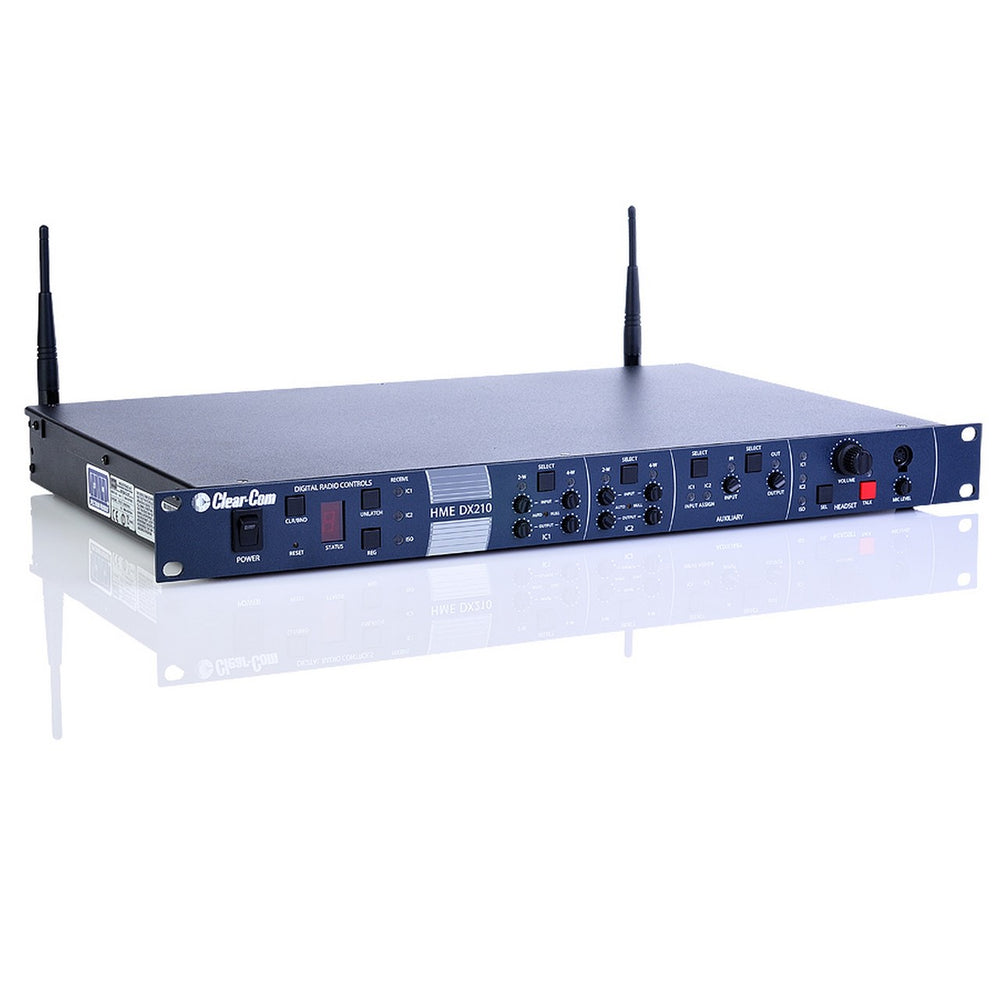

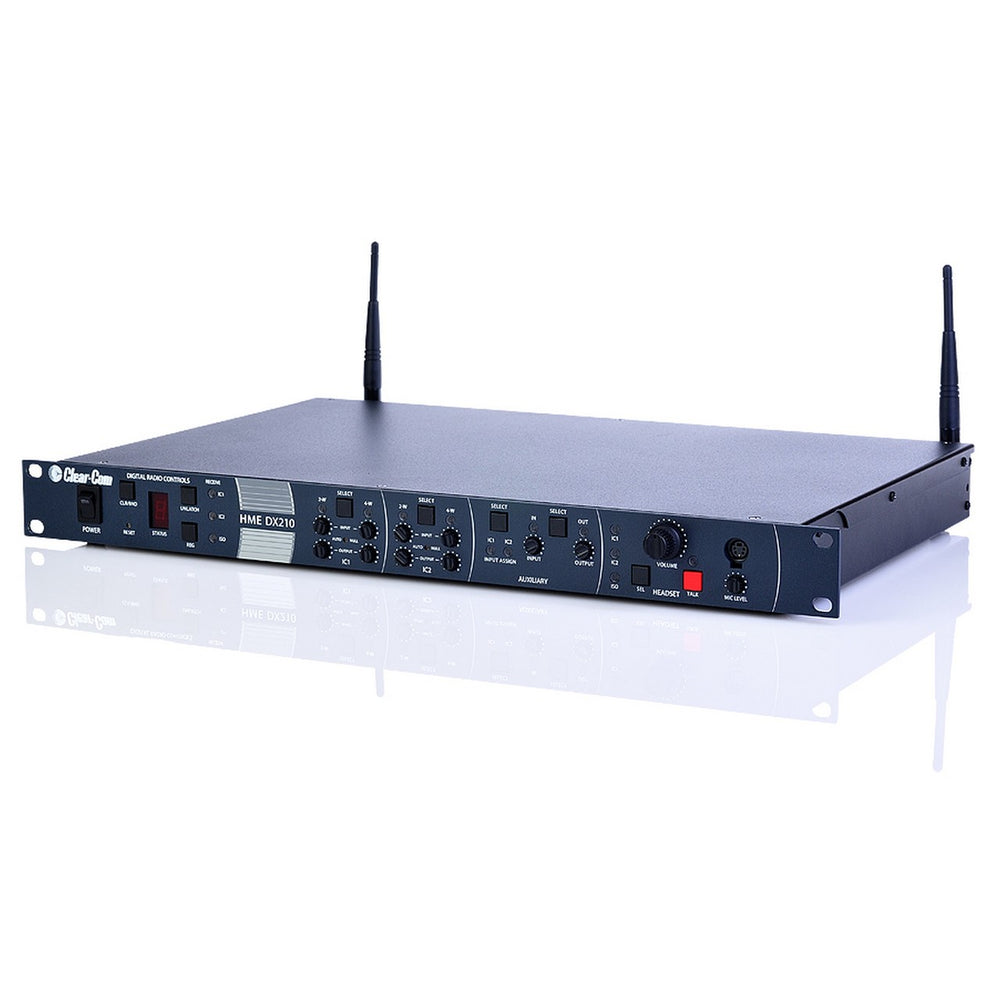

Clear-Com CZ11516 BS210 Base Station without Headset
BS210 base station without headset
Key Features
-
Expandable system
enables up to four synchronized co-located base stations to be used together for a total of 44 COMMUNICATORs with up to 16 in hands-free, full-duplex mode. -
Wired Intercom Input/Output interfaces
make DX210 compatible with existing 2-wire partyline or 4-wire matrix systems provided by Clear-Com or RTS. -
Wireless ISO Talk-around
allows all wireless users on the same base station to talk with each other, isolated from either two- or four-wire intercom channel. ISO function can be restricted to specific users. -
Digital Auto “Nulling” (Front Panel Access)
provides the deepest hybrid balancing in the industry and is flat across the entire speech bandwidth. The DX210 is equipped with an auto “nulling circuit” to easily null 2-wire connections and eliminate echo automatically. -
Two separate 2-wire/4-wire channels,
assignable AUX IN for program input plus AUX OUT that can be used to direct wireless ISO to Stage Announce (SA). -
Triple diversity (space, time and frequency)
operation for extreme multi-path situation provides redundant communication that offers the most dependable system available. The strongest signal is selected from two different antennas, transmitted and received at two different times, on two different frequencies. The vertical and horizontal diversity antenna system is specially designed to prevent dropouts and provides the strongest audio signal possible. -
Digital 64 bits of encryption
for secure communications and Frequency Hopping Spread Spectrum (FHSS) technology prevents unauthorized personnel from hearing or interrupting your communication. -
Relay (GPIO) actuation with ISO function
from either base station or any one of the appropriately configured COMMUNICATORs. -
Selective headset connector
allows the base station operator direct access to the IC channel, AUX IN /OUT, as well as COMMUNICATORs. -
Backward compatible
with previous HME DX200 COMMUNICATORs, (BP200) beltpacks are automatically assigned to channel 1 audio and work seamlessly with the DX210. -
2-Wire loop-through connectors
allows for connection to multiple external audio devices. -
Feedback protection for un-terminated 2-wire channels
automatically eliminates feedback when connecting DX210 base station to 2-wire systems.
Technical Specifications
TX & RX Antenna
1/2-Wave, Dual Diversity Dipole
4-Wire I/O
RJ-45, 600Ω Balanced,
Level Adjustable, Simultaneous Operation with 2-Wire (x2)
2-Wire I/O
XLR-3F & 3M, Externally-Switchable RTS or ClearCom Mode, 200Ω, Level Adjustable, Null Adjustable
Auxiliary Input
XLR-3F/ 1/4” Phone Combo Jack, 600Ω Balanced, Level Adjustable
Auxiliary Output
XLR-3M, 600Ω Balanced, Level Adjustable
Headset I/O
N/A
Headset Connector
4-Pin Mini-DIN
Headset Output
250 mW into 32Ω
Size
19” x 1.72” x 13.50” (1-RU)
(48.26 cm x 4.37 cm x 34.29 cm)
Weight
9.0 lb (4.1kg)
Power Requirements
100-240 VAC, 50-60 Hz or 12-14 VDC
