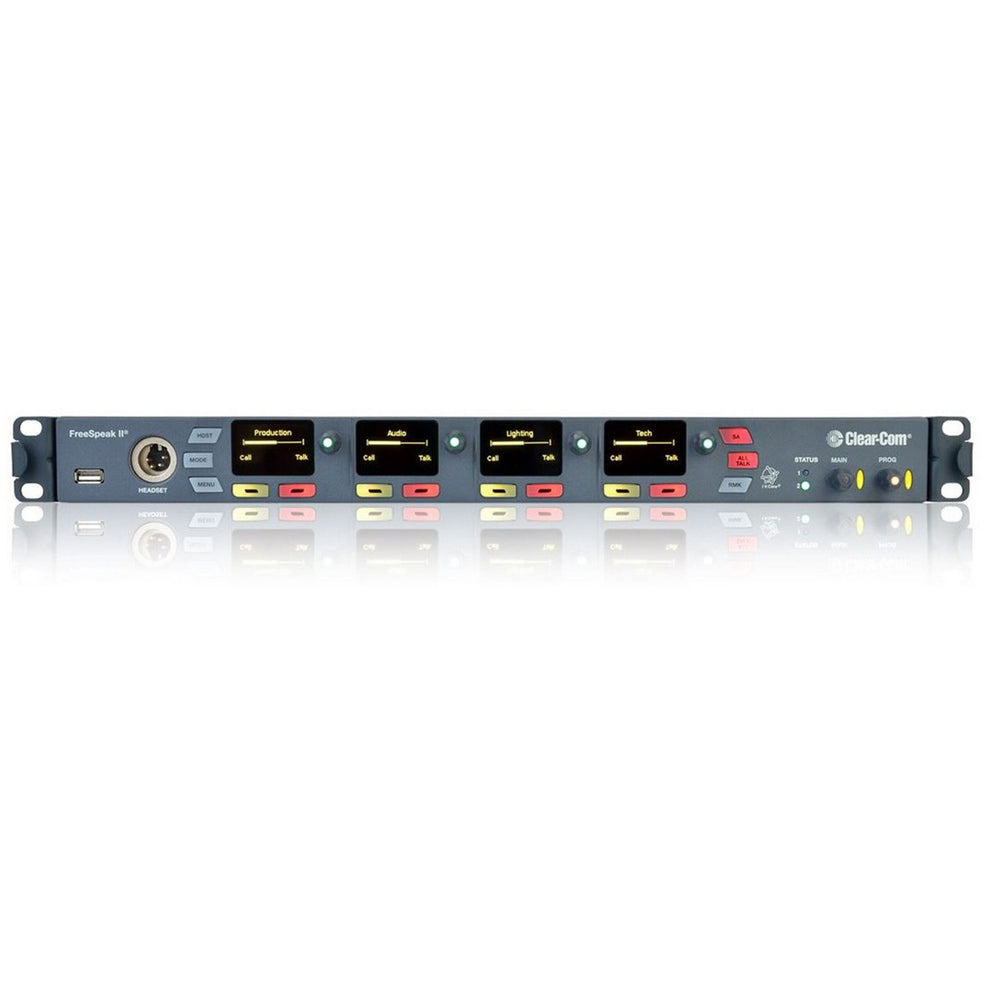

Clear-Com FSII-BASE-II Base Station with XLR-4M Connector for Wireless FreeSpeak II

The FSII-BASE-II is a base station for the wireless FreeSpeak II 1.9GHz and 2.4GHz active transceiver and beltpacks with four 2-wire analog partyline connections, four 4-wire audio connections and four digital displays with soft keys. The base station can operate a mix of up to 25 1.9GHz and/or 2.4 GHz beltpacks on a single system. The base station can be used in Main Station mode with Talk and Call soft keys or as a Headset Station for communication and monitoring from the panel.The base station's digital displays allow easy system configuration directly from the base station or through the browser-based Core Configuration Manager tool.

Key Features

• Routing and configuration of up to 25 FSII beltpacks
• Browser-based configuration tool
• Four 2-wire ports with call signal, auto-nulling
• Four 4-wire ports with call signal
• One dry contact relays
• Multi-mode user interface with monitoring, setup and main station modes with assignable soft keys
• Dedicated front panel keys for remote mic kill, stage announce and all talk
• Supports both 1.9GHz and 2.4GHz FSII beltpacks on a single base station
• Matrix and partyline configurations support up to 12 channels and/or groups

Technical Specifications

Base-to-Beltpack Frequency Response
100Hz - 7.1kHz
No. of Beltpacks per Base Station
25
No. of Transceiver/ Antennas Supported by Base
10
No. of Active Transceiver Ports
2, one port can remotely power up to 1 FSII splitter or 1 FSII transceiver
PC Programming Port
2 LAN RJ45
Relay Port
DB15, supports 1 set of relays and 2 GPI
Partyline A ,B,C,D (each)
XLR-3F, on/off termination switch, Clear-Com and RTS compatible
Partyline Power On/Off
A/B, C/D paired
Partyline Output Voltage
26 - 28VDC, 850mA per pair (A/B or C/D)
Four-Wire/Matrix Connection
4 RJ-45
Program Input
XLR-3F, transformer isolated, line-level input
Stage Announce Output
XLR-3M, transformer isolated, line-level output
Front Panel Headset
4-pin male and 5-pin female options
Front Panel Displays
4 OLED’s with encoders and assignable soft keys
Front Panel Indicators
Antenna Status, Beltpack Status
External Power Supply Connection
12VDC
Base Station Programming/Editing
Push-to-enter rotary encoder
Dimensions
1.75 x 19.0 x 10.2 in (HxWxD) (44 x 483 x 259 mm)
Weight
5.57 lbs (2.5 kg)
