Clear-Com HKB-2X-X7 HelixNet Speaker Station with 7-Pin XLR-Male Headset Connector

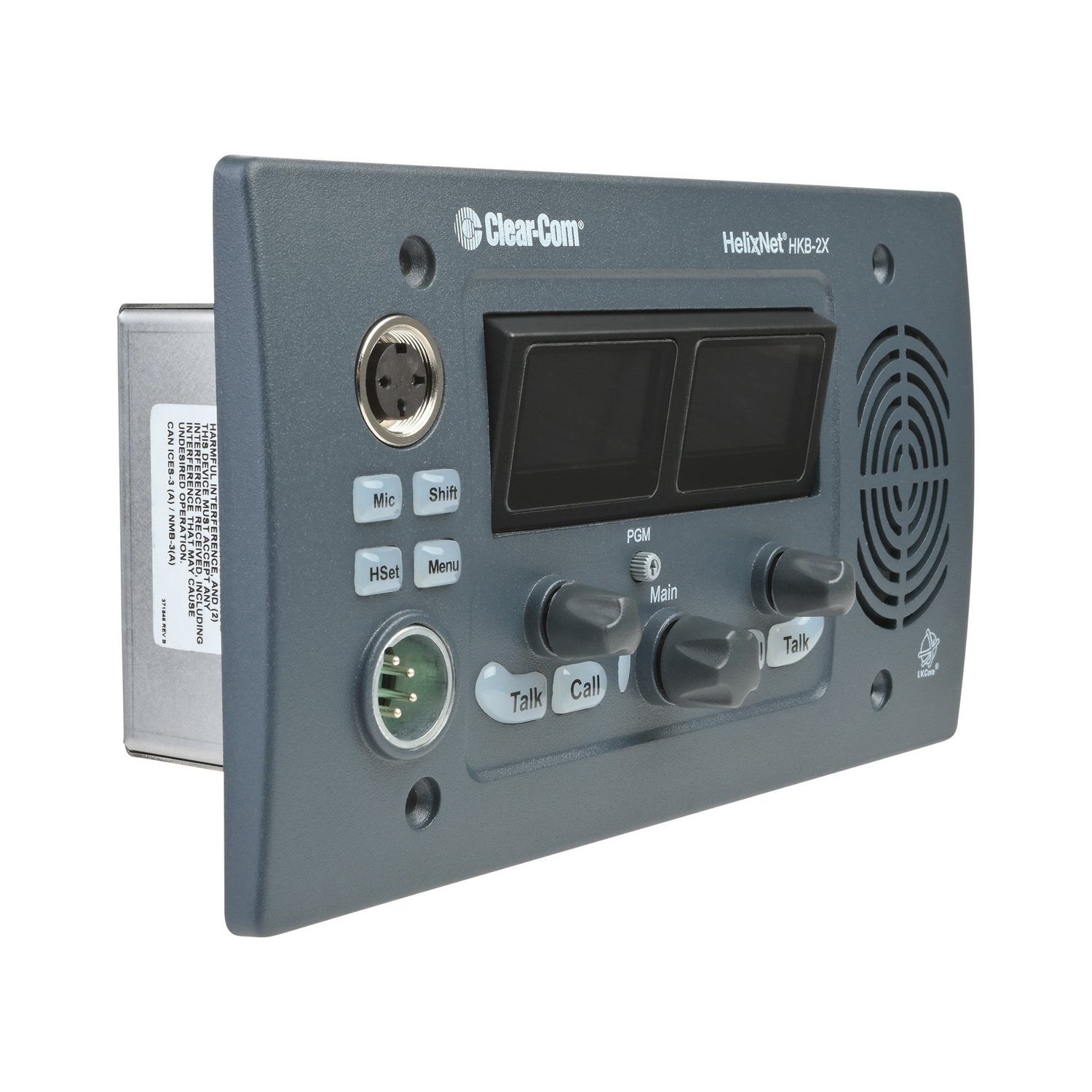

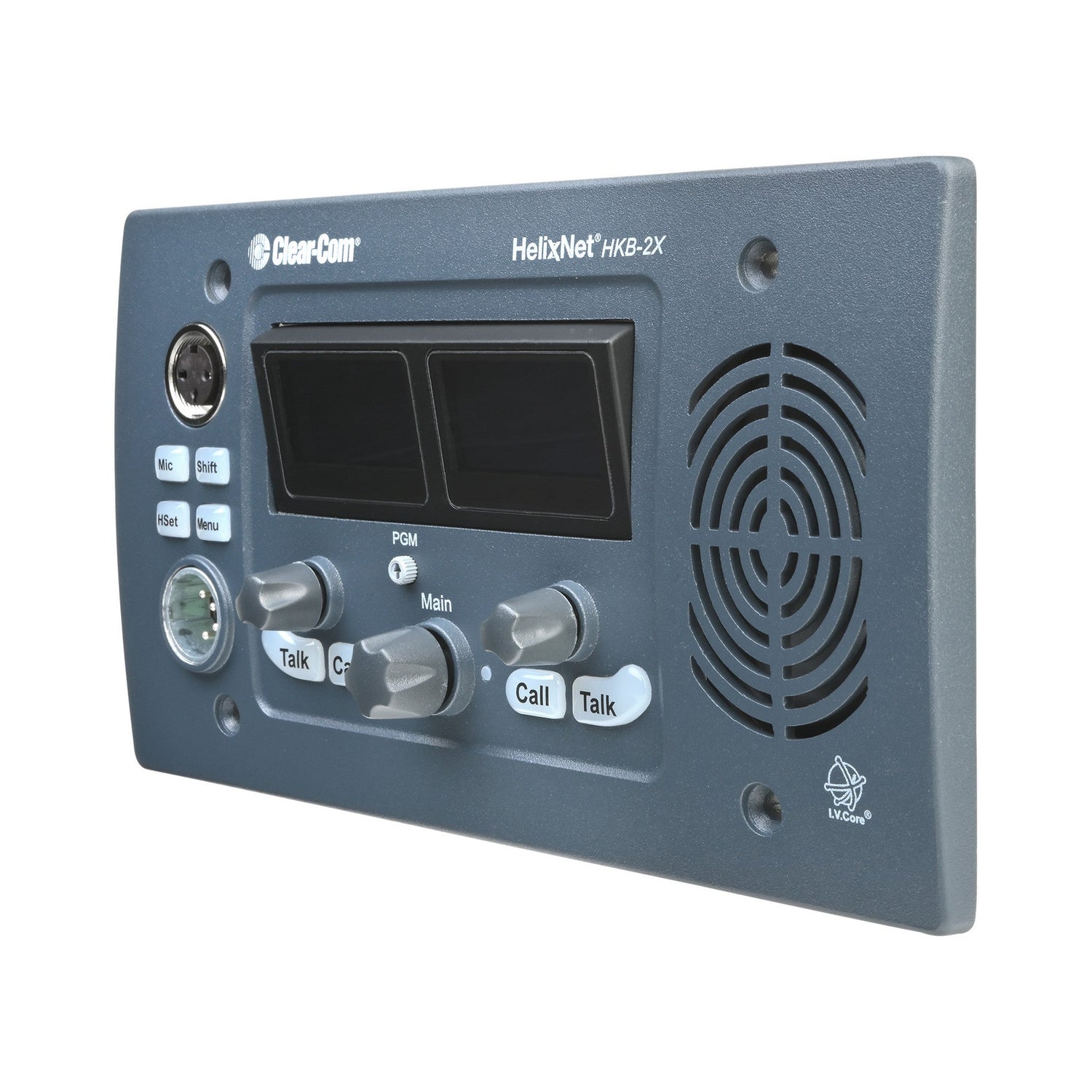

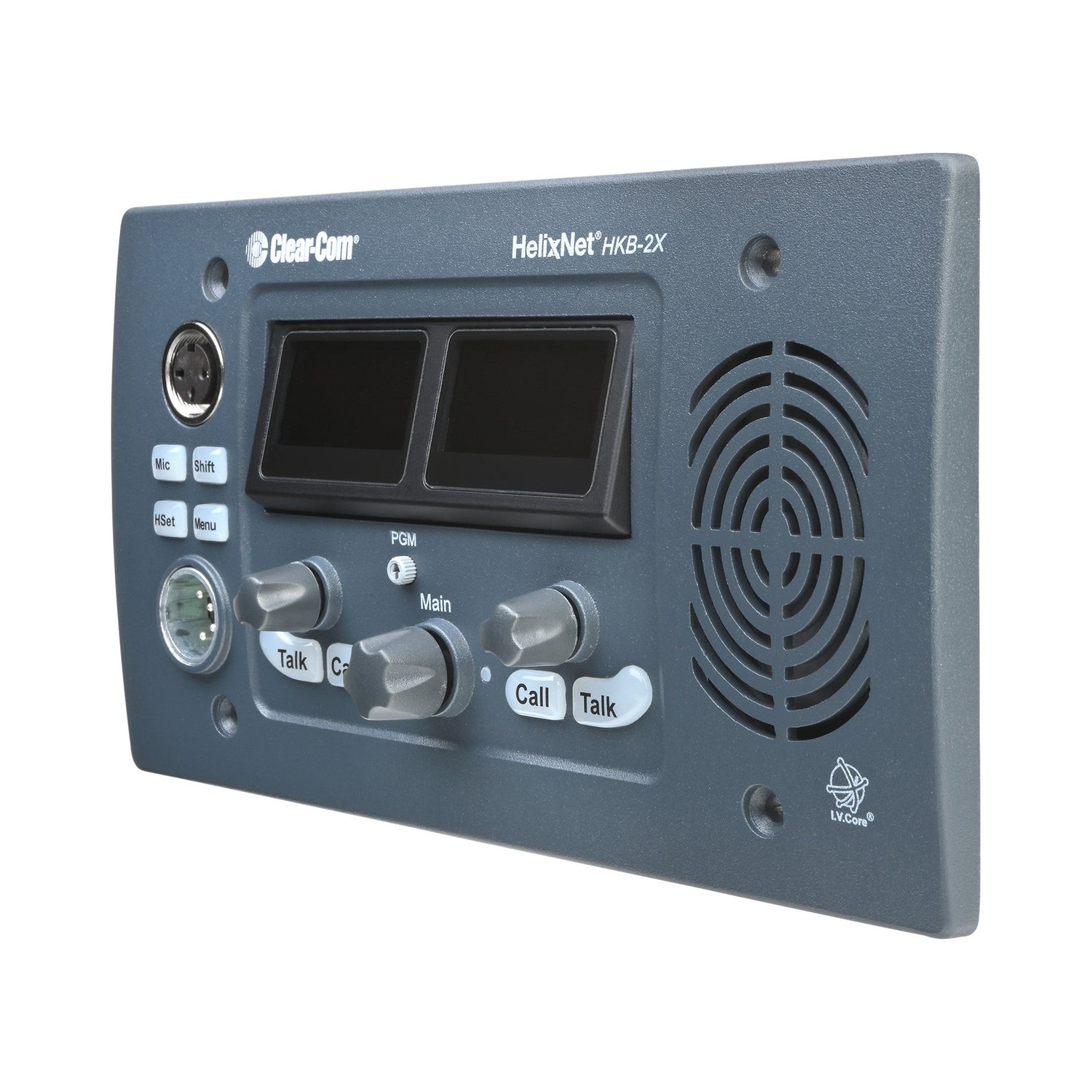

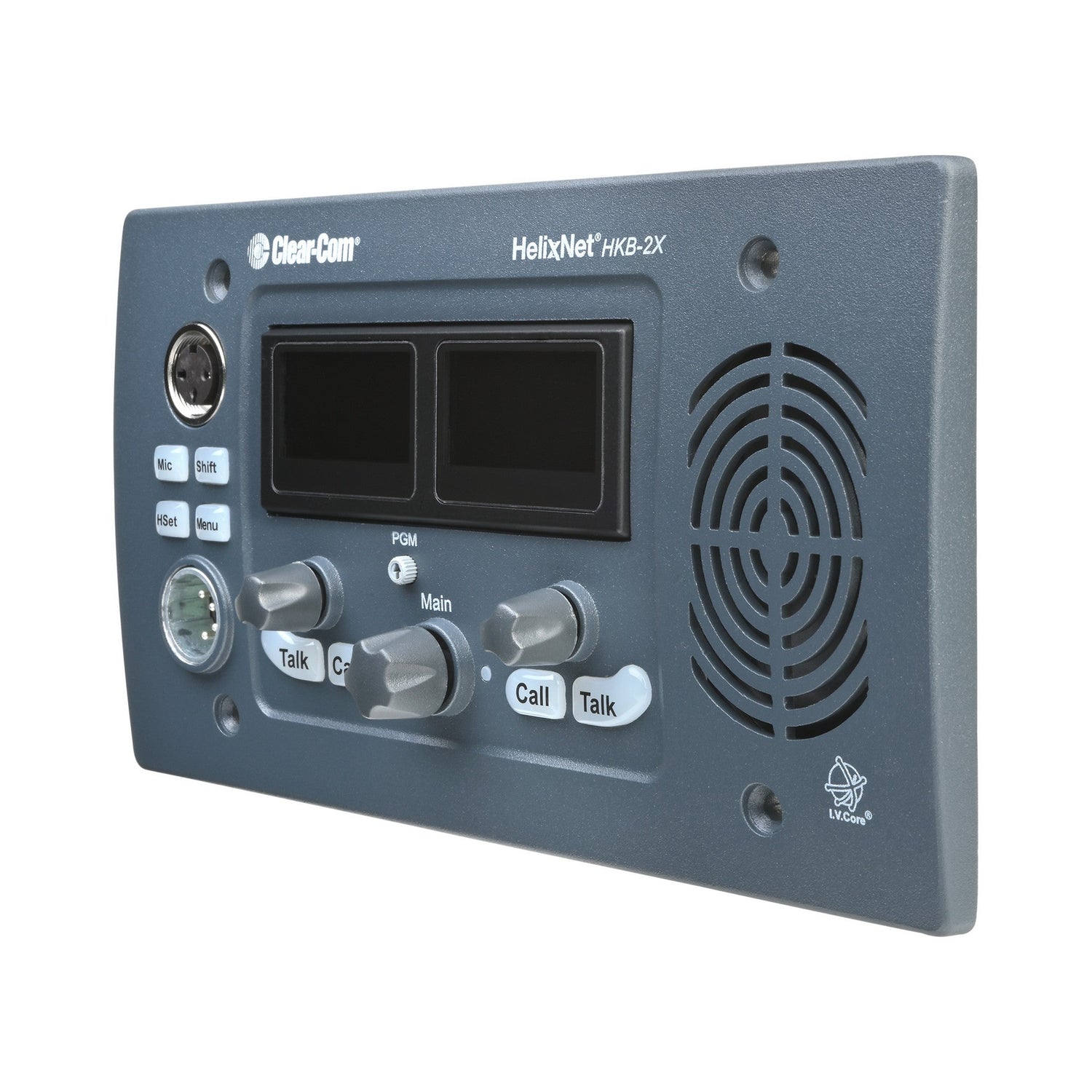

The HKB-2X speaker station is a 4-gang flush-mountable user station.
Key Features

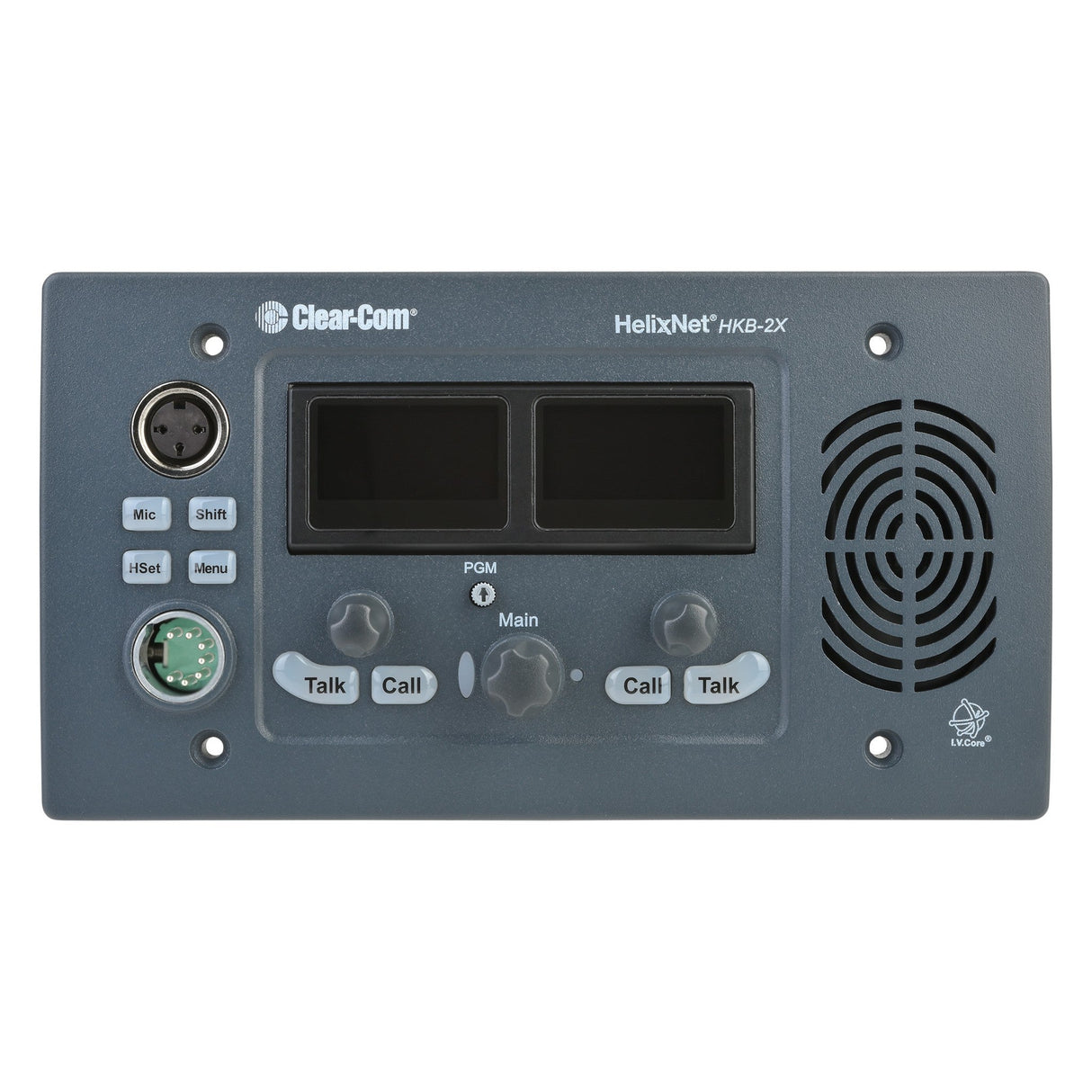

- Easy to use front panel with OLEDdisplays & backlit keys
- Headset or hands free support withspeaker and mic
- 2 Keysets assignable to channels
- Shift page for 4-channel operation
- Program Audio level control
- Display swivels for optimal viewingangles
Connectivity - Ethernet Network port with PoE(1)
- Powerline terminal plug to HMS-4X(2/3)
Mechanical - 4-gang for flush mounting
- Optional S-MOUNT for desktop use
The HelixNet System - Wired Partyline - Networked
- Hosted by Arcadia or HMS-4X(3)
- Up to 24 Channels - Licensed
- Up to 64 HelixNet Endpoints
- Program Audio user level control
Effortless Management - Easy to use CCM browser configuration
- Fast front panel control & configuration
- Central discovery & pairing on Arcadia
- Plug-and-go Powerline to HMS-4X(2/3)
- Central firmware upgrades from host
(1)CCM and Endpoint network connection to HMS-4X requires HLI-ET2
(2)XLR Powerline connections is not available for Arcadia. Contact Clear-Com for further information.
(3)HMS-4X is a legacy product as of 2022
Technical Specifications
HelixNet System Hosts
Arcadia: Supports up to 64 HelixNet endpoints (HRM-4X, HKB-2X & HXII-BP) over Ethernet. Up to 24 Channels can be HelixNet Enabled using a Licensed Port for assignment to any HelixNet endpoints keyset.
HMS-4X: Supports up to 64 endpoints (HRM-4X, HKB-2X, HBP-2X, HXII-BP, HLI-2W2, HLI-4W2, LQ port). User stations can connect via HMSās 2 Powerlines (see datasheet for limits) or over Ethernet via optional HLI-ET2 module. HMS allows use of 12 channels which can be expanded to 24 using optional license.

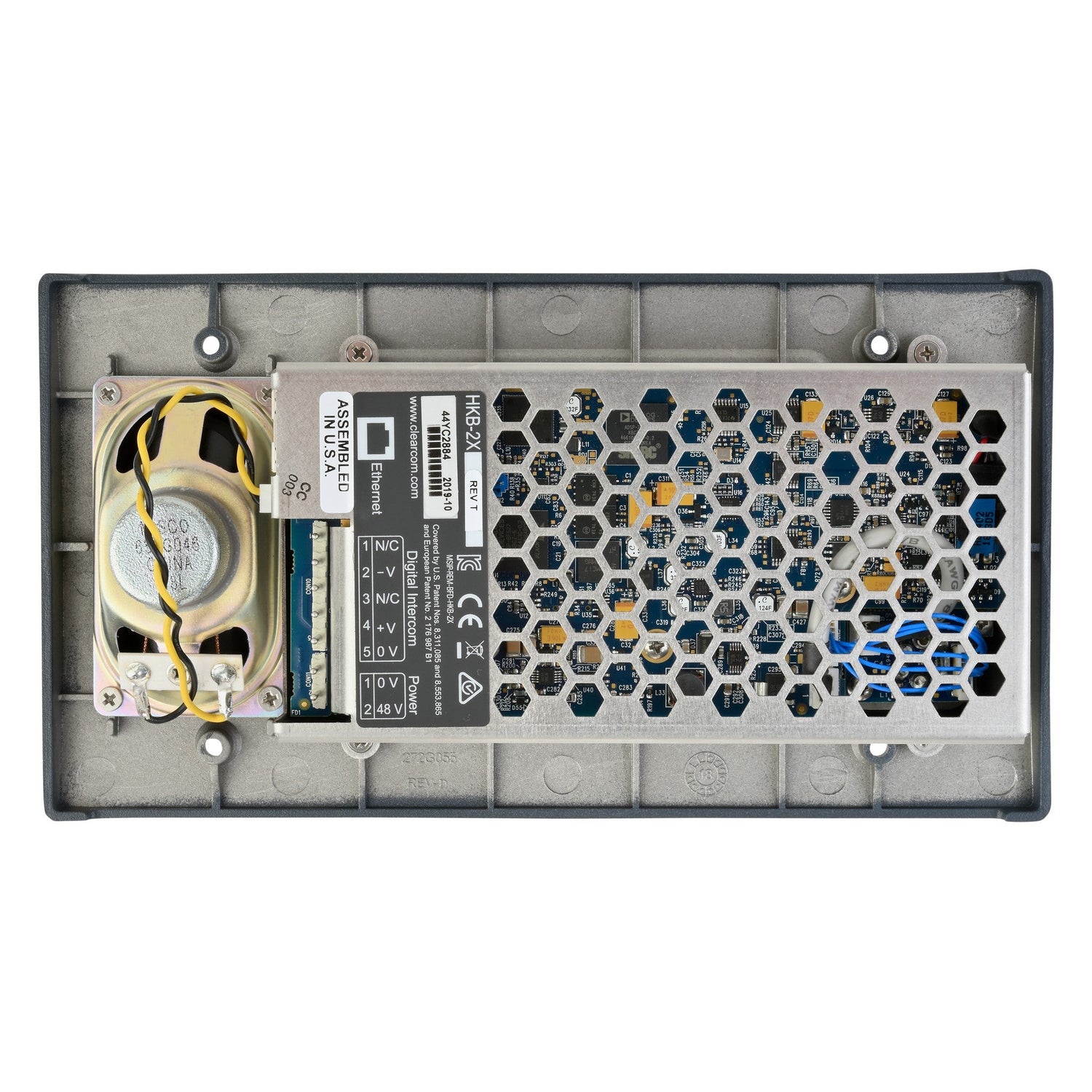

Connectors
Powerline**: Powerline, Terminal Block 5 pole, 5mm pitch
Ethernet/PoE *: RJ45
Headset: 7-pin XLR-M with (2) PTT GPI (-X7)
Gooseneck Mic: 3-pin Tuchel
Power Connector: Terminal Block 2 Pole, 5mm
Microphone Pre-amplifier
Headset Mic Impedance: 200O (Dynamic)
Headset Mic Voltage: 1.7V (Electret selectable)
Limiter: +23dB
Route to four-wire output at 0dBu out:
Mic Gain: 60dB (Dynamic), 45dB (Electret)
Frequency Response: 300Hz - 10 kHz Ā± 3dB, contoured for intelligibility
Distortion: <0.1% THD @ 1kHz
Noise: <-65dBu
Headphone Limiter: 0dB (selectable)
Headphone Amplifier
Load Impedance: >32O
Output Level: +12dBu before clipping
Sidetone: -12dB (selectable)
Route from a four-wire input at 0dBu in: Max Gain: 0dB
Frequency Response: 40Hz - 10kHz Ā±3dB
Distortion: <0.1% THD @ 1kHz
Noise: -65dBu
Headphone Limiter: 0dB (selectable)
Loudspeaker Amplifier
Load Impedance: 8O
Output Level: +18dBu before clipping
Route from a 4-wire input at 0dBu in: Max Gain: 18dB
Frequency Response: 200Hz - 10kHz Ā±3dB
Distortion: <0.1% THD @ 1kHz
Noise: <-50dBu
Logic Inputs - PTT/GPI (-X7 only)
Assignable to talk, call, mic and headset keys
Input: 2
Style: Powered input, close contact to ground
Detection Voltage (Min): 3V
Input Voltage (Max): 5V
Output Voltage: 5V
Output Current (Max): 1mA
Device Power
Voltage: 48V DC
Current (Max): 0.3A
Power (Max): 14.4W
BTU (Max): 49BTU/hr
Input Power Connector: Terminal Block 2 Pole, 5mm
AC Adapter - Wall (not included)
Input Voltage Range: 100 - 240V AC
Input Frequency Range: 50 - 60Hz
Input Power Connector: Universal
Output Voltage: 48V DC
Output Power (Max): 15W
Output Power Connector: KPPX-3-P
PoE - Power over Ethernet
IEEE 802.3af-2003 - Class 0
PSE: 15.4W DC max @ Power Source Req.
PD: 12.95W DC max @ Powered Device Draw
Powerline**: Input Voltage: Ā±29.5V DC
Input Current (Speaker Off): 0.3A
Input Current (Max): 0.5A
Powerline Utilization: HKB (Local Power) = 1 beltpack HKB (Speaker Off) = 2 beltpacks HKB (Speaker On) = 3 beltpacks
Note the maximum Powerline capacity of the HMS-4X. Use HelixNet Cable Calculator to validate load and cable distance.
Environmental
32Āŗ - +113ĀŗF (0 - +45ĀŗC) 90% relative humidity
Dimensions
4-Gang NEMA, 4.5 x 8.2 x 2.4in (HxWxD)
(114 x 209 x 61mm)
Weight
18.8oz (0.53kg)
Network Protocols
Ethernet IPv4 - Unicast Audio and Control
mDNS - Multicast Device Discovery Layer 3-Routable with mDNS function limitations
HTTP-Management RTP-Audio Transport WavPack - Audio Codec
Network Ports
Unicast:
Port 80 TCP - System Management
Port 6001 TCP - System Management
Port 6001 UDP - Audio Streams
Multicast: Port 5353 UDP - mDNS, Names, Discovery, Linking Optional for device names and linking
Network Parameters
HMS-4X Endpoint Resource Use: 1
Bandwidth: 300 (max) kbps from each HKB to HMS 1200 (max) kbps from HMS to HKB
Network Jitter Tolerance: <= 128ms jitter buffer per audio stream receiver automatically adjusted to network performance
QoS tags: DSCP=41, Assured Forwarding (AF)
Link-Local Default IP address range: 169.254.0.0/16
System reserved IP range: 10.0.0.0/8 for endpoints
Recommended Ethernet Switches
Managed Ethernet Switch - Layer 3
100/1000 Base-T ports for endpoints
1000 Base IP Trunks between switches
QoS configuration ā¢ Energy Efficient Ethernet bypass option
IGMP Snooping bypass option
Includes
(4) 6-32 x 1/2" mounting screws (280038Z)
(4) Screw cover (416G054)
(1) Terminal block connector for powerline (210085Z)
(1) Terminal block connector for DC power (210369Z)
Optional Accessories (sold separately)
S-MOUNT Wall adapter
PSU 15W 48V DC (453G025)
Inline PSU 15W 48V DC (453G026)
