Clear-Com MA-704 Talent Access Station Program Interrupt IFB System
The MA-704 provides individual access to four Talent Channels. The ALL button simultaneously access all Talent positions. Works in conjunction with the PIC-4744 IFB Router and AX-704 Expansion Stations. Can be mounted in the optional rack mount (CEP-RK).
Key Features
- The MA-704 provides individual access to four Talent Channels
- The ALL button simultaneously access all Talent positions
- Works in conjunction with the PIC-4744 IFB Router and AX-704 Expansion Stations
- Can be mounted in the optional rack mount (CEP-RK)
Technical Specifications
Panel Microphone Input
Input Type
Electret
Input Impedance
>=2K OHMS
Mic Limiter Threshold
0dB Ā± 3dB
Mic Limiter Range
>= 15dB
Frequency Response
Panel Mic Talent
200 - 18KHz Ā± 3dB
Extension Line Talent
200 - 18KHz Ā± 3dB
Max Distortion
Panel Mic Talent
<= 0.5%
Extension Line Talent
<= 0.1%
Noise
Panel Mic Talent
< -65dBu
Extension Line Talent
< -85dBu
Max Gain
Panel Mic Talent
<= 40dB
Program Input Talent
<= -45dB
Power
Input Voltage Range
20-30 VDC
Input Current (Idle)
<= 140mA
Input Current (Max)
<= 180mA

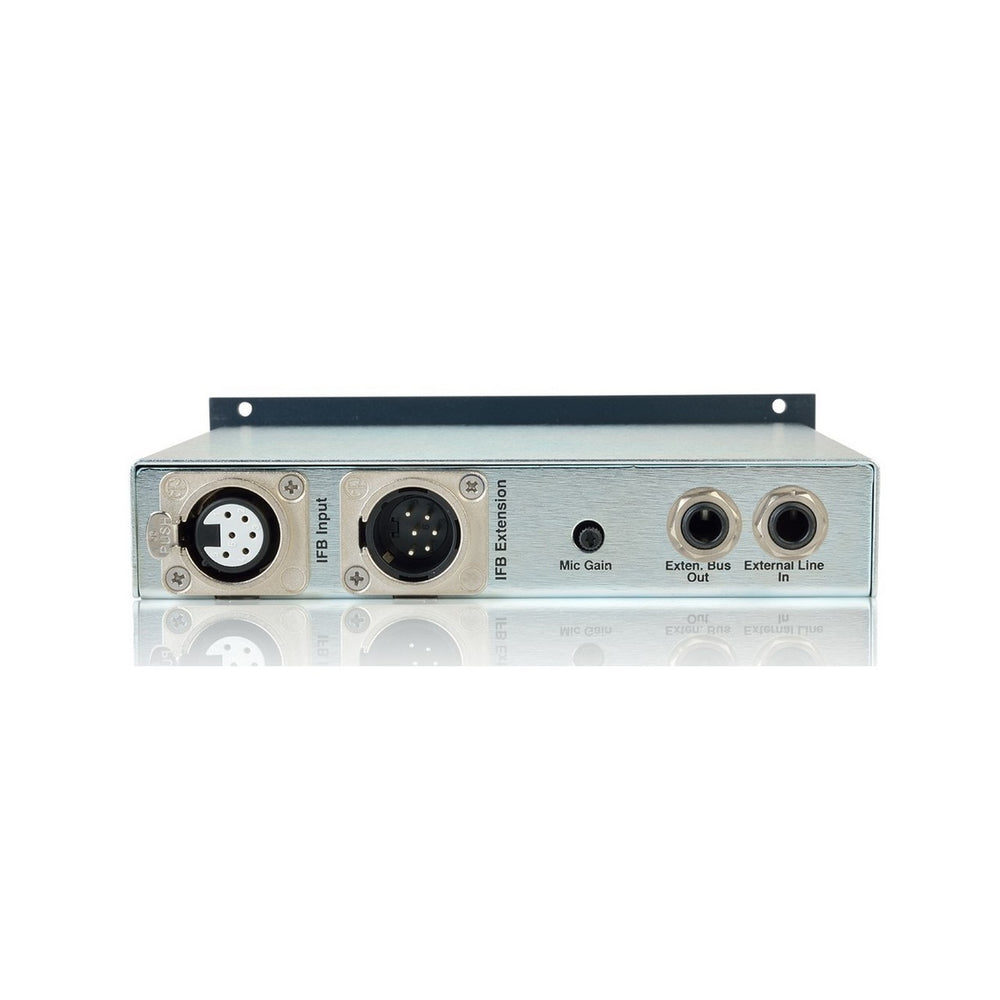

Rear Panel Connectors
IFB Input
(1) XLR6F
IFB Extension
(1) XLR6M
Extension Bus Out
(1) 1/4 jack
External Line In
(1) 1/4 jack
Mic Gain
(1) Gain adjust

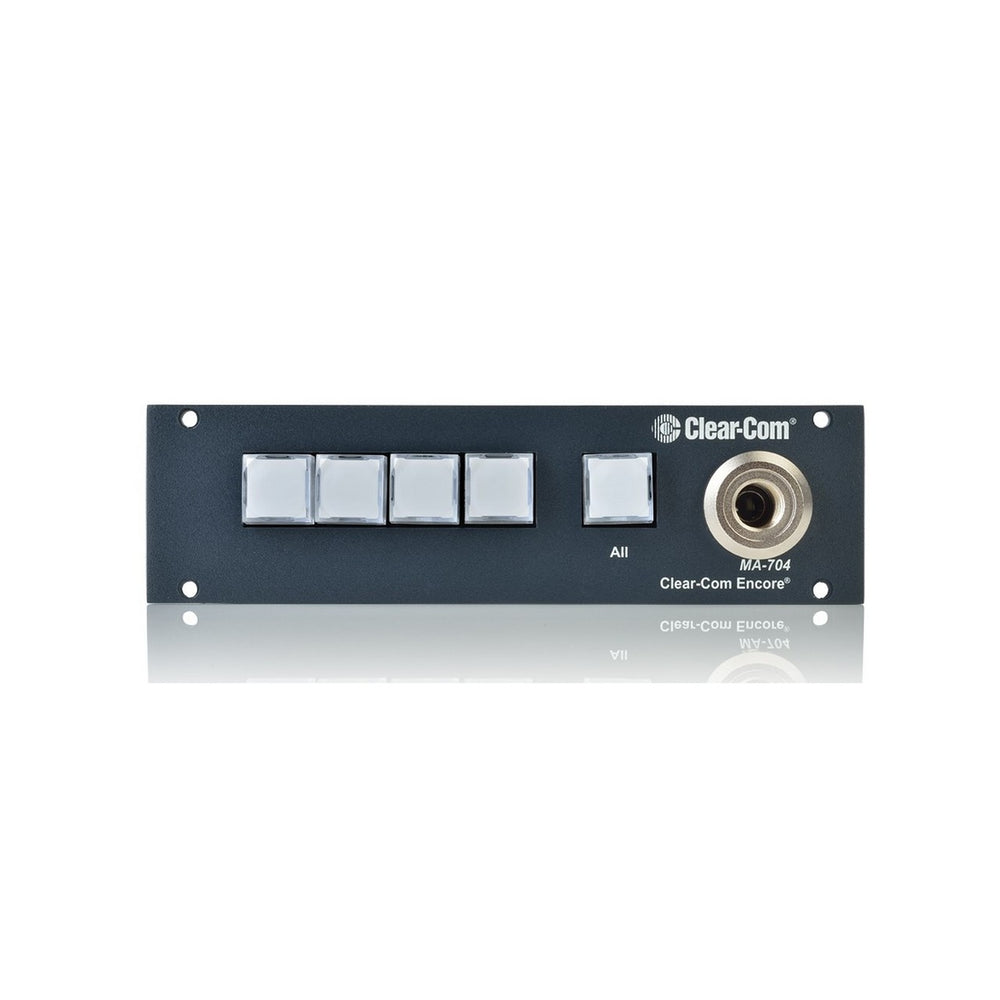

Front Panel Controls & Indicators
(5) Talk buttons
(1) 1/4 microphone jack socket
Environmental
32F - +122F (0C - +50C)
Dimensions
6.3 x 1.75 x 5.5 in (WxHxD)
(160 x 44 x 140 mm)
Weight
1.71lbs (0.78kg)
