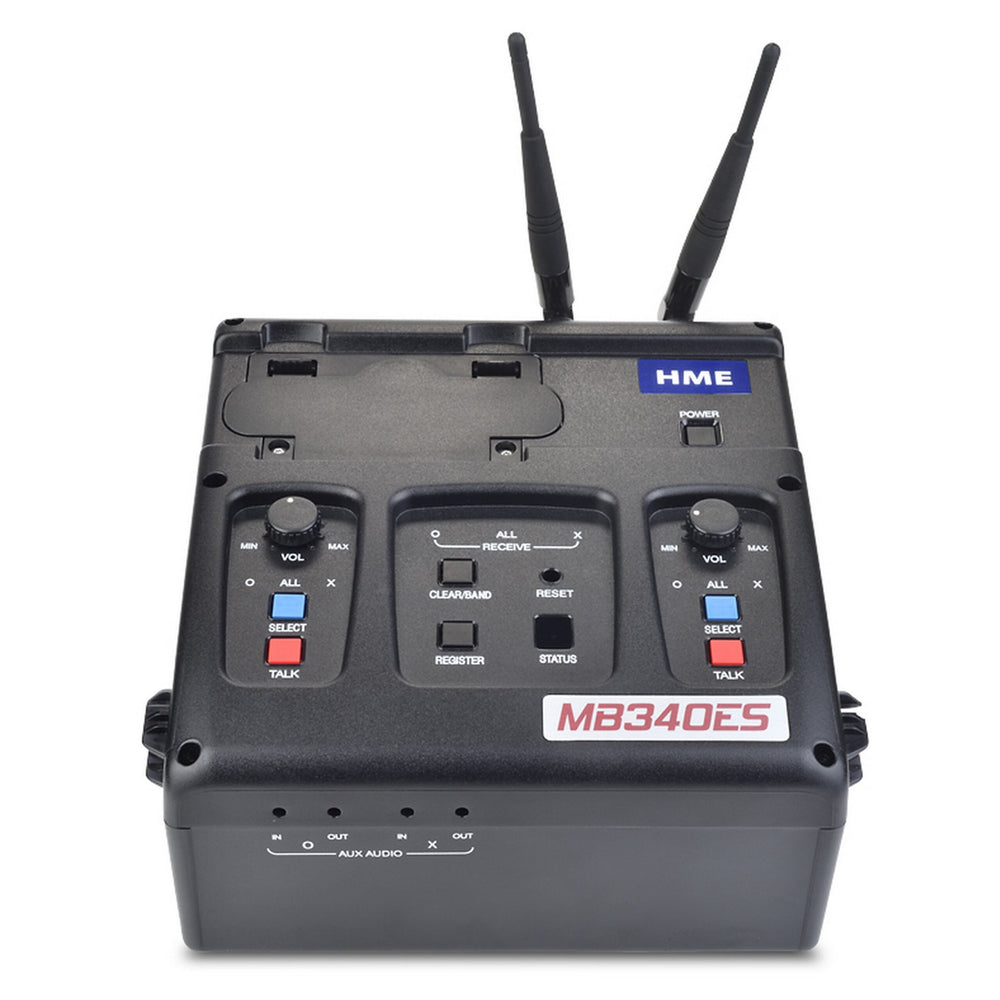

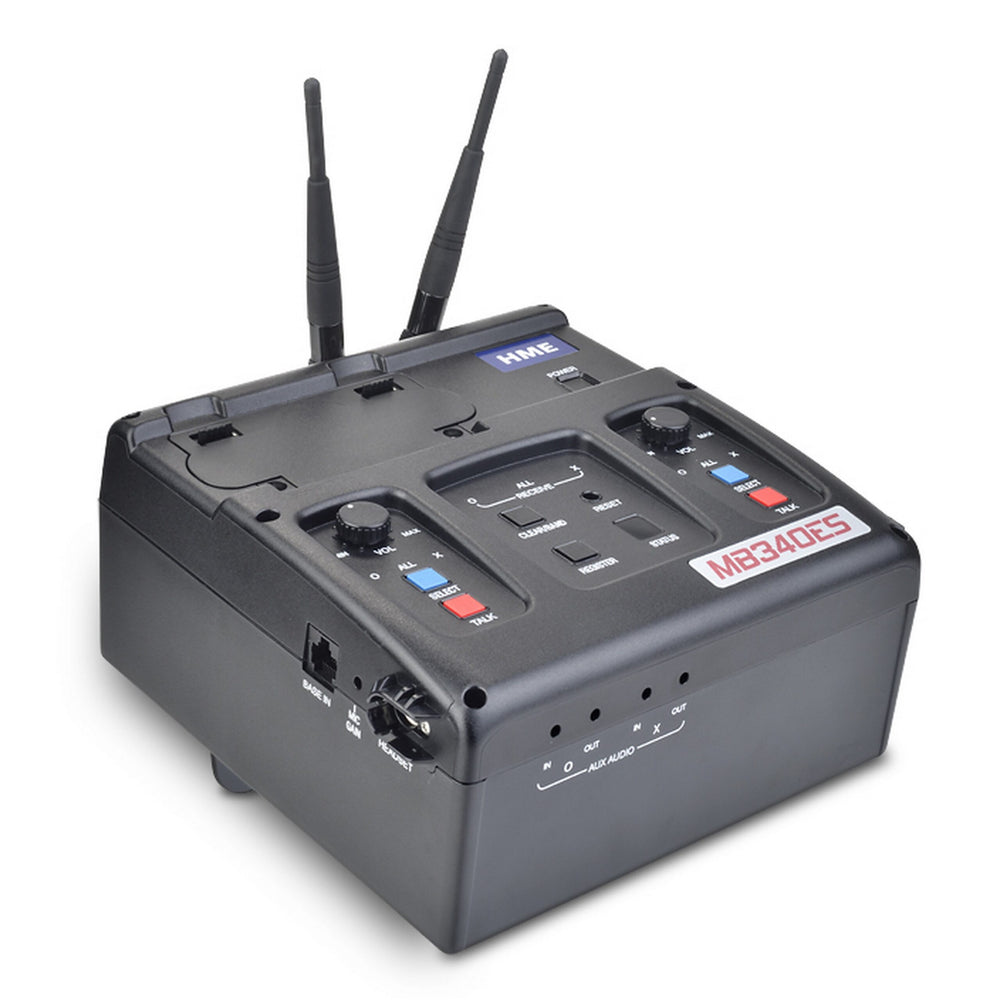

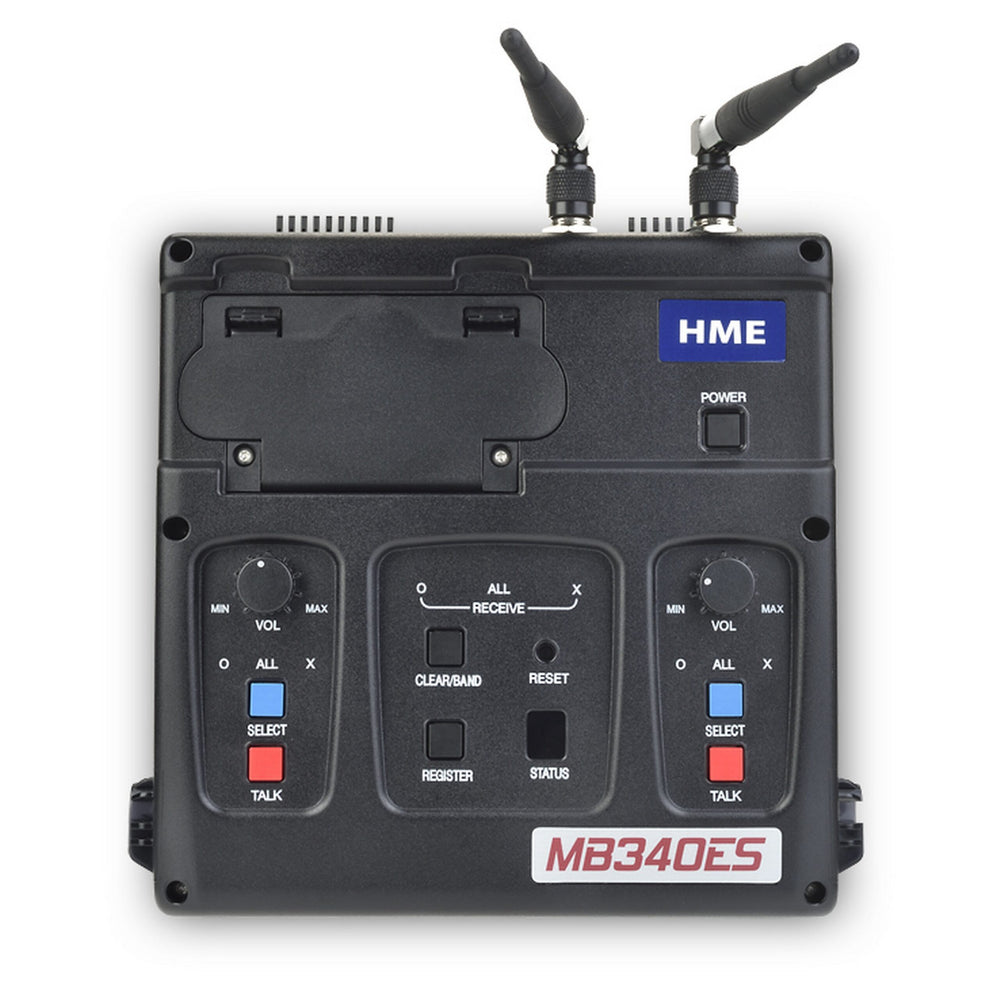

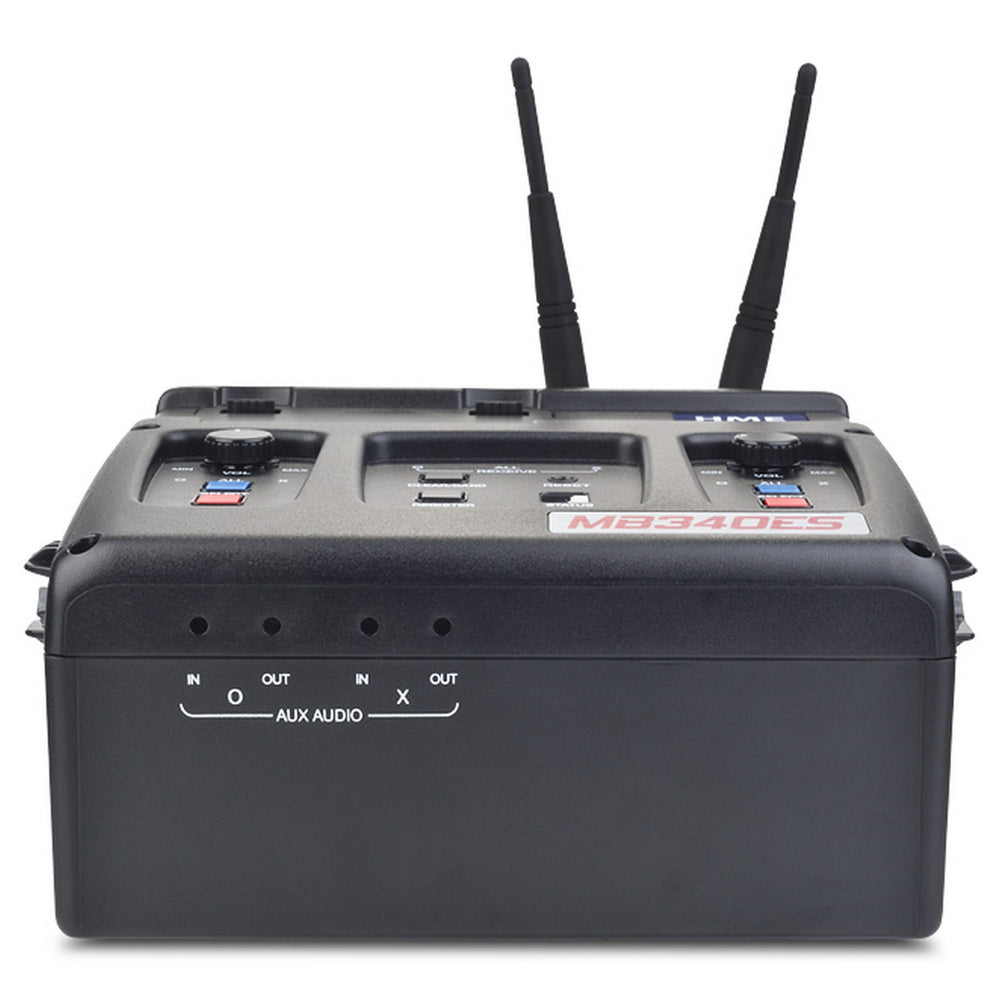

Clear-Com MB340ES Dual Headset Position Base Station
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Clear-Com MB340ES Dual Headset Position Base Station
Dual Headset position base station with wideband 7KHz l WW model with 115-230VAC power supply, power cord, two AA battery sleds, two antennas, interconnect cable and manual.
Key Features
- Two-Channel 2.4GHz Portable Base Station
- Up to 4 full-duplex or 12 half-duplex beltpack and/or all-in-one headset users per base station
- Link two bases together to support a maximum of 30 users
- Single or dual-channel operation
- 7kHz wideband audios
- Lost packet concealment
- Better RF filtering than DX300ES
- Secure 64-bit encryption
- Dedicated channel relays
- 10-pin terminal strip connector for easy connection to 4-wire intercom systems
- Triple diversity (space, time and frequency) operation for extreme multi-path environments
- No frequency coordination or licensing for operation
- Power via 100-240 VAC, 12-14 VDC, 1.5V “AA” batteries or an optional rechargeable BAT850 battery
Technical Specifications
System
Frequency Range: All (2400 - 2483.5 MHz), Low (2401.92 to 2439.936 MHz) or High Band (2443.392 to 2481.408 MHz)
Frequency Response: 200 Hz to 7 kHz
Security: 64-Bit Encryption
Temperature Range: -4 to 131F (-20 to 55C) typical
Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
Transmit Power: 100mw Burst
Modulation Type: Gaussian Filtered FSK, TDMA
Frequency Stability: 13 ppm
Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
RF Sensitivity: <-90dBm w 10-3 BER
System Distortion: <2%
Dynamic Range: -90dBm to -20dBm
FCC Acceptance: Part 15
Base Station
Antenna Type: External, Dual Diversity -Wave Dipole, R-TNC Connector (x2)
AUX I/O: 600 Balanced, with Level Adjustment
Headset Connector (x2): Mini-DIN
Headset Output: 200mW into 32W
Relay: 8-Pin Phoenix NC,COM,NO,GND (x2) 2A @ 30VDC
Power
100-240VAC, 50-60Hz or 12-14VDC or Six 1.5V AA Batteries or BAT850 Rechargeable Battery (Optional)
Dimensions
8 x 8 x 3.5 in. (WxHxD)
(203 x 203 x 90 mm)
Weight
2.75 lb (1.25 kg) with Battery
