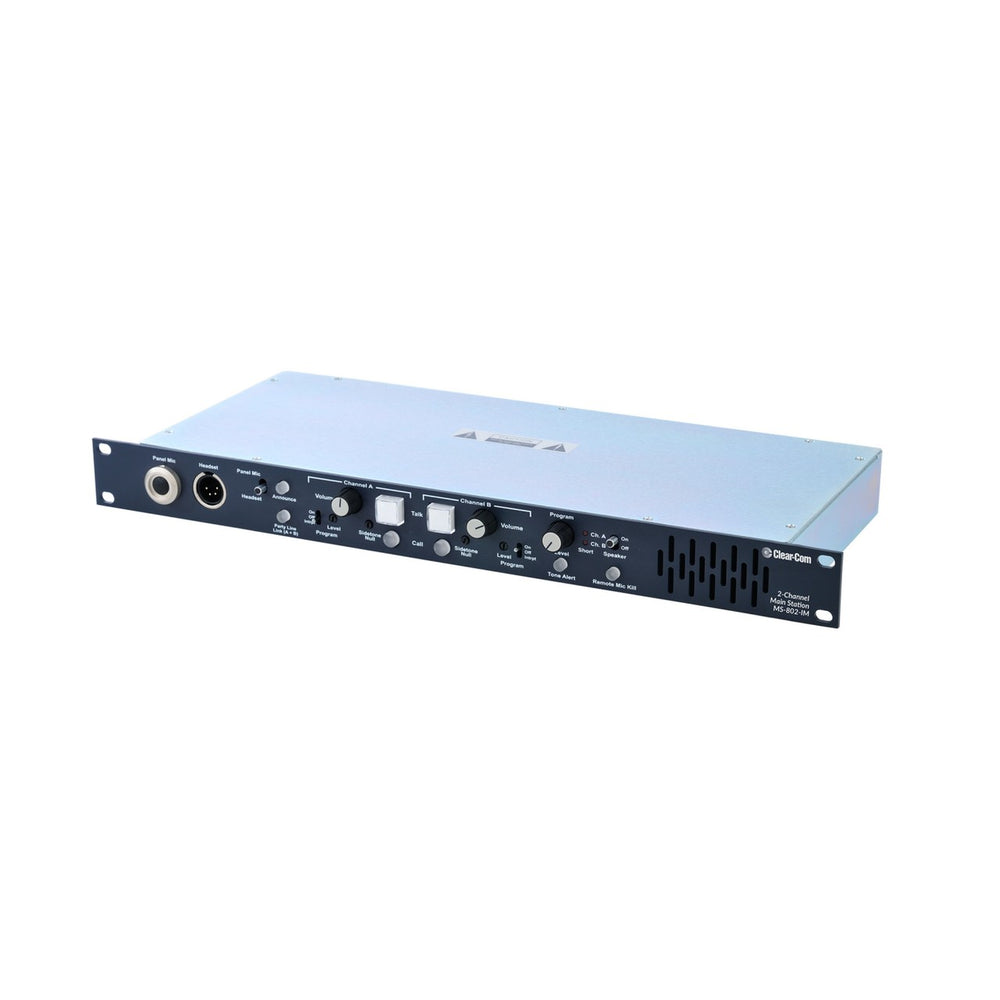

Clear-Com MS-802-IM 2 Channel 1RU Main Station
Clear-Com MS-802-IM 2 Channel 1RU Main Station
Clear-Com MS-802-IM 2 Channel 1RU Main Station

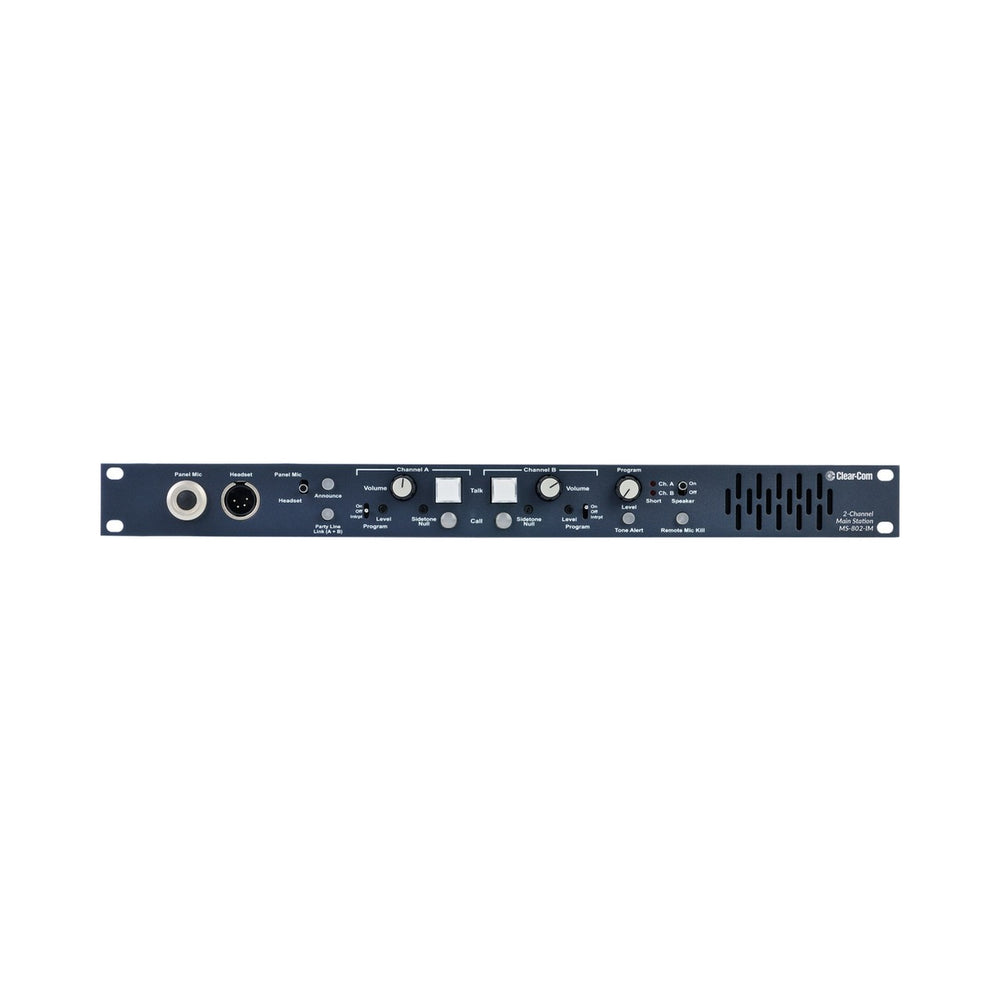

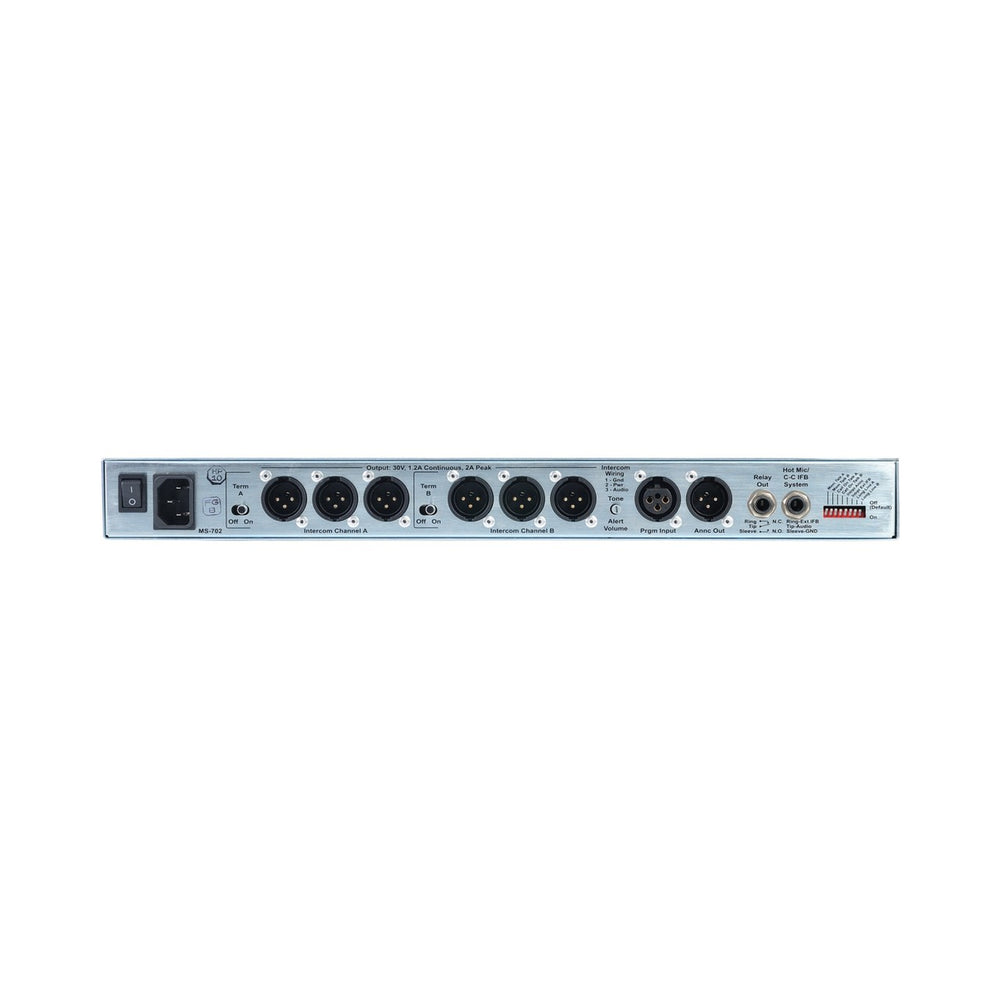

Encore Marine certified and DNV-GL registered two-channel headset/speaker main station. Built-in 1-amp (2-amp peak) power supply, 1RU rack mount. Three XLR-3 Male connectors for each partyline A and B, one XLR-3 female for Program Audio in and one XLR-3 Male for Stage Announce out on the rear panel. Jack for hot mic out.
Key Features
- 2-Channel 1RU Main Station with built-in Speaker
- Supports up to 55 beltpacks or 10 speaker stations on two channels
- IP-20 environmental rating
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- Separate short-circuit protection for each channel
- Program feed to both channels, with selectable Program Interrupt (IFB)
- Remote Mic Kill
- Announce output with relay
- Visual and audible Tone Alert signaling
- Built-in speaker
- Universal voltage power supply
Technical Specifications
Station Capacity
Up to 55 RS-801-IM beltpacks or 10 speaker stations or 12 headset stations distributed over both channels
Panel Microphone Input
Input Type
Electret
Input Impedance
>=2K
Mic Limiter Threshold
0 dBu -3 dB
Mic Limiter Range
>= 20 dB
Headset Microphone Input
Input Type
Dynamic
Input Impedance
>= 1K
Mic Limiter Threshold
0 dBu - 3dB
Mic Limiter Range
>= 15 dB
Program Line Input
Maximum Level before Clipping
>= 20 dBu
Input Impedance
>= 5K
Headset Output
Load Impedance
>= 8
Output Impedance
<= 25
Output Limiter Threshold
+5 dBu - 3 dB
Maximum Output Level before Distortion
>= 17 dBu
Speaker Output
Load Impedance
>= 4
Max Output Level before 1% Distortion
20 dBu - 2 dBu
Partyline Output
O Noise
< -74 dBu
Output Impedance
>10 K
Frequency Response
Panel Mic Partyline
600 - 10KHz - 3dB
Headset Mic Partyline
200 - 12KHz - 3 dB
Headset Mic - Line Out
200 - 12KHz - 3 dB
Program Input Partyline
100 17KHz - 3 dB
Program Input - Headset Out
200 - 10KHz - 3 dB
Program Input - Speaker Out
300 - 10KHz - 3 dB
Partyline - Headset Out
200 - 10KHz - 3 dB
Partyline - Speaker Out
300 - 10KHz - 3 dB
Dimensions
1.75 x 19 x 6.5 in (HxWxD)
(44 x 483 x 165 mm)
Weight
6.1 lbs (2.8 kg)
