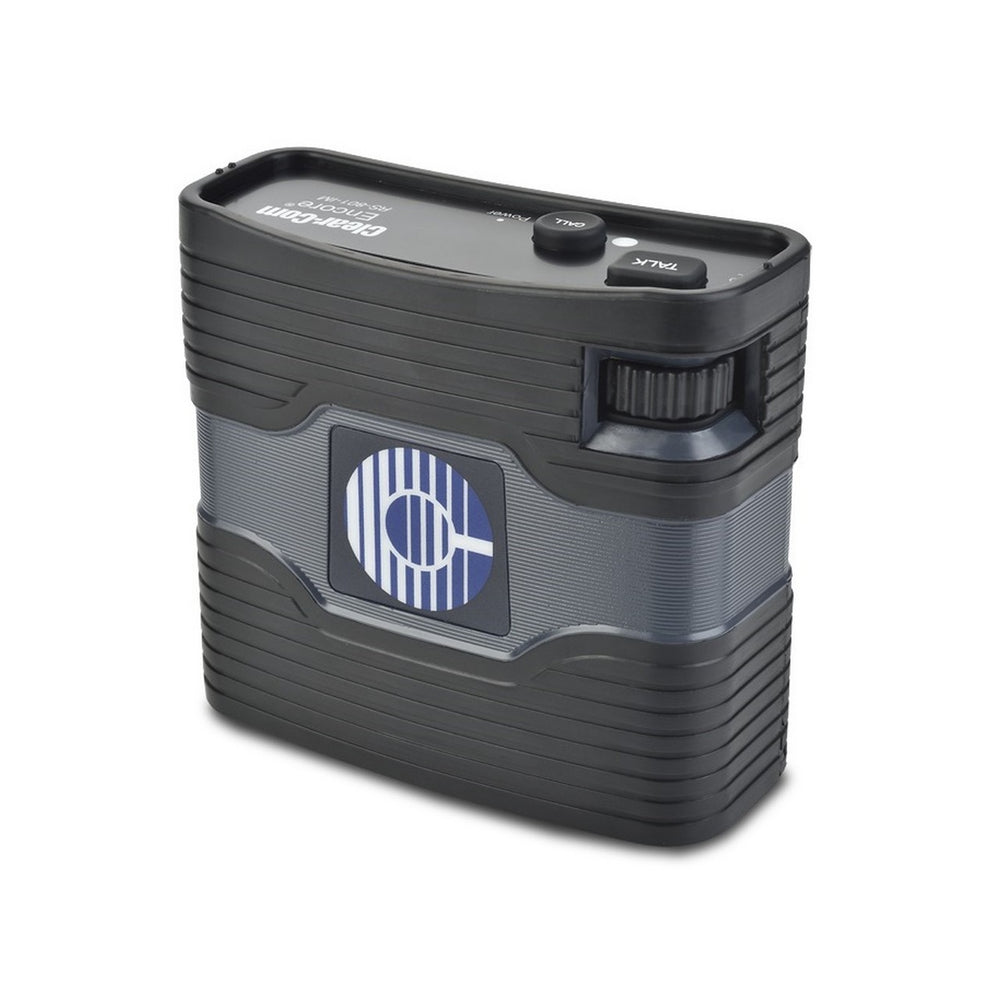

Clear-Com RS-801-IM Encore Marine Single-Channel Beltpack with XLR-3 Connector

Encore Marine certified, DNV-GL registered and IP-53 rated single-channel standard beltpack. Four-pin male headset connector and three-pin female/male loop through intercom line connectors.

Key Features

• Single-Channel Beltpack with XLR-3 Connector
• IP-53 environmental rating for weather-proofing
• Sealed for salt-mist and humidity
• Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
• Marine Certification compliant with DNVGL-CG-0339 (2016)
• XLR-3 line connectors for two-channel + Program Audio
• Consealed, programmable DIP Switches
• Low operating current for more beltpack daisy-chaining
• Rugged and strong construction
• “Clear-Com Sound” for intelligible audio

Technical Specifications

Microphone Pre-Amplifier
Mic to Line (without limiter acting)
Frequency Response
280 - 15k Hz - 3dB
Microphone output to line - Audio Level (-50dBm Electret input)
-9dBm
Microphone output to line - Distortion
<0.1%
Microphone output to line - Signal to Noise
>65dB
Headphone Pre-Amplifier
Frequency Response - Line to Headphone
150 - 20k Hz - 3dB
Headphone input from line - Audio Level (-9dBm Electret input)
3.5dBm
Headphone input from line - Distortion
<0.5%
Headphone input from line - Signal to Noise
>50dB
Earphone to Mic - Crosstalk
>80dB
Sidetone - Adjustment Range (-80db mic input)
>45dB

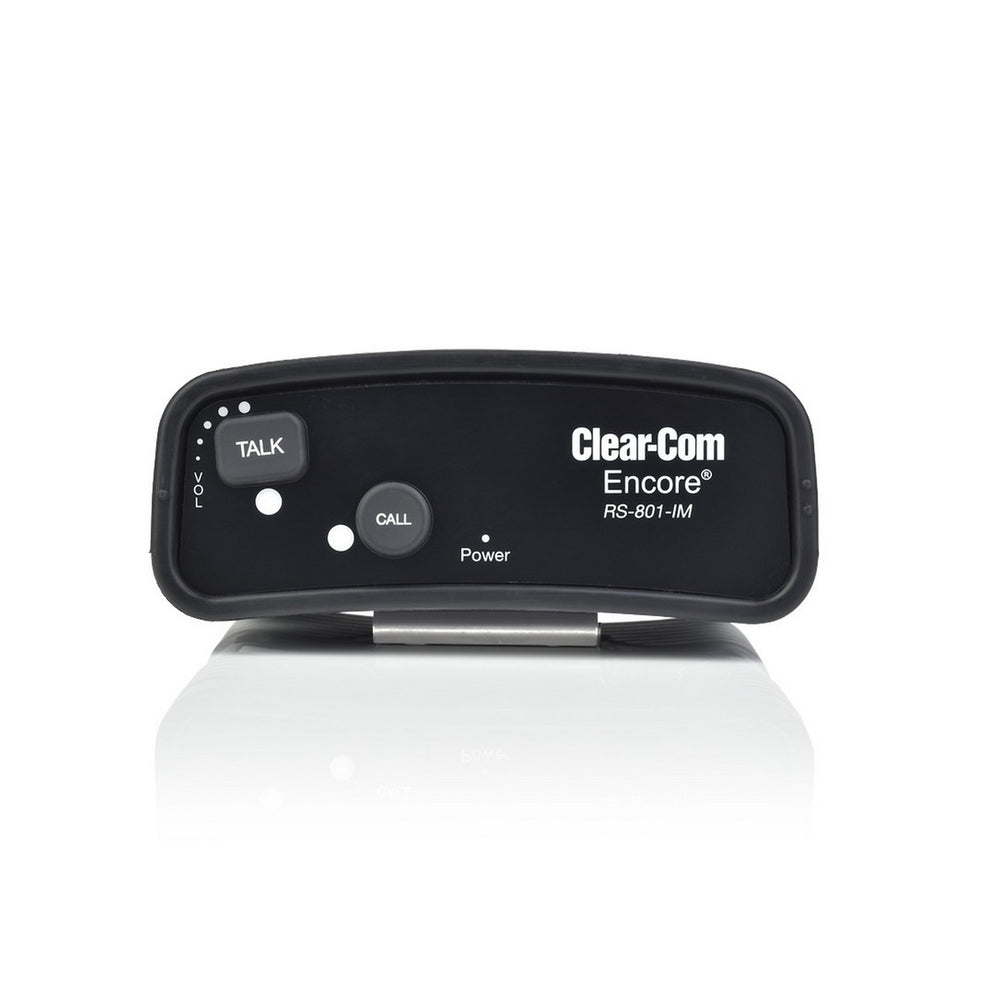

Keypad Indicators
Power
Green LED
Talk
Green LED
Call
Orange LED

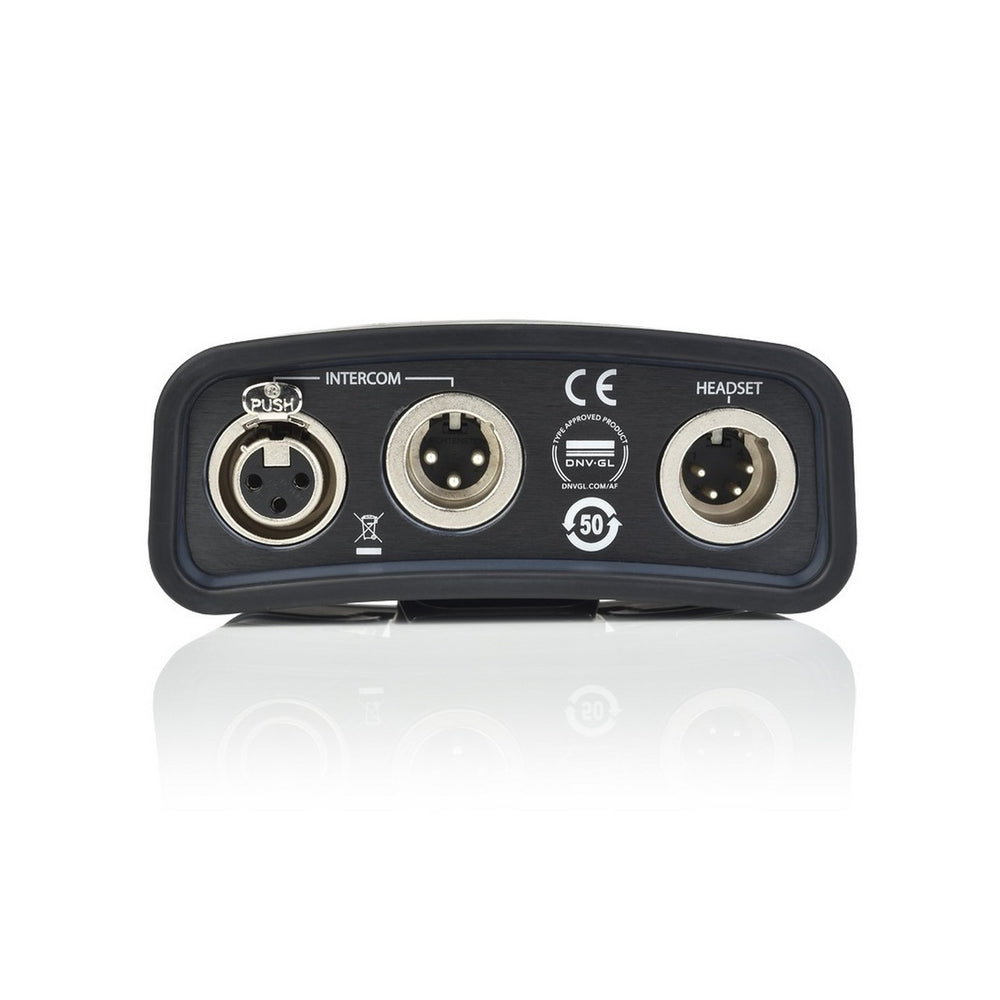

Connectors
Intercom Line
(2) 3-pin XLR-M-F
Ch. 1 2-Wire
Intercom Channel
Pin 1
Common
Pin 2
PL Power (+28VDC)
Pin 3
Line (Audio)
Headset
4-pin XLR-M
Headset Connector
Pin 1
Mic - (Mic Common)
Pin 2
Mic +
Pin 3
Spkr-
Pin 4
Spkr+ (and 0.5*VCC DC, supply between Pin 4 and Pin 1)
Power Requirements
Input Voltage Range
12-30 VDC
Input Current (Idle)
<=12mA
Input Current (Max)
<=28mA
Call Voltage
16.5 VDC
Minimum Voltage Needed
3.3V
Environmental
Dimensions
3.4 x 4.5 x 1.7 in (HxWxD)
(86 x 114 x 43 mm)
Weight
10.5 oz (0.30 kg)
