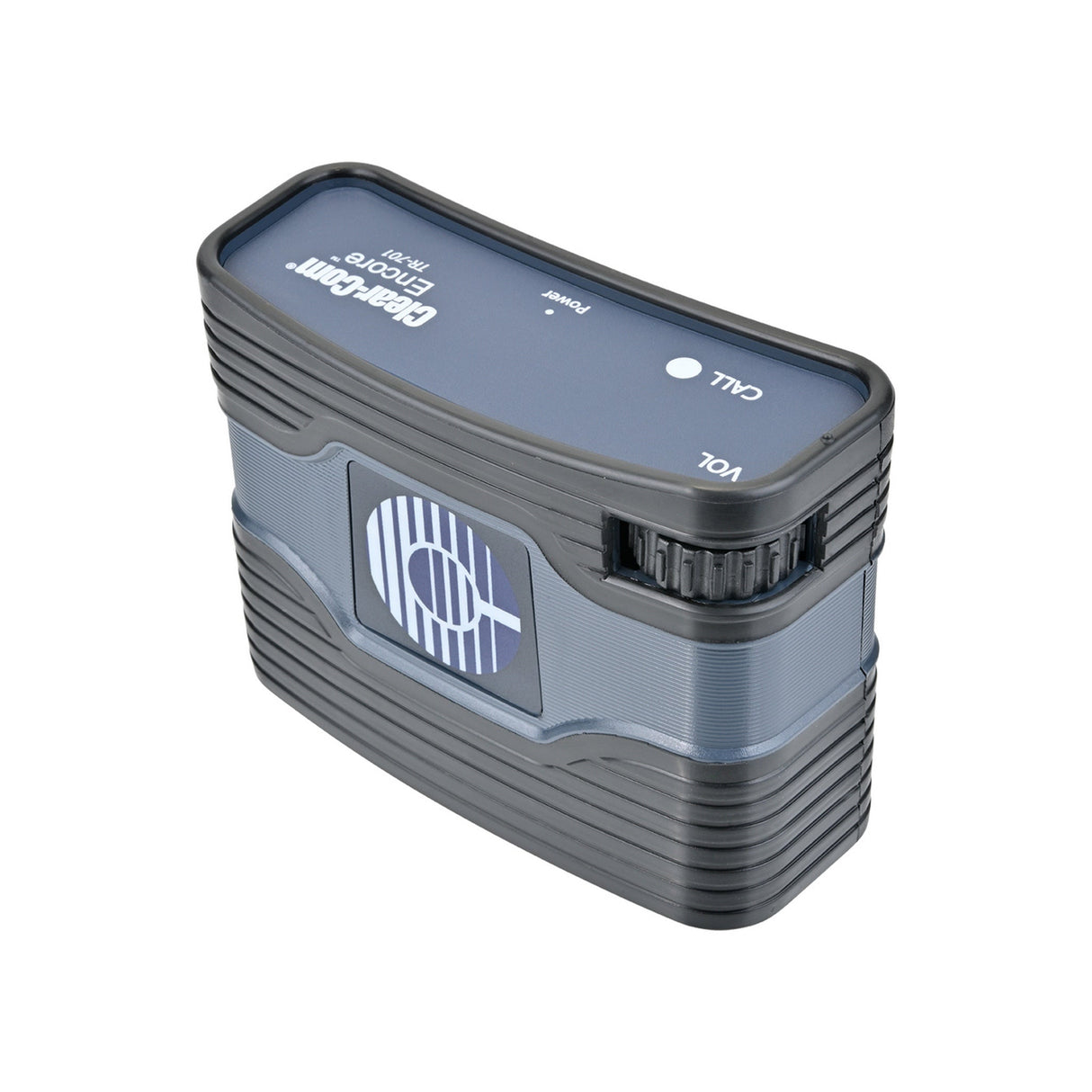

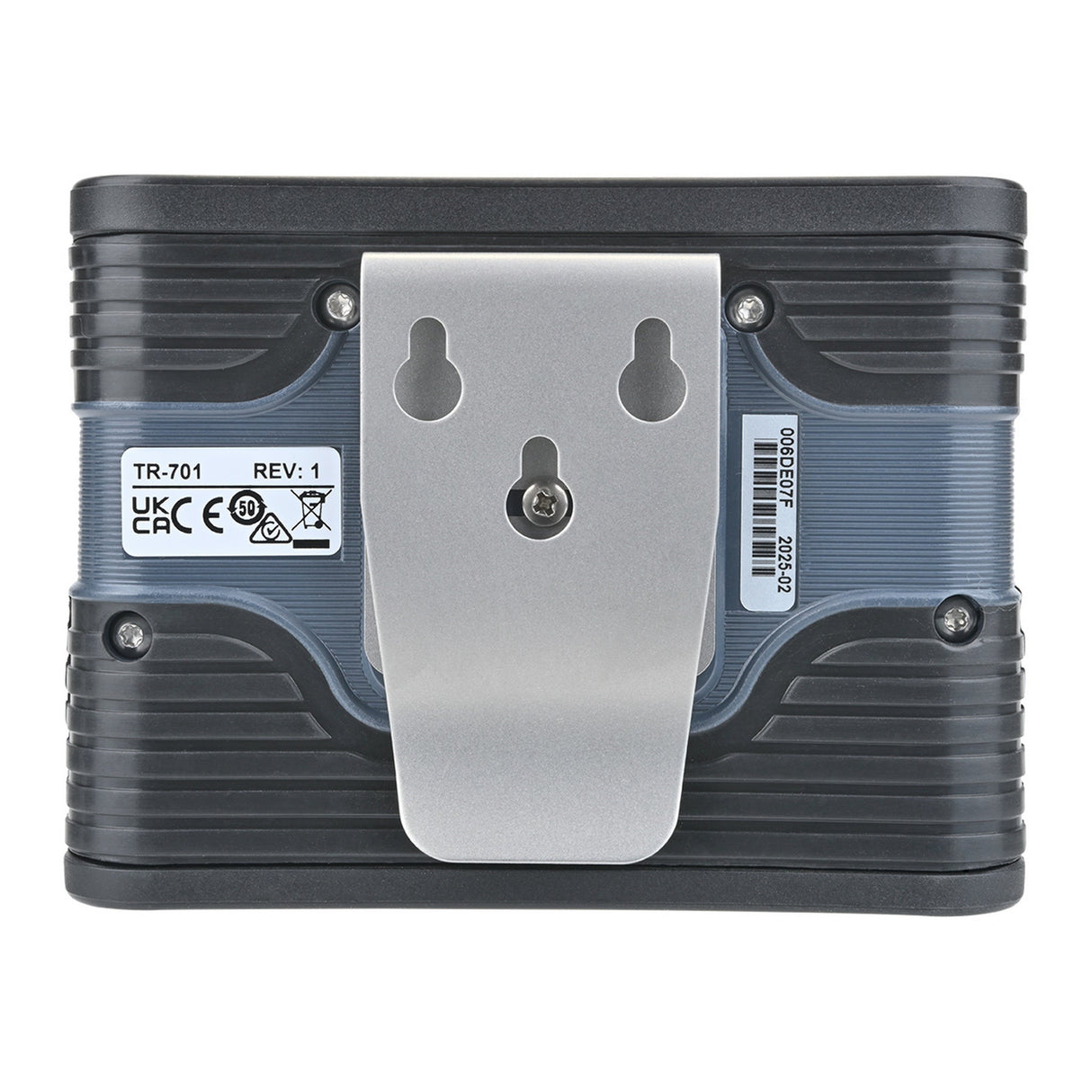

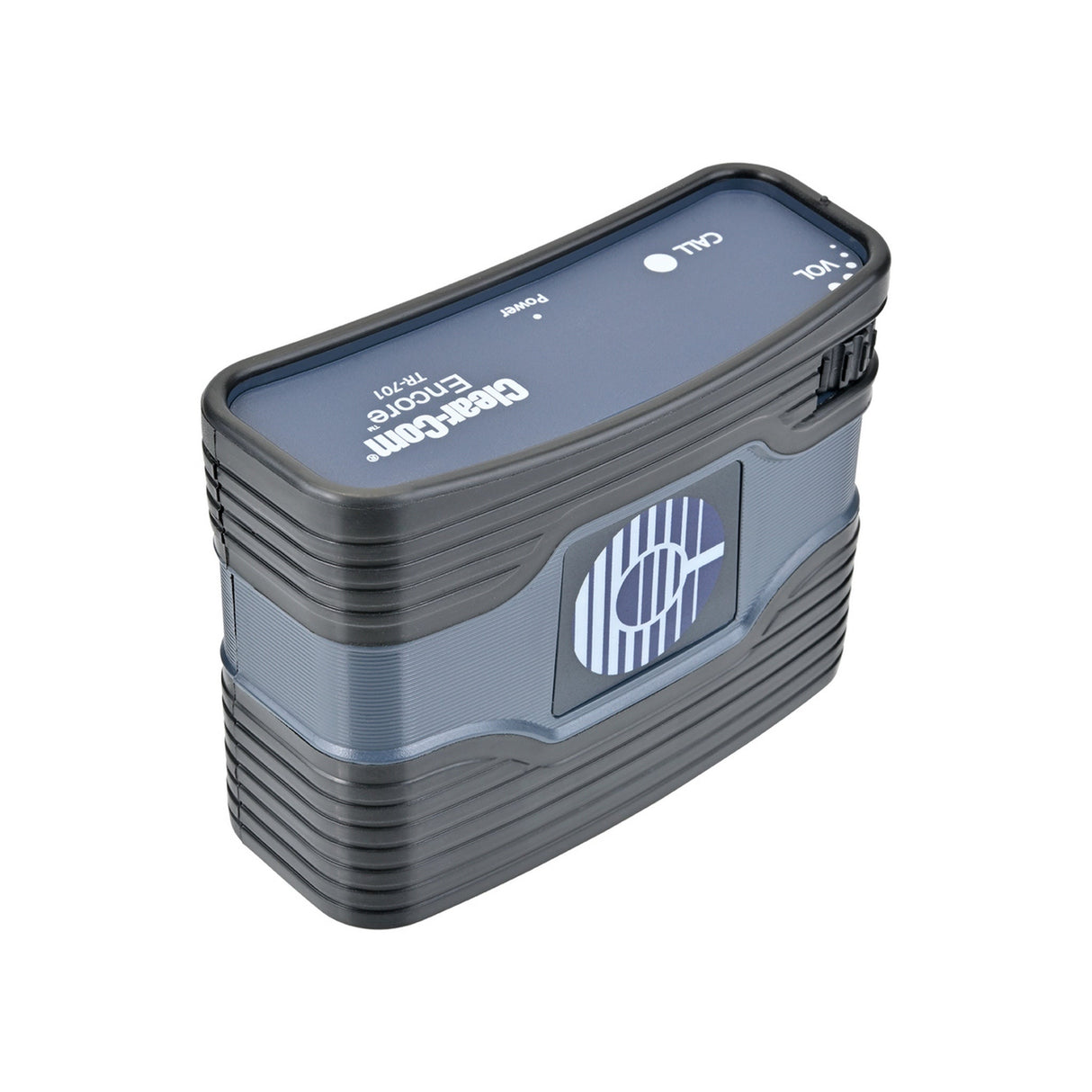

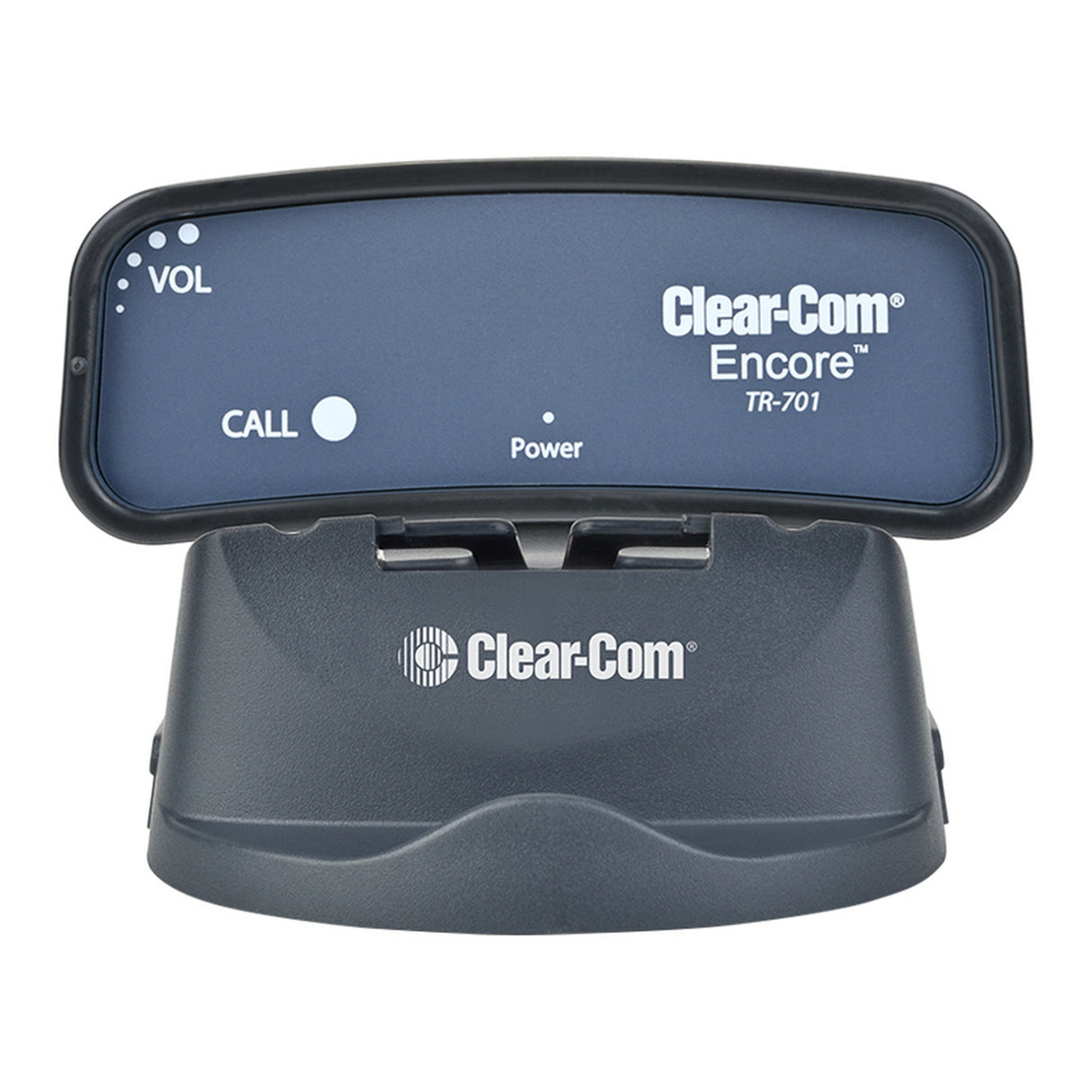

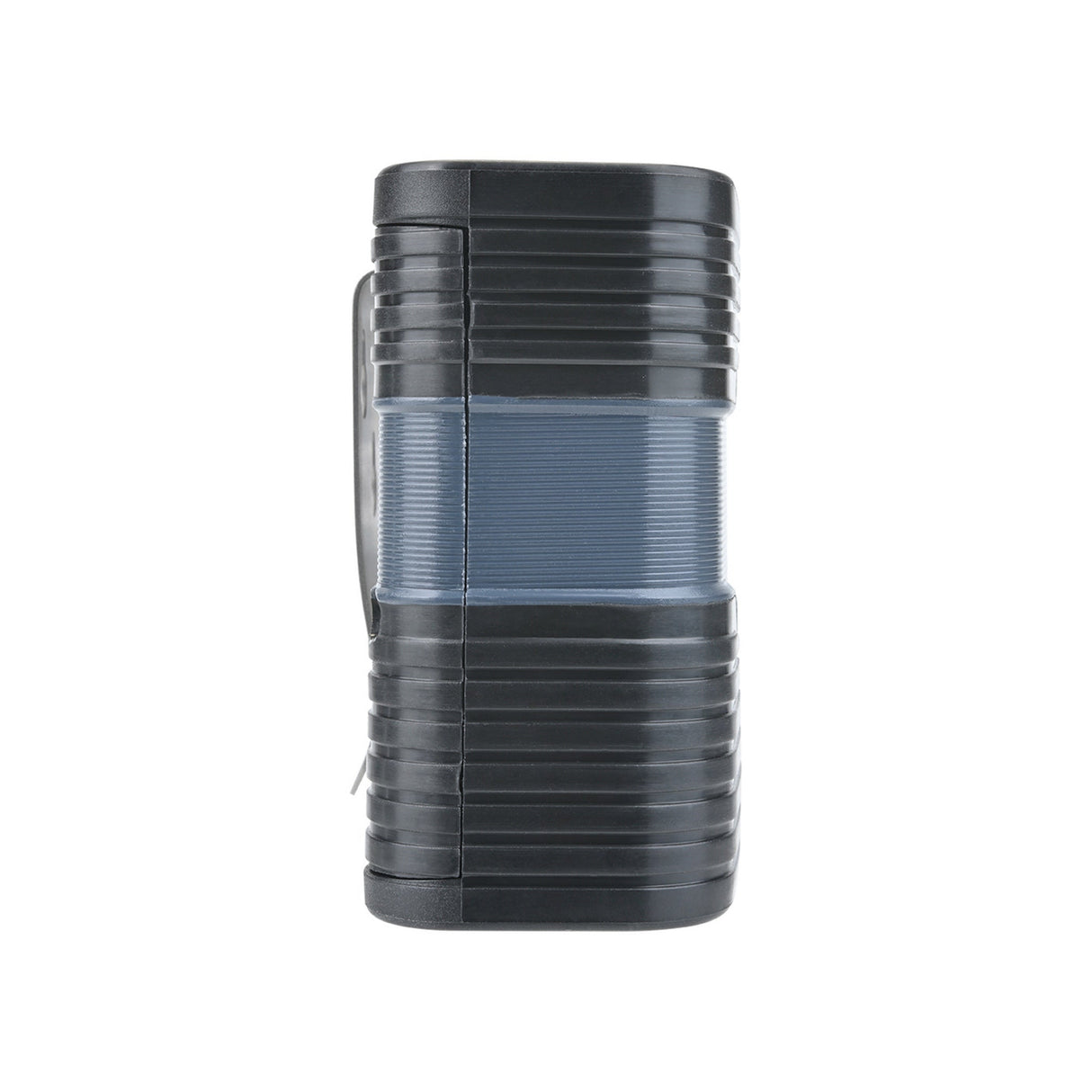

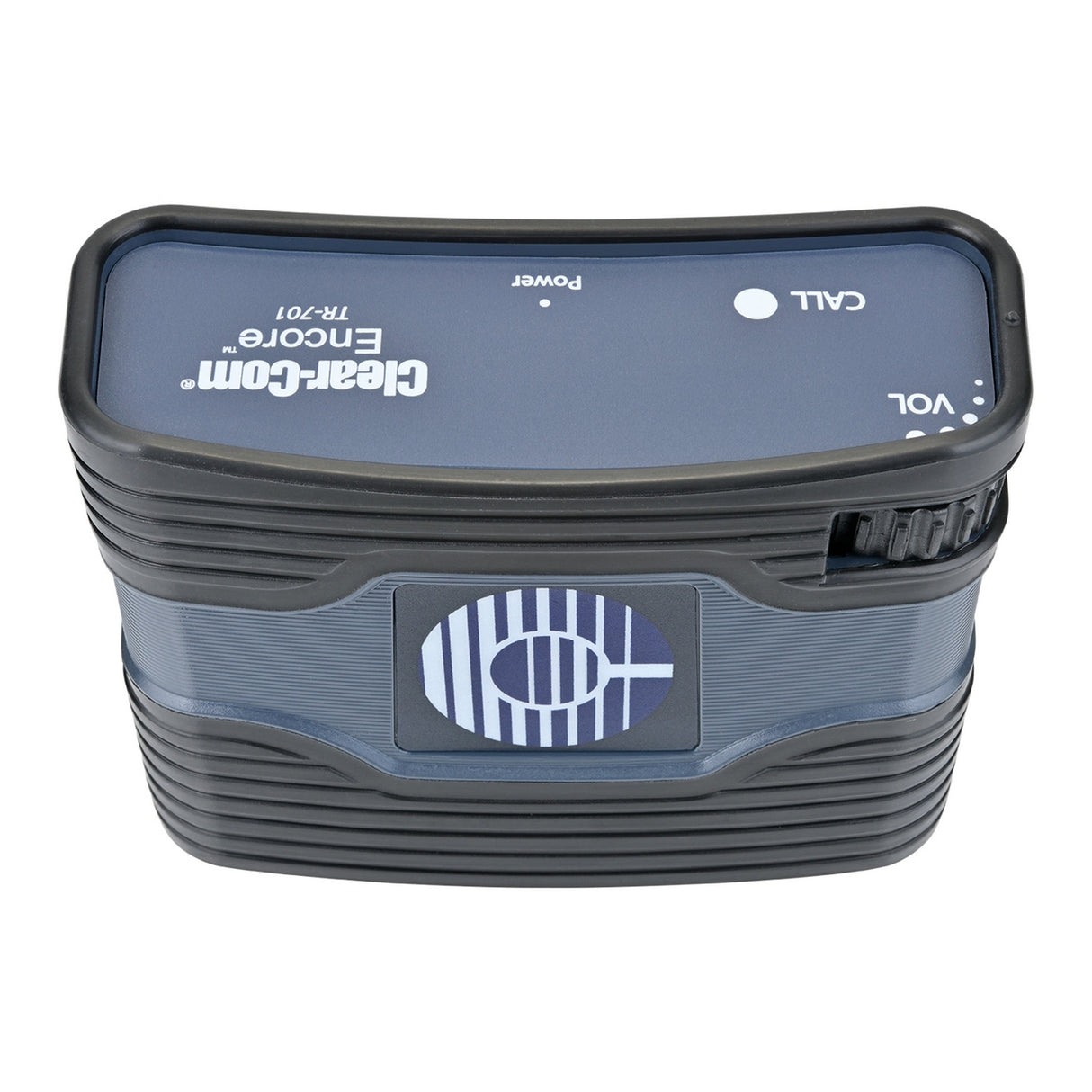

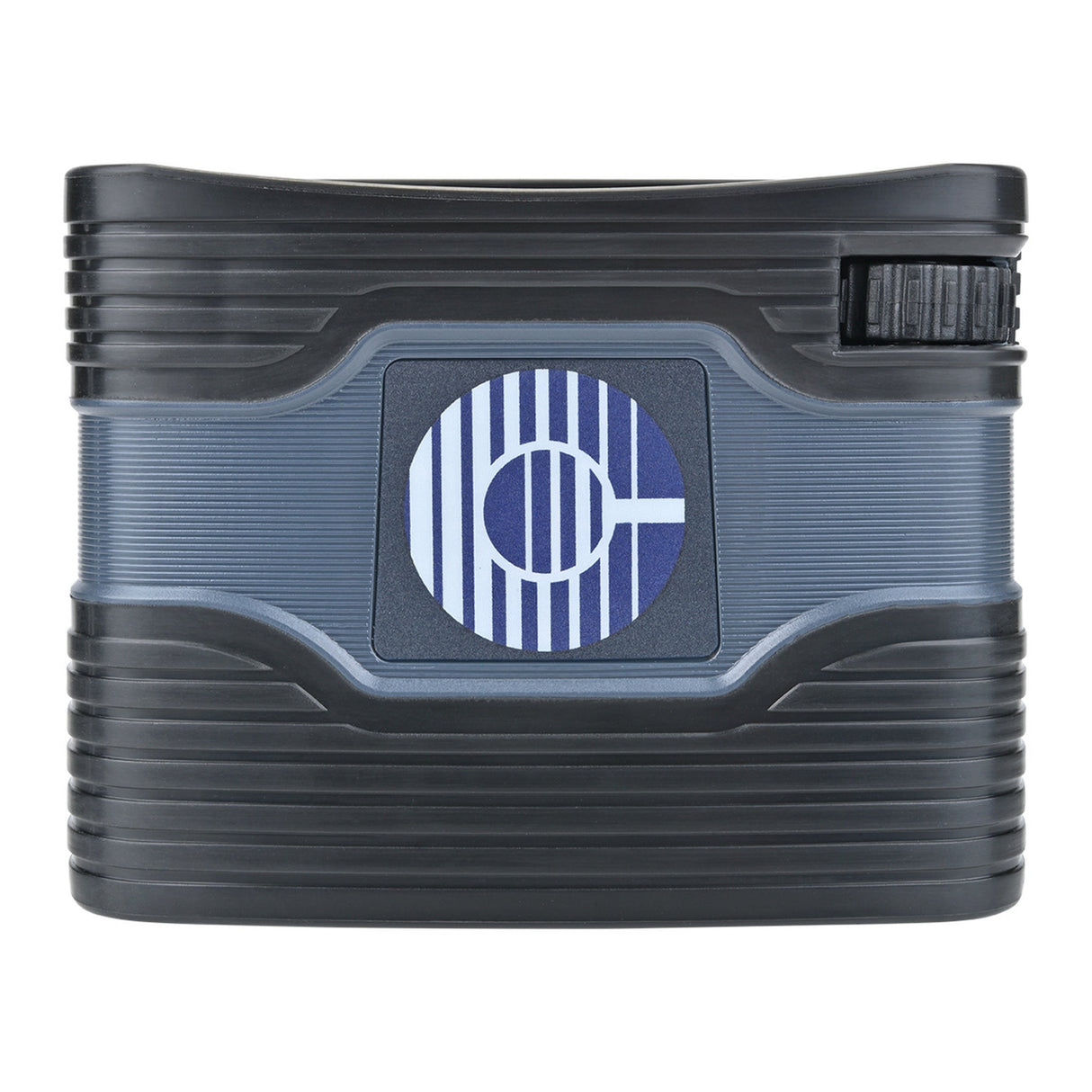

Clear-Com TR-701 Two-Wire IFB Talent Beltpack
Clear-Com TR-701 is a two-wire IFB talent beltpack designed for wired intercom and cueing applications. It enables listen-only communication with call light indication for on-air talent and production staff, supporting analog partyline workflows. This makes it ideal for broadcast, live production, and studio environments where clear audio monitoring and call signaling are critical.
The beltpack combines high headroom audio performance with low-noise operation to maintain intelligible monitoring. It integrates tactile call and talk controls along with visual LED indicators to support straightforward operation within existing Clear-Com analog systems.
The TR-701 supports consistent monitoring in production settings that require durable equipment and predictable operation. It is suitable for talent, presenters, and crew members who rely on reliable cue audio during live or recorded events.
Key Features
- Two-Wire IFB Design: Supports listen-only operation with integrated call light functionality.
- Analog Partyline Compatibility: Works with current and previous Clear-Com analog partyline systems.
- Visual LED Indicators: Provides power and call status via dedicated LEDs.

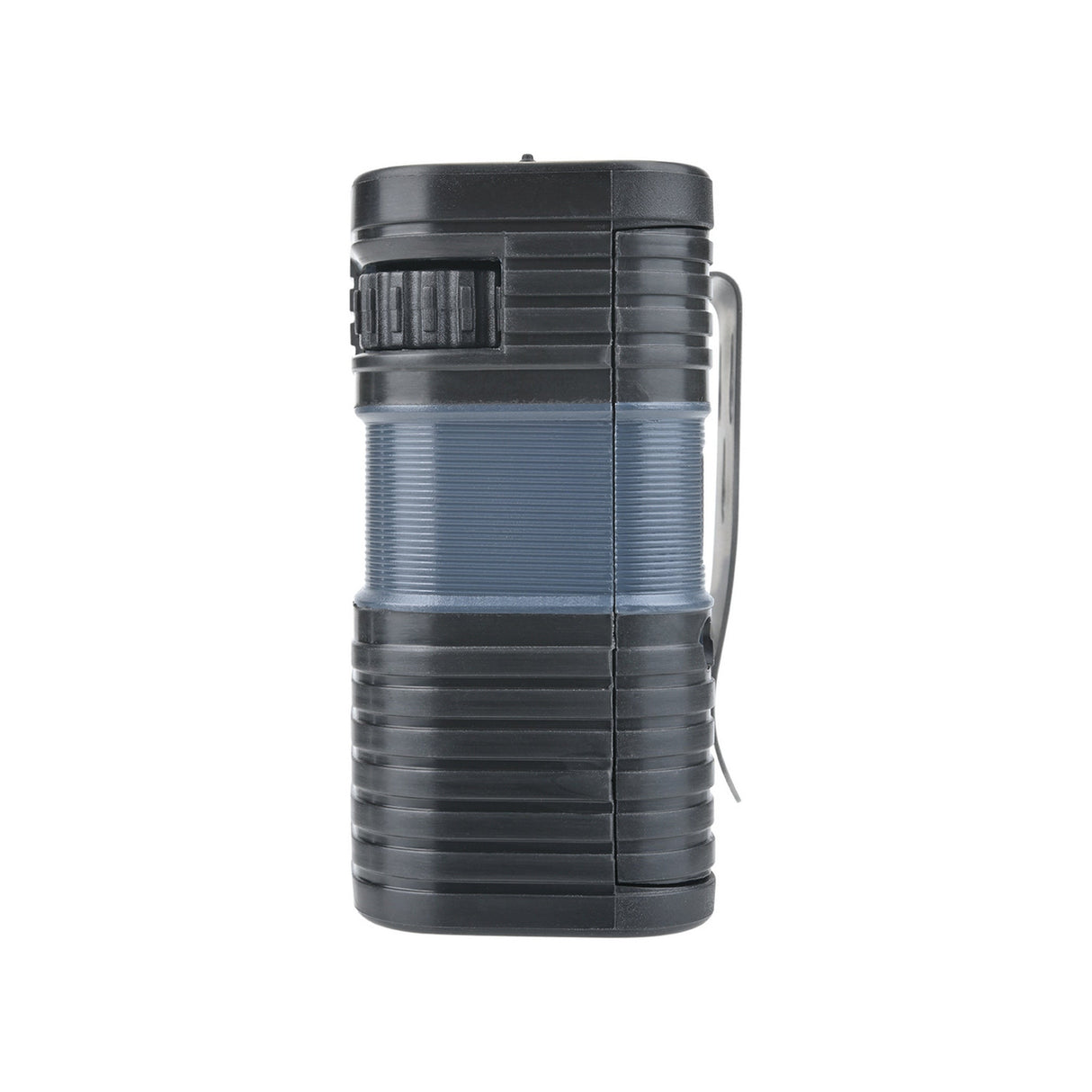

- Rotary Volume Control: Recessed control with defined end stops for consistent adjustment.
- Rugged Construction: Built for repeated use in broadcast and live production environments.
Technical Specifications
Headphone
Type: Dynamic or Electret
Impedance: 30Ω or greater
Maximum Output Level: +20 dBm
Current Required: 12 mA Max
Headphone Pre-Amplifier
Frequency Response - Line to Headphone: 150 - 20kHz ±3dB
Headphone input from line - Audio Level (-9dBm Electret input): 3.5 dBm
Headphone input from line - Distortion: <0.5%
Headphone input from line - Signal to Noise: <50 dB

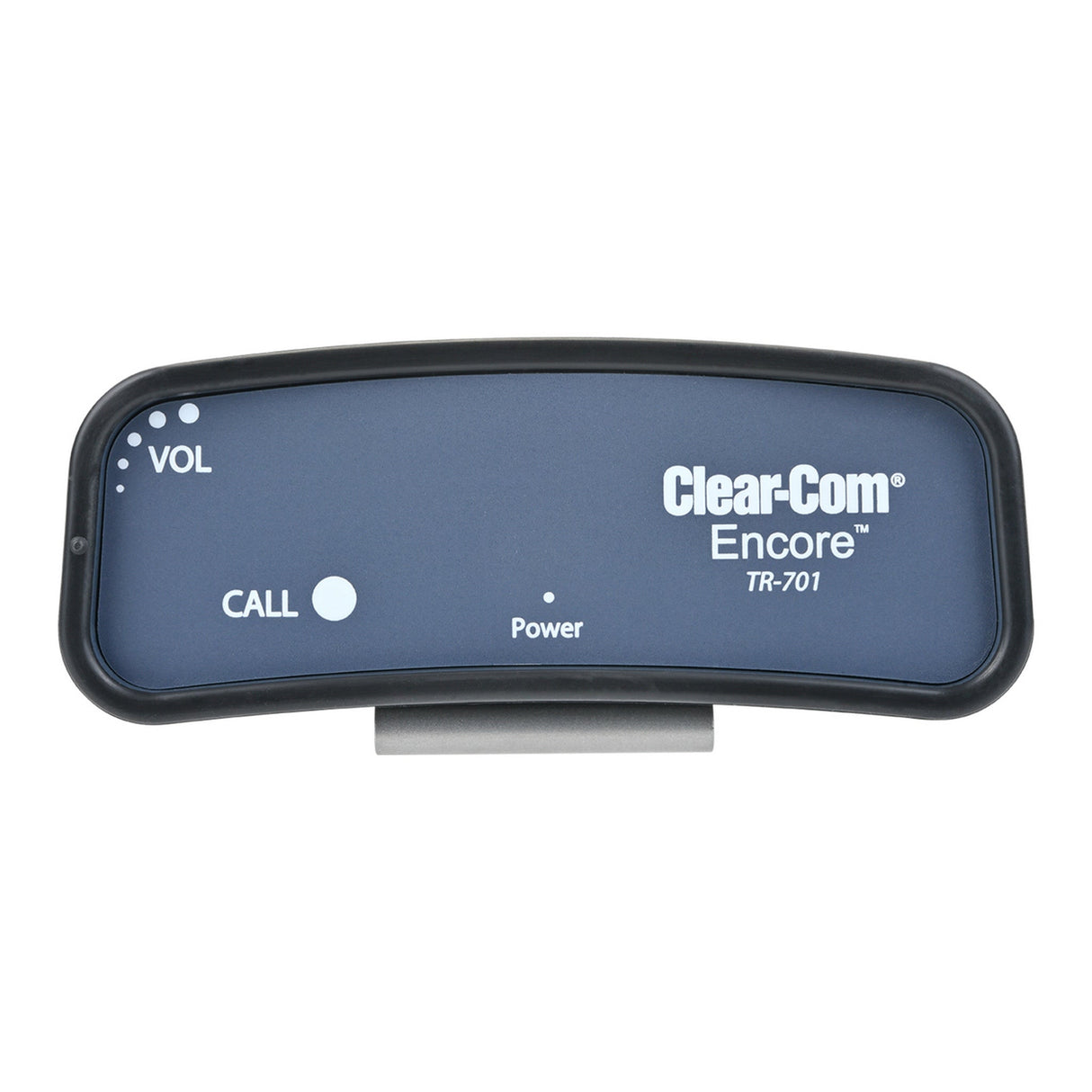

Keypad Indicators
Power: Green LED
Call: Orange LED

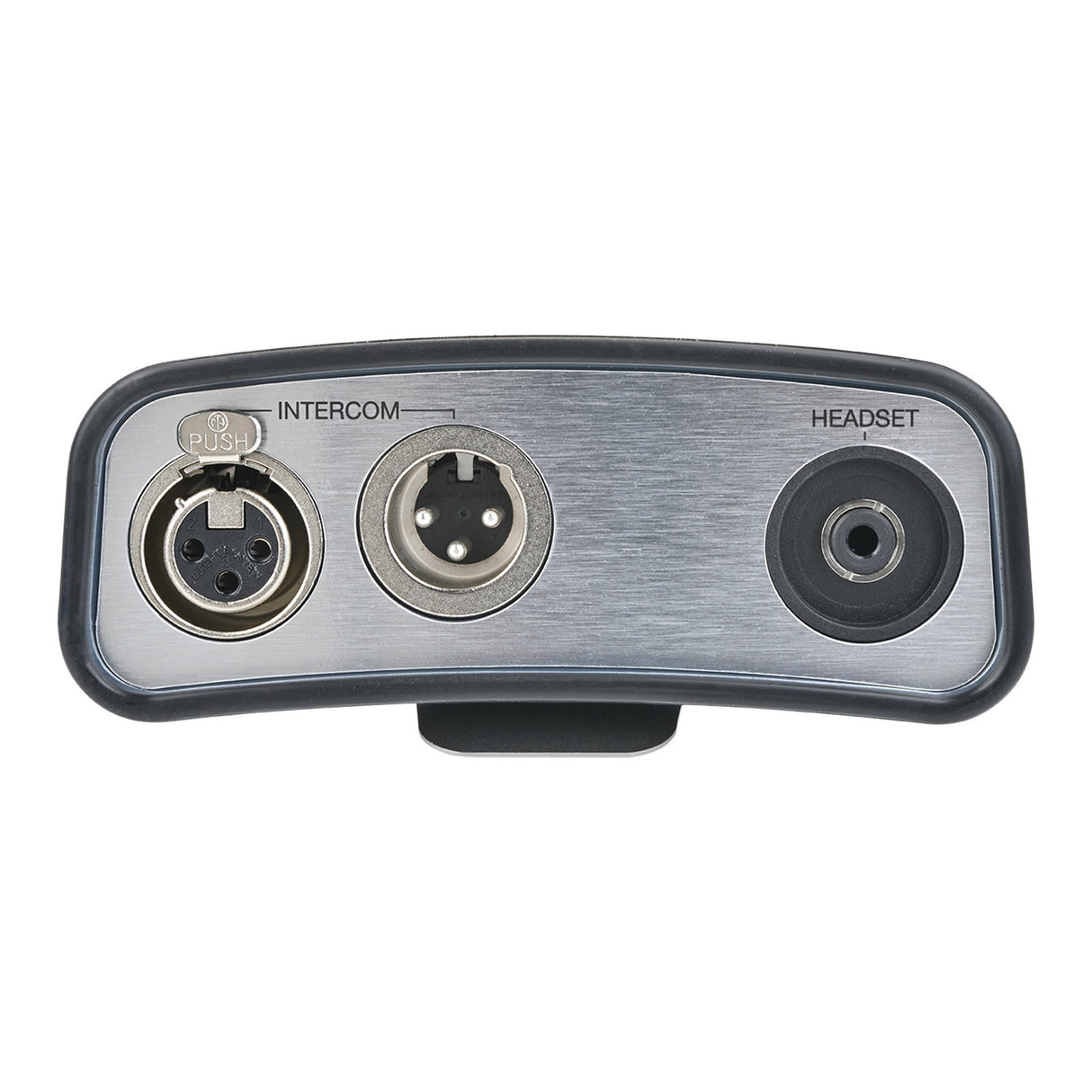

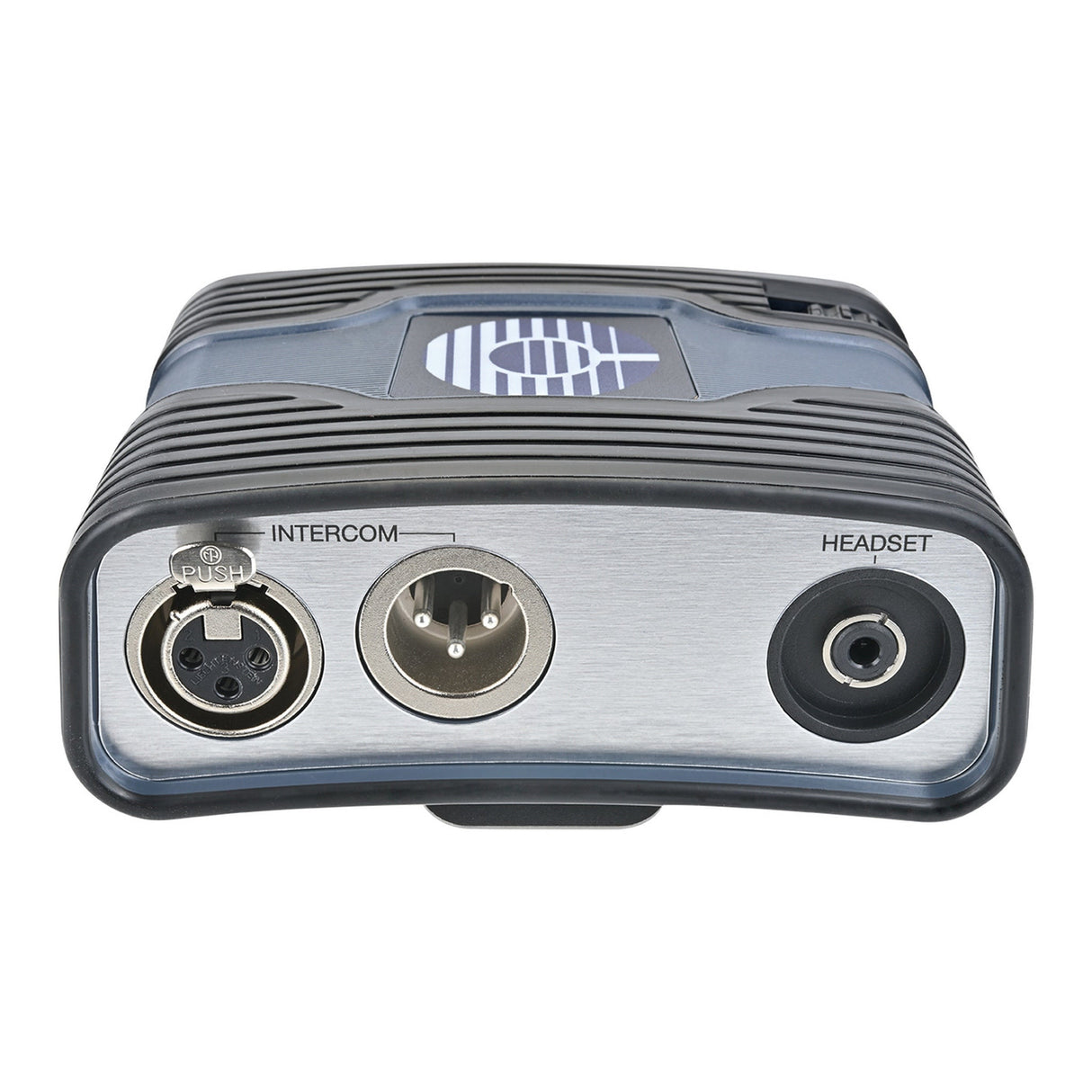

Connectors
Stereo Mini Jack
Environmental
IP54 water and dust resistance
Operating: 14-125°F (-10-50°C)
Storage: -22-150°F (-30-70°C)
Humidity: Between 20% and 90%, Non-Condensing
Dimensions
Tapered design at largest points
1.7"" × 3.4"" × 4.5"" (W×H×D)
43 × 86 × 114 mm
Weight
0.66 lb (299 g)
