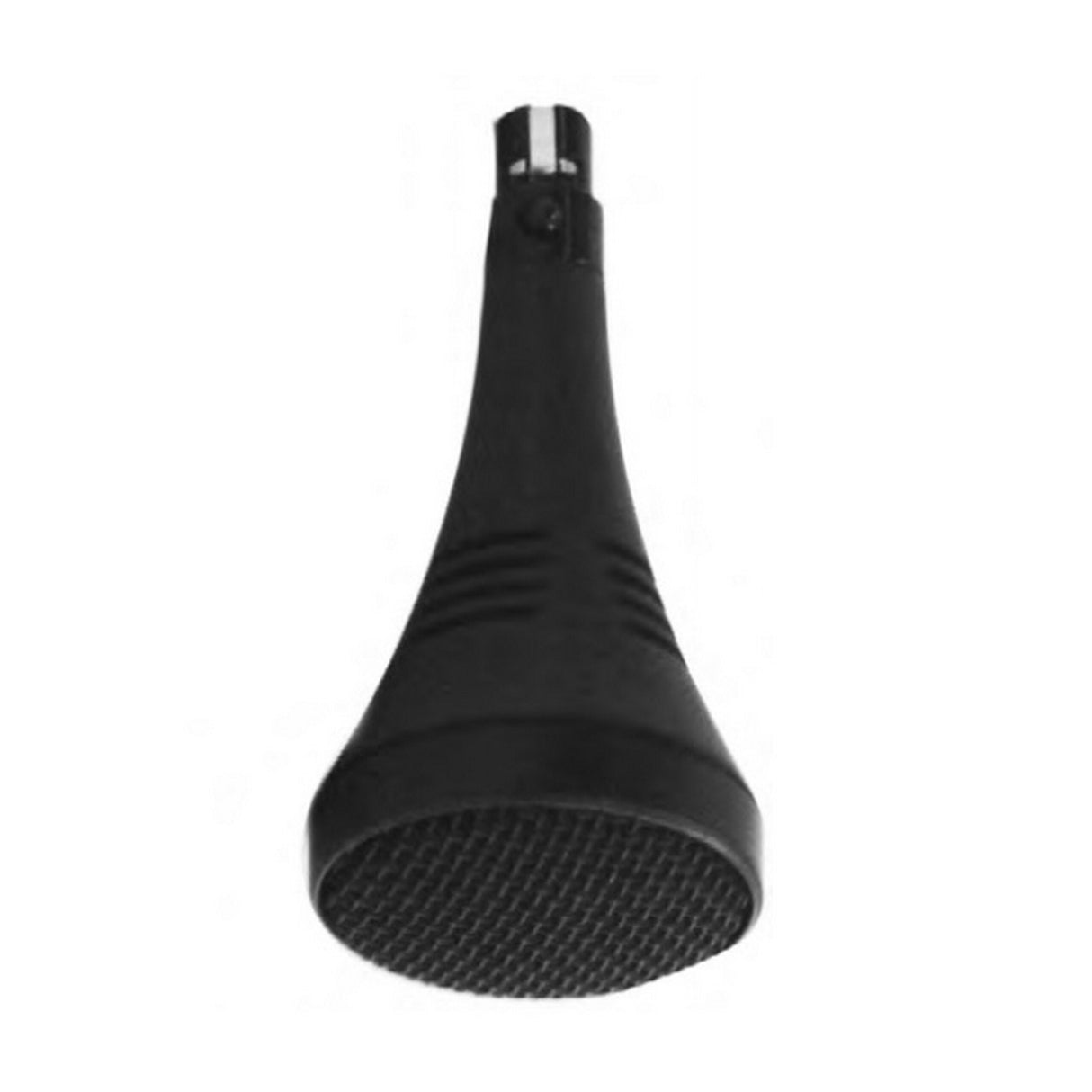

ClearOne Ceiling Microphone Array Kit for INTERACT AT, Black
ClearOne Ceiling Microphone Array Kit for INTERACT AT, Black
Most economical tri-element with superior audio quality
Key Features
- Easily installed and affordable popular tri-element ceiling microphone array
- Enhances any conferencing application which demands high-quality audio, delivering exceptional audio quality
- Provides rich sound with three wide-range mics mounted together into a single-unit array, maintaining 360-degree coverage from 15 to up to 20 ft
- Optimized for speech intelligibility with steerable audio pick-up using a DSP Mixer
- Superb audio quality with wide bandwidth, high SNR, and 100% shielding against RF interference allows use for multiple applications
- Perfect match for the CONVERGE Huddle DSP; and included in Versa Pro BYOD Collaboration solutions with the Huddle and UNITE cameras
- Works with ClearOne and other 3rd-party DSP mixers with quick and easy installation
- Extremely flexible placement options with up to 300 FT mic-to-mixer connections on CAT5e/CAT6
- Effectively reduces room reverberation and noise, and minimizes noise pickup from ceiling sources
- Gets microphones “off the table” area while maintaining speech quality and intelligibility
- Includes drop down cables for 0”, 12” and 24” to match various ceiling heights
- Sleek, unobtrusive design (3.3” x 1.5”) comes in White or Black color options
Technical Specifications
ACOUSTIC CHARACTERISTICS
Polar Pattern
Cardioid
Dynamic Range
80 dB, 1 kHz @ max SPL
Signal/Noise Ratio
60 dBA, 1kHz @ 1Pa
Frequency Response
100 Hz - 12kHz
Sensitivity
114 mV/Pa
ELECTRICAL CHARACTERISTICS
Element
Fixed-charge back plate permanently polarized condenser
Phantom Power Requirement
12-52 vdc, 2 mA typical Impedance: 200
CABLES INCLUDED
12-inch and 24-inch 4-pin mini-XLR drop-down cable
25-foot RJ45 male to RJ45 male CAT5e
RJ45 receptacle to mixer adapter cable
Mounting
Ceiling tile pass-through mounting assembly
Max cable length from array to mixer
300 ft (91.44m)
MECHANICAL
DIMENSIONS - (W x D xH)
3.3” x 1.5” (83.8 mm x 38.1 mm)
WEIGHT
2.2 lbs (1 kg)
