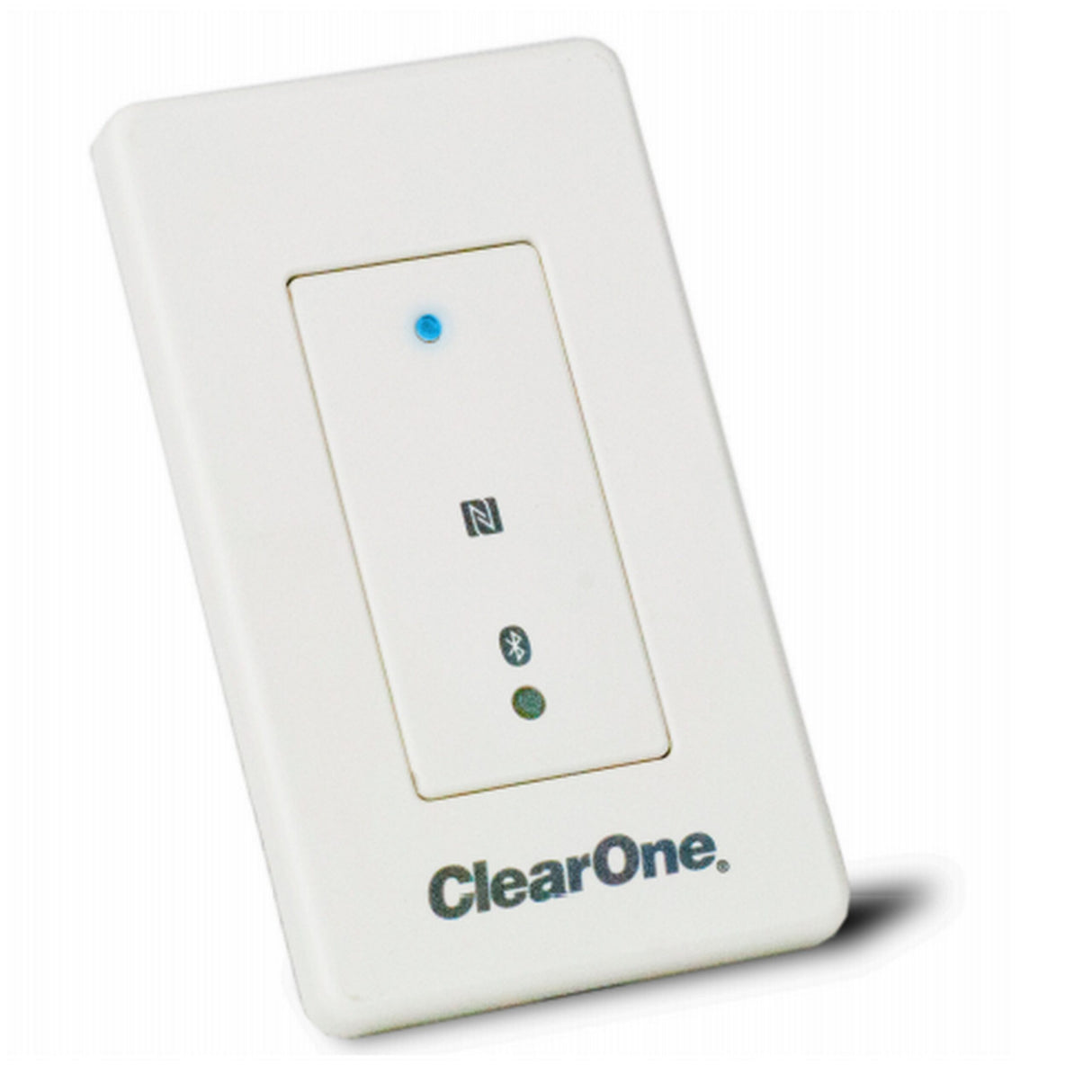

ClearOne CONVERGE Wall-Mount Bluetooth Expander (910-3200-303)
Description
Description
ClearOne CONVERGE Wall-Mount Bluetooth Expander (910-3200-303)
The Wall-Mount Bluetooth Expander enables Bluetooth audio conferencing and streaming from mobile devices to ClearOne’s CONVERGE Pro 2 and Huddle audio DSP’s.
Key Features
- Bluetooth pair name can be customized.
- P-Link* makes wiring easy on both CP2 and Huddle systems
- Wall-mount design for convenient room access (single-gang electrical box).
- Bluetooth 3.0 compliant interface supports industry standard profiles for audio.
- Has great range - up to 150 feet (45 meters).
Technical Specifications
BLUETOOTH WIRELESS TECHNOLOGY
Version: 3.0
Mode: Bluetooth Classic
Supported Profiles
Hands-Free Profile v.1.6 (HFP)
Distribution Profiles v.1.5 (A2DP, AVRCP)
Supported Codec
Default SBC (44.1kHz) do not list on datasheet, other upon request. Hands-Free Profile v.1.6 (HFP)
Wireless Performance
Frequency Band: 2390 MHz to 2483.5MHz
Transmit Power: +6.5dBm
Receiver Sensitivity: -90dBm3
Wireless Range: Up to 150 feet (45 meters)
INDICATORS AND MOMENTARY SWITCH
LED
Blinking Blue - Ready to Pair
Solid Blue - Paired
Toggle Switch
Press to reset Bluetooth - break Bluetooth connection and set into pairing mode.
P-LINK IN (PROPRIETARY NETWORK)
RJ45: Cat5e, Cat6, P-Link In only
Cable Length: 200ft (test up to 250 ft)
POWER CONSUMPTION
P-Link In, RJ45
2.24 Watt
THERMAL
7.64 BTU/Hr
OPERATING TEMPERATURE
14°F/-10°C to 104°F/40°C
DIMENSIONS
1.7” x 4.4” x 1.6” (44 mm x 112.5mm x 40mm)
WEIGHT
Product weight: .19 lbs (88g)
Shipping weight: .35 lbs (.16kg)
COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device
does not cause harmful interference.
FCC ID: QOQWT32I
IC: 5123A-BGTWT32I
MIC ID: 209-J00089
KCC: MSIP-CRM-BGT-WT32i
