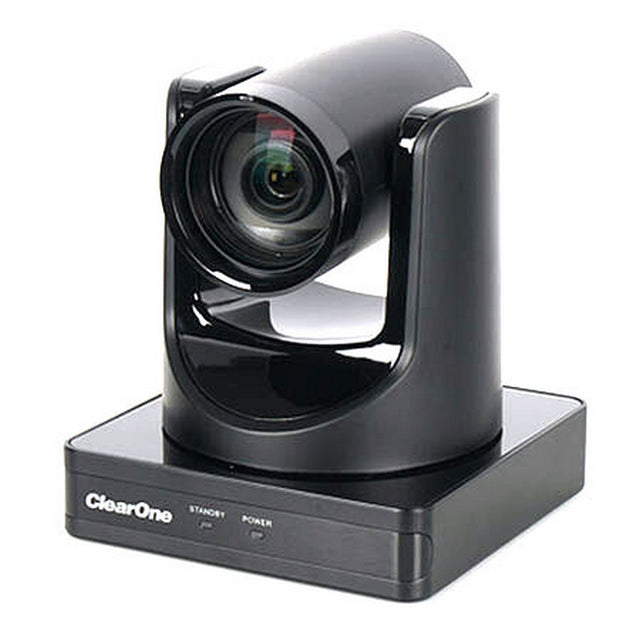

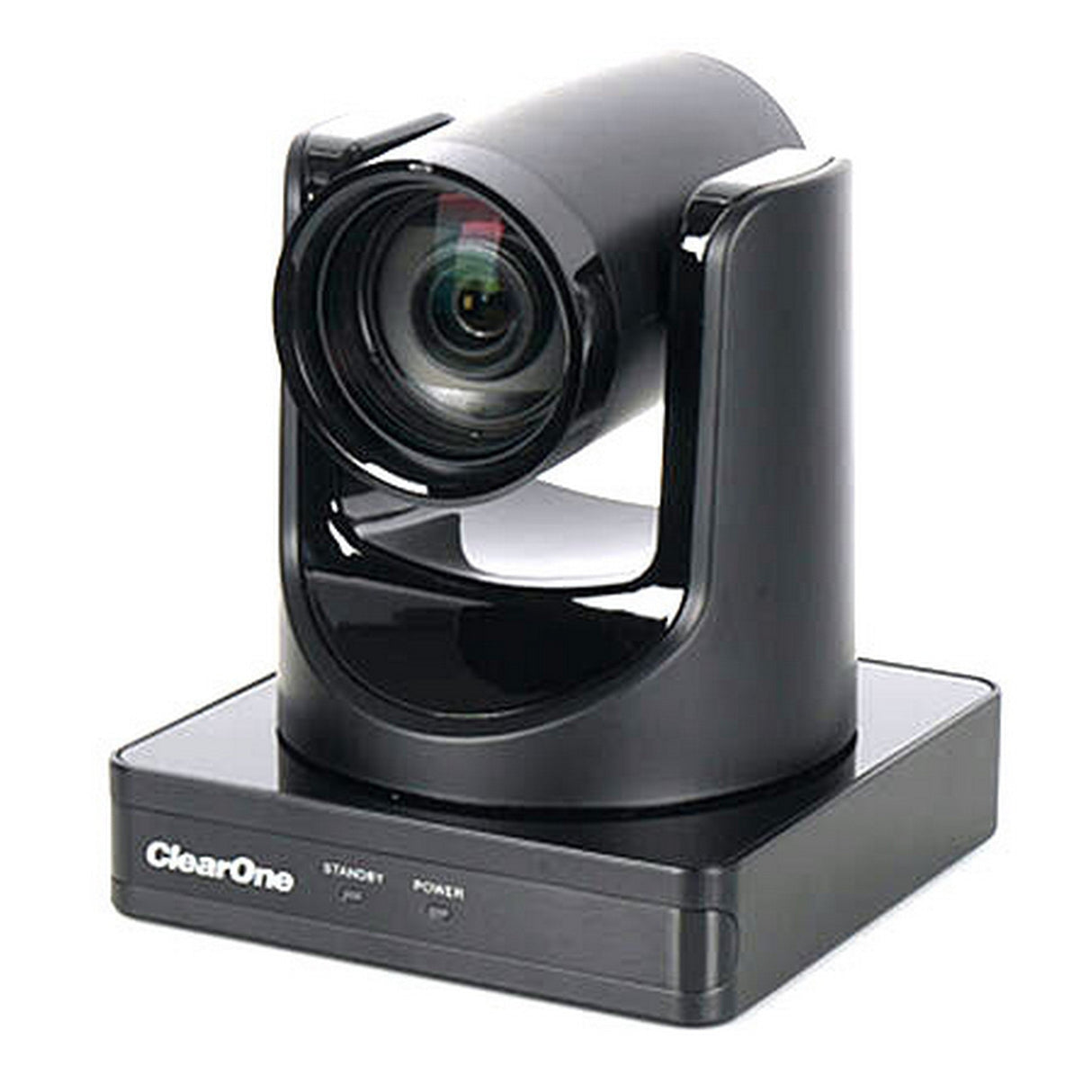

ClearOne UNITE 160 4K USB PTZ Camera
Description
Description
ClearOne UNITE 160 4K USB PTZ Camera
Professional grade 4K USB PTZ camera for conference rooms, web conferencing UC applications and more.
Smart Face Tracking or Auto Framing. AI processing optionally tracks an individual or frames an entire group for perfect framing and focus.
Key Features
- 4K Ultra HD video, 12x optical zoom, capability to capture all participants in the room.
- Super-high SNR with advanced 2D and 3D noise reduction.
- Transforms any meeting room into a professional grade video collaboration room.
- Compatible with popular applications such as Zoom, WebEx, Google Meet, and more.
- Control the camera’s functions via IR remote, RS-232, or UVC protocol.
- Control the camera via the IR remote, or through UVC and UAC protocols.
Technical Specifications
Camera
Video System
2160p30
1080p30
1080p25
720p30
720p25
Sensor
1/2.5 inch, CMOS
Effective Pixels
8.51 million
Scanning Mode
Progressive
Lens
12x maximum zoom, Focal length: 4.4 mm - 52.8 mm, F1.8 - F2.6
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s - 1/10000s
White Balance
Automatic, indoor, outdoor, one-button, manual, specified color
Backlight Compensation
Supported
Digital Noise Reduction
2D & 3D
Video S/N
≥55dB
Horizontal Angle of View
71 Degrees -8.2 Degrees
Vertical Angle of View
42.7 Degrees -4.5 Degrees
Horizontal Rotation Range
±170 Degrees
Vertical Rotation Range
-30 Degrees - +90 Degrees
Pan Speed Range
2.7 Degrees -35.7 Degrees /s
Tilt Speed Range
2.7 Degrees -31.5 Degrees /s
H & V Flip
Supported
Image Freezing
Supported
Number of Presets
255
Flexible Installation
Standard mount, upside-down mount
Input/Output Interface
Audio Interface
3.5 mm connector, Line In
USB Interface
1 way, USB 3.0, Type C Socket
1 x RS232: 8pin Min DIN; Max. Distance: 30 m;
Protocol
VISCA/Pelco-D/Pelco-P
1 x RS485: 2pin phoenix port; Max. Distance: 1200 m;
Protocol
VISCA/Pelco-D/Pelco-P
USB Features
Operating Systems
Windows 7 and later
Color System
YUY2 / MJPEG
USB 2.0
720P30 maximum
NOTE
Use of USB 2.0 downgrades video quality. ClearOne does not recommended USB 2.0 extenders
USB Video Communication
UVC 1.1
Audio on USB
Supported
UVC PTZ
Supported
Power
Power Jack
JEITA type (DC In 12V)
Input Voltage
DC 12V
Current Consumption
1.0A (max)
Power Consumption
12W (max)
Environmental
Operating Temperature
14 Degrees F-104 Degrees F (-10 Degrees C - 40 Degrees C)
Storage Temperature
-40 Degrees F - 140 Degrees F (-40 Degrees C - 60 Degrees C)
MTBF
>30000h
Mechanical
Dimensions
5.67” x 5.67” x 6.61” (143.88mm x 144mm x 168.25mm)
Weight
3.5lb (1.6Kg)
Part Number
910-2100-012
