Cloud Electronics CDR-1W | Surface Mount Remote Music Source Volume Select Panel White

Cloud Electronics | SKU: CLDELEC-CNTLR-CDR1W
$18000

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

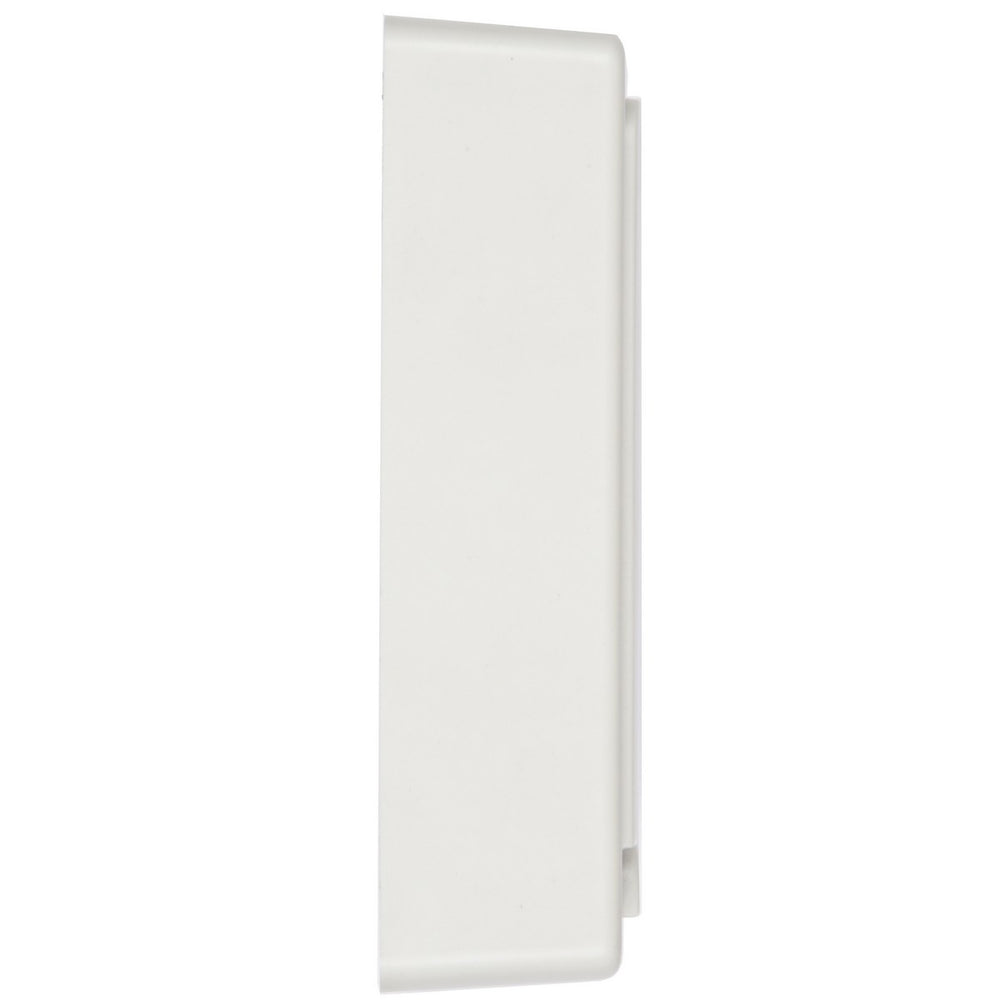

Cloud Electronics CDR-1W Surface Mount Remote Music Source Volume Select Panel White

The CDR-1W is new surface mount versions of the CDR-1 surface mount control panel for the DCM-1.

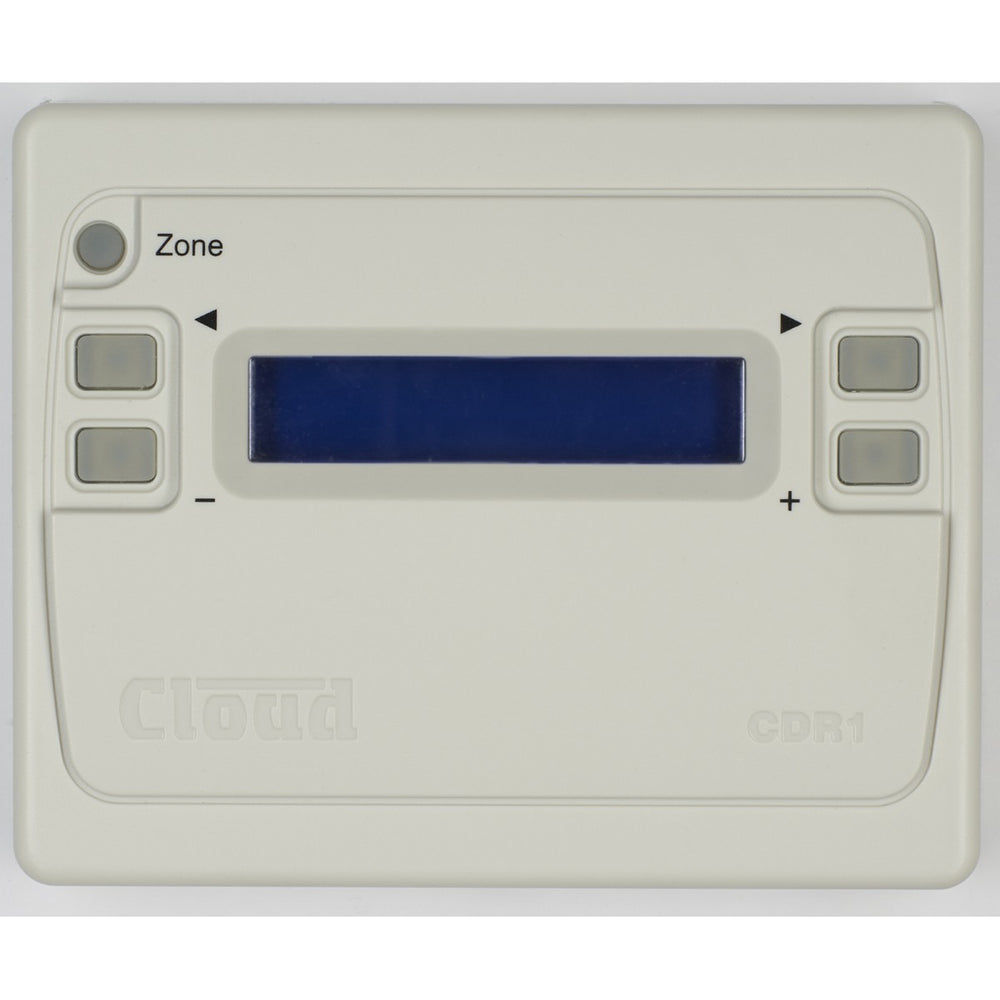

The CDR-1 (surface-mount) is remote control panels for use with the Cloud DCM-1 Digital Control Mixer. The CDR-1 is fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1's front panel.

A zone may have one CDR1, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Key Features

  • Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
  • Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
  • Can be interconnected using a wide choice of wiring topologies
  • Choice of two mounting styles to suit installation
  • Backlit 2-row x 16 character dot matrix alphanumeric display
  • User accessible functions: Source selection, Level control, Group enable/disable
  • Engineer mode functions (password enabled): Local zone EQ adjustment
  • Installer mode (Enabled by internal jumper): Zone assignment, Password setting, Display adjustment, Inactivity time (time for which display backlight remains lit after a button is pressed)

Technical Specifications

Color
White

User Mode
This is the normal operating mode for a CDR-1 remote control plate, and the only mode the user has immediate access to. The zone properties that can be controlled are:
Source selection
Level control
Group enable/disable (providing the zone has been defined as a group member)
Local zone EQ adjustment (requires enabling on the DCM1 and entry of a key code
Installer Mode
Installer mode is intended for use at the time of initial installation, and is enabled by moving an internal jumper. It allows the installer to:
Adjust the display backlight and contrast
Set an inactivity time, after which the display backlight is turned off
Configure the CDR-1 plate for correct operation in a specific zone
Set the password to access Engineer Mod
Engineer Mode
Engineer Mode is enabled by entering a sequence of button presses (the password); the factory password may be superseded by a user's own password in Installer Mode (see above)
