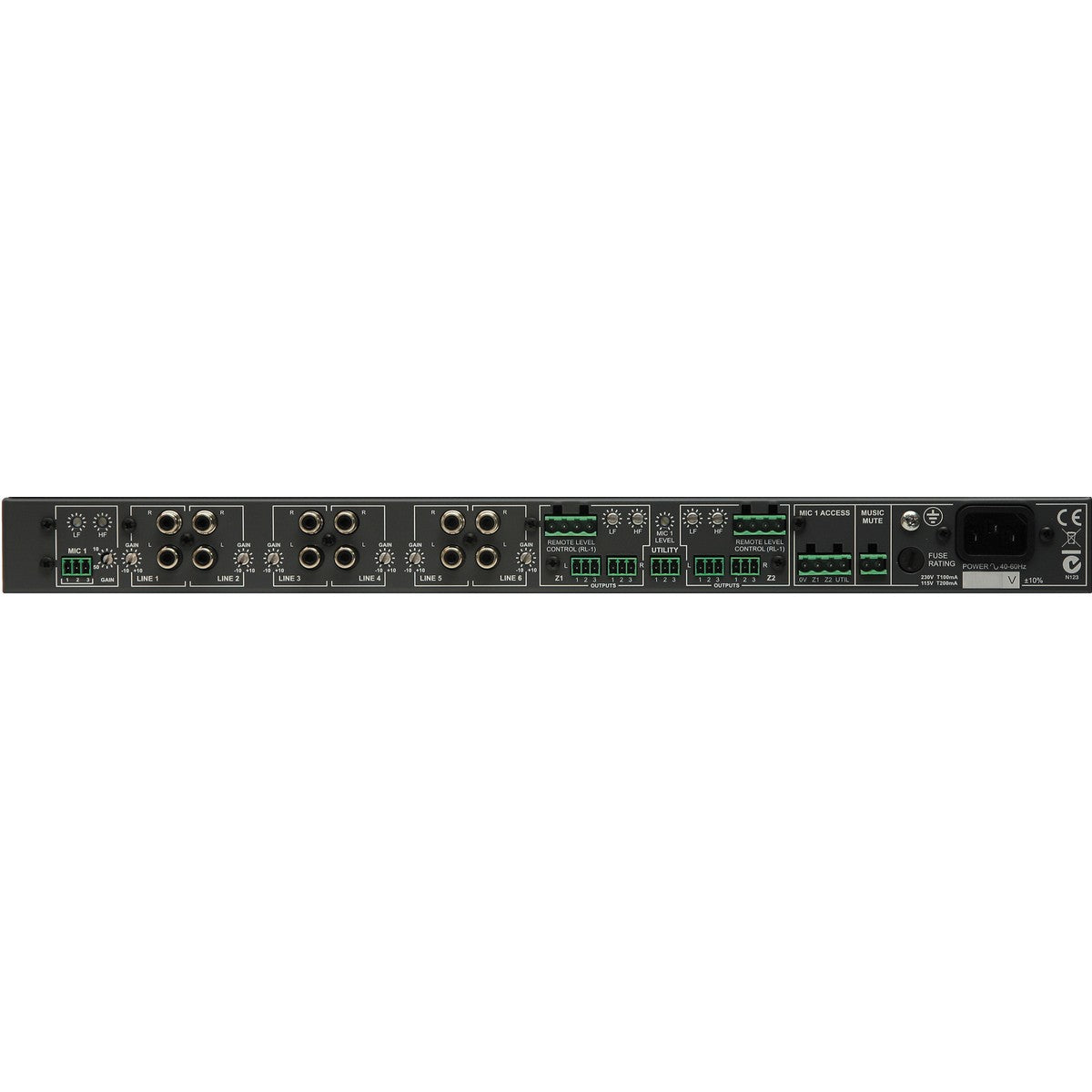

Cloud Electronics CX163 2 Zone Stereo Utility Mixer
The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.
Key Features
- 2 zone stereo mixer with mono utility output
- Both stereo zones can be configured to run as mono
- Utility output is constant 0dB
- Utility music source is selectable via internal jumper
- 6 stereo line inputs
- Line 6 priority over other input sources in zone 1 only
- Remote music mute
- Microphone access contacts for paging to all 3 zones
- 100Hz high pass filter on all microphone inputs
- Two band microphone EQ
- Remote level control in each zone using RL1

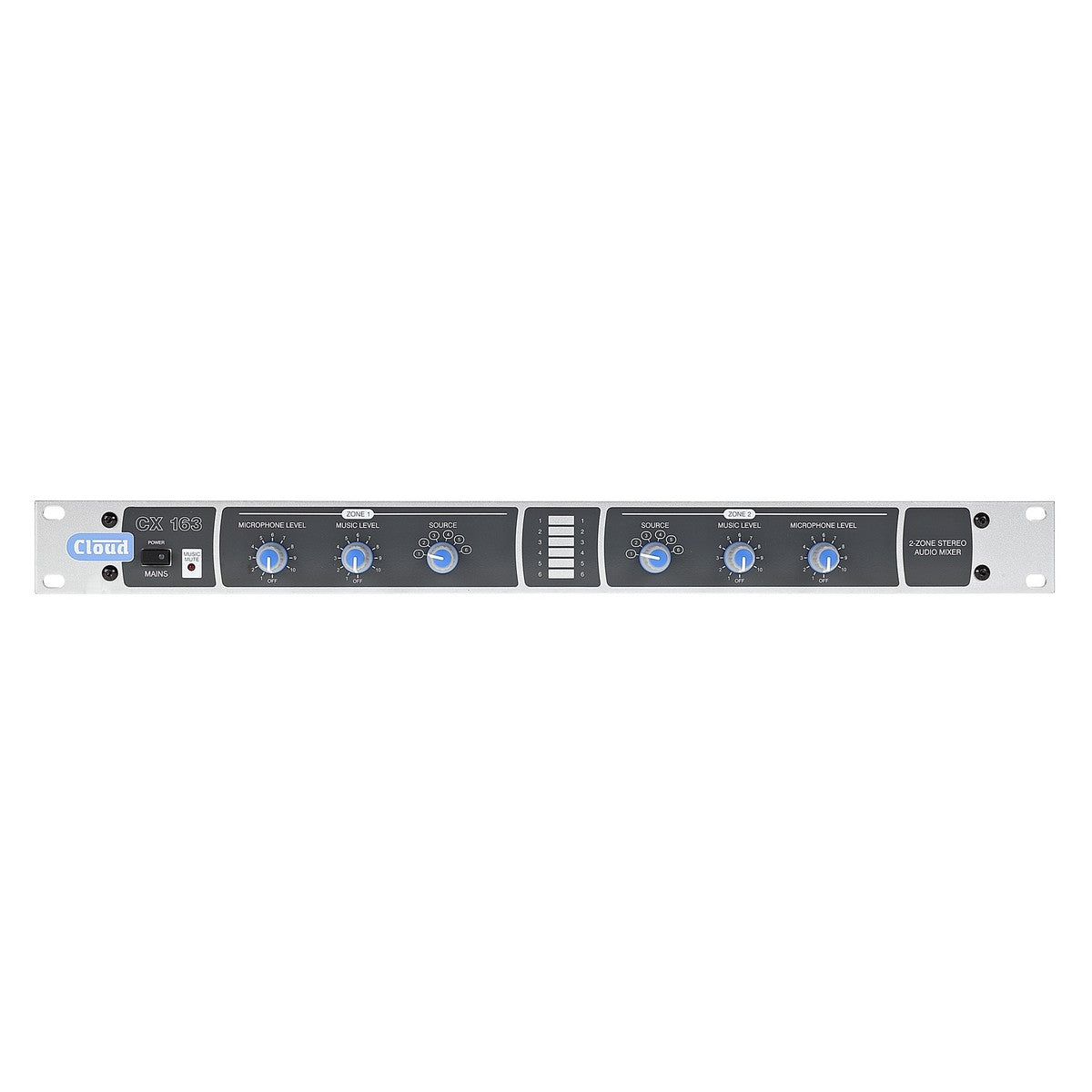

- Front panel controls give microphone level, music source and volume
- EQ card option
Technical Specifications
Frequency Response
20 Hz-22 kHz, 0 -0.5 dB
Distortion
20 Hz-22 kHz, <0.05% Typical
Sensitivity
100 mV (-17.8 dBu) to 1.5 V (+6 dBu)
Input Gain Control
24 dB range
Input Impedance 48 k ohm
Headroom
>20 dB
Noise
20 Hz-22 kHz (0 dB gain), Equalization
LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10kHz
Frequency Response
100 Hz -3 dB (filter), 20 kHz Distortion
<0.05%, 20 Hz – 22 kHz typical
Gain Range
10 dB to 50 dB
Input Impedance
>2 k ohm (balanced)
Common Mode Rejection
1 kHz >70 dB
Headroom
>20 dB
Noise
20 Hz -22 kHz (150 ohm), -128 dB EIN
Equalization
LF: ±10 dB @ 100 Hz, HF: ±10 dB @ 5 kHz
Output
0 dBu (775 mV) via 3.5mm-pitch plug-in screw terminals
Minimum Load Impedance
1.2 k‹
Maximum Output Level
+20 dBu
Power Input
230 V/115 V ±10%
Fuse Rating
T 100 mA 230 V, T200 mA 115 V
Fuse Type
20 mm x 5 mm 250 V
Dimensions
482.6 mm x 44 mm (1U) x 152.5 mm
Weight
2.15 kg
