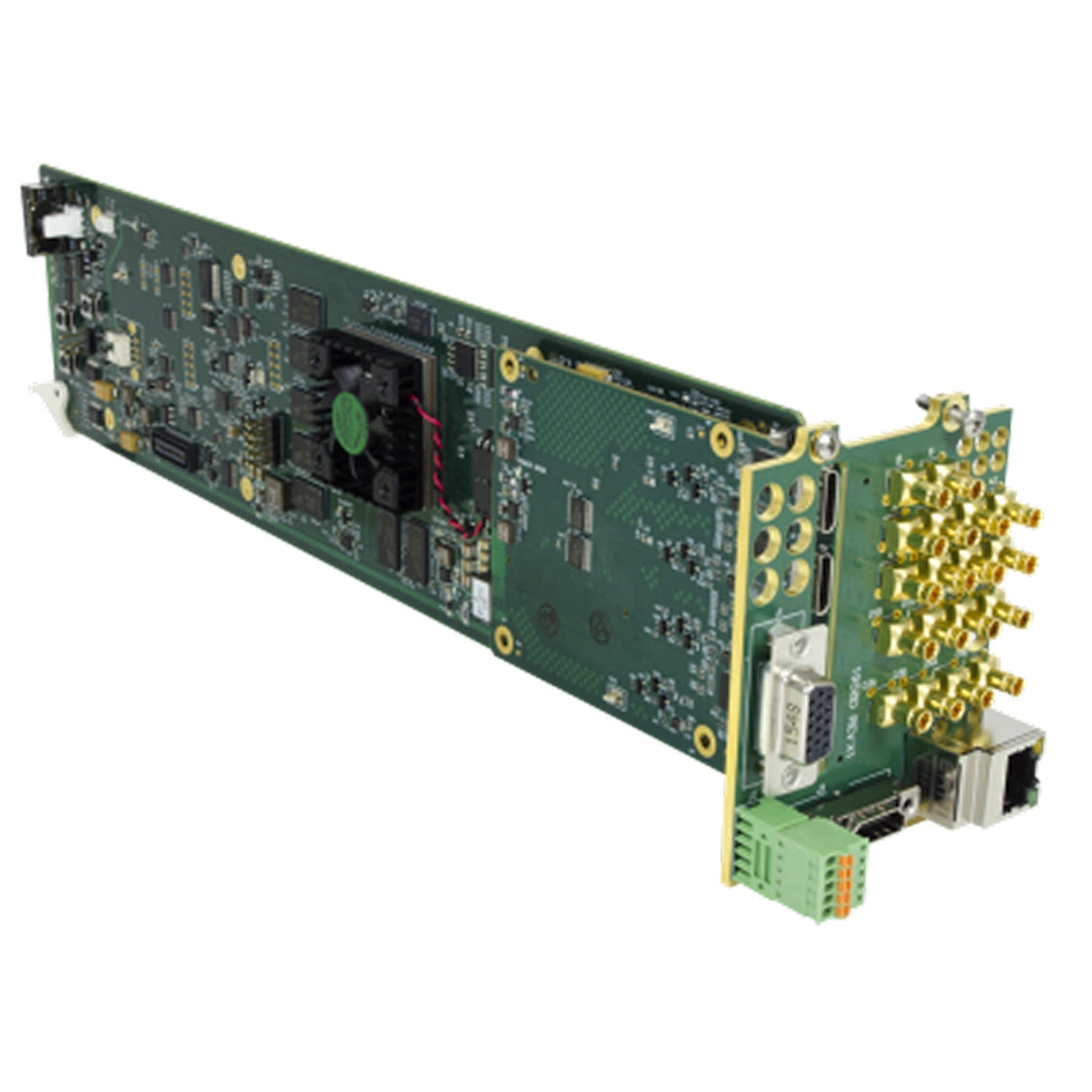

Cobalt 9971-MV18-4K 12G/6G/3G/HD/SD Expandable UHD Multiviewer

Cobalt 9971-MV18-4K 12G/6G/3G/HD/SD Expandable UHD Multiviewer

The Cobalt 9971-MV18-4K 12G/6G/3G/HD/SD 18-Input UHD Multiviewer is part of Cobalt's next generation of advanced UHD high-capacity channel multiviewers for the openGear platform. Full-flexibility design accommodates 12G/6G/3G/HD/SD-SDI and UHD1 3840x2160 Square DIvision (SDQS) or Two-Sample Interleave (2SI) quad 3G-SDI based formats as I/O, and can output ST 2082 12G-SDI for single-wire 4K transport. Using 12G-SDI “single-wire” inputs, up to 18 discrete PiP images can be supported. With both 12G-SDI and quad 3G-SDI inputs, the 9971-MV18-4K can downconvert 12G and quad UHD. The 9971-MV18-4K provides up to two HDMI 2.0 outputs for economical 4K video monitoring.

The 9971-MV18-4K suite offers unprecedented ease of setup and also offers an unprecedented ease of use. Fully-flexible layouts using any of several one-button template presets or fully customizable layouts using easy to use sizing/positioning custom controls. Any template layout or custom layout changes can be done “on-the-fly” in real time, without tedious setup or layout programs like many other multiviewer products. Graphical overlay features include user text “burn-in” insertions that can correlate the images displayed with contextual information. Numerous preset layout formats are available, as well as custom layouts as desired. Custom layout and configuration settings can be saved to user presets, allowing the custom settings to be recalled with one click.

The high-density openGear design allows for up to five 9971-MV18-4K cards to be installed in one 2RU openGear frame. Card control/monitoring is available via DashBoard user interface, integrated HTML5 web interface, SNMP, or Cobalt's RESTful-based Reflex protocol.

Please Note: Card only! Rear Module sold separately.

Key Features

• High-density openGear comprehensive UHD multiviewer solution
• Allows easy, real-time “on the fly” custom layout changes without needing setup or layout programs
• Supports Square Division (SDQS) and Two-Sample Interleave (2SI) quad UHD formats
• Easy to configure PiP sizing and borders
• UHD 3840x2160 output raster support
• Remote control/monitoring via Dashboard software, OGCP-9000 remote control panels, integrated HTML5 web interface, SNMP, or
• Cobalt's RESTful-based Reflex protocol
• Five-year warranty

Technical Specifications

12G/6G/3G/HD/SD-SDI Inputs/Outputs
Video Inputs
(6) 75 OHMS inputs (max)
Outputs
(8) 75 OHMS Outputs (max)
SDI Formats Supported
SMPTE ST2082-1, ST2082-10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant.
Return Loss
>15 dB up to 1.485 GHz
>10 dB up to 2.970 GHz
>7 dB up to 6 GHz
>5 dB up to 12 GHz
Input Cable Length
60m Belden 1694A cable at 11.88 Gbps
120m Belden 1694A cable at 2.97 Gbps
240m Belden 1694A cable at 1.485 Gbps
400m Belden 1694A cable at 270 Mbps
Output Signal Level
800 mV ± 10%
DC Offset
0 V ± 50 mV
Rise and Fall Time @ 11.88 Gbps
< 45 ps
Alignment Jitter (12G/3G/HD/SD)
< 0.3/0.3/0.2/0.2 UI
HDMI Inputs (model 9971-MV6-4H-4K only)
(4) HDMI 2.0; type C-mini connector
HDMI Outputs
(2, max) HDMI 2.0 Output; type A standard connector
Warranty
5 Year Warranty
