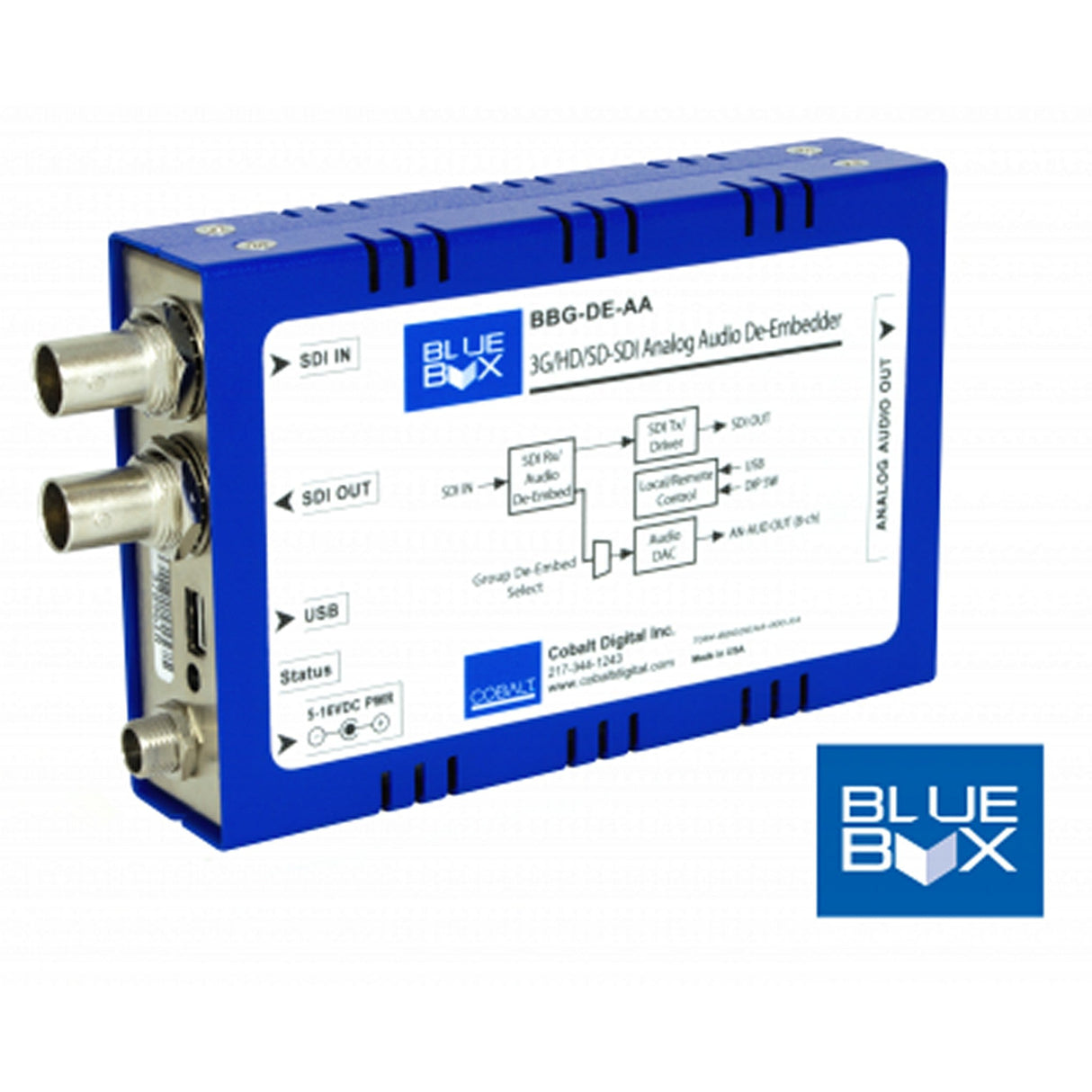

Cobalt BBG-DE-AA 3G/HD/SD Analog Audio De-Embedder
Cobalt BBG-DE-AA 3G/HD/SD Analog Audio De-Embedder
BlueBox offers excellent performance, and excels to a new level of ease of use and installation practicality. The Cobalt BBG-DE-AA BlueBox 3G/HD/SD Analog Audio De-Embedder provides de-embedding to professional balanced audio at 0 dBFS to pro 24 dBu levels using full 24-bit conversion. De-embed selection can be configured using the device DIP switches or by using an intuitive GUI application that communicates with BBG-DE-AA over a PC's USB port. The GUI app allows dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. When configured using the GUI app, the USB connection can be removed with all settings held in non-volatile device memory.
Key Features
- Eight balanced analog audio outputs with user-selectable direct de-embedding of groups 1 thru 4. DB-25 connector provides compact footprint
- Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages
- Balanced audio de-embed with full 0 dBFS to 24 dBu 24-bit conversion
- Small rugged portable standalone package ideal for portable installations
- Compact size and low weight design easily affixes directly to host device chassis
Technical Specifications
Power
5-16 VDC, <5 W (AC adapter included)
DC Power Connector
Coaxial locking connector (for use with supplied Cobalt power adapter)
USB Port
Mini-USB (used for USB remote control connection and firmware upgrade upload to device)
Standards/Data Rates Supported
SMPTE 292M, 259M, 424M
Inputs/Outputs
3G/HD/SD-SDI In (75ohms BNC)
8-channel balanced analog audio output via DB-25 connector and XLR breakout adapter (available separately)
3G/HD/SD-SDI Out (75ohms BNC)
Audio Conversion Format
48 kHz sampling, 24-bit. Supports outputs up to 24 dBu
Dimensions
5.5" x 3" x 1" (including connector projections)
(139 x 77 x 26 mm)
