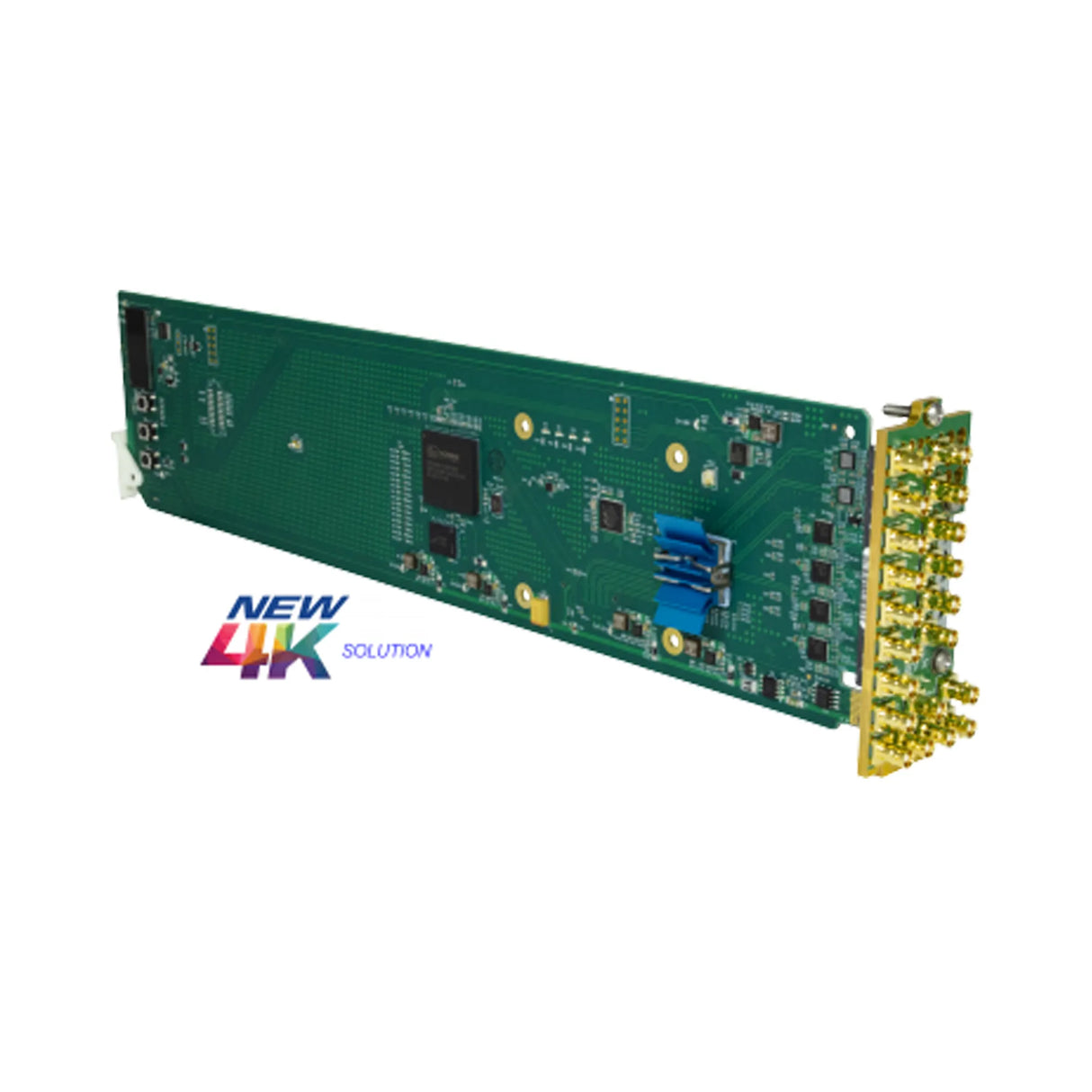

Cobalt Digital 9915DA-12G 12G/3G/HD/SD-SDI 1x16 Reclocking DA openGear Card
Cobalt Digital 9915DA-12G 12G/3G/HD/SD-SDI 1x16 Reclocking DA openG...
Free Shipping
Cobalt Digital 9915DA-12G 12G/3G/HD/SD-SDI 1x16 Reclocking DA openGear Card
The Cobalt 9915DA-1x16-12G 12G/6G/3G/HD/SD-SDI 1x16 Reclocking Distribution Amplifier supports an input channel which is distributed to 16 DA outputs. The 9915DA-1x16-12G also, as an option, can support an SFP-based fiber input and fiber DA outputs.
As demand for 4K continues to rise, distribution of 12G-SDI signals within a rackspace becomes increasingly important. The 9915DA 1x16-12G allows for copper runs of up to 45 meters, reaching most equipment within a rack room or truck.
Up to 10 of the 9915DA-1x16-12G cards can be installed in a frame to provide 10 channels of input, with distribution to up to 160 outputs. Full user DashBoard or Remote-Control Panel remote control allows full status and control access locally or across a standard Ethernet network.
Key Features
- Full support of 12G/6G/3G/HD/SD-SDI and ASI/DVB
- Input data rate auto-detection for all industry-standard data rates
- One-card solution for distribution of 4K/8K content over 12G-SDI interfaces
- Card display and DashBoard status input lock indicators
- Five-year warranty
Technical Specifications
Power
<10 Watts
12G / 6G / 3G / 1.5G / 270M Serial Digital Interface Input/Output
(1) 75Ī© HDBNC Connector Input (max). (16) 75Ī© HDBNC Connectors Output (max). SDI
Formats Supported
SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C. All inputs/outputs 12G compliant and SDQS/2SI quad 3G compliant
Fiber Transmit Output (typ. with optional fiber Tx SFP)
LC connector
Fiber Wavelength, Tx: 1310 nm
Tx Power
-5.0 dBm (min)
Fiber Receive Input (typ. with optional fiber Rx SFP)
LC connector
Receive Sensitivity
-23 dBm; 1260 to 1620 nm
