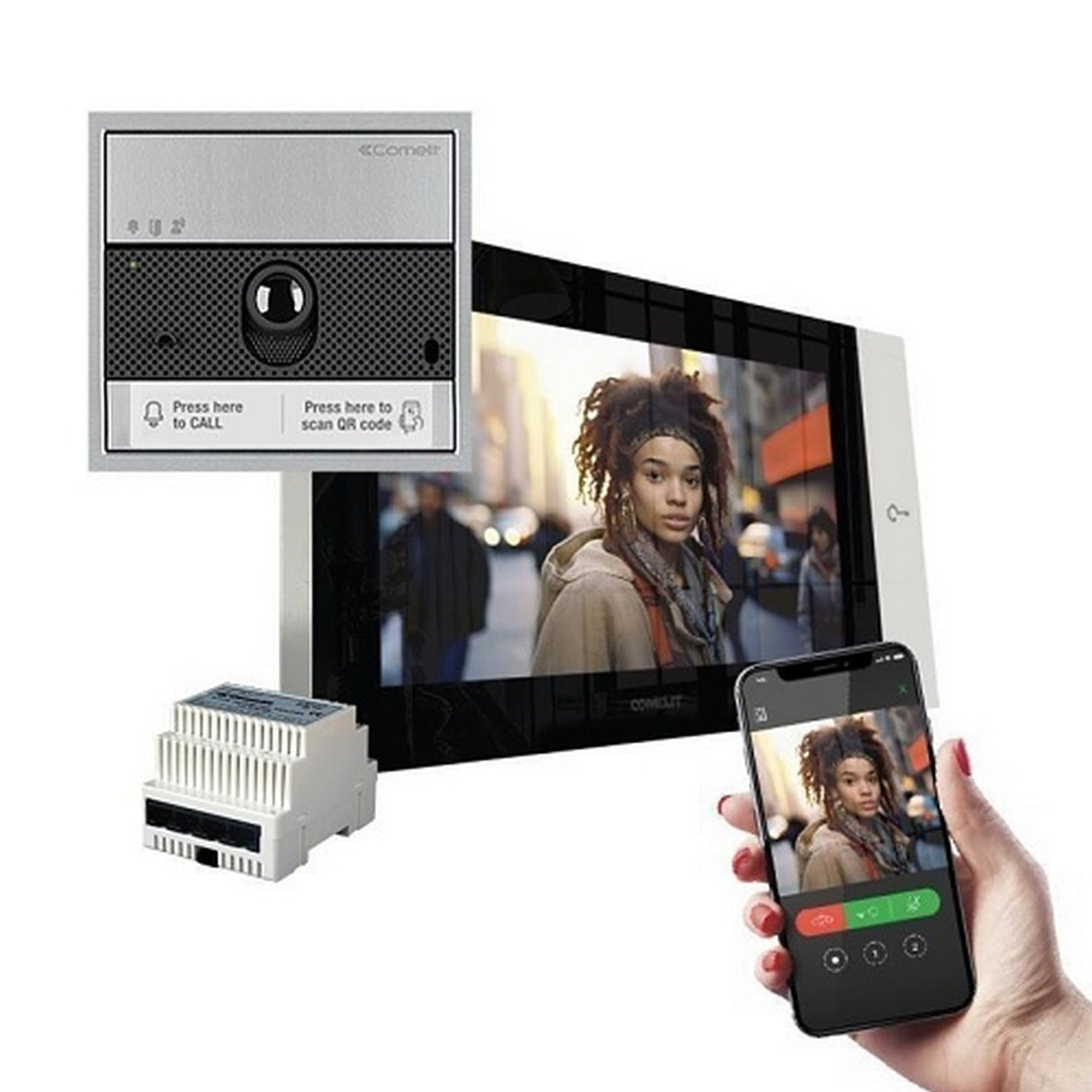

Comelit KVU8572 Scalable IP Video Intercom Kit with Ultra Entry Panel 7-Inch WiFi Monitor and Slave Gateway

The Comelit KVU8572 Scalable IP Video Intercom Kit includes a 7-inch hands-free WiFi monitor, Ultra entry panel, and apartment slave gateway—all built to integrate with the Comelit ViP system. It is designed to provide secure video and audio access for homes, offices, or commercial properties.

This single-family kit is supplied pre-programmed and features high resolution, touchscreen control, and remote access via the ViP app. It includes PoE (or external power supply) options, mechanical lock-release key, and supports full-duplex hands-free communication. The Ultra external unit allows for crisp video and wide-angle viewing, while the slave gateway enables remote control and smartphone integration.

Engineered for durability and ease of installation, the KVU8572 is built with ABS and glass components for the monitor and robust materials for the external unit. With clean interface design, strong performance, and remote management capabilities, it’s ideal for property owners who want modern security without sacrificing functionality or aesthetics.

Key Features

• 7-inch Hands-Free Monitor: 7” TFT capacitive touchscreen with resolution 1024 × 600, supports WiFi and Ethernet for ViP system integration.
• Ultra Entry Audio/Video Panel: External unit with wide angle camera, mechanical buttons, robust build, available in White/Black or Black/Black finish.
• Slave Gateway Included: Apartment gateway to allow monitor and app connectivity for remote control.
• Full-Duplex Audio & IP Video: Supports internal and external audio/video feed with modern codecs and hands-free operation.
• Multiple Inputs & Outputs: Mechanical lock-release buttons, programmable inputs/outputs for door control or auxiliary features.
• Durable Design & Finishes: ABS, glass, multiple color options; surface and flush mounting options.

Technical Specifications

• Model: KVU8572 (Comelit)
• Display Size: 7 in TFT capacitive touchscreen
• Resolution: 1024 × 600 pixels
• Dimensions (Monitor L × H × D): 8.27 in × 4.72 in × 0.83 in
• Monitor Weight: ~1.26 lbs
• Ultra External Panel Dimensions: 3.94 in × 3.54 in × 1.38 in
• Ultra External Panel Weight: ~0.87 lbs
• Finish Options: White/Black or Black/Black
• Materials: ABS, Glass (monitor); Polycarbonate / Aluminium alloy (external panel)
• Power Supply: PoE or external power supply, ViP Power specifications
• Mounting Options: Wall mount, surface mount (external unit), metal backplate included for monitor; optional desk base available separately
• Operating Conditions: Temperature 5–40 °C; Humidity 25–75% RH

What’s in the Box

• 1x Ultra audio/video external unit
• 1x 7-inch hands-free WiFi monitor (7TOP)
• 1x Apartment slave gateway
• 1x Power supply / necessary distributor
