Comica BoomX-D RX Compact 2.4 GHz Wireless Receiver

Comica BoomX-D RX Compact 2.4 GHz Wireless Receiver

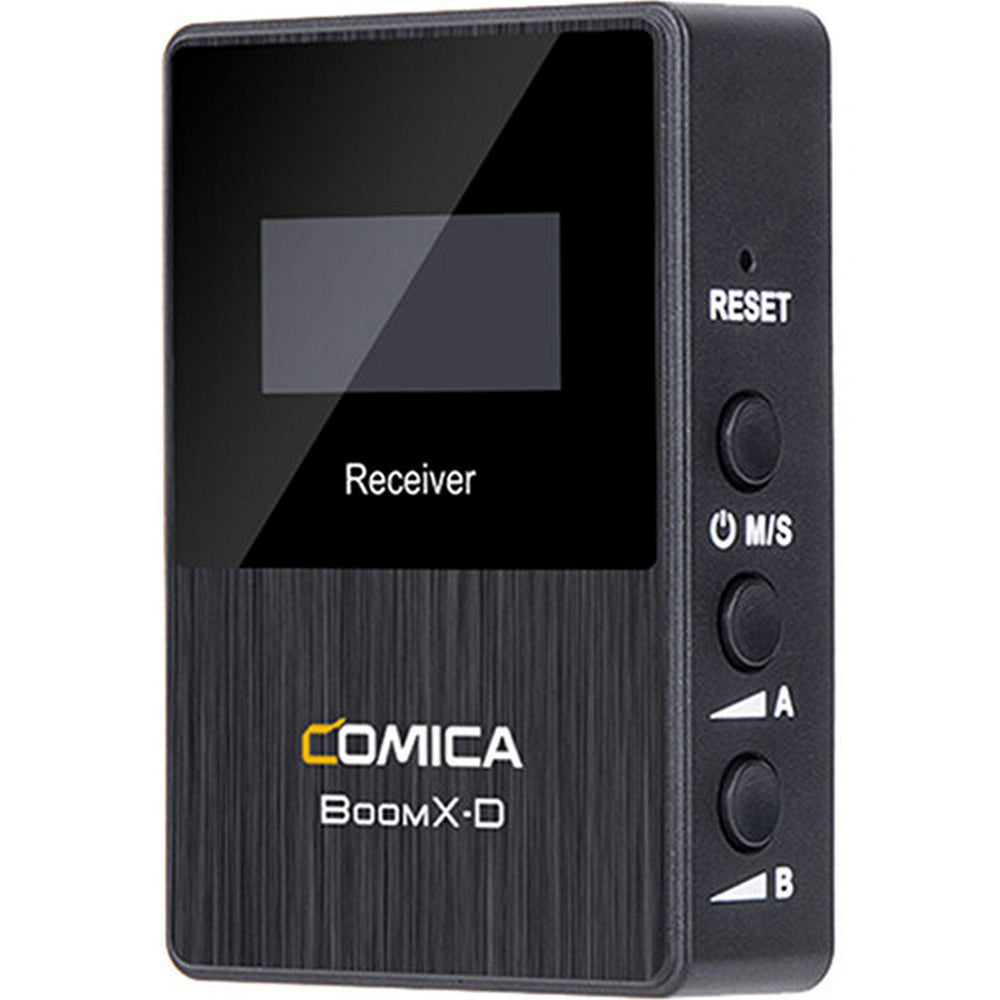

The compact Comica BoomX-D RX is a dual-channel digital wireless receiver that plugs into the 3.5mm audio input of your mirrorless or DSLR camera. Additionally, the included TRRS output cable gives you the option to plug the receiver into any smartphone.

The BoomX-D RX allows you to record up to two BoomX-D wireless mics into your camera using just one receiver, saving space on your shooting rig and great for recording dialogue, interviews, and speech with two people talking simultaneously.

Plug-and-Play and Easy-to-Operate Wireless
-Easy-to-use, plug-and-play receiver.
-The two-channel receiver allows you to save space on your shooting rig by using a single receiver to simultaneously receive signals from the two mic/transmitters.
-The receiver features a belt clip, which also doubles as a shoe-mount adapter for your camera.
-In the absence of a smartphone holder, the receiver can also be clamped to your smartphone using the belt clip.
-Dedicated gain buttons allow quick and effortless adjustment of the signal level for each microphone independently.

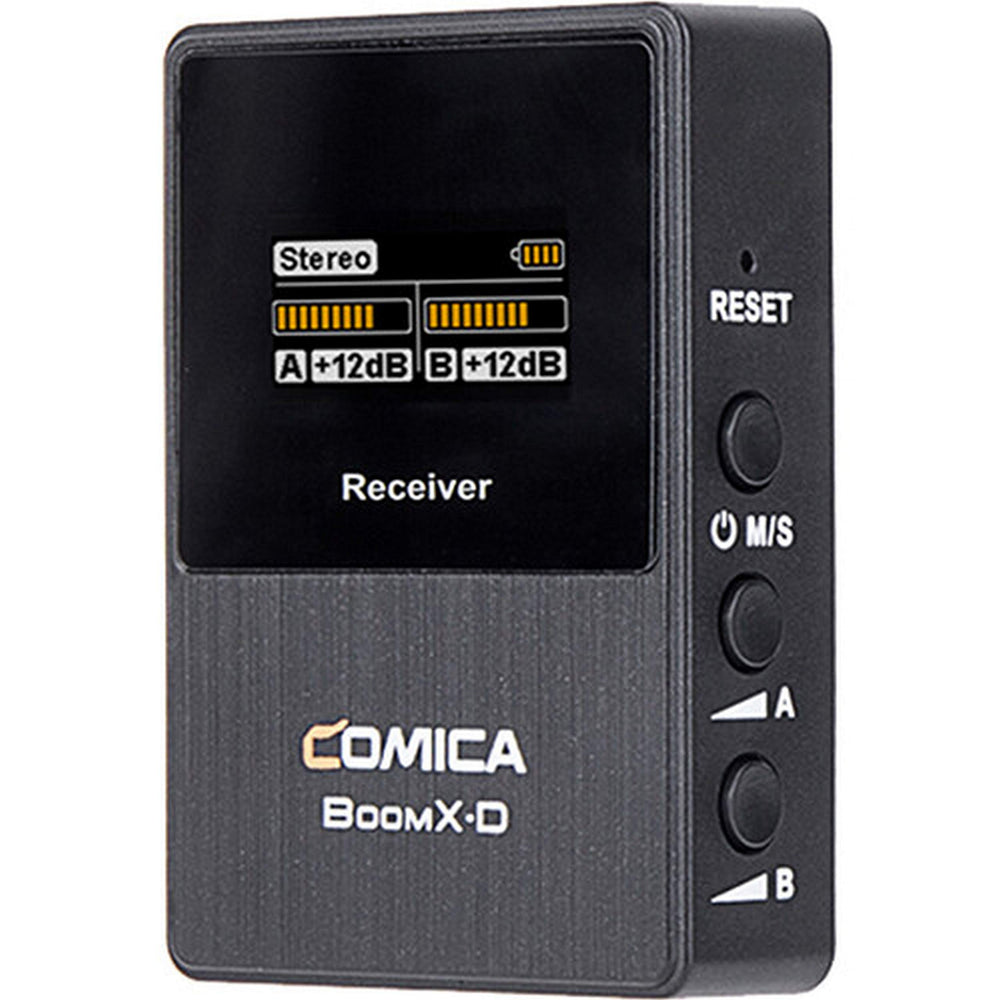

-The display shows signal strength, audio level, mono/stereo configuration, and battery life.
-You have the option to switch between mono or stereo
Recording in mono combines both microphones on both the left and right side of your audio track. Recording in stereo puts one person on the left and the other person on the right, allowing you to isolate each person’s dialog and adjust each level individually later in post.
-To ensure that you are capturing a clean signal, you can monitor your mic via the receiver’s 3.5mm headphone output while recording.
-The receiver is powered via a built-in lithium-ion rechargeable battery. It can also be powered via USB, even while in use, giving you near unlimited operating time.
-Includes reset pin for easy pairing with up to two BoomX-D transmitters.

Easy 2.4 GHz Digital Wireless
-Whereas typical analog wireless systems are susceptible to interference from TV and radio waves, the BoomX-D digital system avoids that by operating in the 2.4 GHz frequency band, which occupies frequencies beyond those of television, radio transmissions, and UHF wireless microphone systems.
-The system automatically changes transmission frequency to mitigate noise and dropouts at a line-of-sight distance of up to 164 feet. For optimal performance, environments with limited Wi-Fi/2.4 GHz traffic and minimal physical obstructions are recommended.

Technical Specifications

What's Included
1x Comica Audio BoomX-D RX Dual-Channel Digital Wireless Receiver for Mirrorless/DSLR Cameras (2.4 GHz)
1x 3.5mm TRS to TRS Output Cable for Canon and Nikon Cameras
1x 3.5mm TRS to TRS Output Cable for Sony, Panasonic, and Fujifilm Cameras
1x 3.5mm TRS to TRRS Output Cable for Smartphones
1x Reset Pin
1x Limited 1-Year Warranty
Antenna
1 x Internal
RF Frequency Band
2400 to 2483.5 MHz
Battery Life
5 Hours (Lithium Rechargeable)
Build Material
Plastic
Number of Audio Channels
2
Connection
1 x Lightning (Audio, Bus Power)
Display Technology
1 x LCD (AF Level, Battery Status, Output Level)
Gain range
0 to 12 dB
Inputs
1 x 1/8"
Max Range
164' / 50 m (Line of Sight)
Operating Temperature
32 to 122F / 0 to 50C
RF Output Power
10 mW
Outputs
3.5 mm TRS Female Unbalanced Mic Output | 3.5 mm TRS Female Unbalanced Headphone Output
Power Supply
Bus Power (Lightning)
Approximate RF Sensitivity
-86 dBm
Wireless Transmission
Digital 2.4 GHz
