Description

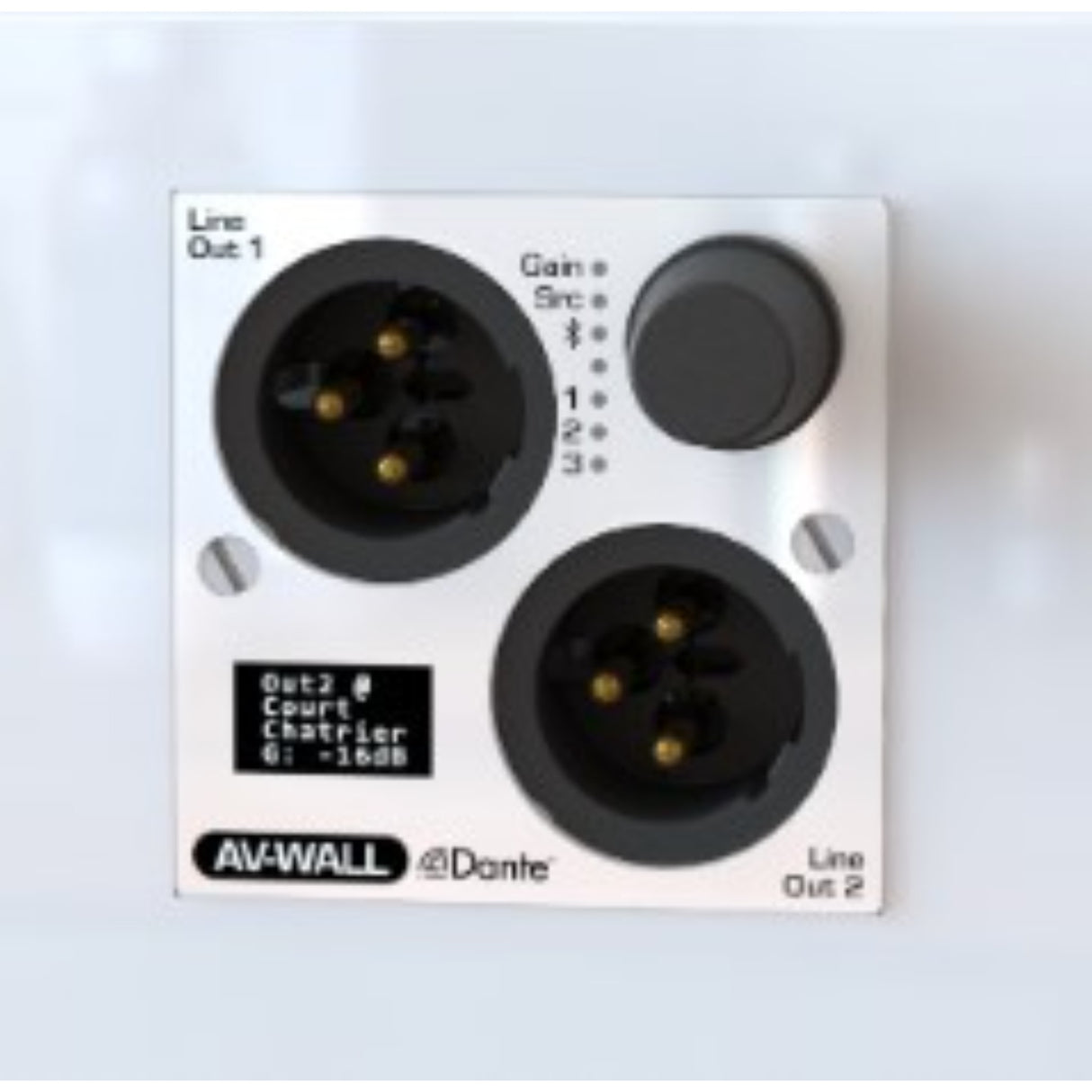

AuviTran AV-WALL-DT4o-B Dante Wall Plate Audio Interface with Bluetooth Output
The AuviTran AV-WALL-DT4o-B is a compact Dante-enabled wall mounted audio interface designed to provide seamless integration between networked audio systems and analog outputs. Designed for professional AV installations, this ultra-compact interface converts Dante network audio to analog outputs while offering built-in Bluetooth connectivity for wireless audio streaming.
Engineered for flexibility and simple installation, the DT4o-B fits into a standard single-gang wall box and is powered via Power over Ethernet (PoE), allowing audio, power, and control to be delivered through a single network cable. A rotary push button and integrated OLED display allow quick pairing and device selection for Bluetooth sources, while Dante sources can be selected directly without external patching software.
Key Features
- Dante network to analog audio interface for wall mounting
- 2 balanced XLR analog line outputs
- Integrated stereo Bluetooth output
- OLED display with rotary push button for local control
- PoE powered via RJ45 (802.3af compliant)
- Compact design fits a standard single-gang wall box
- Remote monitoring and configuration through AVS Monitor and Dante Controller
- Compatible with Apple and Android Bluetooth devices
Technical Specifications
- Outputs: 2 x XLR line outputs + stereo Bluetooth output
- Output Level (XLR): +24 dBu
- Dynamic Range: >106 dB (A-weighted)
- Frequency Response: 20 Hz – 20 kHz
- Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
- Bit Depth: 24 or 32 bit
- Power: PoE (IEEE 802.3af)
- Maximum Power Consumption: 5.5 W
- Dimensions (in-wall): 49 x 47 x 46 mm
