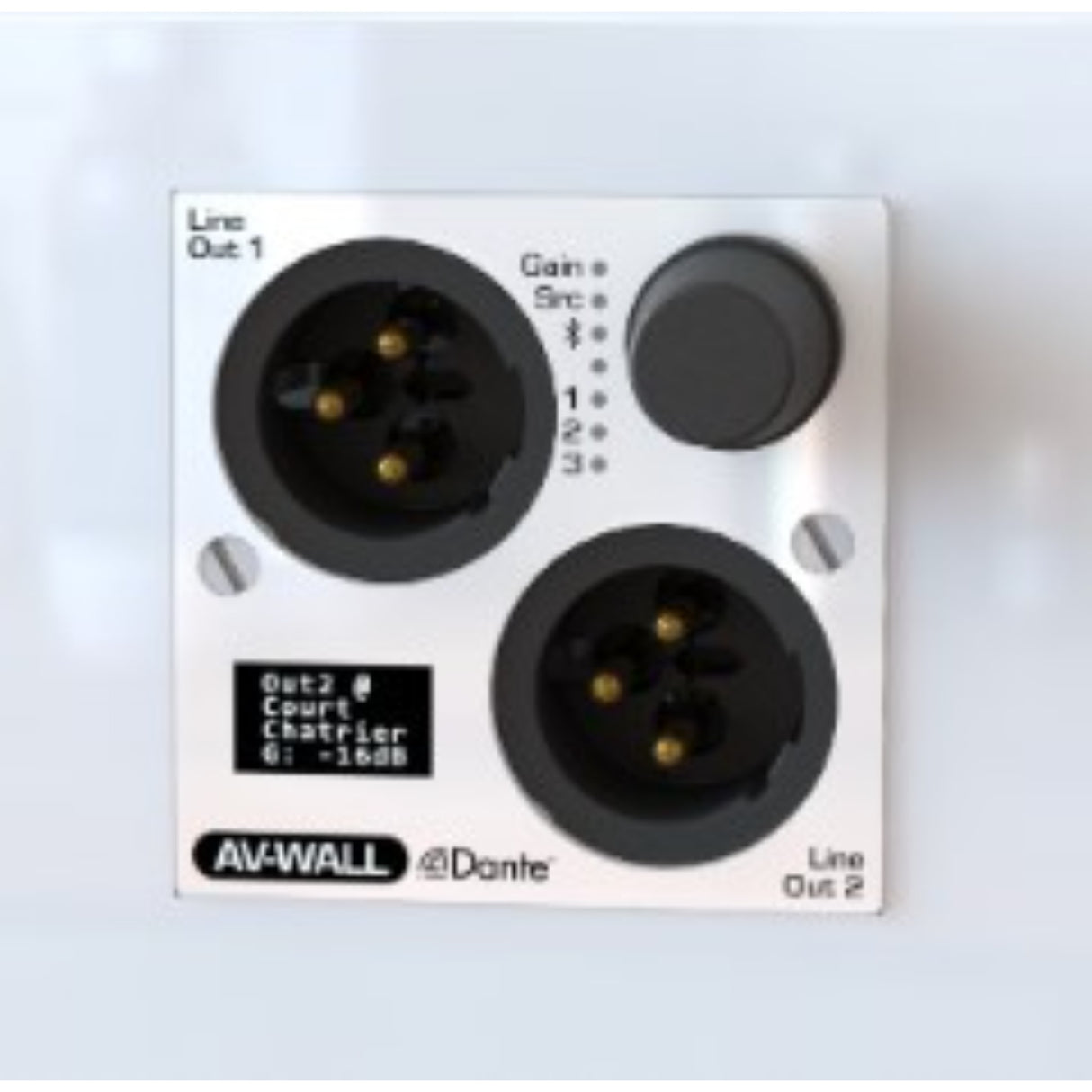

AuviTran AV-WALL-DT4o Dante Wall Plate Audio Output Interface
The AuviTran AV-WALL-DT4o is a compact Dante network audio interface designed for professional wall-mounted installations. It converts Dante digital audio streams into analog outputs for integration with amplifiers, mixers, and other professional audio equipment.
With its ultra-compact form factor, the DT4o fits into a standard single-gang junction box and is powered via PoE, requiring only a single Cat5e/Cat6 cable for audio, power, and control. This streamlined installation makes it ideal for conference rooms, broadcast environments, classrooms, and commercial AV systems.
Key Features
- Dante network to analog audio interface
- 2 balanced XLR line outputs
- Power over Ethernet (PoE) operation
- Compact wall plate design for clean installations
- Remote monitoring and configuration via AVS Monitor and Dante Controller
- Single RJ45 connection for audio, control, and power
- Designed for professional AV and network audio systems
Technical Specifications
- Outputs: 2 x balanced XLR line outputs
- Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
- Bit Depth: 24 or 32 bit
- Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: >106 dB A-weighted
- Output Max Level: +24 dBu
- Power: PoE (IEEE 802.3af)
- Maximum Power Consumption: 5.5 W
- Dimensions: 49 x 47 x 46 mm (in-wall depth)
