Description

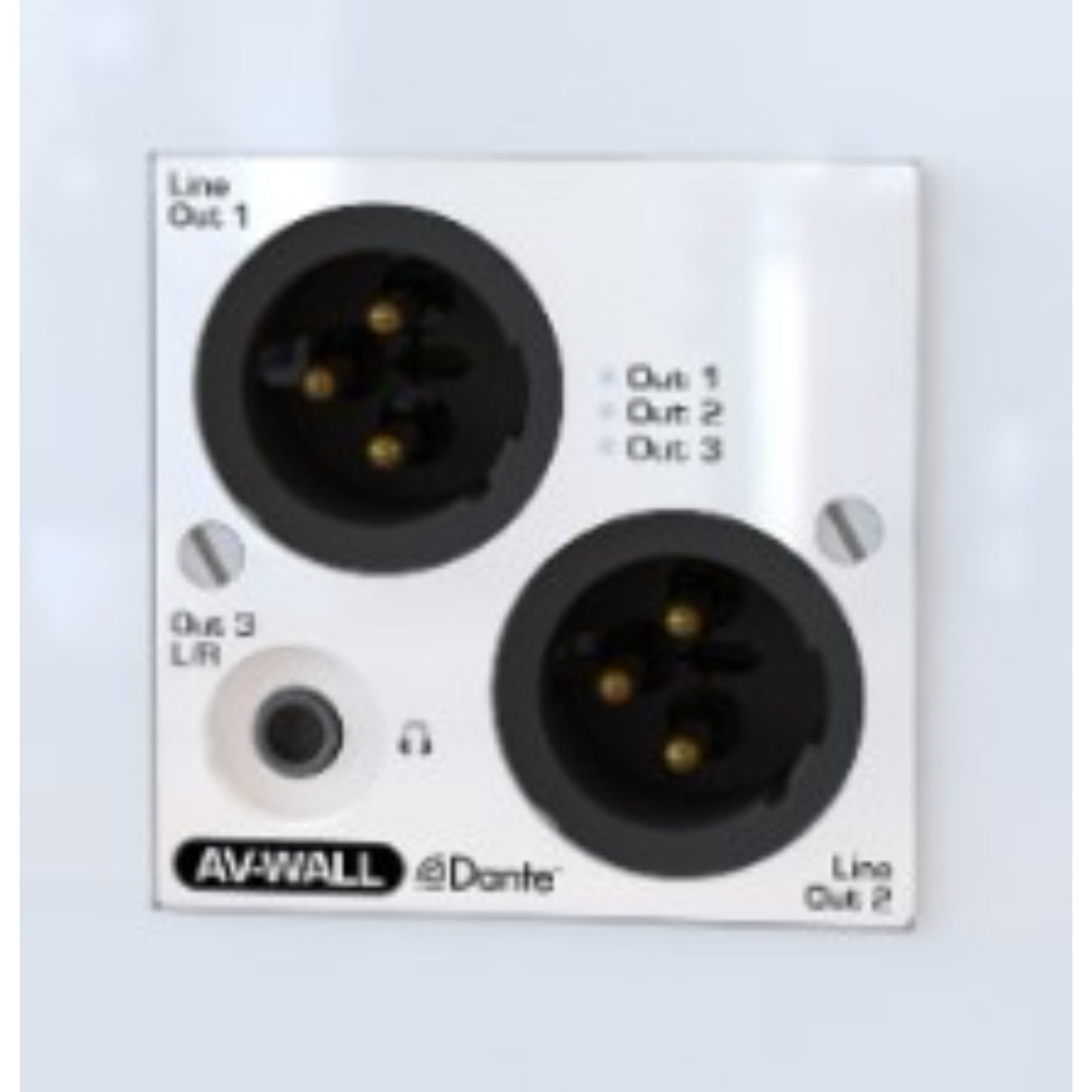

AuviTran AV-WALL-DT4o-LE Dante Wall Plate Audio Interface
The AuviTran AV-WALL-DT4o-LE is a compact Dante-enabled wall plate interface designed to convert network audio streams to analog outputs for professional AV systems. This streamlined version replaces Bluetooth output with a 3.5 mm stereo mini-jack output while maintaining the same high-performance Dante integration.
Powered via PoE, the DT4o-LE simplifies installations by delivering power, control, and audio through a single network cable. The compact form factor fits into a standard single-gang junction box, making it ideal for conference rooms, meeting spaces, and commercial AV environments.
Key Features
- Dante network audio to analog output interface
- 2 balanced XLR analog line outputs
- Stereo 3.5 mm mini-jack output
- PoE powered (IEEE 802.3af)
- Compact wall-mounted design
- Remote monitoring and configuration via AVS Monitor
- Simple installation with single network cable
Technical Specifications
- Outputs: 2 x XLR line outputs + stereo 3.5 mm mini-jack
- Sampling Rates: 44.1 / 48 / 88.2 / 96 kHz
- Bit Depth: 24 or 32 bit
- Frequency Response: 20 Hz – 20 kHz
- Dynamic Range: >104 dB (mini-jack)
- Output Level: +24 dBu (XLR)
- Power: PoE (802.3af)
- Maximum Power Consumption: 5.5 W
- Dimensions: 49 x 47 x 46 mm (in-wall)
