Description

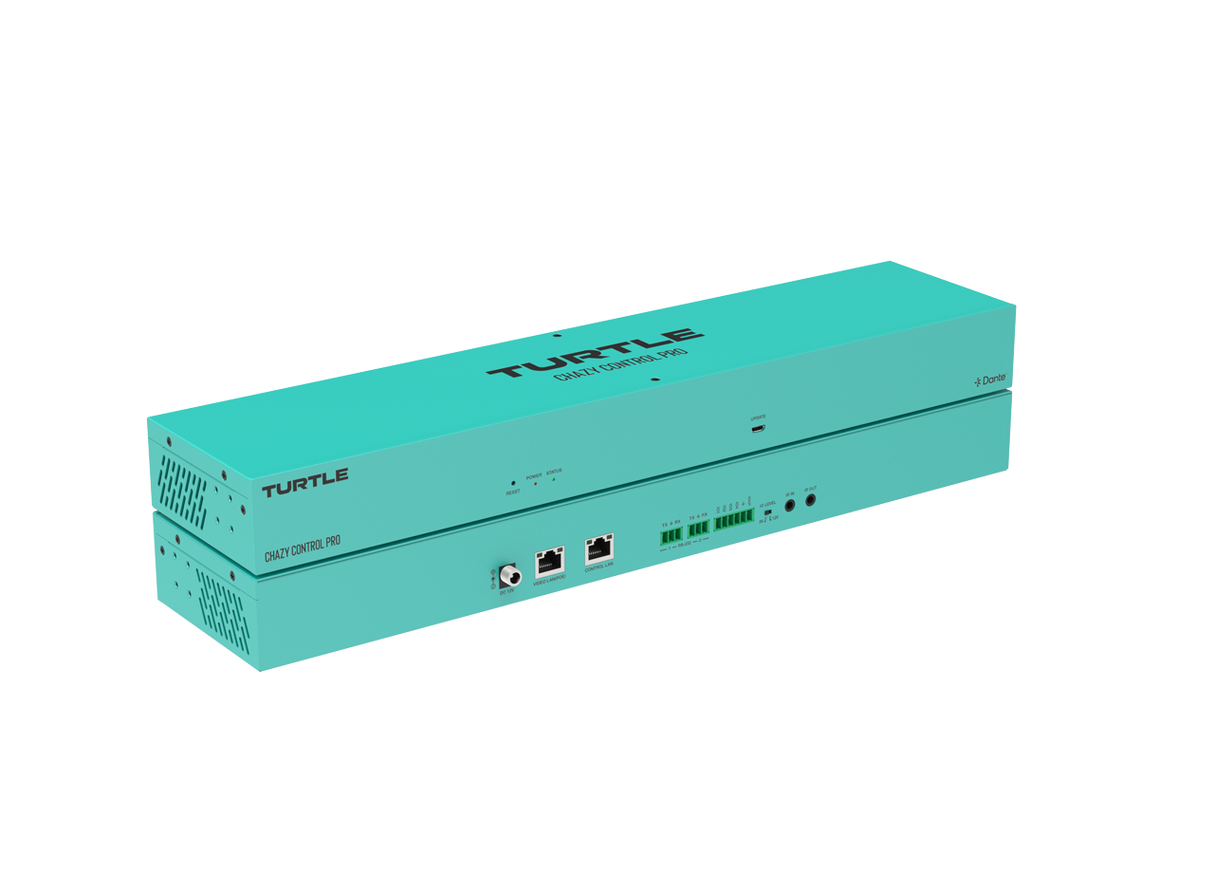

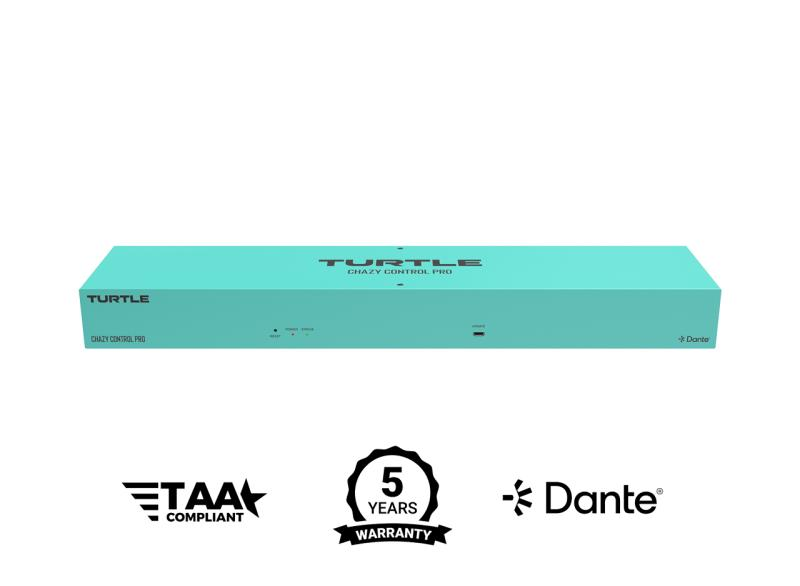

Turtle AV Chazy Control PRO Central Management Box
The Turtle AV Chazy Control Pro is a hardware-based AV over IP management and control unit, designed to manage distributed video and audio systems across large or complex installations. It embeds full Dante AV-A controller functionality directly in the device, enabling centralized routing, scheduling, and system control via any web browser — no external software required.
With dual 1G network ports to separate AV traffic from control traffic, the unit ensures secure and stable performance in demanding AV network environments. It supports advanced control interfaces including IR, RS-232, GPIO, and network/API control, plus scheduling, media playback, and video wall configurations up to 9×9 displays, making it ideal for corporate AV, digital signage, broadcast, and large venue installations.
Chazy Control Pro is built for reliability and convenience: fan-less metal housing, PoE or 12 V DC power, AES-256 encryption, and TAA compliance. Whether you need to route multiple video sources, automate switching, or manage a multi-room AV setup, this unit simplifies control and ensures robust long-term operation.
Key Features
- Built-in Dante AV-A Controller: Full Dante control without external software or PC.
- Dual 1G LAN Ports: Separate Video LAN (with PoE) and Control LAN for network segmentation.
- Web GUI and API Control: Manage routing, scheduling, and presets through web browser or control system API (Q-SYS, Crestron, Extron, AMX, Control4, etc.).
- Multicast & Video Wall Support: True multicast streaming and video wall configurations up to 9×9 displays.
- Wide Control Interface Support: IR in/out, RS-232, GPIO, Digital I/O for integration with third-party control systems.
- Media Player & Scheduling: Load media from shared storage and schedule playback, routing, and system automation.
- Secure Streaming & Control: HTTPS, SSH, AES-256 encryption, with ESD and lightning protection.
- Durable Build & Power Flexibility: Metal enclosure, fan-less design, powered via PoE or 12 V DC.
Technical Specifications
- Network Bandwidth: 100 Mbps / 1 Gbps
- Ports: 2 × 1G LAN (RJ45), 1 × IR IN (3.5 mm, 12 V), 1 × IR OUT (3.5 mm), 1 × Digital I/O (6-pin Phoenix), 2 × RS-232 (3-pin Phoenix), 1 × Micro USB (firmware updates)
- ESD Protection: IEC 61000-4-2 ±8 kV air-gap, ±4 kV contact discharge
- Housing: Metal enclosure, Turtle Aqua finish
- Dimensions (W × D × H): 440 mm × 98.4 mm × 44.5 mm (17.32 in × 3.87 in × 1.75 in)
- Weight: 1.21 kg (2.67 lbs)
- Power Supply: 12 V DC 1 A adapter, or PoE (IEEE 802.3af)
- Power Consumption: ~1.8 W (max)
- Operating Conditions: 32–104 °F; Humidity 20–80% RH non-condensing
