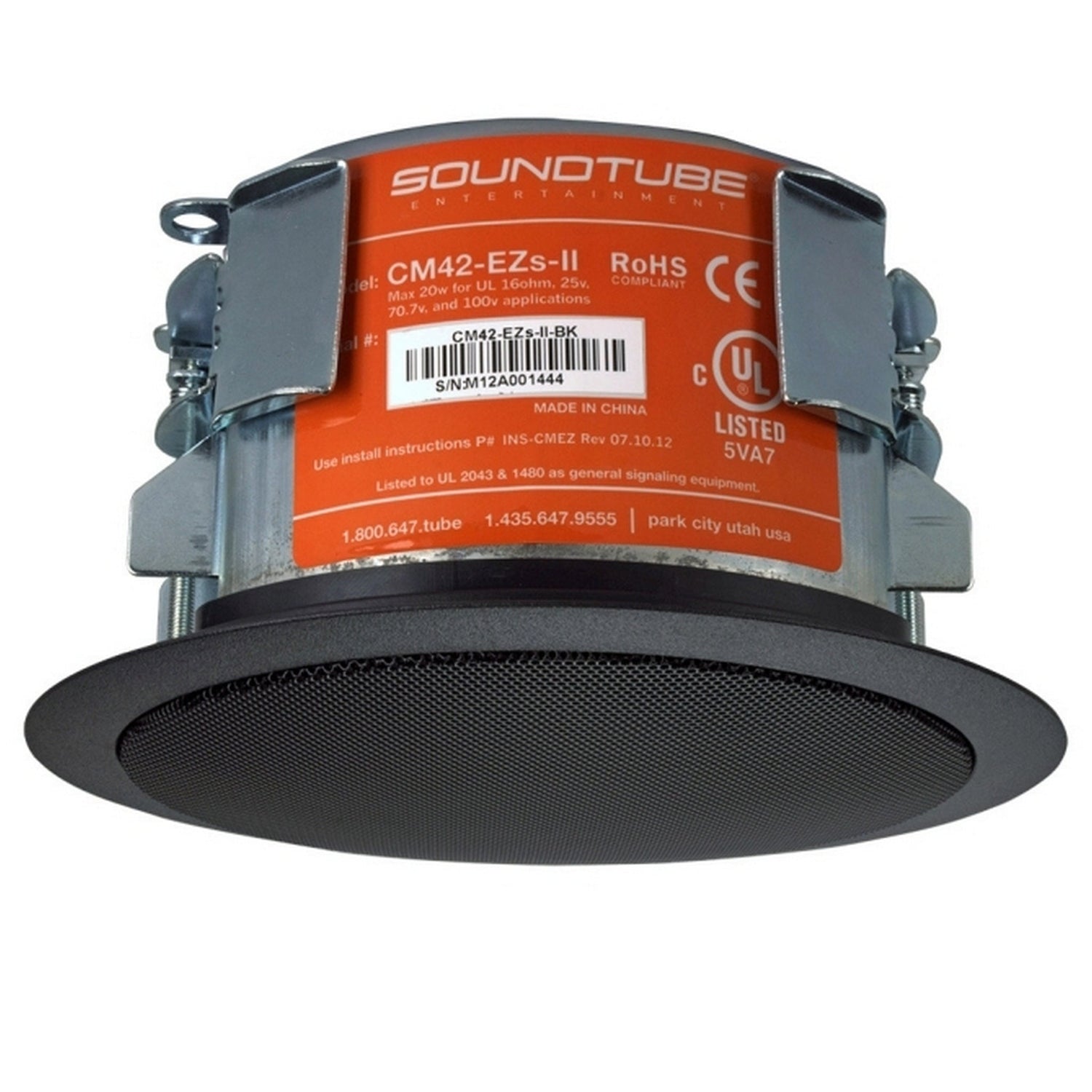

SoundTube CM42‑EZs‑II 4-Inch Coaxial In‑Ceiling Commercial Speaker

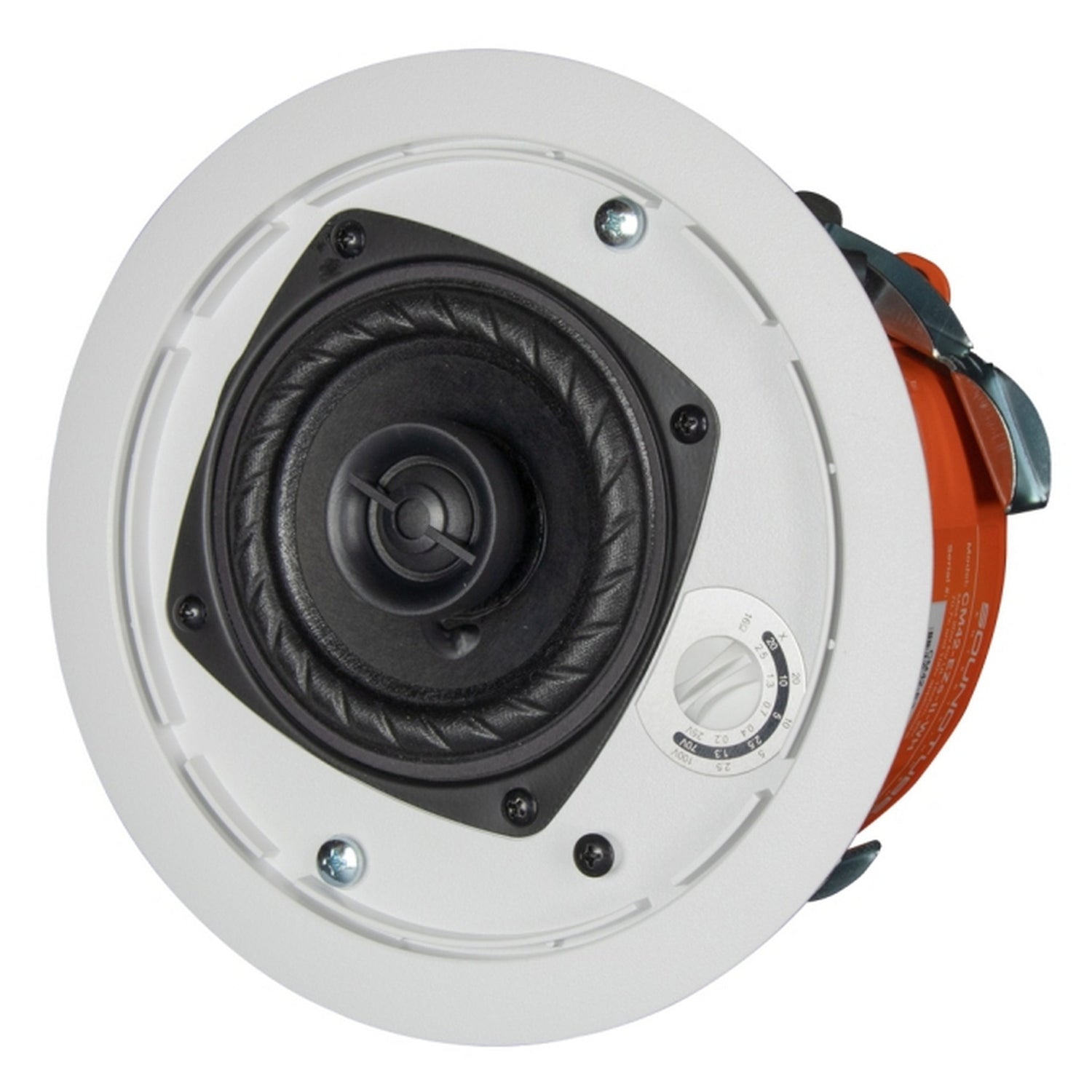

The SoundTube CM42‑EZs‑II is a compact commercial-grade in‑ceiling speaker featuring a two‑way coaxial design with a 4″ woofer and 0.75″ silk-dome tweeter. It is engineered for applications with limited plenum space, offering effective speech intelligibility and background music in hotels, airports, offices, and restaurants.

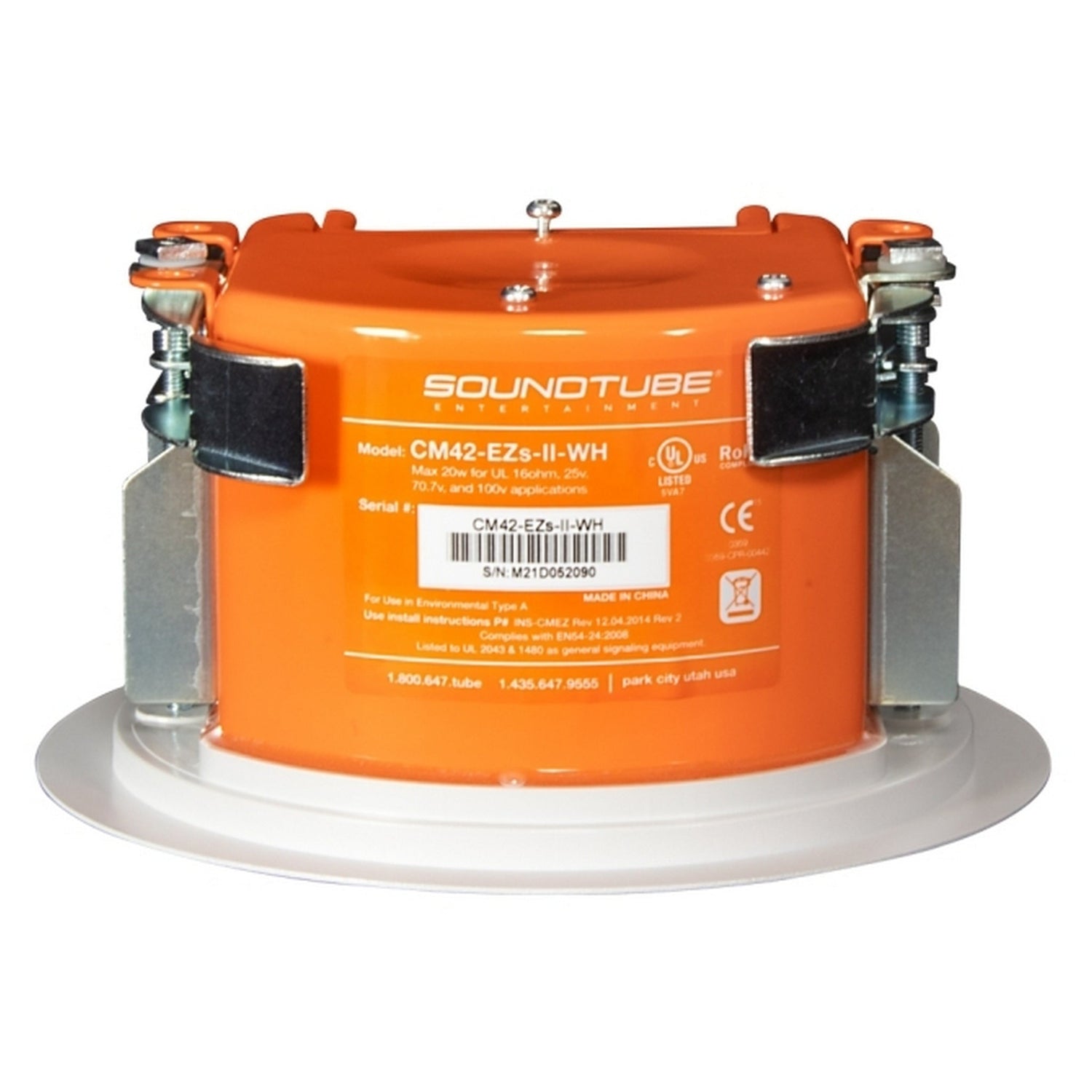

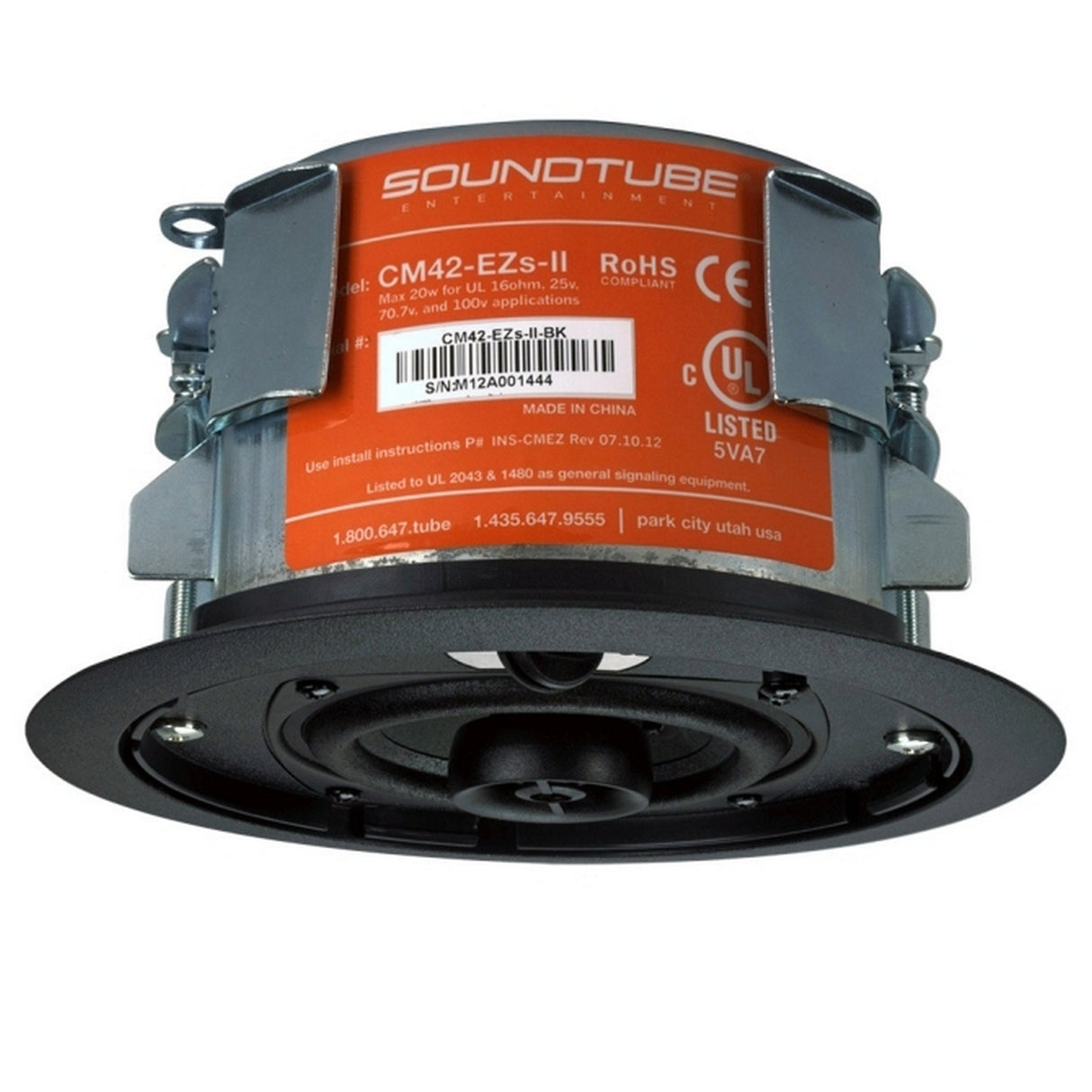

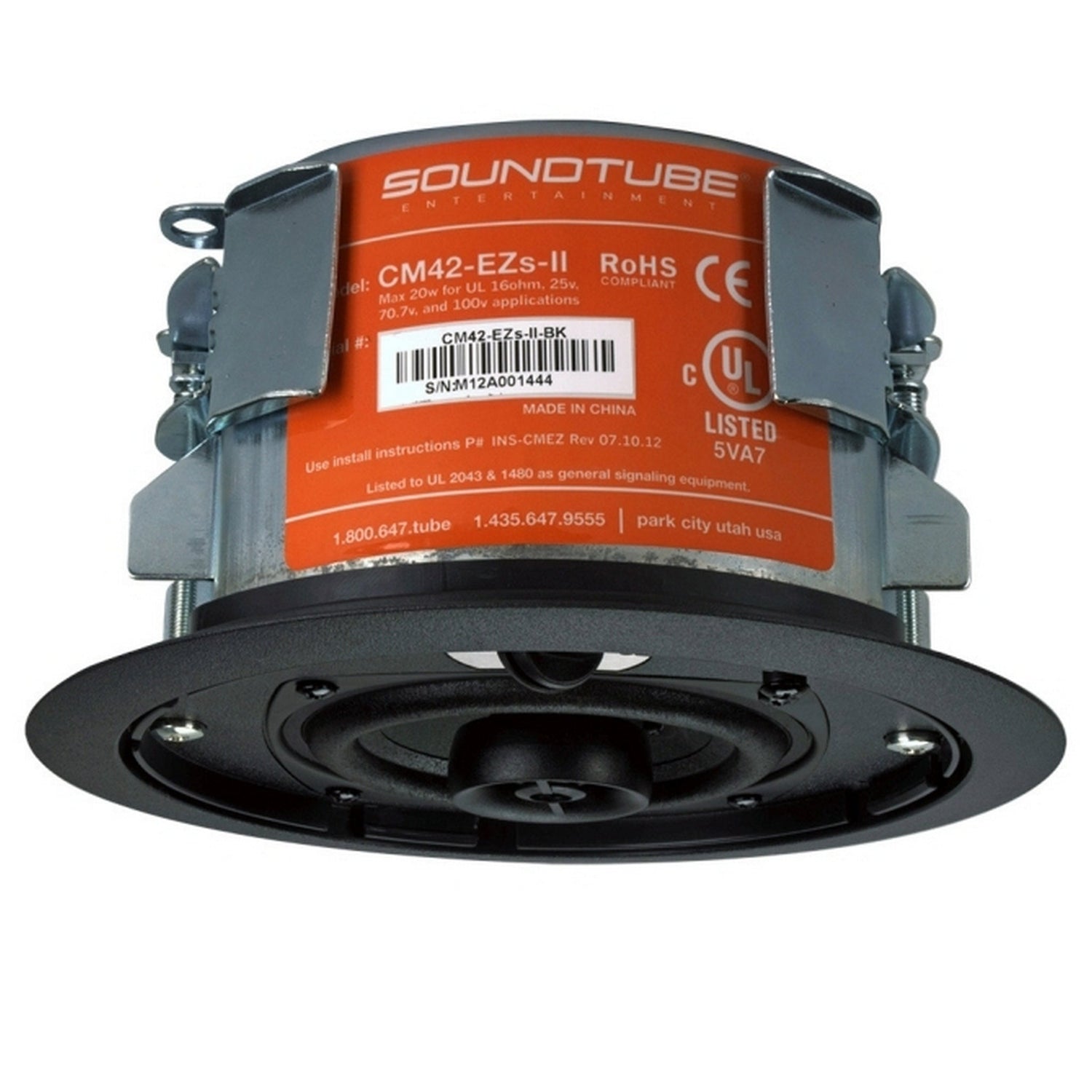

Its shallow backcan (3.75″ depth) and blind‑mount “SpeedWing” system allow quick installation in ceilings under 1″ thick. With transformer taps for 25/70.7/100V and a low‑impedance 16Ω bypass option, it supports both standard and distributed audio systems.
The speaker delivers excellent efficiency (87.5dB sensitivity) and ample power handling (20W RMS, 40W program) with a wide frequency response and robust certifications (UL1480A/2043, CE, RoHS, EN54‑24 compliant).
Key Features

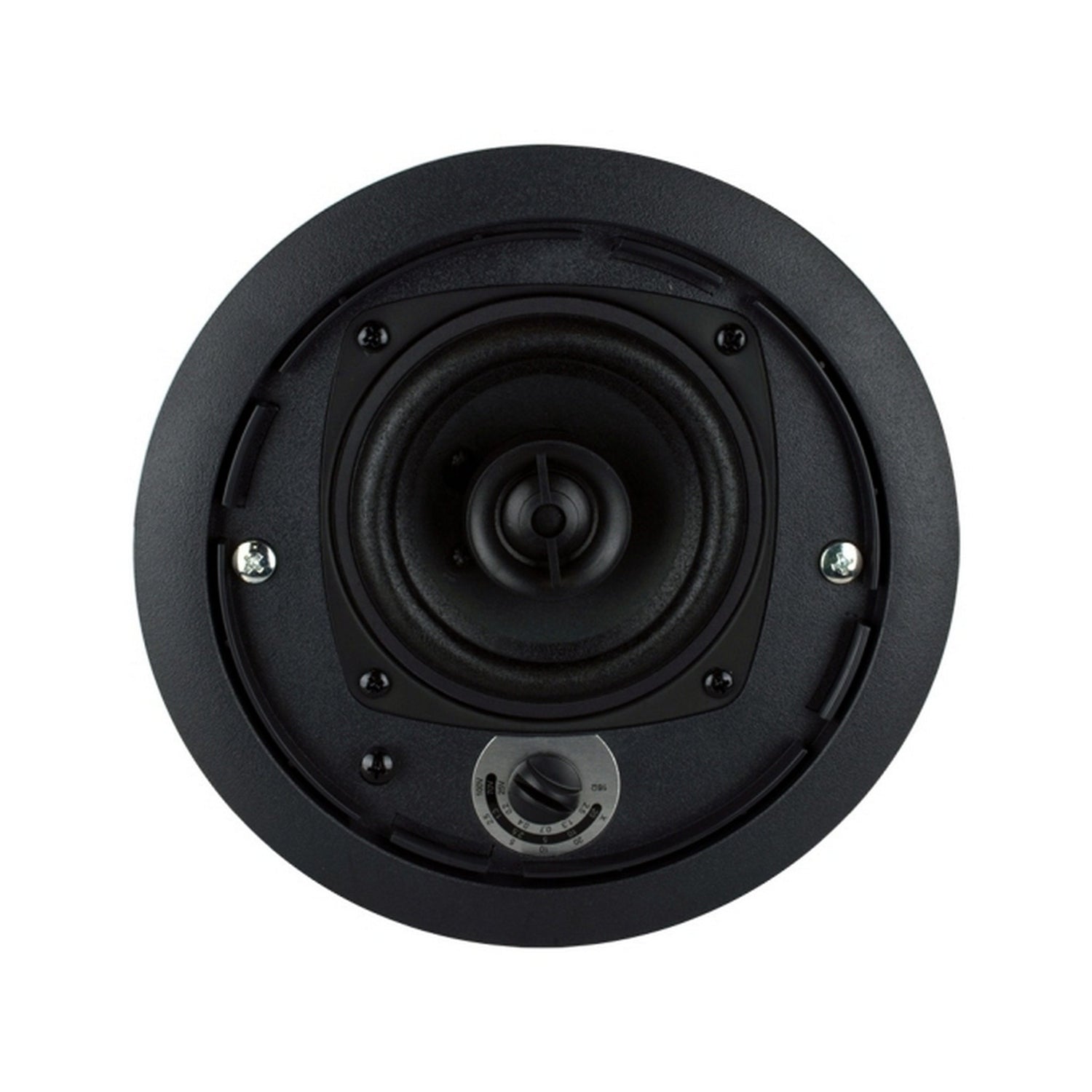

- Driver Configuration: Coaxial 2‑way – 4″ treated fiber woofer with cloth surround and 0.75″ silk dome tweeter

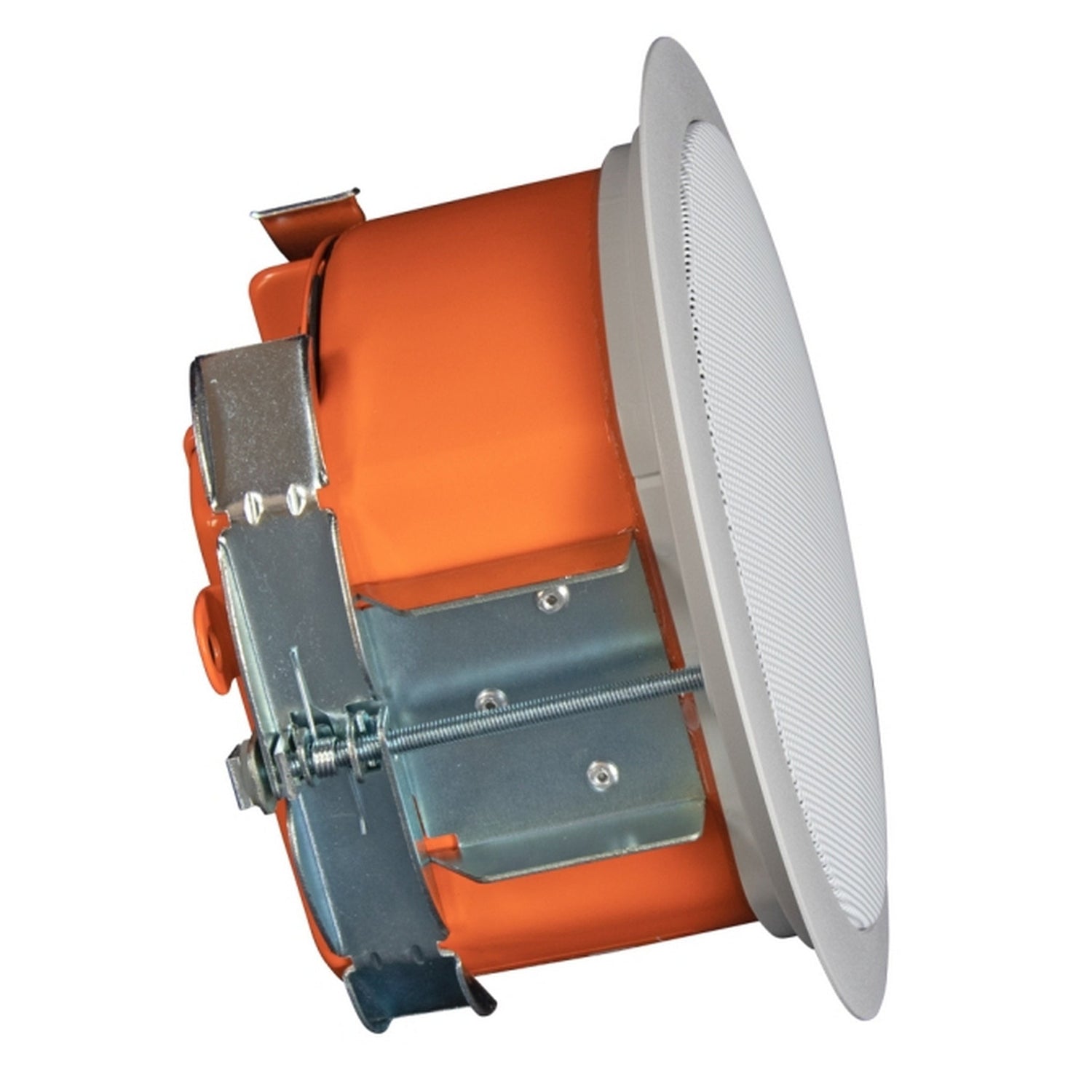

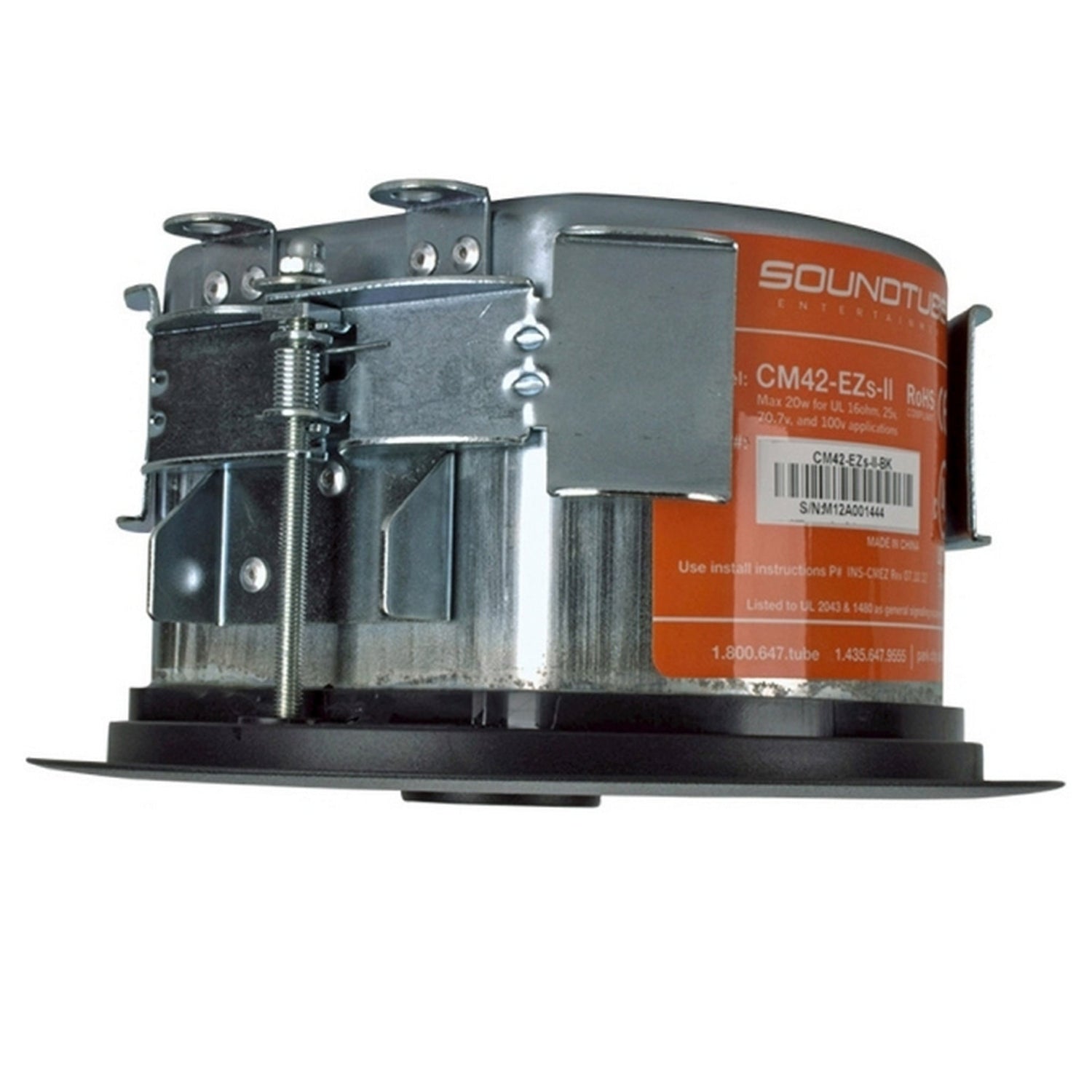

- Mounting System: Blind‑mount SpeedWing constant‑tension wings
- Transformer Options: 6-position tap switch for 25V, 70.7V, 100V; plus 16Ω bypass
- Shallow Backcan: 3.75″ installed depth for tight plenum spaces
- Certifications: UL1480A, UL2043, CE, RoHS, EN54‑24 compliant (voice alarm use)

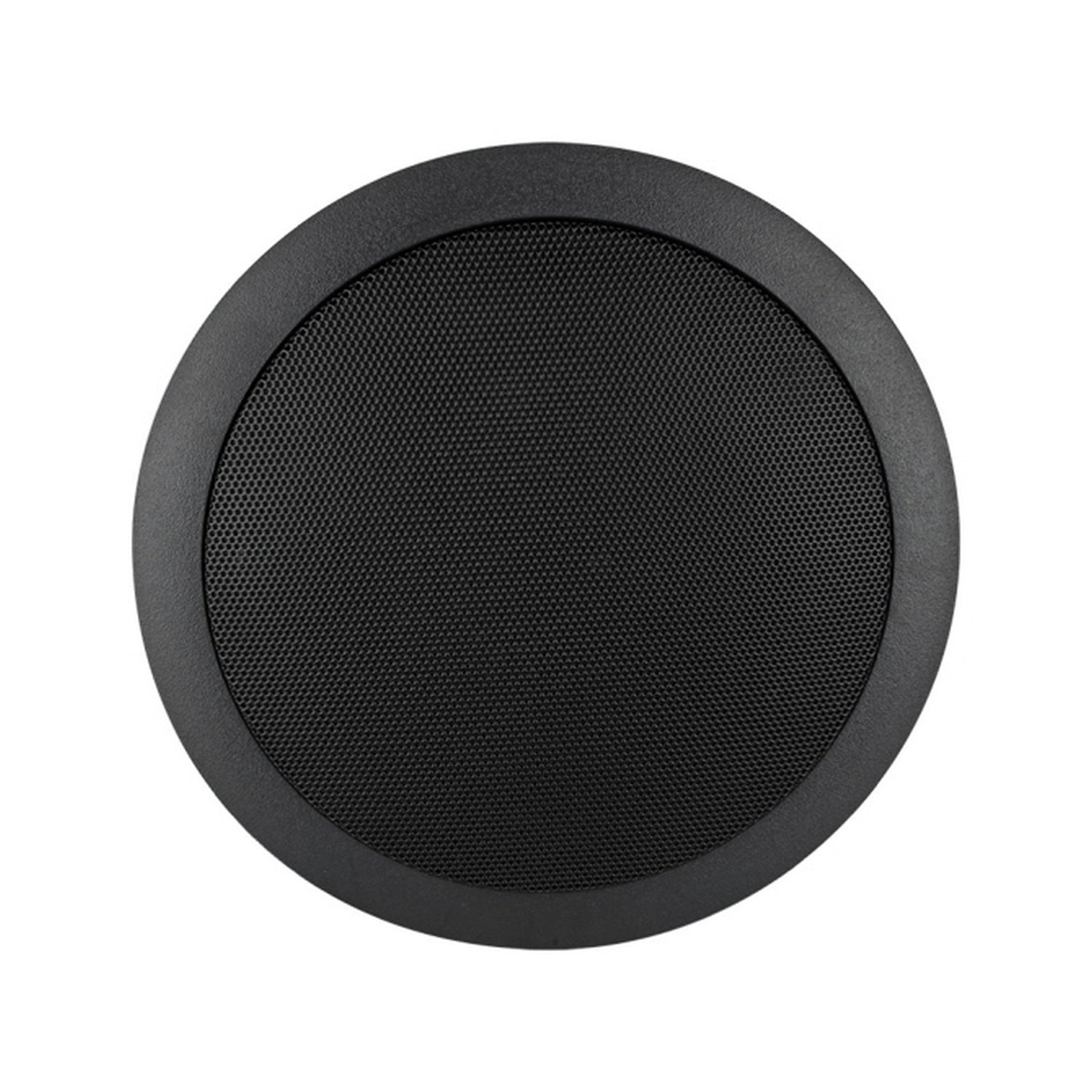

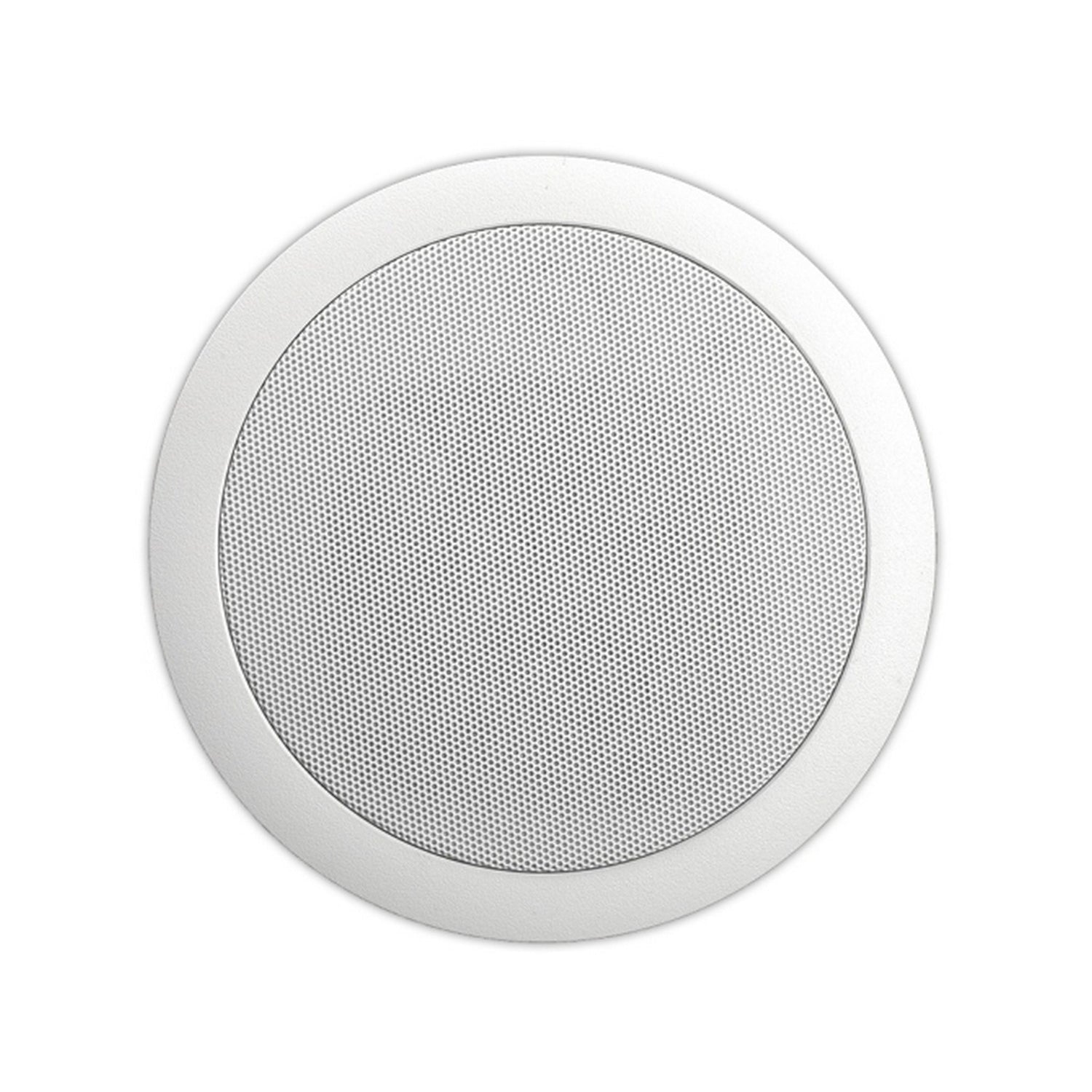

- Grille: Painted steel‑mesh, paintable to match ceiling color

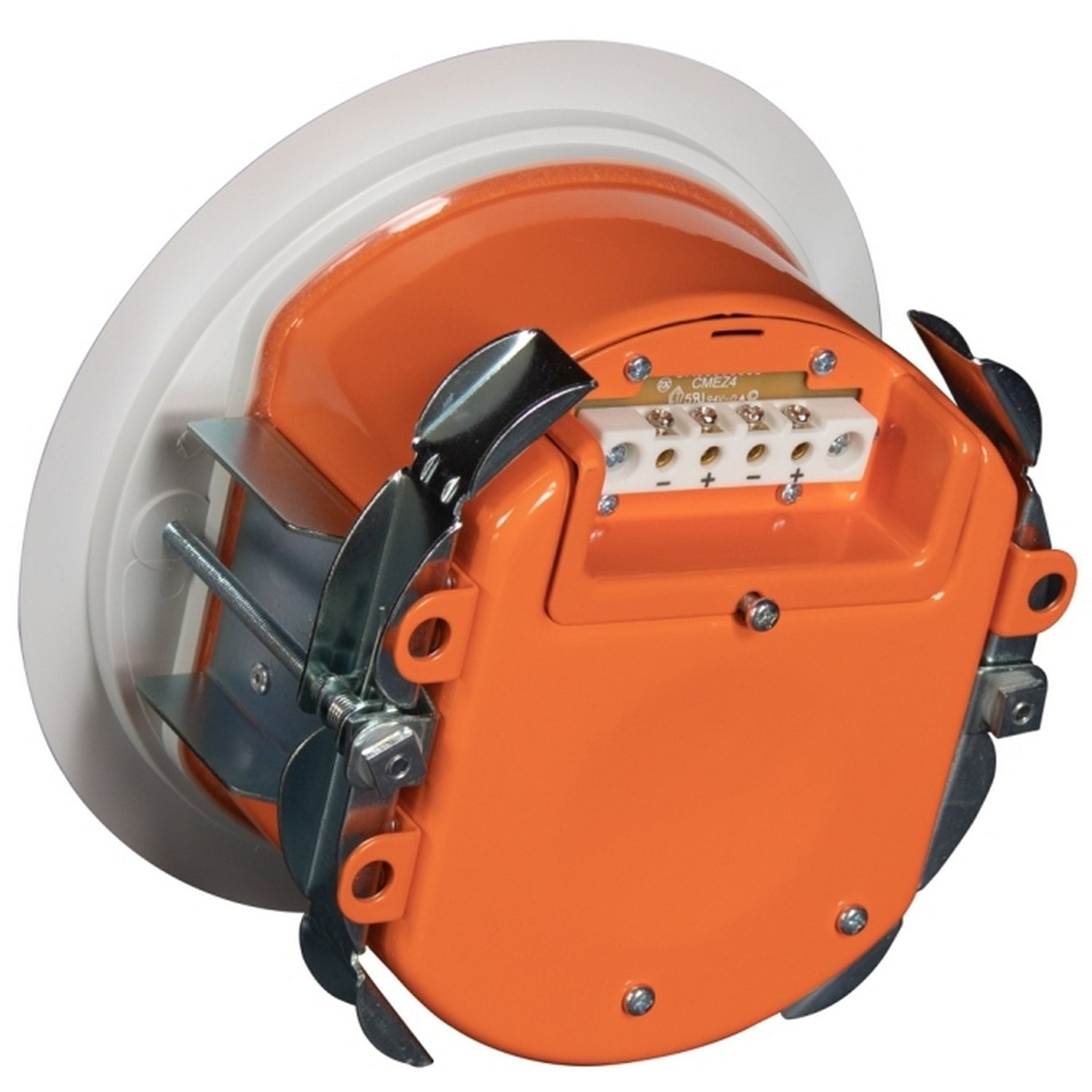

- Terminals: Ceramic 4‑position barrier strip, accommodates up to 10AWG wire
Technical Specifications
- Frequency Response (‑3dB): 160Hz – 20kHz
- Frequency Range (‑10dB): 125Hz – 22kHz
- Sensitivity: 87.5dB (1W @ 1m); 84.5dB (2.83V @ 1m)
- Max Continuous Power (RMS): 20W
- Max Program Power: 40W
- Maximum SPL: 100.5dB @ 1m
- Coverage Angle: 170° @ 2kHz; 95° @ 10kHz; ~100° average (2–10kHz)
- Crossover Frequency: 5kHz
- Nominal Impedance: 16Ω
- Low Pass Network: 12dB/octave, 2nd order
- High Pass Network: 6dB/octave, 1st order
- Transformers/Impedance Taps: 25V: 0.2, 0.4, 0.7, 1.3, 2.5W; 70.7V: 1.3, 2.5, 5, 10, 20W; 100V: 2.5, 5, 10, 20W; 16Ω bypass
- Enclosure Material: Sealed drawn‑steel backcan, ABS plastic baffle
- Weight: 4lb (1.8kg)
- Dimensions: Visible diameter 7.50″ (190.5mm); Backcan diameter 5.78″ (146.8mm); Depth 3.75″ (95.3mm); Grille height 0.33″ (8.4mm)
- Cutout Diameter: 6.50″ (165.1mm)
- Max Ceiling Thickness: 0.97″ (24.6mm)
What's Included
- SoundTube CM42‑EZs‑II in‑ceiling speaker (black or white finish with painted steel grille)
- Tile bridge (or optional pre‑construction bracket)
- UL‑listed flex conduit clamp
- Paint shield / masking cover
- Hole‑cut template
- Wire nuts
