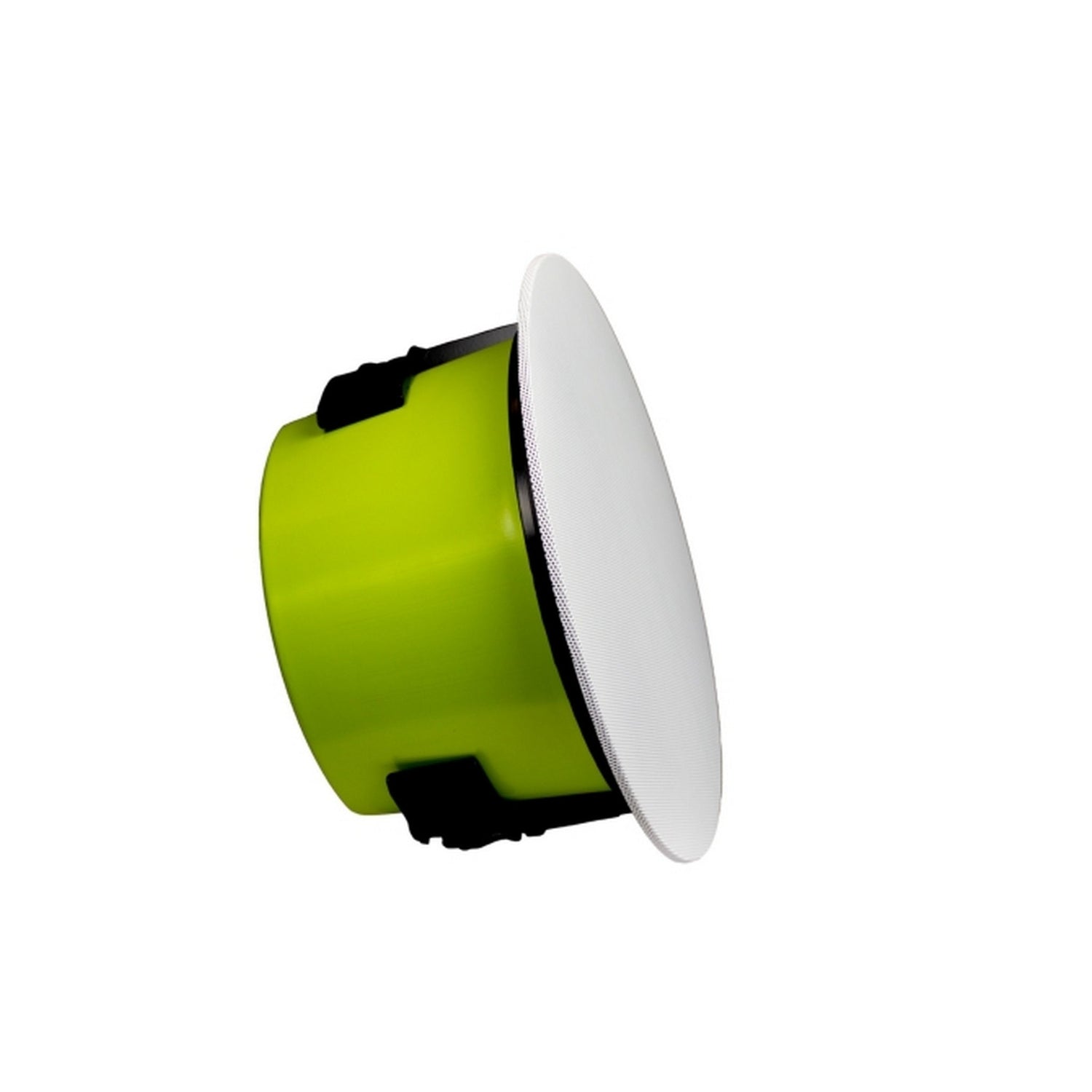

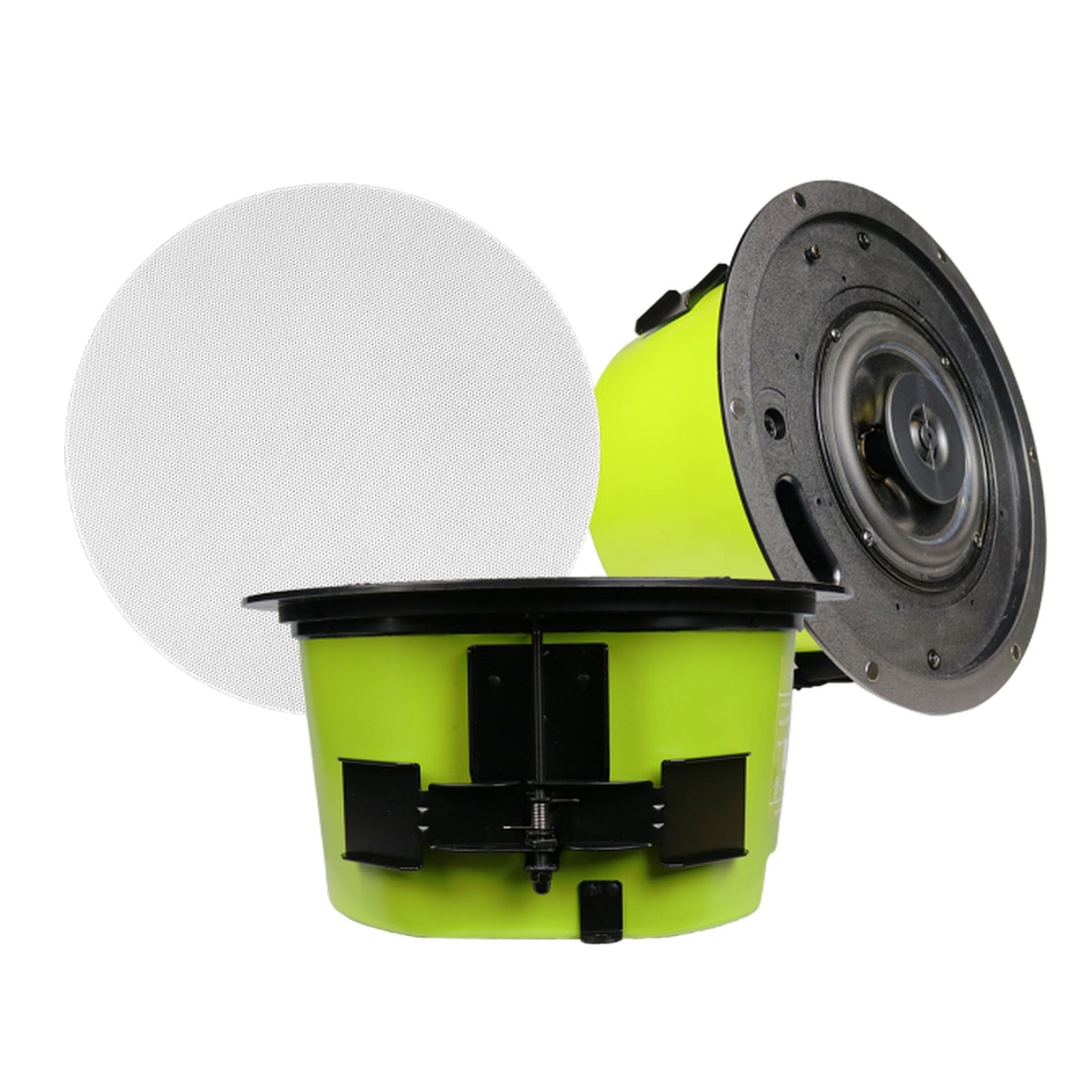

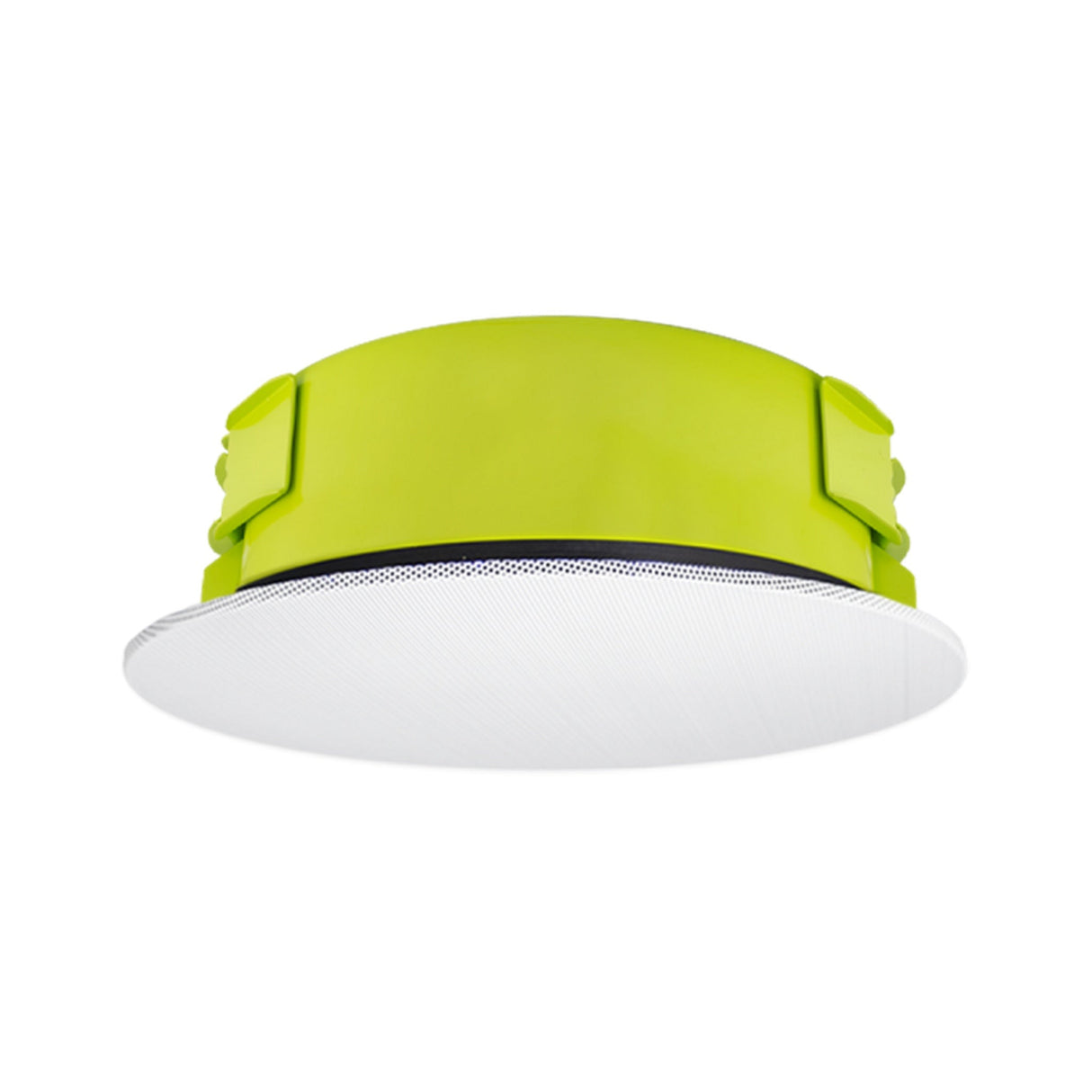

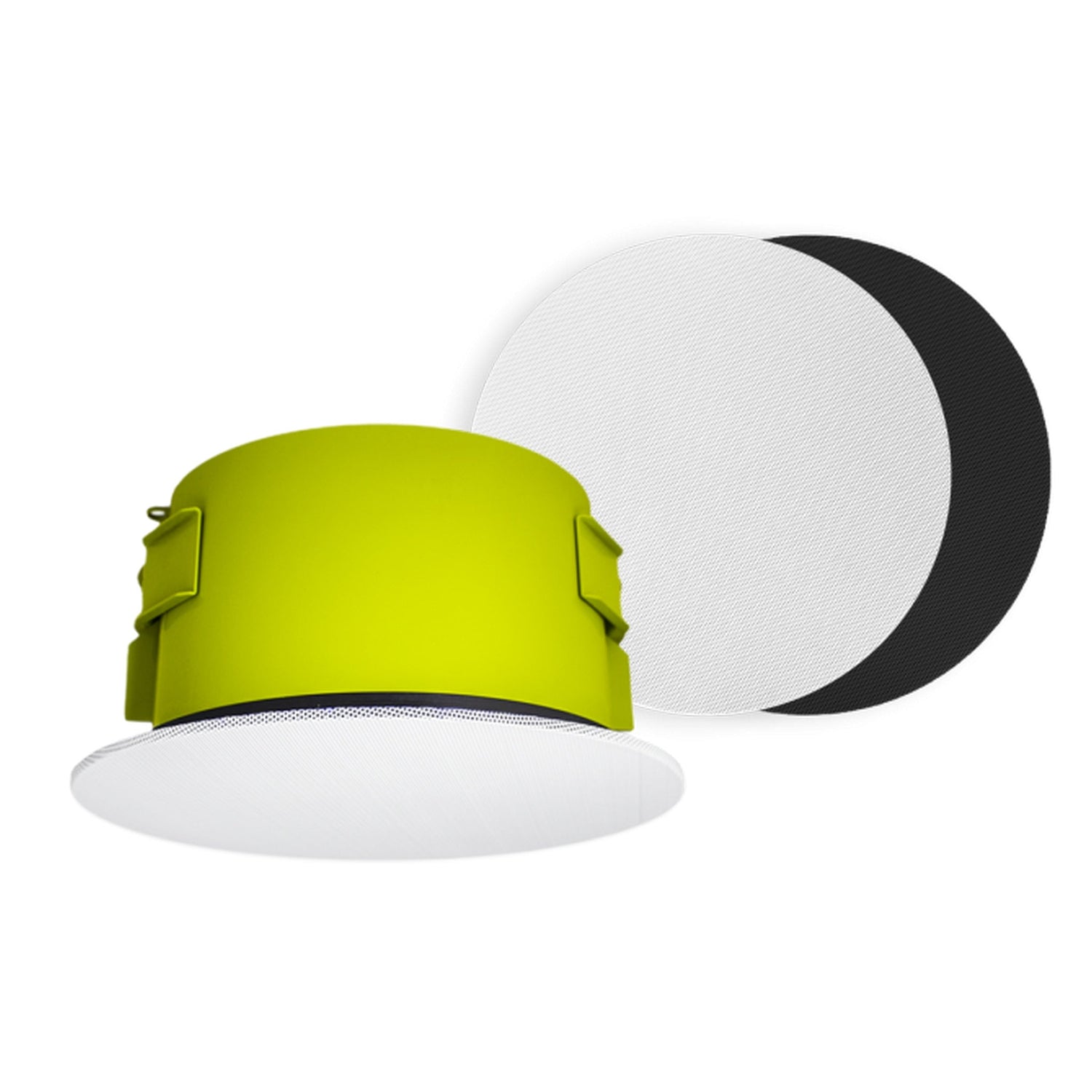

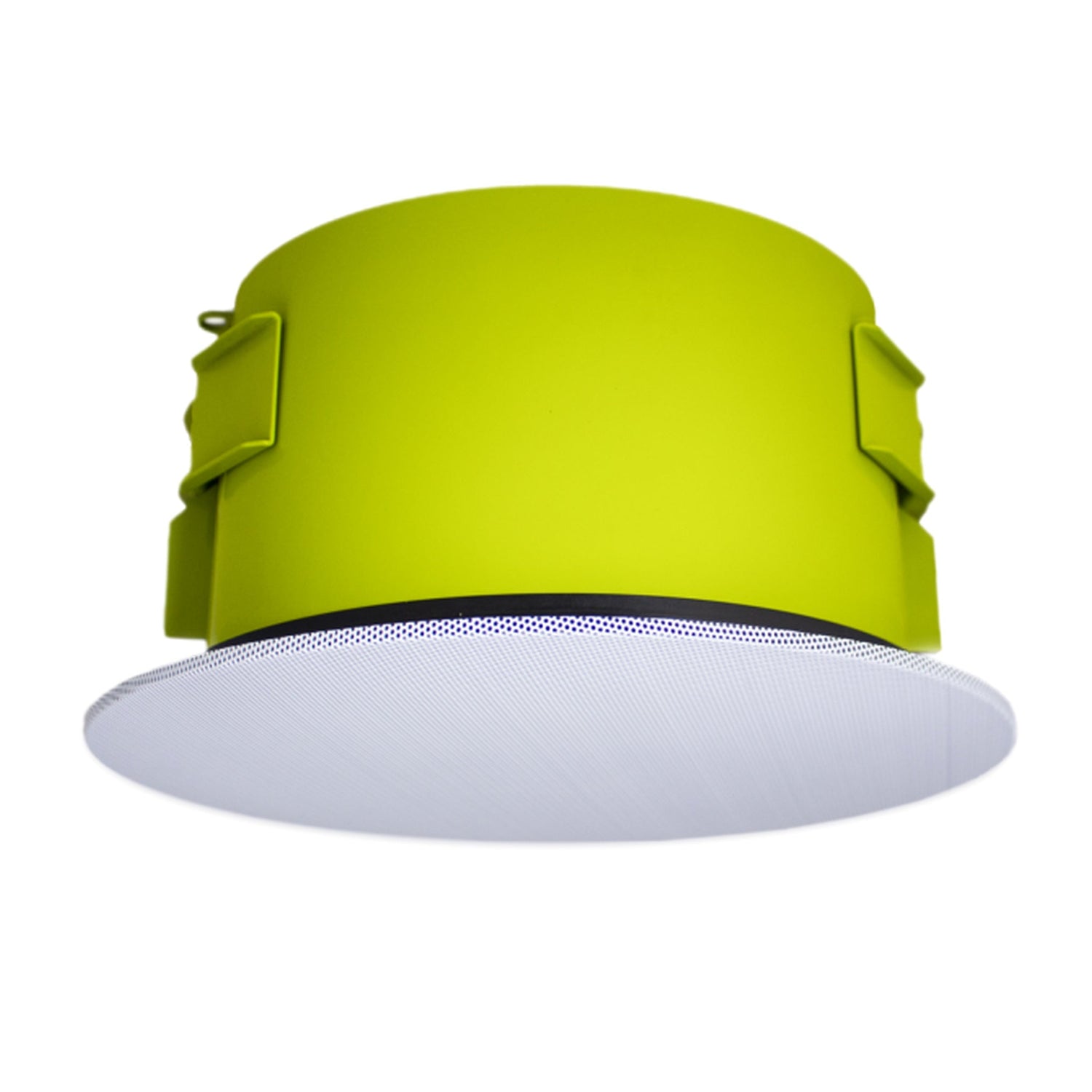

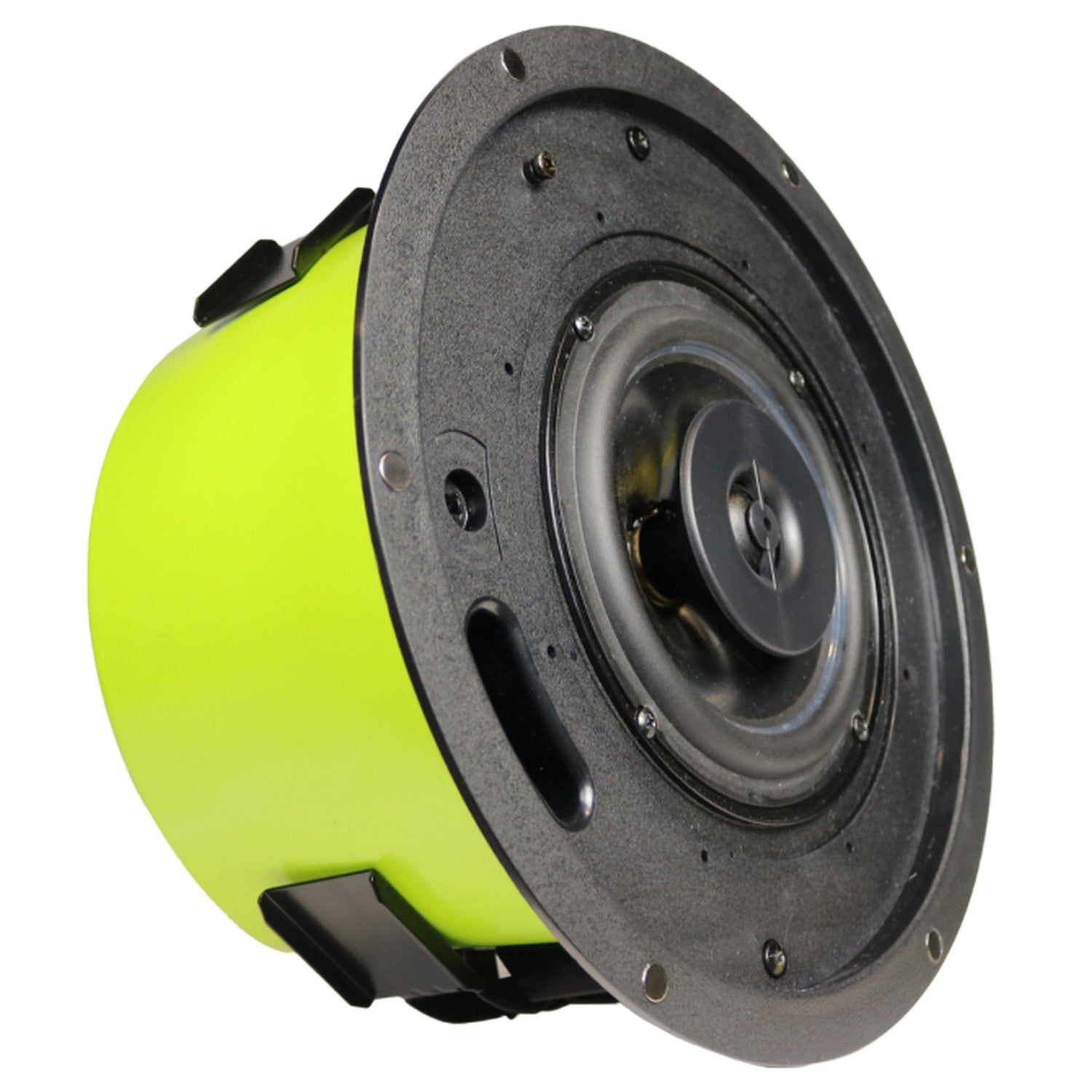

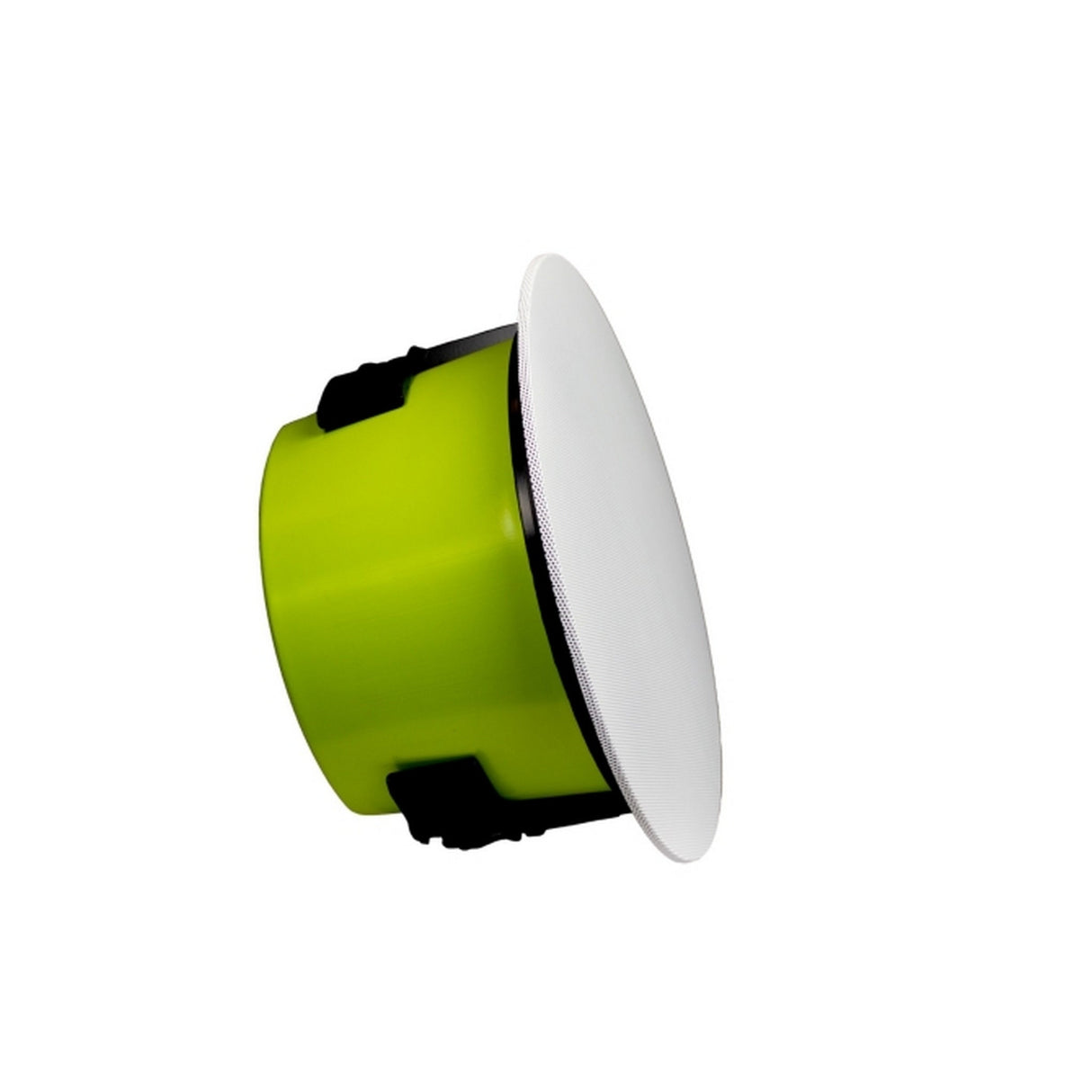

SoundTube IPD‑CM52‑BGM‑II Series 5.25-Inch Dante/AES67 IP Ceiling Speaker

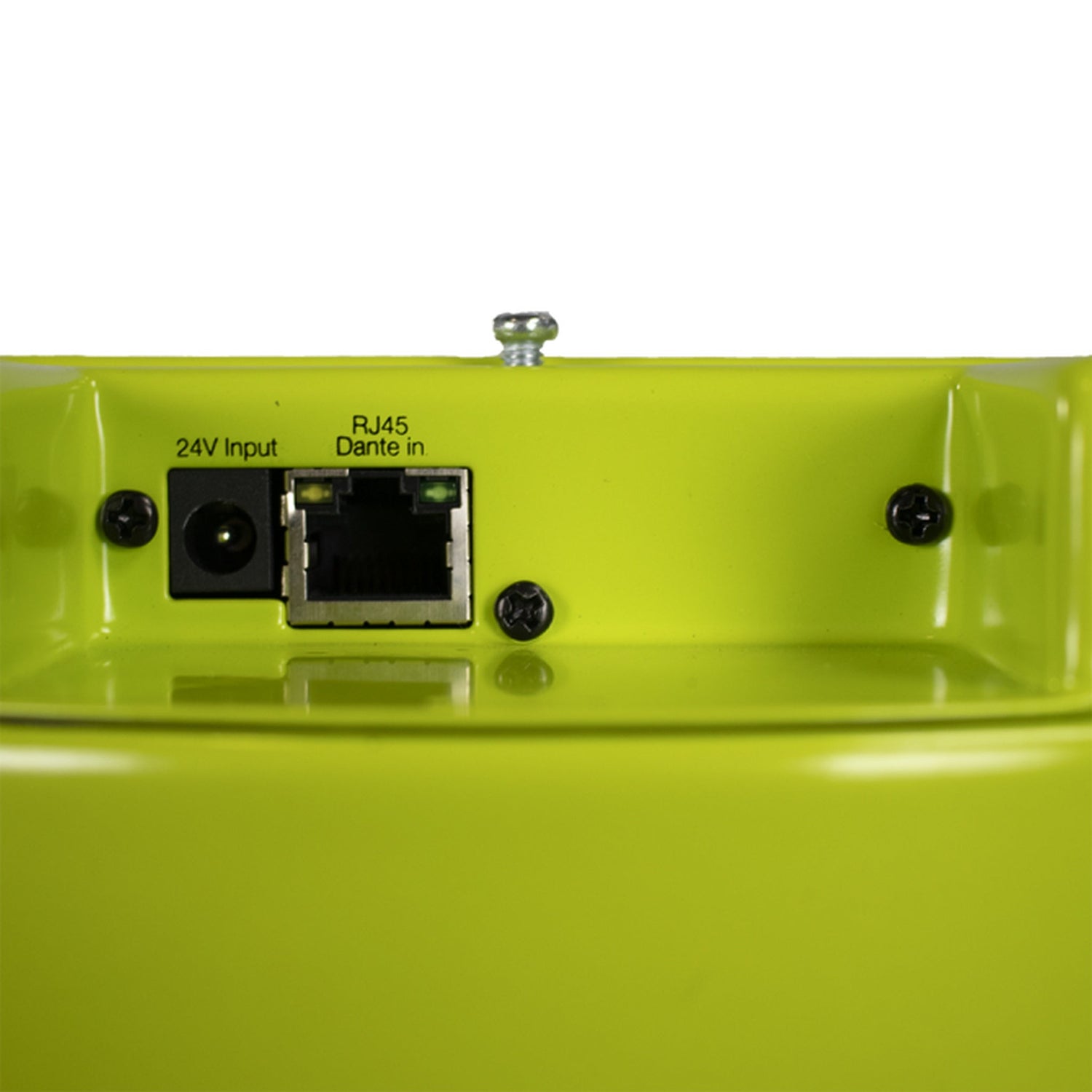

Designed for seamless networked audio, the IPD‑CM52‑BGM‑II Series includes standard, shallow-can, and BAA-compliant in-ceiling speakers. Powered via PoE or 24 V DC, each model supports Dante/AES67 streaming and can drive up to three passive satellite speakers.
Whether installing in standard ceilings, shallow plenums, or government-certified spaces, these 5.25″ coaxial speakers provide consistent, high-quality sound with BroadBeam Ring™ dispersion and simple SpeedWing™ mounting.
Key Features
- Dante®/AES67 compatible with PoE/PoE+ or 24 V DC power options
- Can power up to three CM-BGM-II passive satellite speakers
- BroadBeam Ring™ technology for wide sound dispersion
- SpeedWing™ blind-mount system for fast ceiling installation

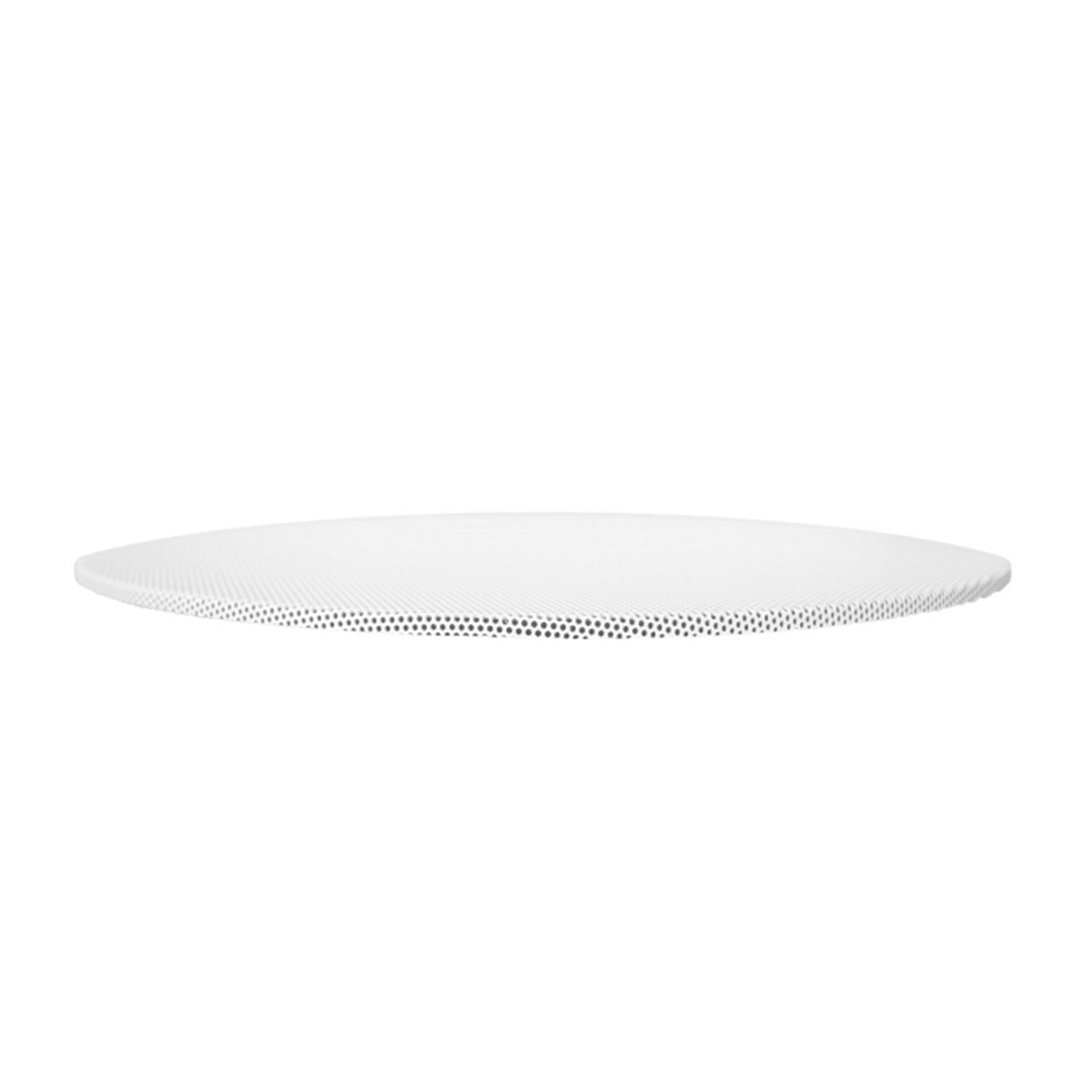

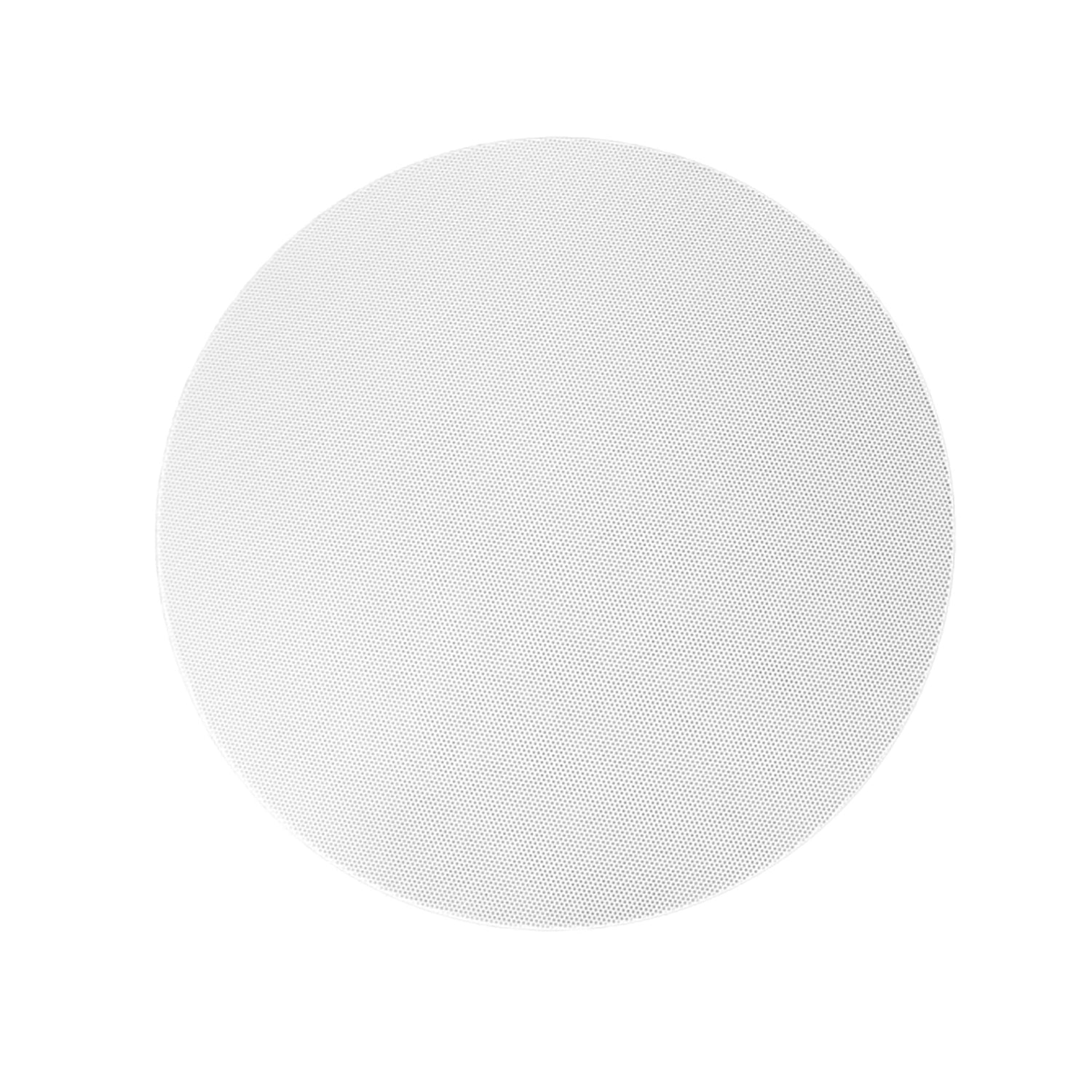

- Magnetic grille, tile bridge, conduit clamp, and paint shield included
- Certifications: UL 2043, UL 60065, CE, ETL‑C/US, RoHS
Dimensions & Weight
- Standard & US Models: 5.75″ backcan depth, 13″ × 13″ × 8″ box, 9.05 lb shipping
- Shallow Model: 3.75″ backcan depth, 13″ × 13″ × 6″ box, 7.85 lb shipping
- Visible Diameter: 11.75″ (298.5 mm); Cutout: 10.5″ (266.7 mm)
- Net Weight: 8.0 lb (3.6 kg)
Performance
- Frequency Response (±3 dB): 67 Hz–20 kHz (Standard/US), 90 Hz–20 kHz (Shallow)
- Frequency Response (±10 dB): 56 Hz–22 kHz (Standard/US), 65 Hz–22 kHz (Shallow)
- Max SPL: 99 dB @ 1 m
- Crossover: 5 kHz, 2nd-order (12 dB/octave)
- Coverage Angle: ~100° to 180° depending on model and frequency
Available Variants
- IPD‑CM52‑BGM‑II‑WH: Standard depth model (5.75″ backcan)
- IPD‑CM52S‑BGM‑II‑WH: Shallow backcan model (3.75″ depth) for limited ceiling space
- IPD‑CM52‑BGM‑II‑US‑WH: U.S.-manufactured, BAA/TAA-compliant version (5.75″ backcan)
