Bose Professional DesignMax DM6PE Pendant Loudspeakers (Pair) - Black
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

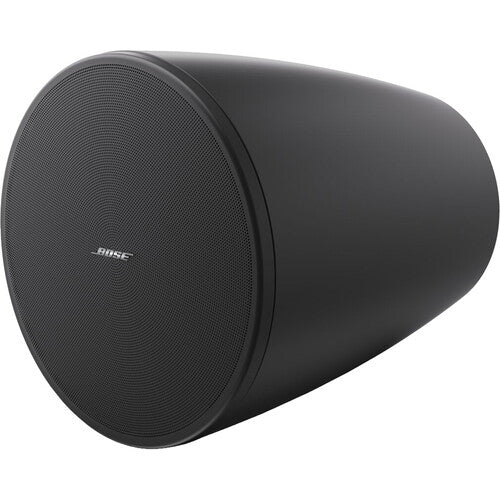

Bose Professional DesignMax DM6PE Pendant Loudspeakers (Pair)
Bose Professional DesignMax DM6PE is a pendant loudspeaker system designed for indoor and outdoor commercial audio installations. It enables background music playback and voice reproduction for system designers and integrators, supporting distributed audio workflows. This makes it ideal for open-ceiling environments where suspended mounting, weather resistance, and consistent coverage are critical.
The loudspeakers operate using a coaxial two-way transducer design with a passive crossover and Dispersion Alignment system. They support low-impedance operation as well as 70V and 100V distributed systems through selectable transformer taps. The recessed single-point suspension system allows pendant installation while keeping mounting hardware concealed.
The system supports applications that require compact pendant loudspeakers with controlled, even dispersion in exposed or outdoor environments. It is suited for hospitality, retail, worship, and commercial spaces where durability and predictable coverage are required. The design allows integration with other DesignMax loudspeakers and compatible Bose Professional electronics.
Key Features
- Coaxial 2-way design with 6.5-inch woofer and 1.25-inch tweeter for full-range sound
- Dispersion Alignment system for consistent coverage across listening areas
- Wide coverage pattern for even sound distribution in large spaces

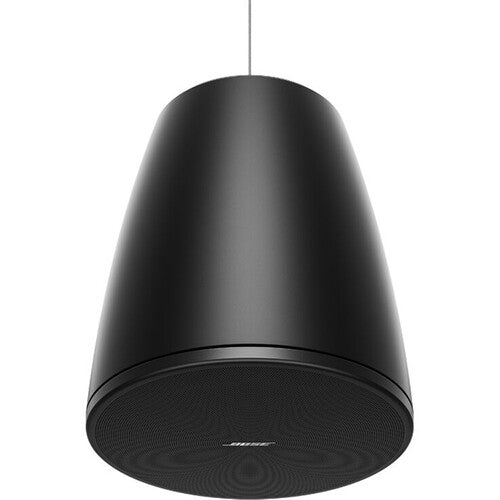

- Pendant mounting design for open-ceiling installations
- Recessed single-point suspension for clean and minimal visual appearance
- UL 2239 suspension rated for safe overhead installations
- IP55 weather-rated design for outdoor and wet-location use
- 70V/100V transformer support with low-impedance bypass
- Consistent tonal voicing across the DesignMax product family
Technical Specifications
-
General
- Product Model: DM6PE
- Product Type: Passive pendant loudspeaker (pair)
- Application: Commercial installed audio systems
- Environment: Outdoor rated (IP55), suitable for wet locations
-
Driver
- Low-Frequency Driver: 1 × 6.5" (165 mm) woofer, weather-treated
- High-Frequency Driver: 1 × 1.25" (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
- Crossover: 1.7 kHz passive 2-way crossover
- Driver Protection: Recommended high-pass protection at 60 Hz (24 dB/octave)
-
Performance
- Frequency Range (-10 dB): 62 Hz – 20,000 Hz
- Coverage (Horizontal): 115° conical
- Coverage (Vertical): 115° conical
- Sensitivity (SPL/1 W @ 1 m): 89 dB
- Maximum SPL @ 1 m: 110 dB
-
Amplification
- Power Handling (Continuous): 100 W
- Power Handling (Peak): 400 W
- Nominal Impedance: 8 Ω (transformer bypass)
-
Electrical
- Transformer Taps (70V): 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Transformer Taps (100V): 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Recommended Signal Processing: Not required; Bose EQ voicing and SmartBass processing available
-
Physical
- Enclosure Material: Engineered plastics, highly UV fade-resistant
- Grille: Perforated steel, powder-coated finish (weather-resistant)

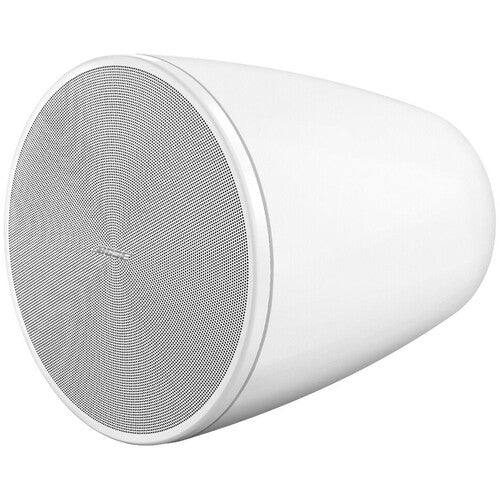

- Color: Black (RAL 9005), white (RAL 9003)
- Logo: Rotatable and removable
- Dimensions (Diameter × Depth): 12.1" × 14.8" (308 mm × 375 mm)
- Net Weight: 12.5 lb (single)
- Shipping Weight: 33.1 lb (pair)
-
Installation & Mounting
- Suspension System: 1 suspension attachment point
- Safety Attachment: 1 safety cable attachment point
-
Environmental
- Ingress Protection: IP55
- Weather Features: Weather-resistant input cover and corrosion-resistant grille
- Operating Temperature Range: -25 °C to 65 °C (-13 °F to 149 °F)
-
Compliance
- Safety Ratings: UL 1480A, UL 2239 (suspension), NFPA 70, NFPA 90A, CE compliant
Installation & Use Case
The DM6PE is designed for open-ceiling environments where traditional ceiling speakers are not practical.
- Retail stores
- Restaurants and cafés
- Warehouses and open ceilings
- Hospitality venues
- Commercial spaces with exposed architecture
Package Contents
- (2) DesignMax DM6PE Pendant Loudspeakers
- (4) Cable ties
- (2) Suspension cables, 15.0 ft (4.5 m) each
- (1) Ceather-resistant cover
Frequently Asked Questions
What is the Bose DesignMax DM6PE used for?
The Bose DesignMax DM6PE is designed for open-ceiling commercial audio installations, delivering full-range sound for background music and voice applications.
Is the Bose DM6PE suitable for outdoor use?
Yes, the DM6PE is IP55-rated, making it suitable for both indoor and outdoor commercial environments.
Does the Bose DM6PE require an amplifier?
Yes, the DM6PE is a passive loudspeaker and requires an external amplifier or a 70V/100V distributed audio system.
What type of installation does the Bose DM6PE use?
The DM6PE uses a pendant suspension system with a single-point mounting design, ideal for open ceilings and exposed architectural spaces.
Can the Bose DM6PE be used in 70V or 100V systems?
Yes, the DM6PE supports 70V and 100V distributed audio systems and also includes an 8-ohm bypass option.
What size spaces is the Bose DM6PE best suited for?
The DM6PE is ideal for medium to large commercial spaces such as retail stores, restaurants, warehouses, and hospitality environments.
