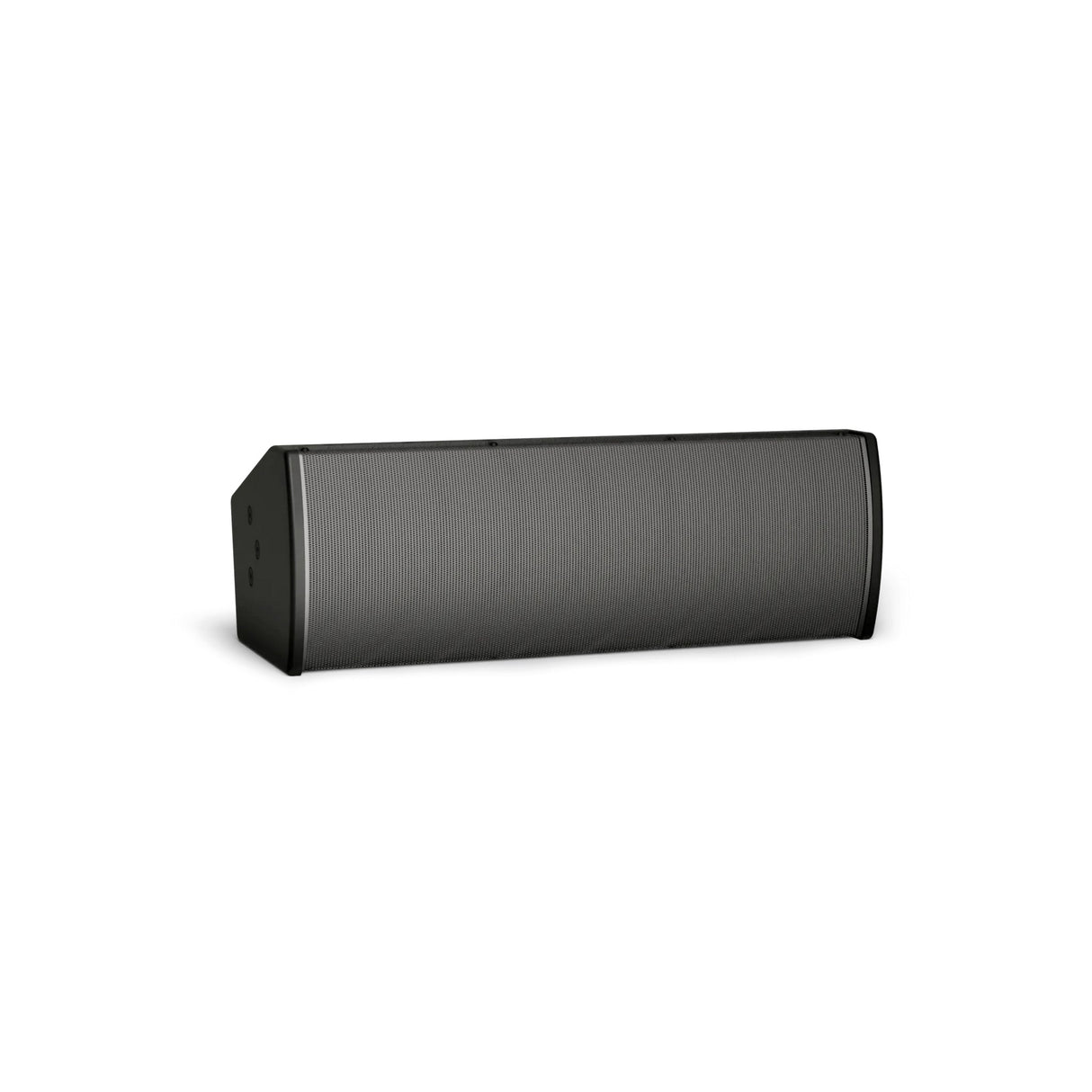

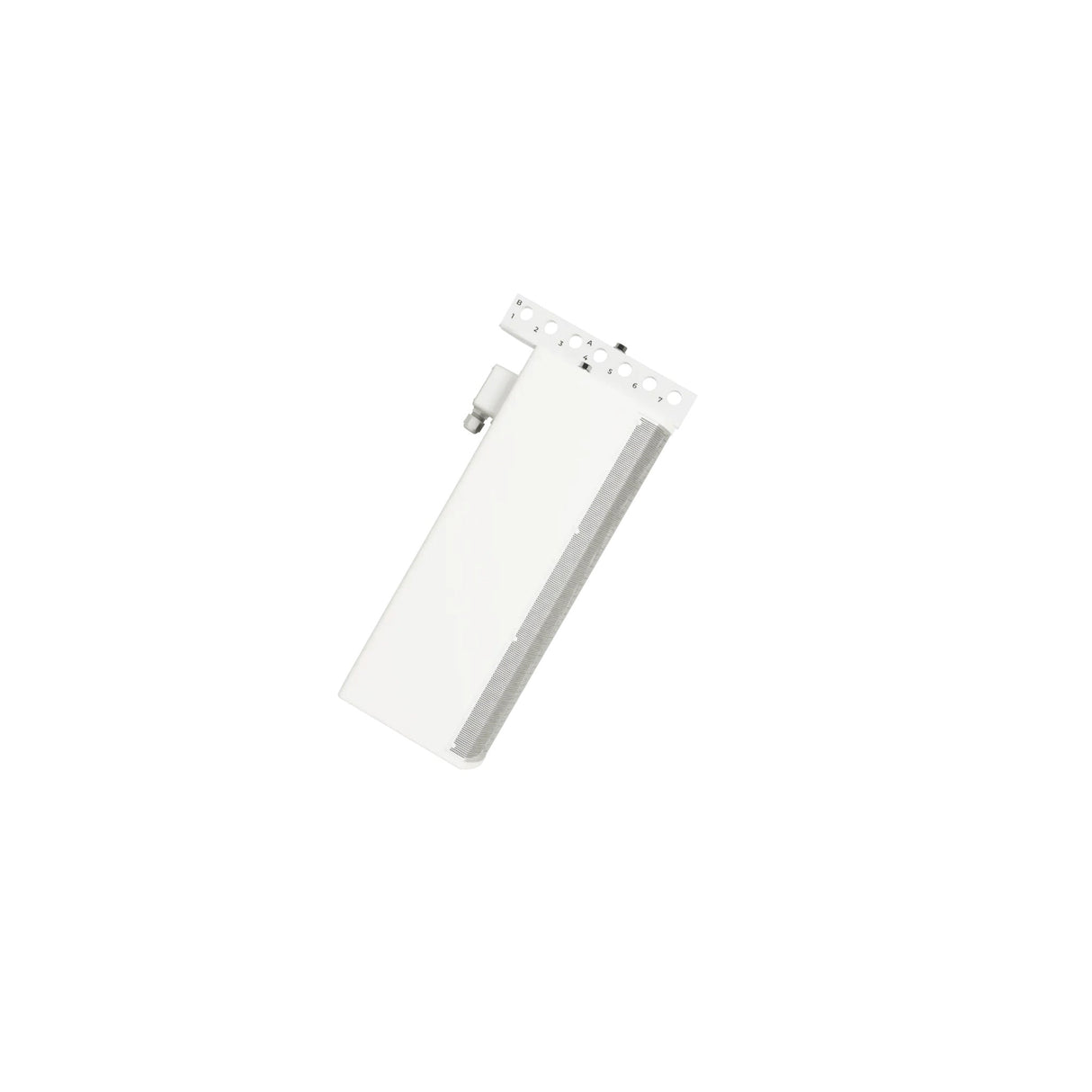

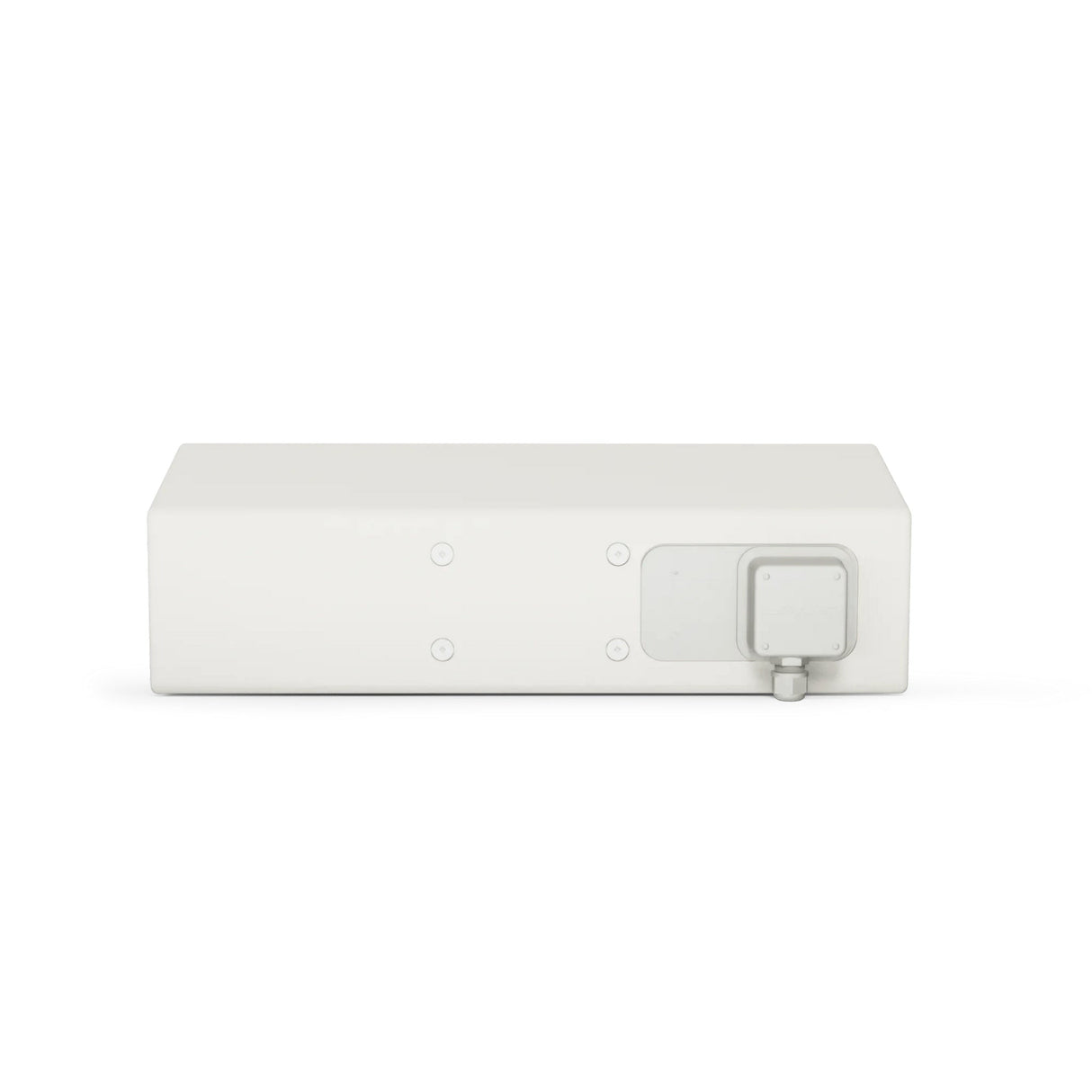

Bose Professional ArenaMatch Utility AMU206 Compact Outdoor Loudspeaker with 6.5" Woofer (Each) - Black

Bose Professional ArenaMatch Utility AMU206 Compact Outdoor Loudspeaker with 6.5" Woofer (Each)

The Bose Professional ArenaMatch Utility AMU206 is a compact, high-performance loudspeaker designed for indoor and outdoor installed sound applications that require higher output and wider coverage from a small-format enclosure. It delivers strong vocal clarity and musical depth for distributed and small- to mid-sized sound systems across commercial venues. Its weather-rated construction supports reliable performance in exposed environments.

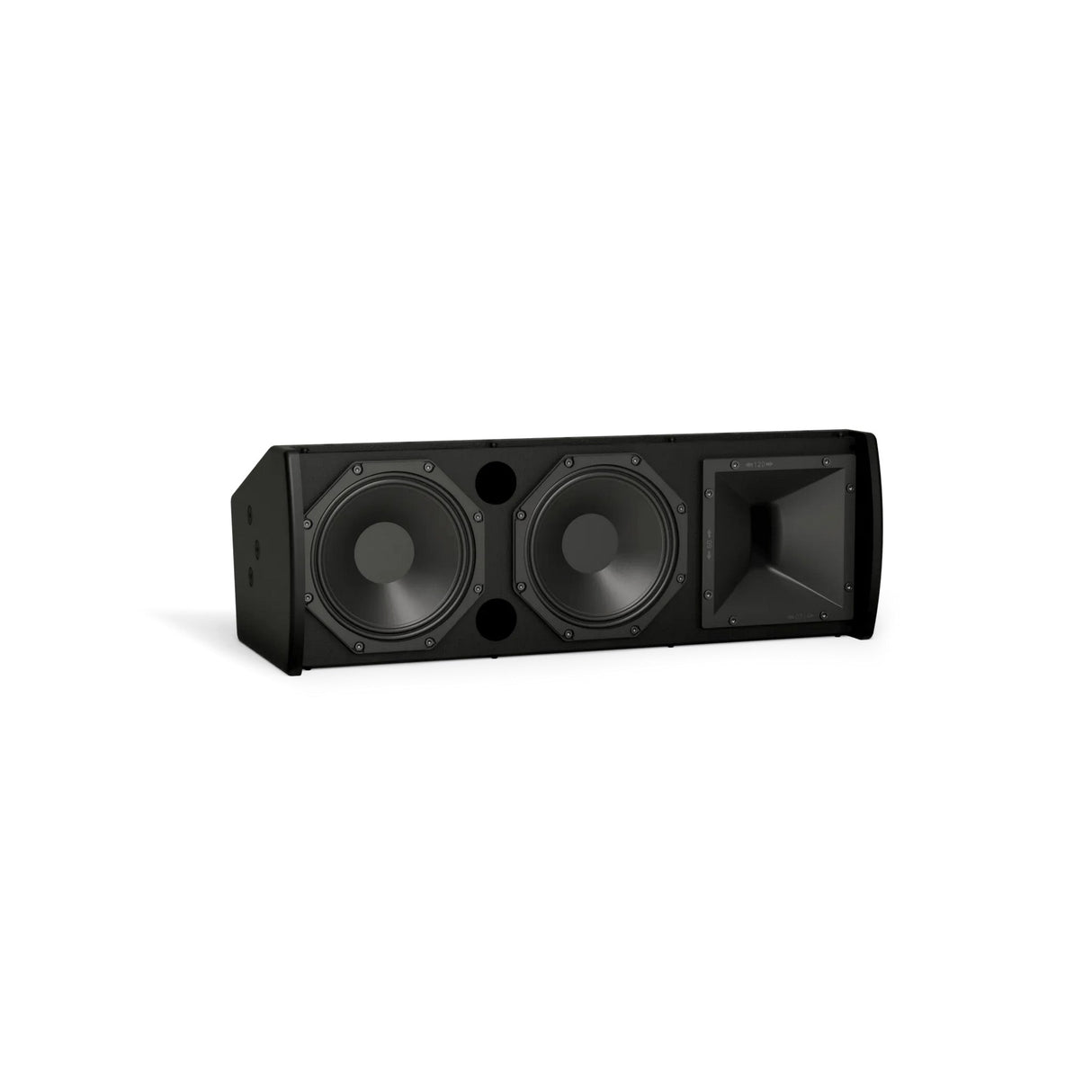

The AMU206 features a two-way design with a constant-directivity high-frequency horn and dual high-excursion low-frequency drivers, providing wide horizontal coverage and enhanced low-frequency support. An integrated 70/100V transformer with an 8-ohm bypass enables flexible system design for distributed audio or low-impedance sound reinforcement. The enclosure is engineered for durability and long-term outdoor use.

Designed for seamless integration with Bose Professional amplifiers, processors, and accessories, the AMU206 supports multiple mounting and suspension options. Its compact form factor, elevated output capability, and environmental resistance make it suitable for demanding commercial installations requiring consistent, high-quality audio coverage.

Key Features

• Compact two-way loudspeaker for indoor and outdoor installed sound systems
• Wide 120° × 60° coverage for even horizontal sound distribution
• Dual 6.5-inch high-excursion woofers for enhanced low-frequency performance
• IP55-rated enclosure for direct-exposure outdoor installations
• Integrated 70/100V transformer with low-impedance bypass
• High output with strong vocal intelligibility and musical clarity
• Compatible with multiple mounting and suspension accessories

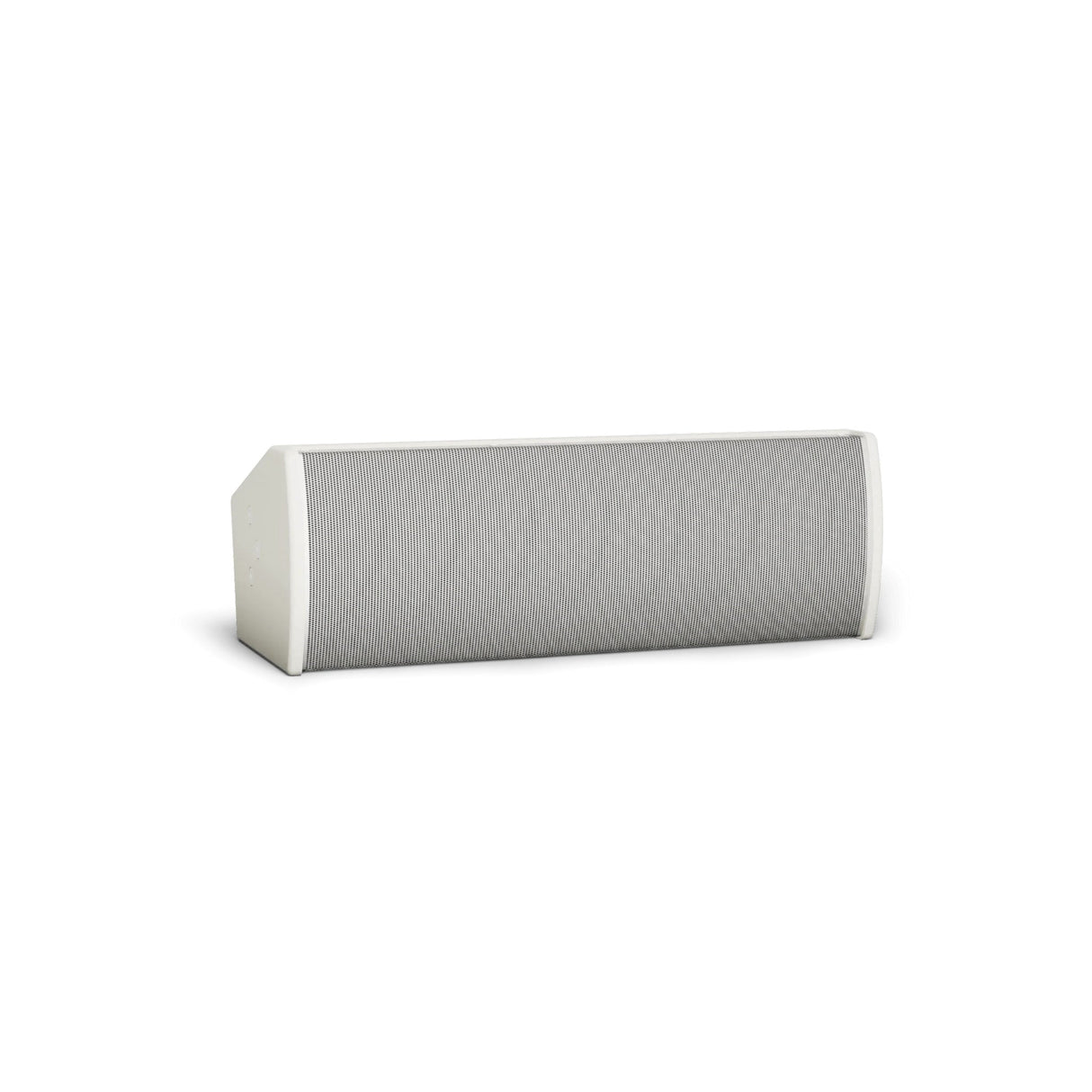

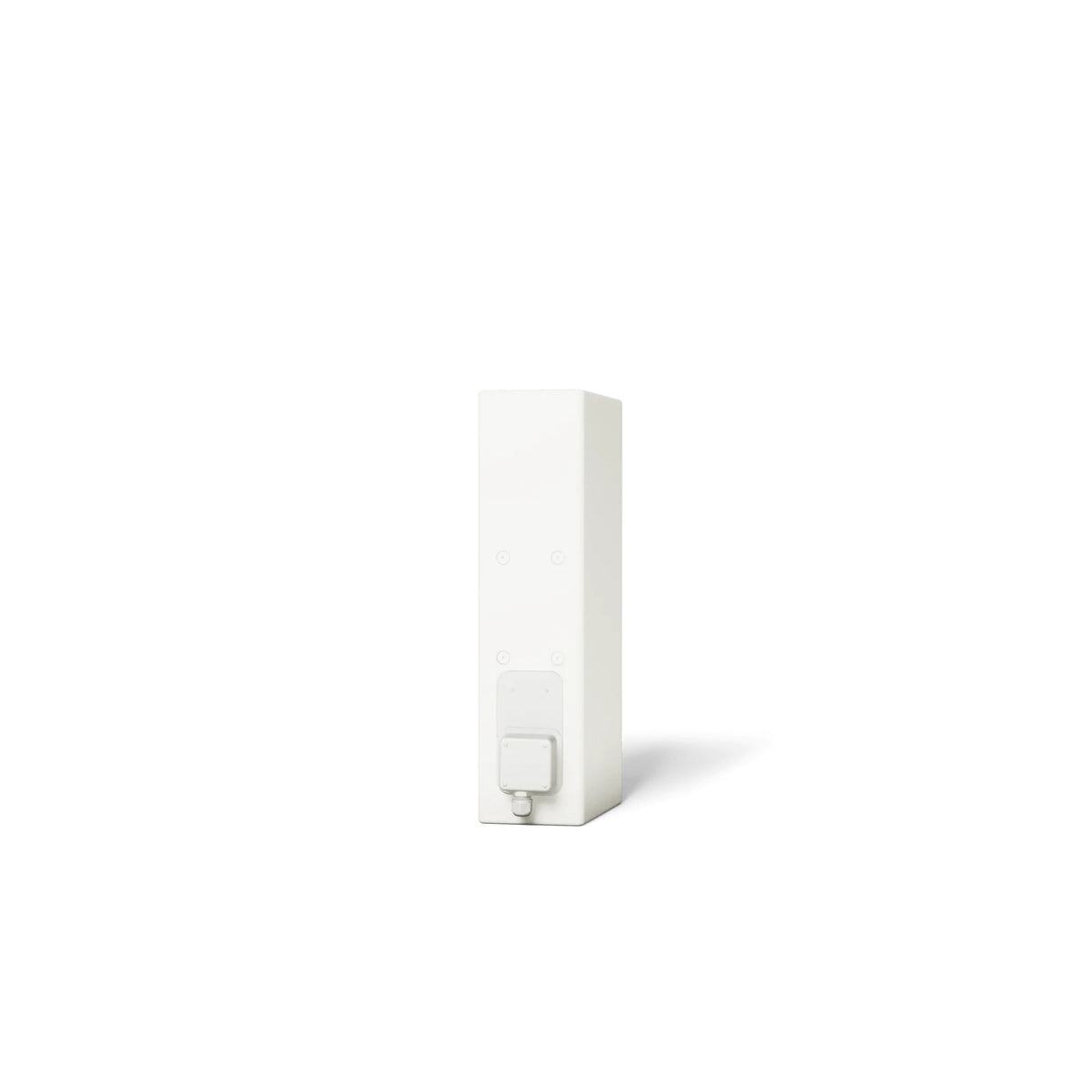

• Available in black or white finishes

Technical Specifications

System Type
Two-way passive loudspeaker

Environmental Rating
IP55 rated for indoor or outdoor installations

Frequency Range (-10 dB)
80 Hz – 18,000 Hz

Coverage Pattern
120° vertical × 60° horizontal

Nominal Impedance
8 Ω (transformer bypass)

Power Handling (Continuous)
250 W

Power Handling (Peak)
1000 W

Maximum SPL @ 1 m
Up to 117 dB (wall/ceiling mounted)

Sensitivity (SPL / 1 W @ 1 m)
91 dB free field

Transformer Taps (100V)
10 W, 20 W, 40 W, 80 W

Transformer Taps (70V)
5 W, 10 W, 20 W, 40 W, 80 W

High-Frequency Driver
1 × compression driver, 2 in voice coil

Low-Frequency Drivers
2 × 6.5 in high-excursion woofers

Enclosure Material
Exterior-grade plywood

Product Dimensions (H × W × D)
7.5 in × 21.8 in × 10.5 in
191 mm × 553 mm × 268 mm

Net Weight
26.8 lb (12.2 kg) loudspeaker only

Warranty Period
5 years

What’s in the Box

(1) ArenaMatch Utility AMU206 loudspeaker

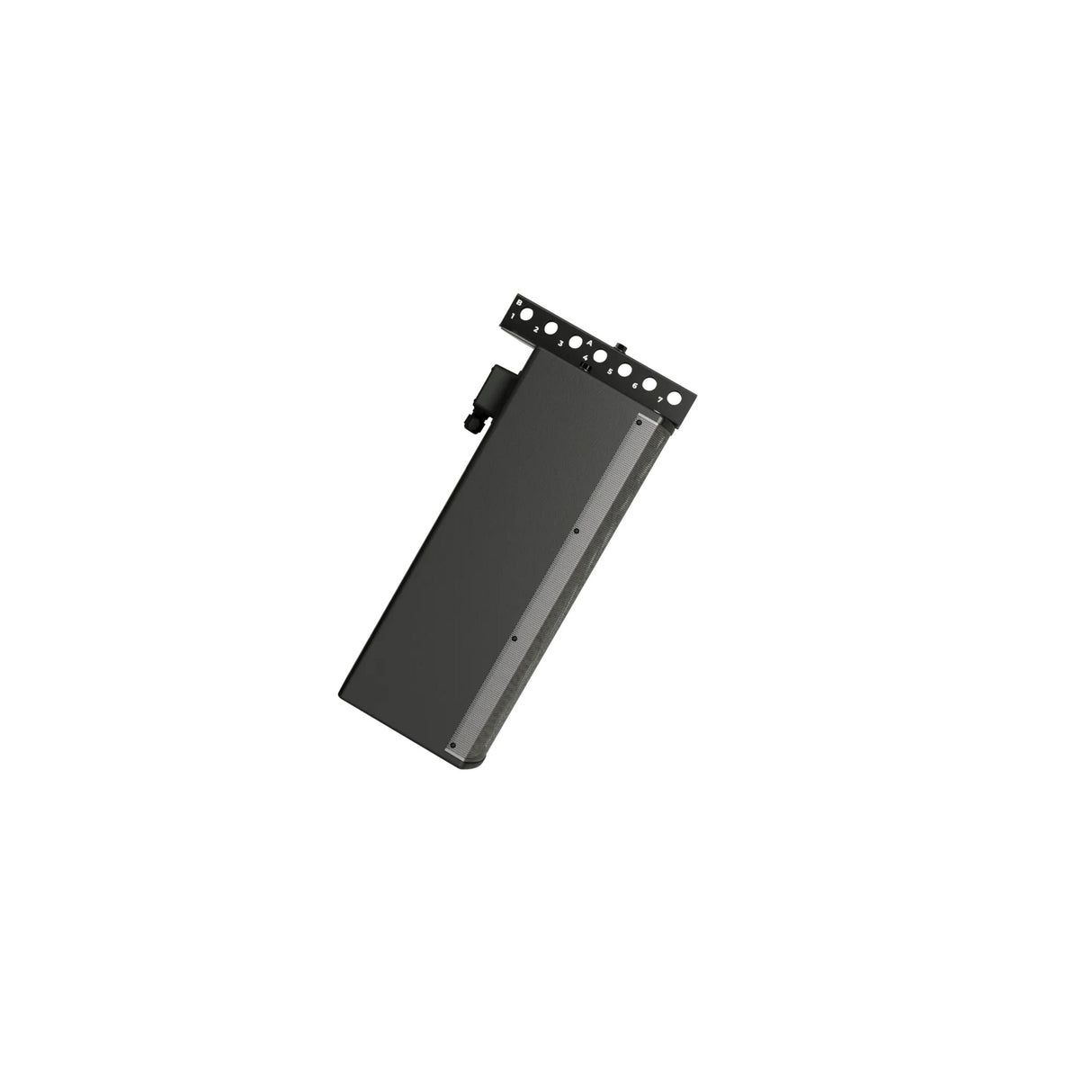

(1) U-bracket
Mounting hardware
Input cover
Installation guide
