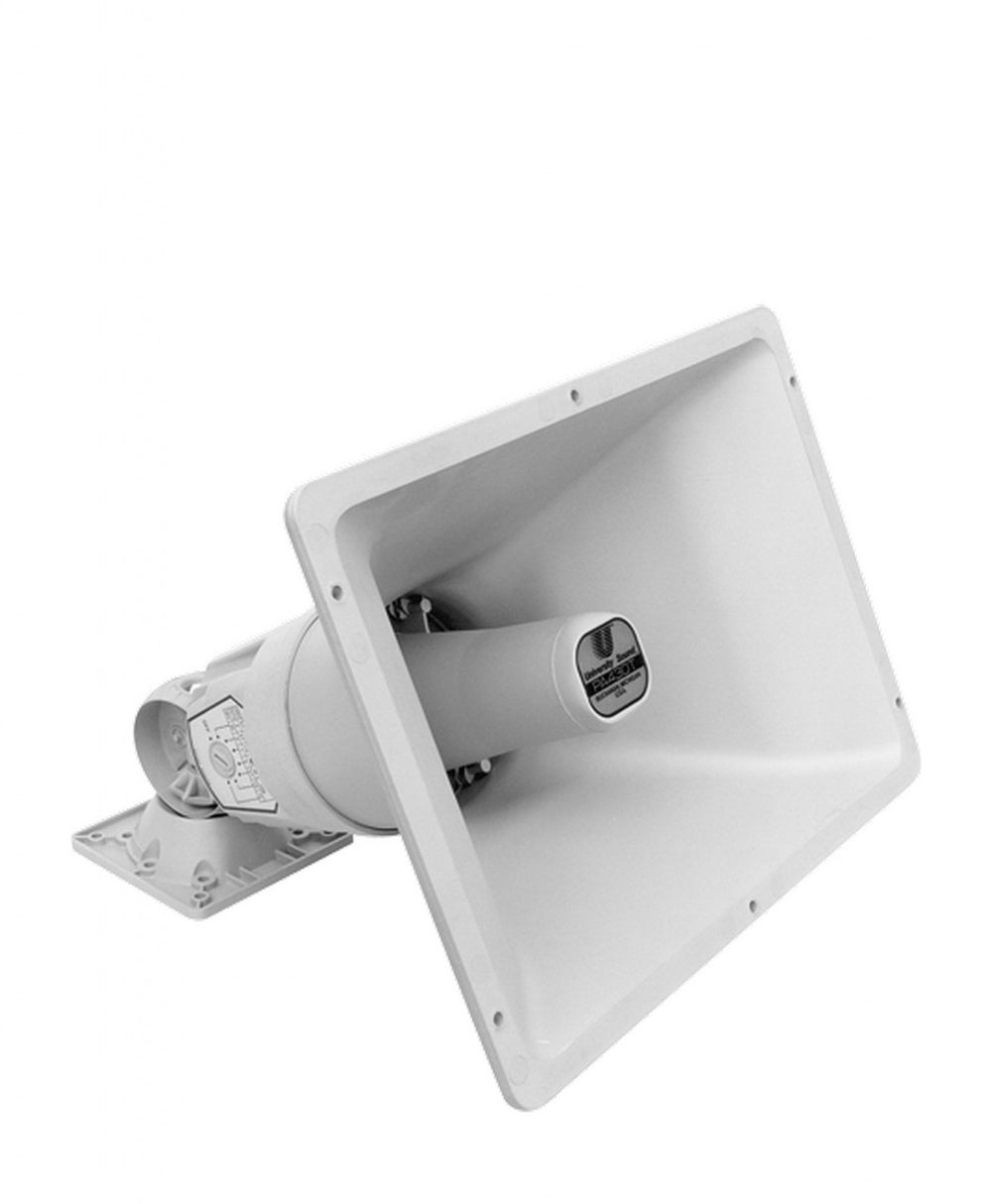

Electro Voice PA430 30-Watt Commercial Sound Paging Projector, 8 Ohms

The Electro-Voice PA430 30-Watt Commercial Sound Paging Projector, 8 Ohms is a 30-watt constant-directivity paging projectors for use in any public address or paging application. The drivers employ rugged phenolic diaphragms, 1.5 inch diameter voice coils and "rim centered" ferrite magnet structures for long life and reliability under extreme operating conditions. A 12 inch connecting cable, color coded for phase, is provided for connecting to the PA 430. A nominal 60° horizontal by 40° vertical coverage pattern together with a low-frequency cutoff of 350 Hz provides excellent articulation in demanding applications. The PA430 is molded from high-impact ultraviolet-inhibiting acrylic-styrene-acrylonitrile (ASA). A positive lock, super tough nylon swivel base and rear housing provides maximum mounting flexibility and ease of installation. (Patent #4,984,278) Ideal for both indoor and outdoor applications, these drivers are well suited for any installation requiring rugged, reliable performance.

Technical Specs

Frequency Response

400 – 6,500 Hz +/-5dB

Power Handling, 8 Hours, 6dB Crest Factor

30 Watts (500 – 5,000 Hz Pink Noise)

Nominal Impedance

8 ohms

Minimum Impedance

Above 500 Hz: 6.5 ohms (650Hz)

Sounds Pressure Level at 1 Meter, 1 Watt Input Averaged, Pink Noise Band-Limited from 500 to 5,000Hz

107dB

Beamwidth

-6dB @ 1.0kHz to 10kHz

Horizontal Beamwidth

60° (+20°, -20°)

Vertical Beamwidth

40° (+20°, -10°)

Directivity Factor

15.2 @ 2kHz

Usable Low-Frequency Limit

350Hz

Construction

High impact acrylic-styrene-acrylonitrile (ASA) with ultraviolet light inhibiting mesa tan finish. Positive-lock super tough nylon swivel base and rear housing

Voice-Coil Diameter

3.81cm (1.5 in.)

Magnet Weight

0.28kg (0.63 lbs.)

Magnet Material

Strontium Ferrite

Flux Density

1.30 Tesla

Dimensions

Height: 22.6cm (8.9 in.)

Width: 30.7cm (12.1 in.)

Depth: 31.0cm (12.2 in.)

Net Weight

1.4 kg (3.0 lb.)
