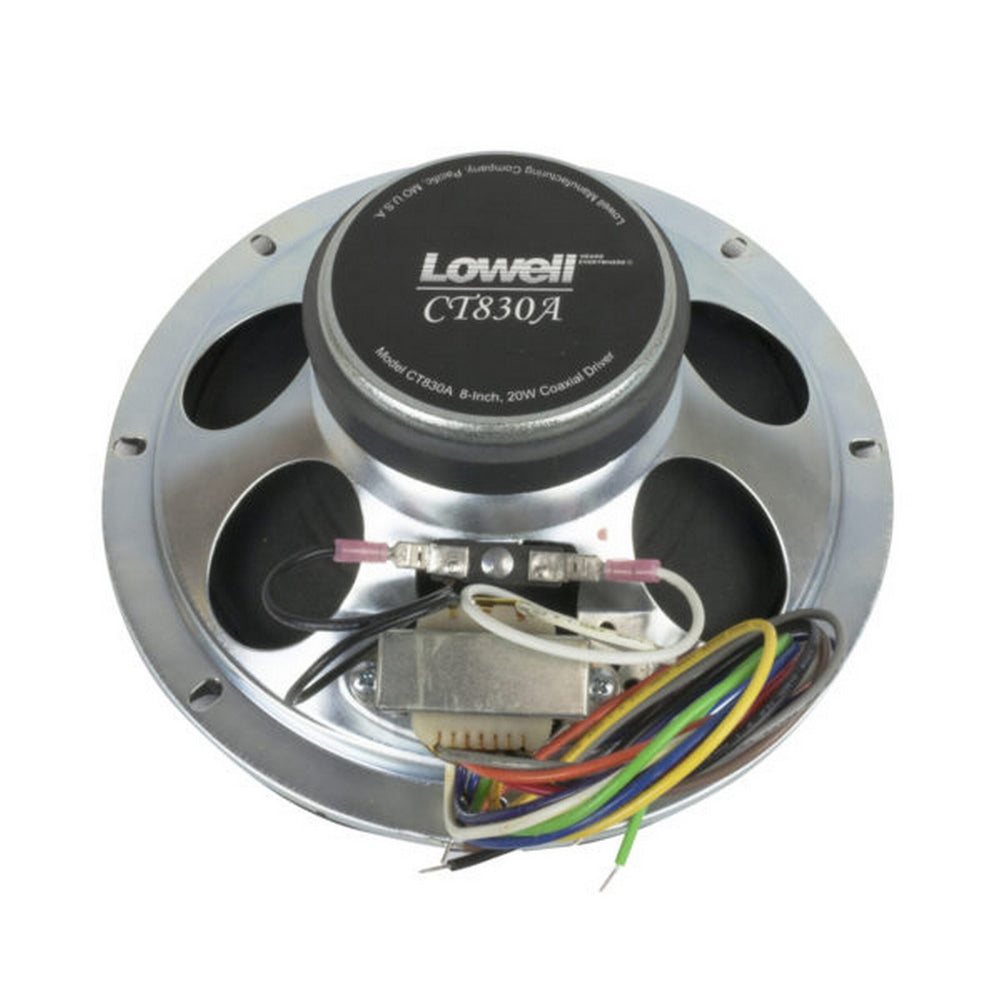

Lowell CT830A-T72 8-Inch 20-Watt Coaxial Speaker Driver with 70/25V Transformer, Single Unit
Lowell CT830A-T72 8-Inch 20-Watt Coaxial Speaker Driver with 70/25V...
Lowell CT830A-T72 8-Inch 20-Watt Coaxial Speaker Driver with 70/25V Transformer, Single Unit
High performance 8 in. 20W coaxial speaker with mounted dual voltage transformer for quality paging and background music.
Technical Specifications
Driver
8 in. 20W coaxial speaker with high frequency driver with first order high pass filter to protect it from harmful bass energy.- 12 oz. ceramic magnet.
Frame
20-gauge stamped steel with zinc-plated finish.
Mounting Bolt Circle
7.625 in. diameter
Transformer
25V/70V with taps at .25, .5, 1, 2, 5W
Assembly Frequency Response
57Hz-13.5kHz (+/-6dB) and 44Hz-20kHz (+/-8.4dB)
Assembly Mounting Depth
3.20 in.
Assembly Dispersion Angle
80 degrees conical
Assembly Average Sensitivity
97.4dB
COMPLIANCE & CERTIFICATION
Made in U.S.A. with global components
Meets or exceeds industry standards
