Lowell DSL-805-72K Surface Mount Speaker, 12W, 8 Inch
Lowell DSL-805-72K Surface Mount Speaker, 12W, 8 Inch
Lowell DSL-805-72K Surface Mount Speaker, 12W, 8 Inch

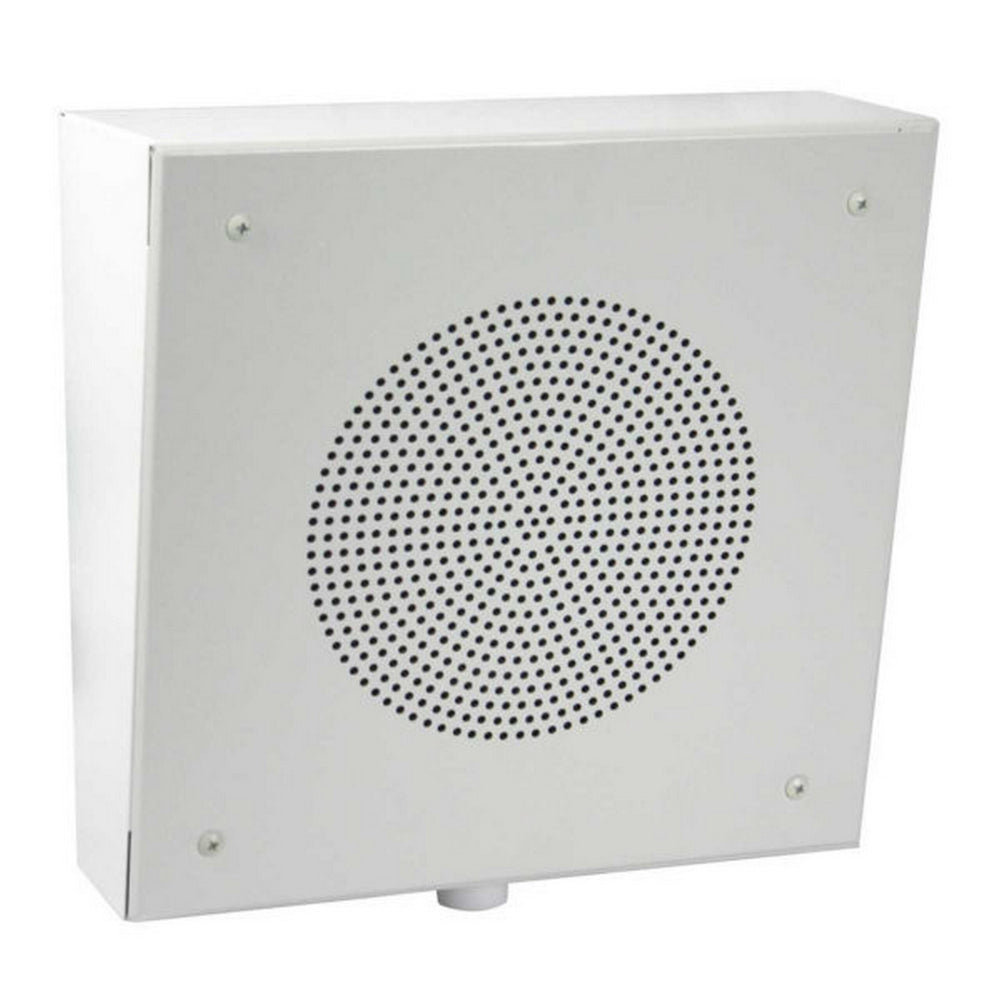

Ready-to-install speaker assembly for background music and paging in classrooms, offices, retail locations and just about anywhere an attractive surface-mount speaker system is required. Includes an 8 inch driver, transformer, enclosure with sloped front and grille. Volume control knob on bottom.
Technical Specifications
Driver (805A)

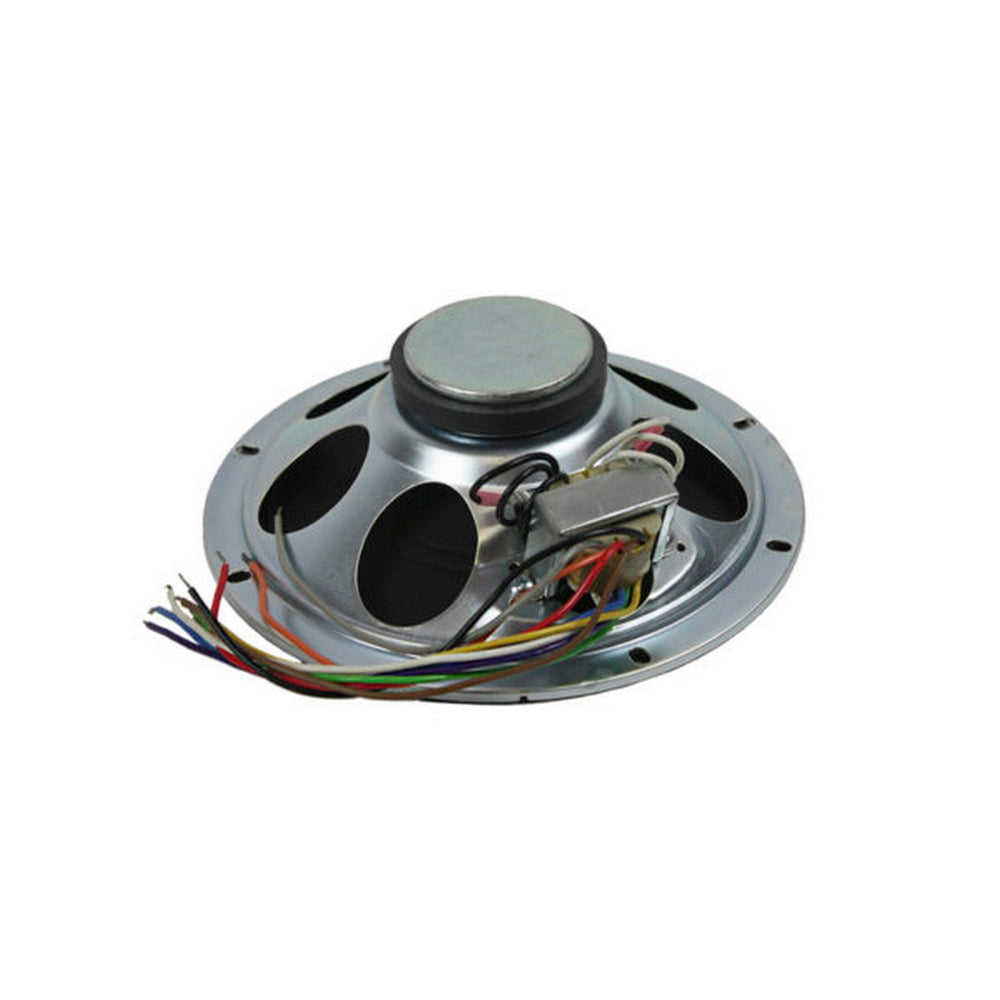

8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572)
25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W.
Enclosure

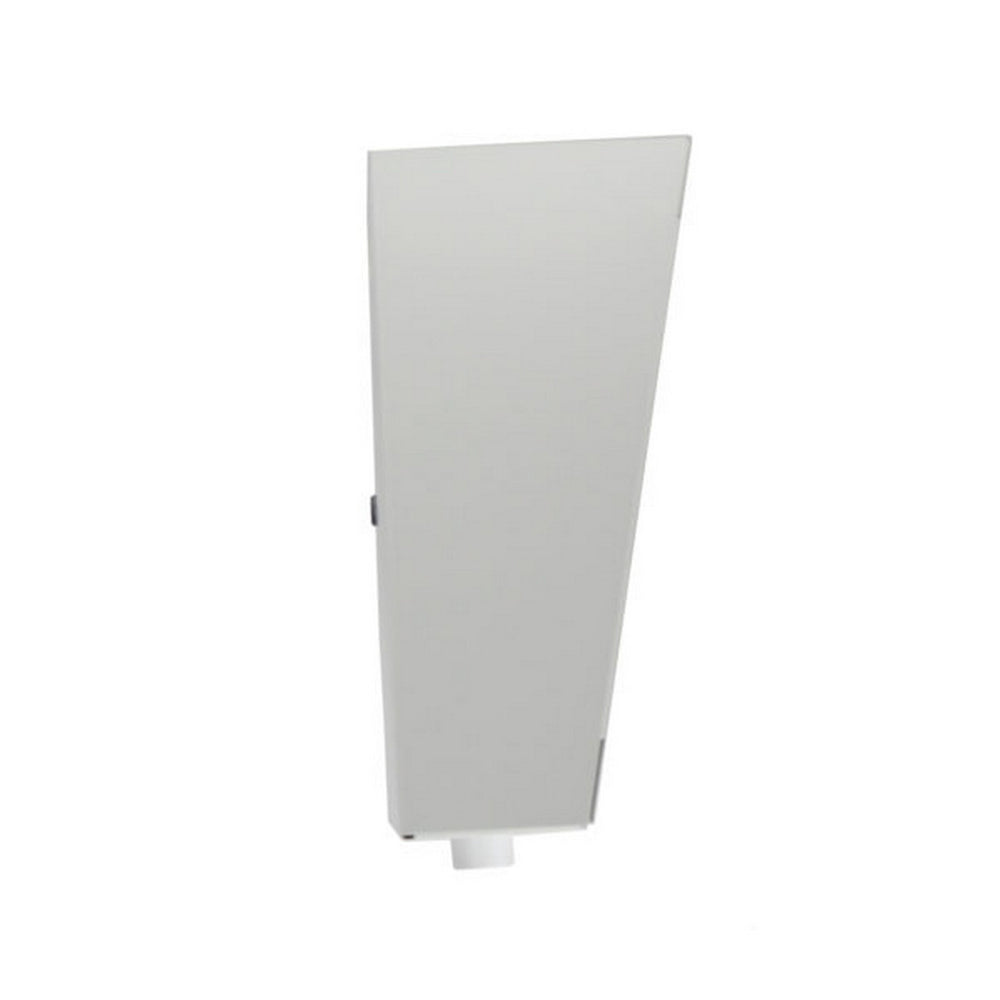

Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White. Volume control knob on bottom.
Grille
Steel with beveled edge and circular hole pattern. White.
Mounting Aids

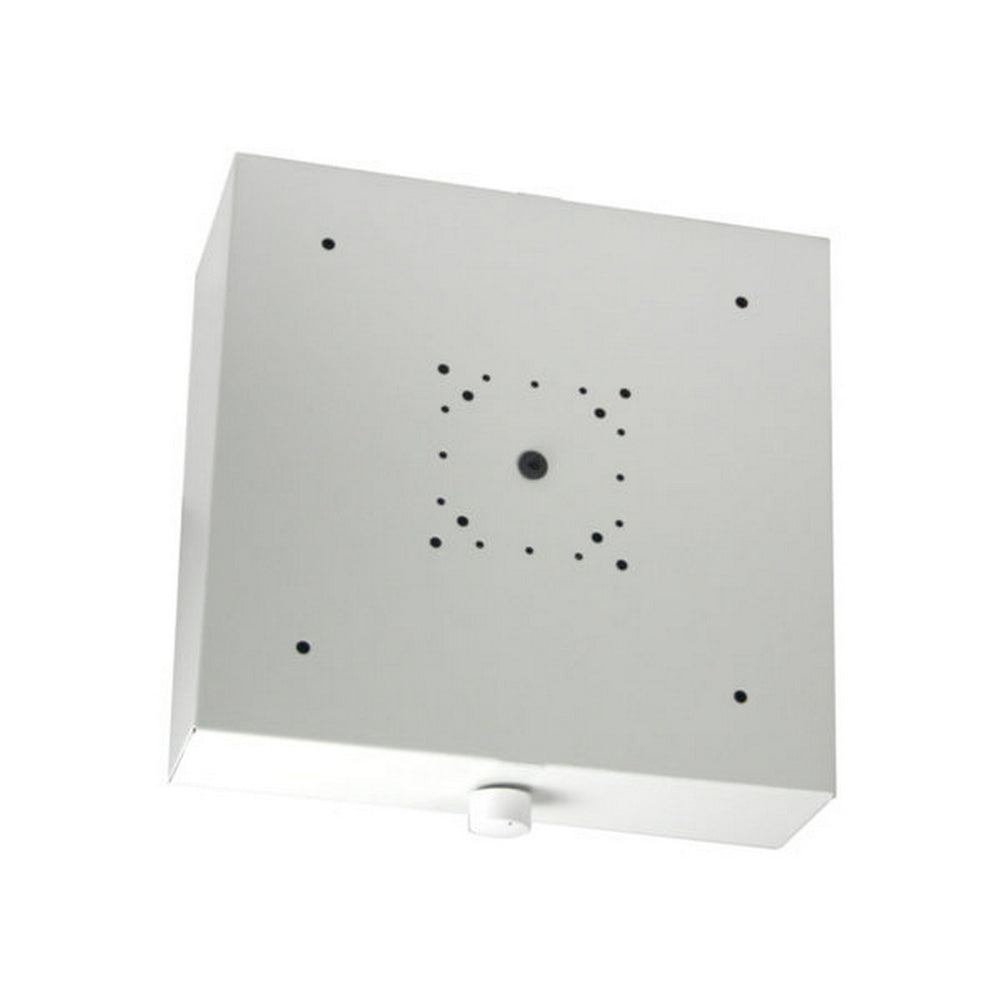

Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold.
System Specifications
Frequency Response 122Hz-7.4kHz (-6dB), 65Hz-20kHz (-12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical.
COMPLIANCE & CERTIFICATION
Certified U.S. steel (grille, enclosure)
Made in Missouri, U.S.A.
