Lowell LT-8A-Vb | 8 Inch Coaxial Speaker, 1 x 2 Tile System, 50W, 8 Ohm, 0.8 cu ft Backbox, Single

Lowell | SKU: LOW-LT8AVB
$25168

Estimated Shipping Widget will be displayed here!

Condition: New

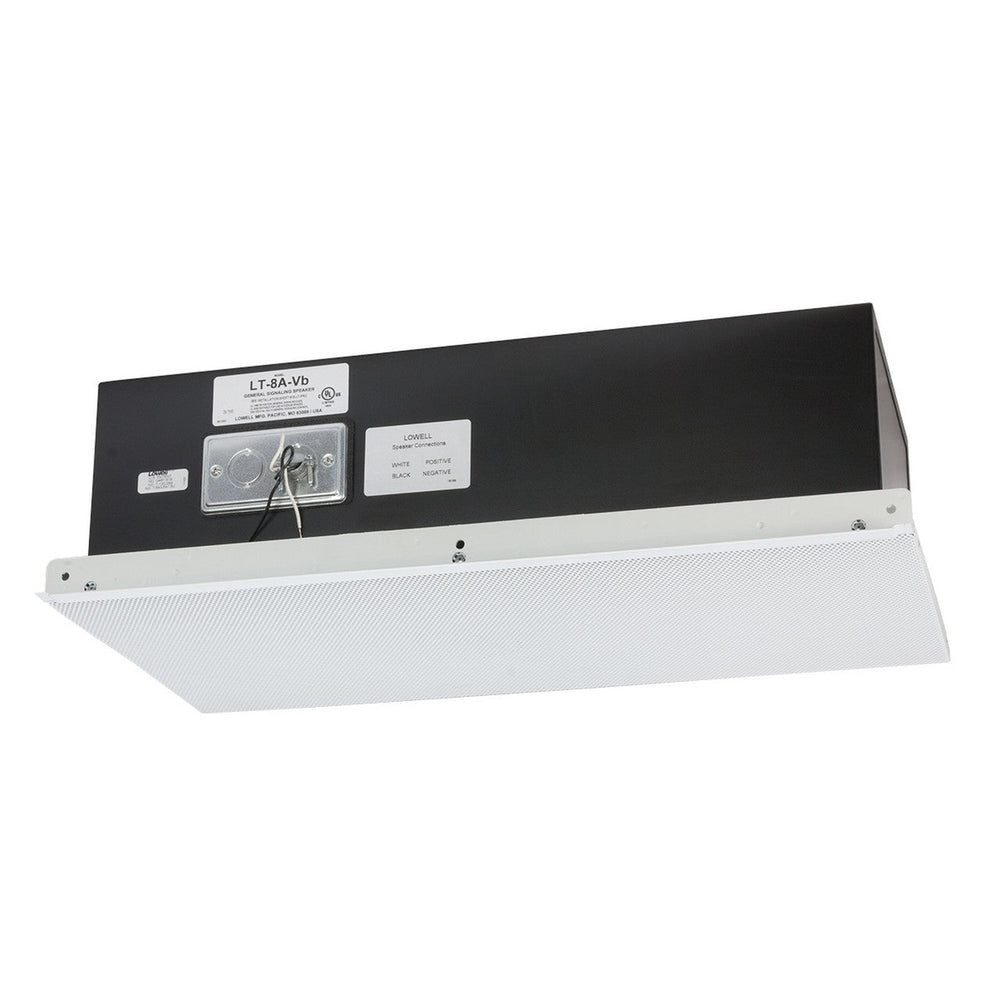

Lowell LT-8A-Vb 8 Inch Coaxial Speaker, 1 x 2 Tile System, 50W, 8 Ohm, 0.8 cu ft Backbox, Single

Quick install pro speaker for suspended tile ceilings features premium 8 in. 50W coaxial driver, fine perforation grille, and .8 cu.ft. enclosure. Patented 1x2 assembly with integral T-bar quickly replaces half a non-tegular (2x2) ceiling tile. U.S. patents 7120269, D467579, 7643647.

ASSEMBLY INCLUDES

-Driver (8A50):- 8 in. 50W coaxial driver with 20 oz. LF ceramic magnet and 2 oz. HF ceramic magnet has frequency response of 40Hz-19.4kHz (-6dB) and 40Hz-20kHz (-7.3dB) and average sensitivity of 90.6dB (1W/1M). Excellent power handling and smooth sound reproduction.

-Enclosure (.8 cu.ft.): Steel backbox with 1.5 in. thick acoustic lining. Removable dual knockout wiring compartment cover plate with combination knockouts. Driver leads exit through metal clamp.

-Grille with Subplate (1 x 2): Fine-perforation grille provides maximum free-air space for excellent sound transmission while maintaining an unobtrusive appearance in new or existing tile ceilings. White.

-Mounting Aids: Patented integral T-bar to support neighboring non-tegular ceiling tile. Restraint tab and hole for two-cable code compliance (cable not included).

The speaker system for suspended tile ceilings shall be Lowell Model No. LT-8A-Vb. The 1'x2' system shall replace half of a non-tegular 2'x2' ceiling tile or one-fourth of a non-tegular 2'x4' ceiling tile and shall include an integral T-bar to support adjacent ceiling tile. Each speaker system shall include a factory-mounted driver mounted to a sub-plate with a fine perforation steel grille finished in white powder epoxy. The driver shall be 8 in. coaxial with a power rating of 50W. It shall have ceramic magnet weight of 20 ozs. (LF) and 2 ozs. (HF), frequency response of 40Hz-19.4kHz (-6dB) and 40Hz-20kHz (-7.3dB) and average sensitivity of 90.6dB measured 1W/1M. The system shall include a steel backbox (.8 cu.ft.) with acoustic lining, removable dual knockout wiring compartment cover plate with 1/2 in.-3/4 in. combination knockouts, and leads exiting through a metal clamp.
