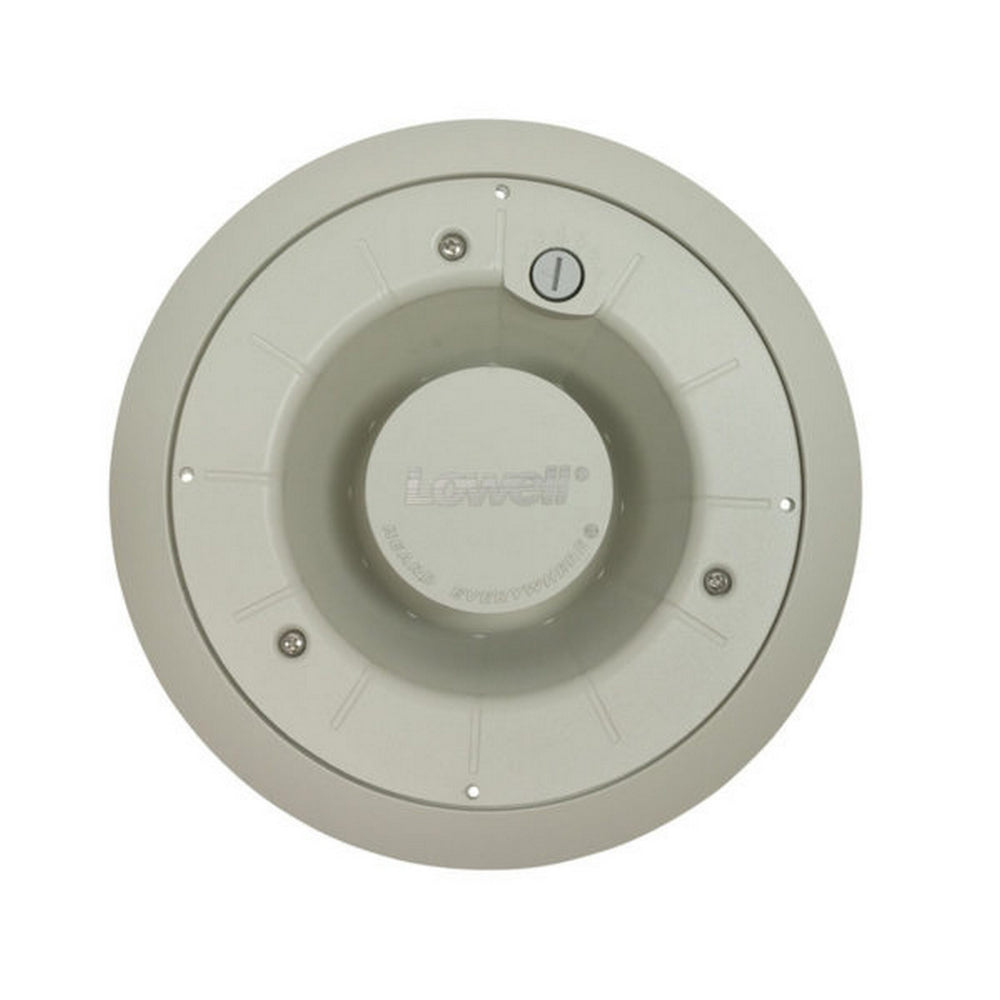

Lowell Unihorn LUH-15TA General Signaling Ready-to-Install Horn with Grille and Trim Ring
For paging and general voice communications (25V, 70V, 100V, 8ohm). The ready-to-install re-entrant horn with weather-resistant housing is engineered for versatile labor-saving installation in brick, concrete block, plaster, drywall, or acoustic tile-indoors or outdoors-recessed or surface-mount-new or retrofit applications.
Key Features
- 15W driver
- Screwdriver-adjustable transformer (25V/70V/100V) plus 8ohm bypass input
- Aluminum housing with moisture-seal cover. Simple two-wire hook-up to the pigtail or through waterproof gland-type cable fitting (see instruction sheet).
- Fine perforation, press-fit aluminum grille fits snugly for a hardware-free appearance, while helping to protect the front of horn from nesting birds and insects.
- Trim ring
- Network Grey finish
- Average Sensitivity 105dB (1W/1M)
- For retrofit applications, this model will accept an EIA standard grille for 8 in. speaker and the UL Listing will remain valid.
Technical Specifications
COMPLIANCE & CERTIFICATION
UL1480A general signaling (USA)
UL2043 suitable for use in return air plenum space (USA)
CSA C22.2 No. 205-12 general signaling (Canada)
