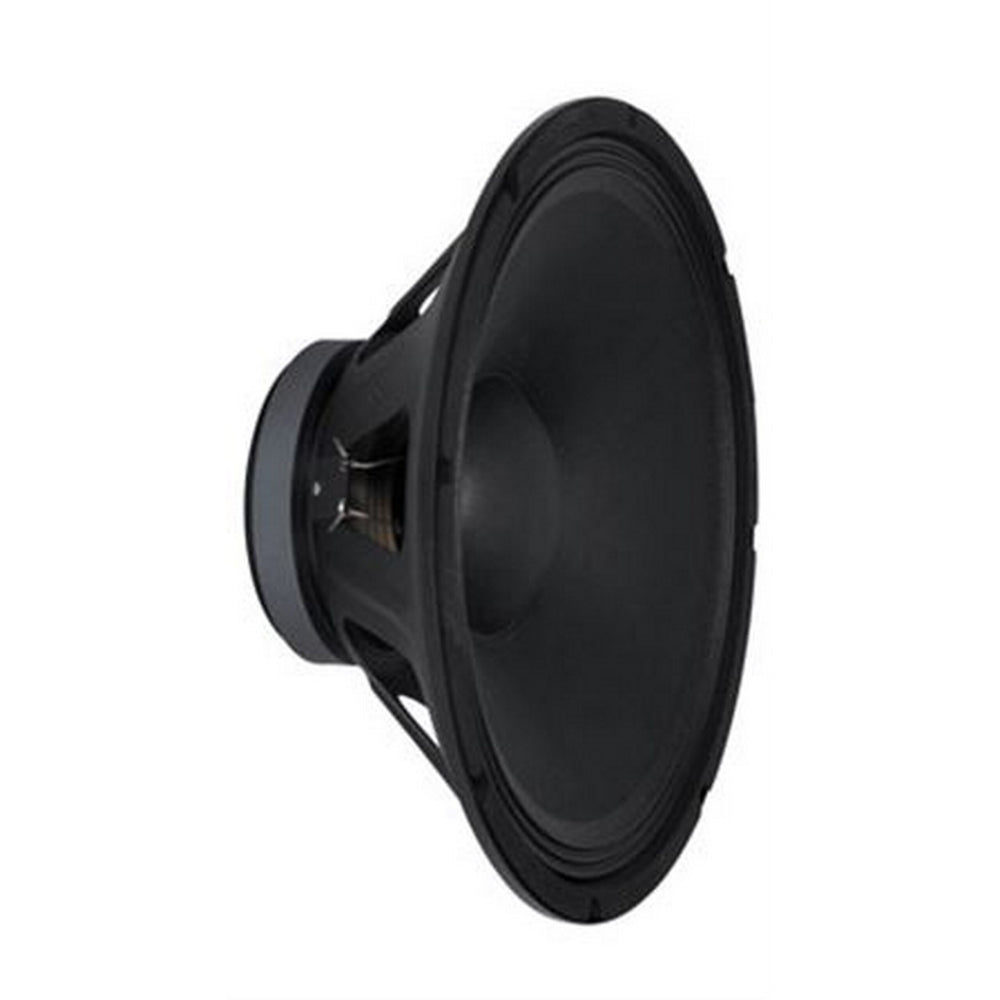

Peavey Pro Series 12 Inch Speaker

Pro Series 12 Speaker

Technical Specifications

Impedance
8 Ohms
Power capacity
800 W Peak 400 W Program 200 W Continuous
Sensitivity
94.3 dB / 1 W 1 m
Usable freq. range
50 Hz ~ 4 kHz
Cone
Kevlar impregnated cellulose
Voice coil diameter
2.375” / 60.3 mm
Voice coil material
2 layers, thermally bonded copper wire, Kapton former, Nomex stiffener
Net weight lb. / kg
9.7 lbs. / 4.4 kg
Znom (ohms) 8
Revc (ohms) 6.00
Sd (Square Meters) 0.053
BL (T/M) 12.36
Fo (Hz) 48.4
Vas (liters) 86.4
Cms (uM/N) 219.7
Mms (gm) 49.10
Qms 3.84
Qes 0.588
Qts 0.510
Xmax 2.5
Le (mH) 0.72
SPL (1W 1m) 94.3
No (%) 1.73%
Vd (cu. in. / ml) 16.2 / 266
Pmax (Watts pgm.) 400
Disp (cu. in. / ml) 73 / 1192
12”
Weight Unpacked
9.92 lb(4.5 kg)
Weight Packed
12.13 lb(5.5 kg)
Width Packed
13.125”(33.3375 cm)
Height Packed
14”(35.56 cm)
Depth Packed
6.75”(17.145 cm)
