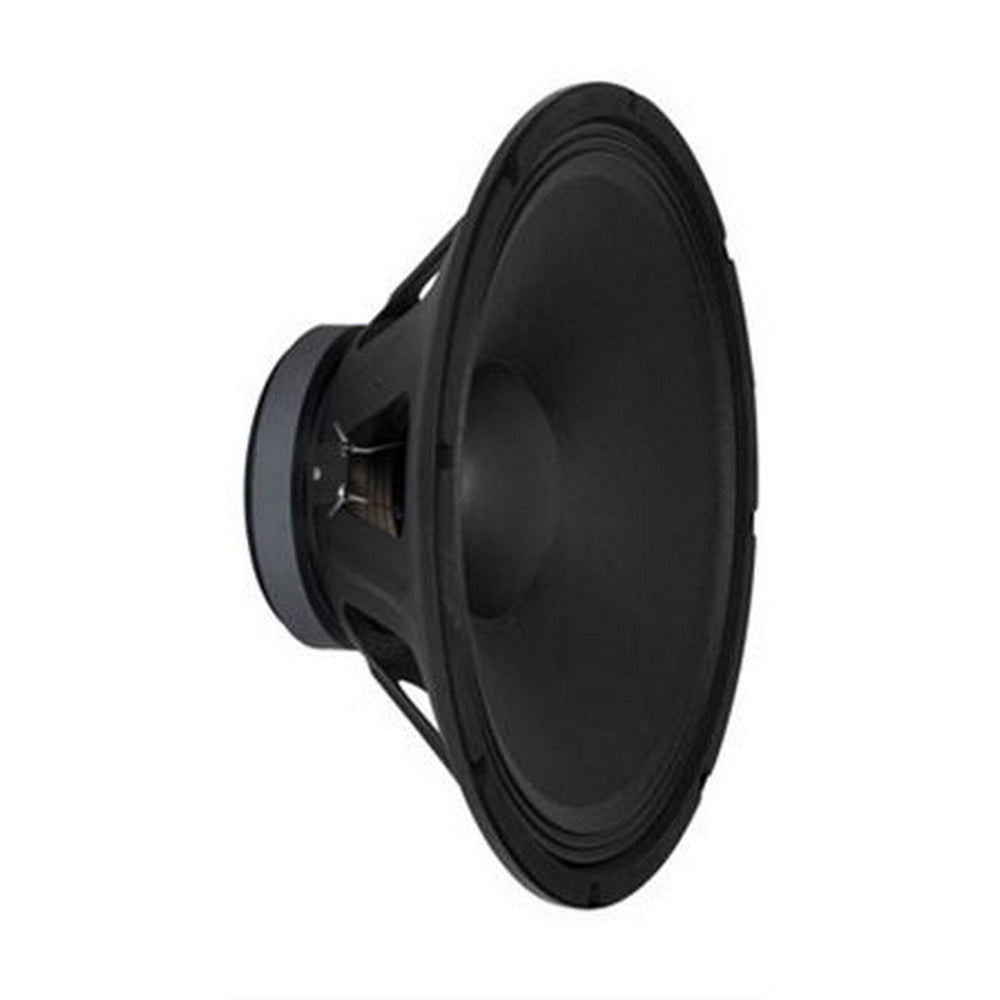

Peavey Pro Series 15 Inch Speaker

Pro Series 15 Speaker

Technical Specifications

Impedance
8 Ohms
Power capacity
800 W Peak 400 W Program 200 W Continuous
Sensitivity
96.4 dB / 1 W 1 m
Usable freq. range
40 Hz ~ 3 kHz
Cone
Kevlar impregnated cellulose
Voice coil diameter
2.5” / 63 mm
Voice coil material
2 layers, thermally bonded copper wire, Kapton former, Nomex stiffener
Net weight lb. / kg
10.4 lbs. / 4.7 kg
Znom (ohms) 8
Revc (ohms) 6.00
Sd (Square Meters) 0.086
BL (T/M) 13.35
Fo (Hz) 34.4
Vas (liters) 331.6
Cms (uM/N) 324.6
Mms (gm) 66.50
Qms 3.58
Qes 0.482
Qts 0.425
Xmax 2.5
Le (mH) 0.74
SPL (1W 1m) 96.4
No (%) 2.40%
Vd (cu. in. / ml) 26.1 / 428
Pmax (Watts pgm.) 400
Disp (cu. in. / ml) 131 / 2154
15”
Weight Unpacked
13.78 lb(6.25 kg)
Weight Packed
15.98 lb(7.25 kg)
Width Packed
16.25”(41.275 cm)
Height Packed
17.25”(43.815 cm)
Depth Packed
7.5”(19.05 cm)
