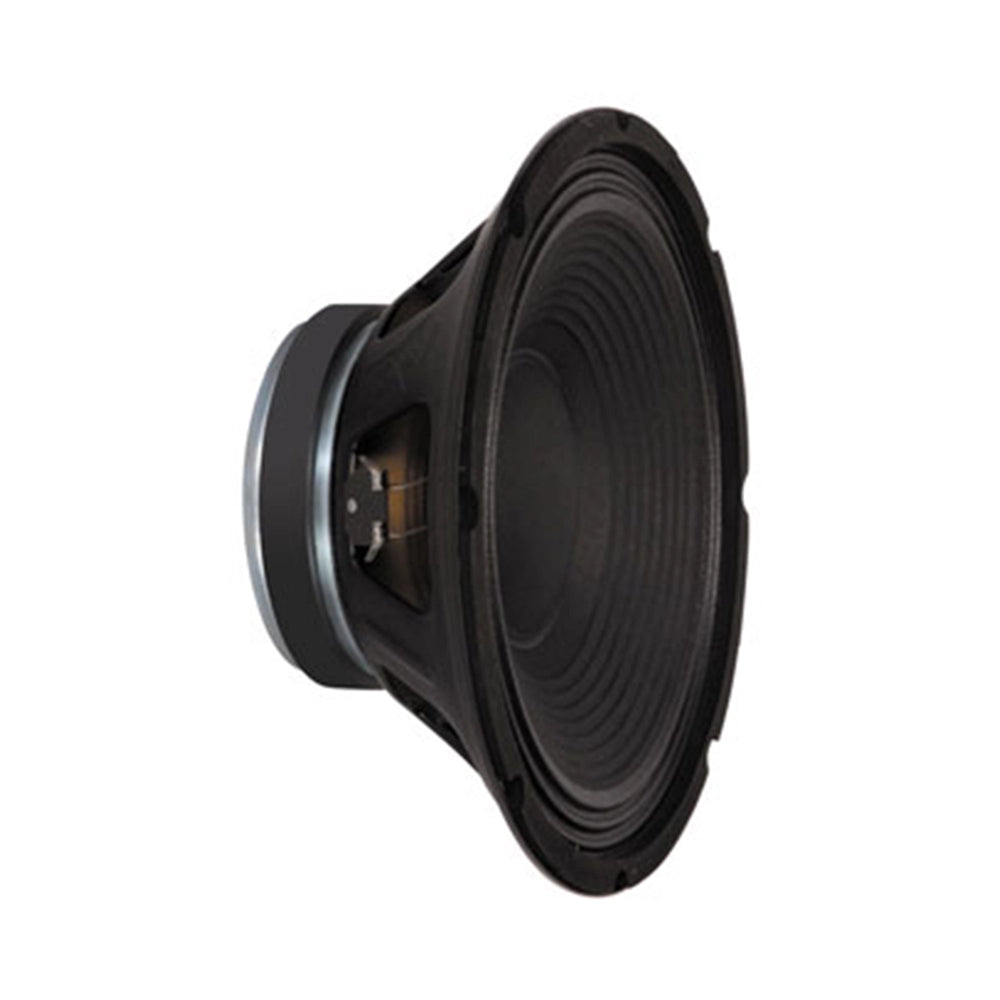

Peavey Sheffield Pro 1200+ 12 Inch Speaker

Sheffield Pro 1200+ Speaker

Key Features

• 12”

Technical Specifications

Revc (ohms) 5.21
Sd (Square Meters) 0.052
BL (T/M) 13.89
Znom (ohms) 8
Vas (liters) 70.0
Cms (uM/N) 179.2
Mms (gm) 49.96
Qms 6.75
Qes 0.451
Net weight lb. / kg
11 lbs. / 5.0 kg
Qts 0.423
Voice coil material
2 layers, thermally bonded copper wire, Kapton former, Nomex stiffener
Xmax 3.6
Voice coil diameter
2.5” / 63.5 mm
Le (mH) 0.33
Cone
Impregnated cellulose
SPL (1W 1m) 96.3
Usable freq. range
50 Hz ~ 4 kHz
No (%) 2.25%
Sensitivity
96.3 dB / 1 W 1 m
Vd (cu. in. / ml) 22.3/365
Power capacity
1000 W Peak 500 W Program 250 W Continuous
Pmax (Watts pgm.) 500
Impedance
8 Ohms
Disp (cu. in. / ml) 121 / 1983
Fo (Hz) 53.2
Weight Unpacked
11.00 lb(4.99 kg)
Weight Packed
13.01 lb(5.9 kg)
Width Packed
6.37”(16.1798 cm)
Height Packed
13.75”(34.925 cm)
Depth Packed
13.25”(33.655 cm)
