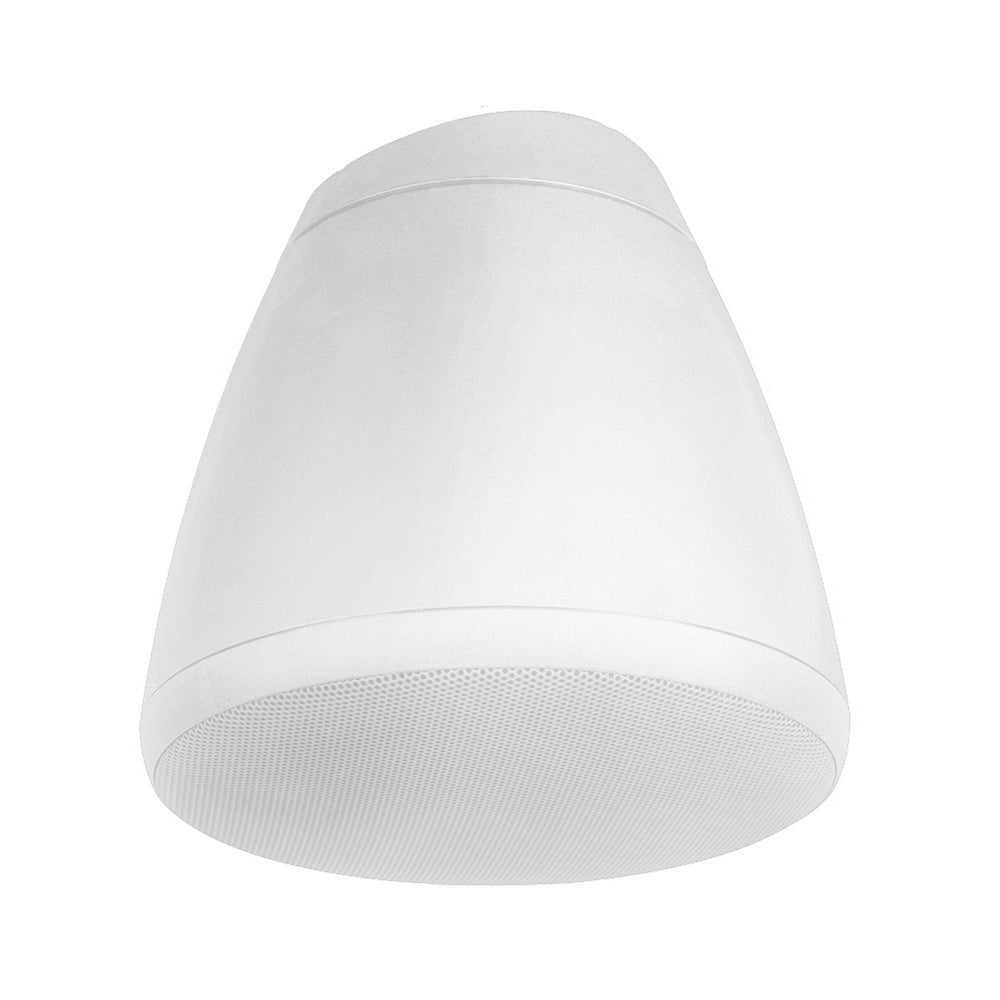

SoundTube IPD-HP82-EZ-WH 8-Inch High Power IP-Addressable Dante Addressable Speaker, White

Dante-enabled coaxial pendant speaker incorporates one 8.0 inch (203 mm) high power coaxial driver with BroadBeamHP compression driver technology for long throw and smooth directivity. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. The speaker may also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications. Aluminum grille with protective powder coated finish. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Technical Specifications

Manufacturer's Category
STNet IP-Addressable and Dante Series
Height
12.9 in / 327.7 mm
Width/Diameter
12.83 in / 325.9 mm
Shipping Weight
14.8 lbs / 6.71 kg
Carton Height
16 in / 406.4 mm
Carton Length
15 in / 381 mm
Carton Width
15 in / 381 mm
Certifications
CE, RoHS, UL60065
Enclosure Properties
Reinforced ABS
Included Accessories
Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional Accessories
White Grille (GRL-RS82-EZ-WH)|10' Hanging Cable (AC-RSEZ-HH-10)|20' Hanging Cable (AC-RSEZ-HH-20)|White Weatherboot (WEATHERBOOT-L-WH)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|White Split Loom Tubing (AC-SLT-10-WH)|Snap Link (AC-SL1)
Crossover Frequency
2.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
5.0 and 3.7
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
5.6 dB and 5.7 dB
Frequency Response (+/- 10 dB)
80 Hz - 22 kHz
Frequency Response (+/- 3 dB)
110 Hz - 22 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
1.5 in / 38.1 mm
Low Pass Crossover
6 dB per octave 1st order
Magnetically Boosted
No
Max. Continuous Power RMS
64 W
Max. Program Power
128 W
Network Type: High Pass
6 dB per octave 1st order
Tweeter Driver
1.38" Titanium Compression Driver w/ Waveguide
Woofer Driver
8" Treated paper cone Cloth surround
Sensitivity dB @ 1W/1M
92 dB
Sensitivity dB @ 2.83V/1M
89 dB
Tap Selector
Rotary Switch
