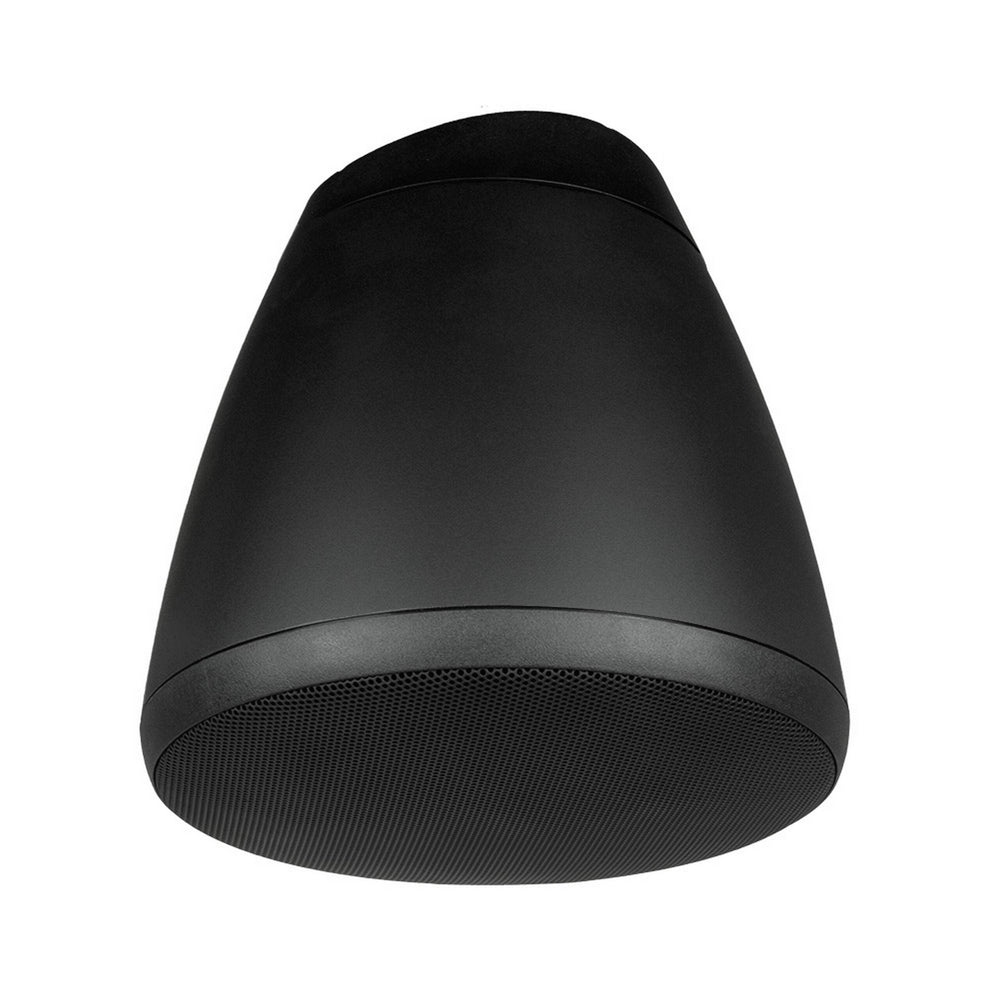

SoundTube IPD-RS62-EZ-BK 6.5-Inch IP-Addressable Dante Addressable Speaker, Black

Dante-enabled coaxial pendant speaker incorporates one 6.5 inch (165 mm) coaxial driver with BroadBeam Ring technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. The enclosure is constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications. Includes an aluminum grille with protective powder coated finish. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Technical Specifications

Manufacturer's Category
STNet IP-Addressable and Dante Series
Height
10.4 in / 264.2 mm
Width/Diameter
10.08 in / 256 mm
Shipping Weight
8.9 lbs / 4.04 kg
Carton Height
13.5 in / 342.9 mm
Carton Length
12.25 in / 311.15 mm
Carton Width
12 in / 304.8 mm
Certifications
CE, RoHS, UL60065, FCC
Enclosure Properties
Reinforced ABS
Included Accessories
Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional Accessories
Black Grille (GRL-RS62-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Crossover Frequency
3.0 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
3.6 and 7.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
5.5 dB and 8.5 dB
Frequency Response (+/- 10 dB)
80 Hz - 22 kHz
Frequency Response (+/- 3 dB)
100 Hz - 20 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
10.4 in / 264.16 mm
Low Pass Crossover
6 dB per octave 1st order
Magnetically Boosted
No
Max. Continuous Power RMS
32 W
Max. Program Power
64 W
Network Type: High Pass
6 dB per octave 1st order
Tweeter Driver
1" Silk Dome w/ BroadBeam Ring
Woofer Driver
6.5" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 2.83V/1M
88.2 dB
Tap Selector
Rotary Switch
