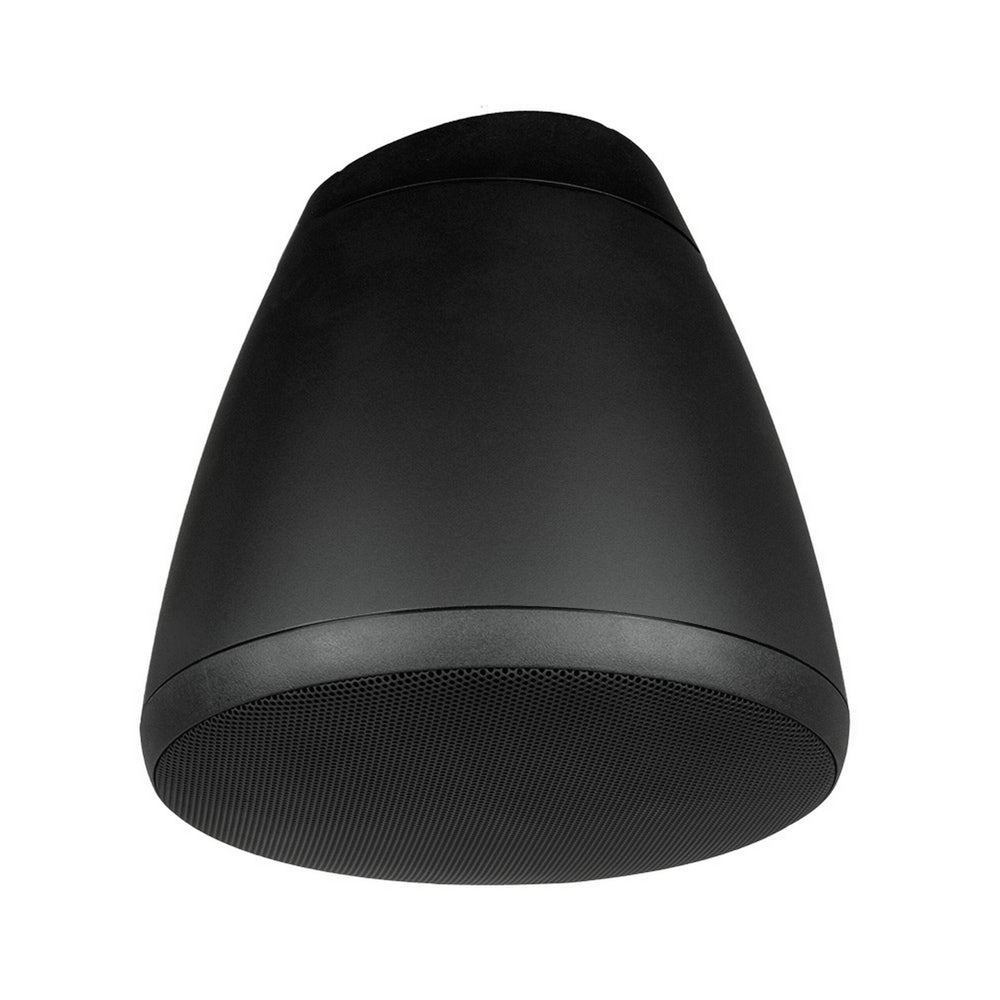

SoundTube IPD-RS82-EZ BK 8-Inch IP-Addressable Dante Addressable Speaker, Black

Dante-enabled coaxial pendant speaker incorporates a 203 mm (8.0 in.) coaxial driver with BroadBeam Ring technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications. Aluminum grille with protective powder coated finish. UnIt'ships in eco-friendly, recyclable packaging. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Technical Specifications

Manufacturer's Category
STNet IP-Addressable and Dante Series
Height
12.9 in / 327.7 mm
Width/Diameter
10.08 in / 256 mm
Shipping Weight
13.55 lbs / 6.15 kg
Carton Height
16 in / 406.4 mm
Carton Length
15 in / 381 mm
Carton Width
15 in / 381 mm
Certifications
CE, RoHS, UL60065, FCC
Enclosure Properties
Reinforced ABS
Included Accessories
Adapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland
Optional Accessories
Black Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Crossover Frequency
2.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)
6.7 and 6.0
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)
6. 7db and 7.8 dB
Frequency Response (+/- 10 dB)
80 Hz - 22 kHz
Frequency Response (+/- 3 dB)
100 Hz - 22 kHz
Grille Properties
Aluminum, Powder-Coated
Low Frequency Voice Coil
1 in / 25.4 mm
Low Pass Crossover
6 dB per octave 1st order
Magnetically Boosted
No
Max. Continuous Power RMS
64 W
Max. Program Power
128 W
Network Type: High Pass
6 dB per octave 1st order
Tweeter Driver
1" Silk Dome w/ BroadBeam Ring
Woofer Driver
8" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M
92 dB
Sensitivity dB @ 2.83V/1M
89 dB
Tap Selector
Rotary Switch
